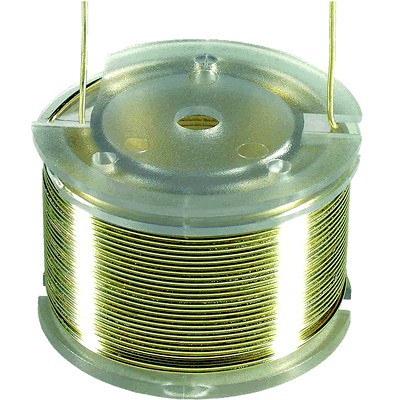

INTERTECHNIK LU44/30-AG Copper / Silver Air Self 0.8mm 1mH
Air coil wound with 0.8mm diameter copper wire, silver plated and covered with a thermoplastic anti-vibration film. Transparent polycarbonate support. The air coils are, for physical reasons, totally unbeatable in terms of precision on the restitution of the impulses.
No customer reviews yet, login to write a review.
By buying this product you get 1 loyalty point
Reference : 4598
New product
![[GRADE S] IBASSO DX240 Digital Audio Player DAP DAC ES9038Po Balanced Bluetooth 5.0 WiFi 32bit 768kHz DSD512 MQA Black](https://www.audiophonics.fr/53668-thumb_default/-grade-s-ibasso-dx240-digital-audio-player-dap-dac-es9038po-balanced-bluetooth-50-wifi-32bit-768khz-dsd512-mqa-black.jpg)
![[GRADE A] AUNE S17 PRO Discrete Class A Balanced Headphone Amplifier / Preamplifier 7500mW @32Ω Black](https://www.audiophonics.fr/69093-thumb_default/aune-s17-pro-black.jpg)
![[GRADE S] MINIDSP FLEX HT Audio DSP Processor 2x8 Channels SHARC ADSP21489 XMOS HDMI ARC eARC](https://www.audiophonics.fr/68133-thumb_default/minidsp-flex-ht-stockb.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
INTERTECHNIK LU44/30-AG
Copper / Silver Air Self 0.8mm 1mH
Air coil wound with 0.8mm diameter copper wire, silver plated and covered with a thermoplastic anti-vibration film. Transparent polycarbonate support. The air coils are, for physical reasons, totally unbeatable in terms of precision on the restitution of the impulses. Their design exempts them from any form of distortion, unlike ferrite coils.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Air self |
| Inductance | 1mH |
| Resistance | 0.77Ω |
| Tolerance | 3% |
| Material | Silver plated Copper 0.8mm |
| Insulation | Anti-vibration thermoplastic |
| Support | Polycarbonate |
| Operating temperature | 25°C @ 1kHz |
| Contacts length | 10mm |
| Dimensions | |
|---|---|
| Diameter D | 44mm |
| Diameter d1 | 25.5mm |
| Diameter d2 | 5.3mm |
| Diameter d3 | 28mm |
| Height H | 30mm |
| Height h1 | 23mm |
