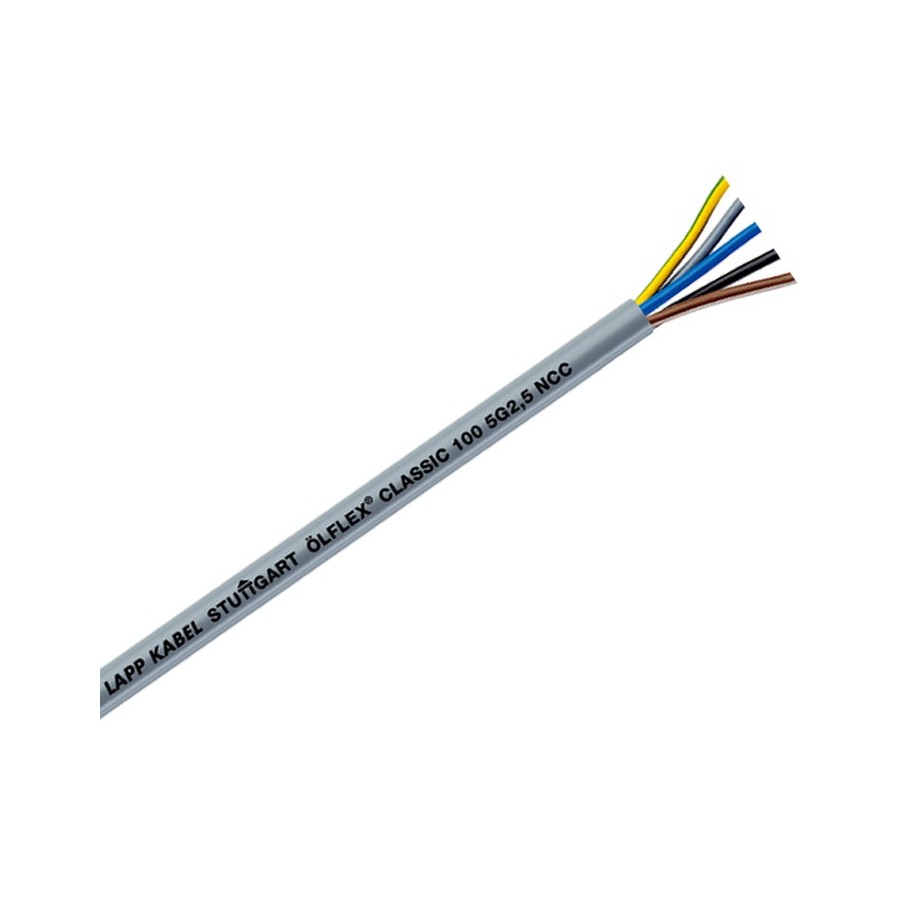

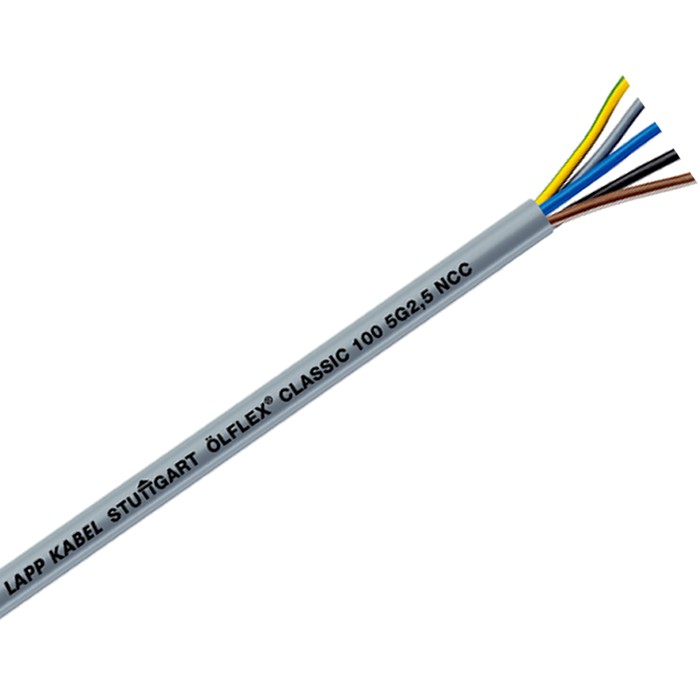

OLFLEX CLASSIC 100 Power cable 3x0.75mm Ø 5.7mm

High electrical performance thanks to its 4kV test voltage.
Great flexibility thanks to the layers of conductors.

Characteristics :

• Up to 1.5 mm²: Rated voltage U0 / U: 300/500 V
• Starting at 2.5 mm²: Rated voltage U0 / U: 450/750 V
• Conductor cross-section up to 185 mm²
• External Diameter: 5.7mm
• Copper rating kg: 21.6
• Specific flow resistance insulation:> 20 GOhm x cm
• Design of the core: Fine strands according to VDE 0295, Class 5 / IEC 60228 class 5
• Minimum bending radius:
  • Occasionally movable: 15 x outside diameter
  • Fixed: 4 x outside diameter
• Nominal voltage:
  • Up to 1.5 mm²: U₀ / U: 300/500 V
  • Starting from 2.5 mm²: U₀ / U: 450/750 V
  • From 2.5 mm² in fixed and protected installation: U₀ / U: 600 / 1000V
• Test voltage: 4000 V
• Protective conductor:
  • G = with protective conductor ve / ja
  • X = without protective conductor
• Temperature range:
  • Occasionally mobile: -5 ° C to + 70 ° C
  • Fixed installation: -40 ° C to + 80 ° C

Applications:

• Industrial engineering, Mechanical engineering, Heating and air conditioning, Power stations
• In dry or wet rooms with medium mechanical loads
• For fixed installation or occasionally mobile use without guidance and not subjected to tensile load
• Designed for torsional applications, typical in wind turbines

Model:

• Fine copper strands
• PVC special insulation Lapp P8 / 1
• Layer Assembly
• Sheath: PVC, gray
• Approvals / standards references
• According to IEC 60227-5 and EN 50525-2-51

Specials:/ Strong>

• Non-propagating according to IEC 60332-1-2
• Good chemical resistance
