VIABLUE EPC-4 T8 STEREO SMALL Jack 3.5mm Stereo Male Cable 1m Black
By buying this product you get 13 loyalty points
![[GRADE B] DAYTON AUDIO MKSX4 Low Profil Subwoofer Speaker 160W Ø20cm](https://www.audiophonics.fr/72897-thumb_default/dayton-audio-mksx4-low-profil-subwoofer-speaker-160w-o20cm.jpg)

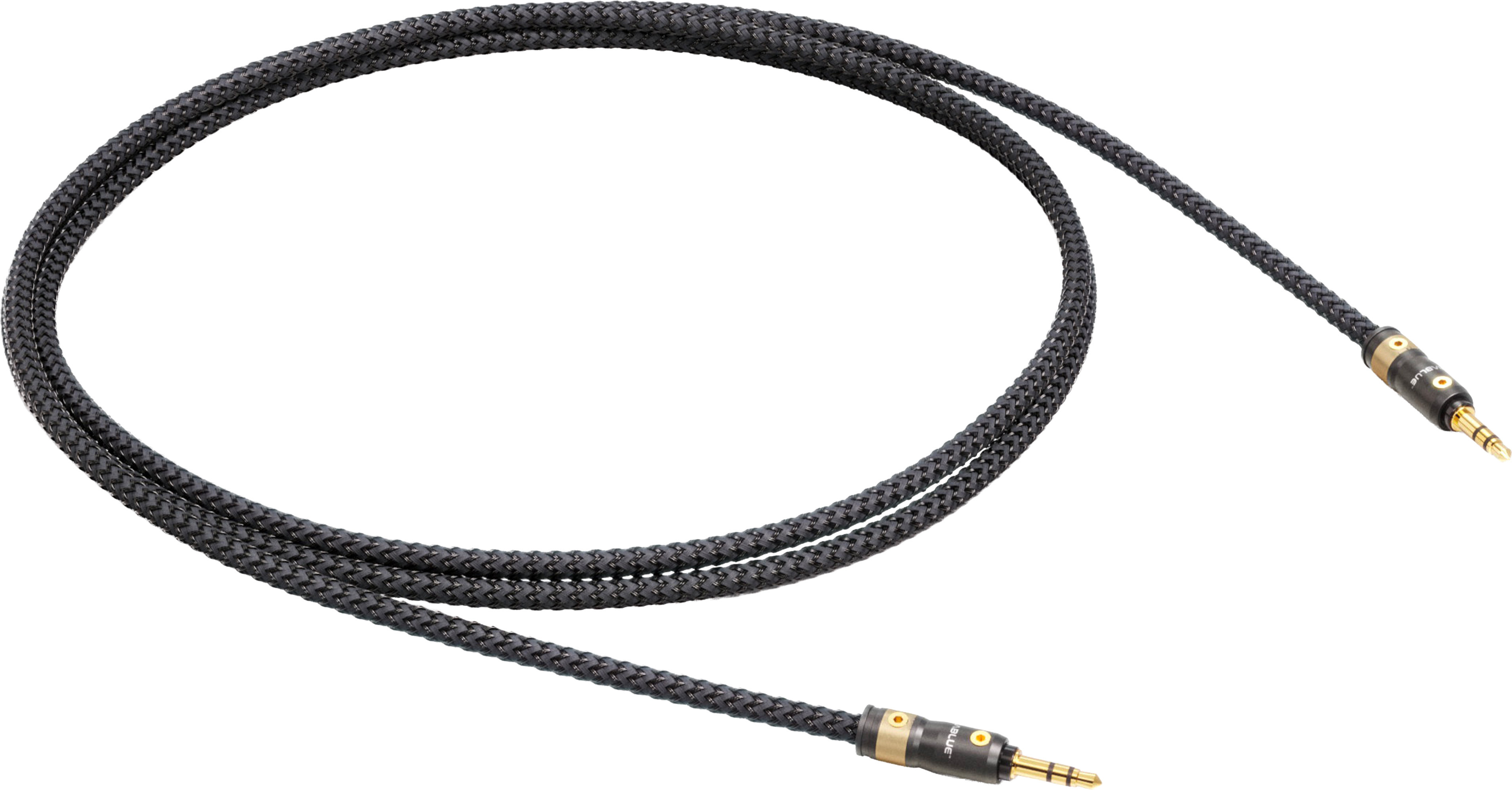

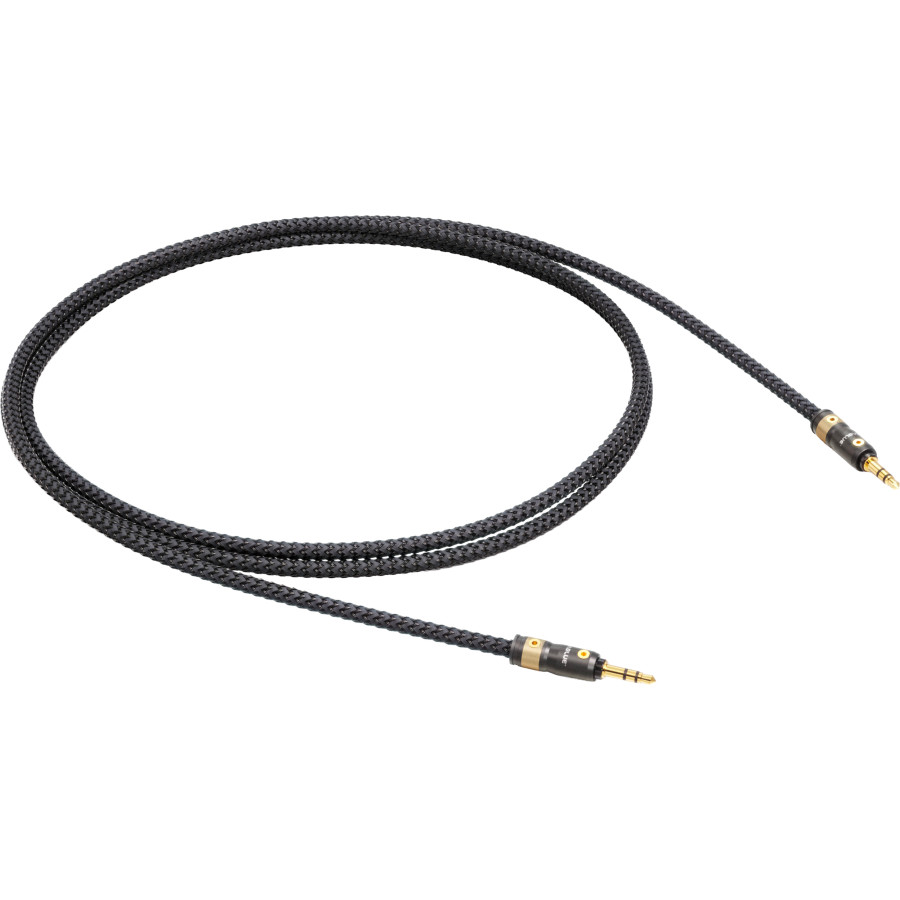

Viablue EPC-4 T8 Stereo Small Male Stereo Jack 3.5mm Cable 1m Black
The Viablue EPC-4 T8 Stereo Small is a stereo Jack 3.5mm to Jack 3.5mm cable designed for earphones and headphones. It uses tinned OFC copper conductors and features a capacitance of 45pF/m, for an outer diameter of 5mm, sheath included.
Its design combines tinned OFC copper conductors with a silver-plated OFC copper shielding and an ALU-PET foil, in order to limit electromagnetic interference while maintaining stable signal transmission. The flexible sheath with a 5mm outer diameter preserves the flexibility required for use with headphones or earphones.
Viablue EPC-4 T8 Stereo Small: Architecture

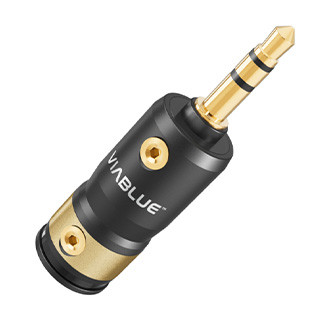

The cable conductors are made of tinned OFC copper strands. The shielding combines a silver-plated OFC copper spiral with an ALU-PET foil, with a capacitance reaching 90pF/m. The cable finish thus relies on a combination of silver-plated copper and tinned copper. The VIABLUE T8 Stereo Small connectors use a stereo Jack 3.5mm format and 24K gold plating. The whole is protected by a matte satin sheath, a flexible wrap and a VIABLUE Cobra protective sheath, while the cable has an outer diameter of 5mm, sheathing included.
Diagram of the Viablue EPC-4 T8 Stereo Small cable
| 1 | Flexible cable sheath |
| 2 | Insulating foil |
| 3 | Spiral shielding, silver-plated OFC copper strands |
| 4 | Protective foil, silver ALU PET |
| 5 | Inner conductor, tinned OFC copper strands |
Technical specifications
| Specifications | |
|---|---|
| Product type | Jack 3.5mm cable |
| Connectors | 2x Jack 3.5mm |
| Length | 1m |
| Shielding | |
| Conductor materials | Tinned OFC copper Silver-plated OFC copper |
| Contact plating | 24K Gold |
| Cable diameter | 5mm with sheath |
| General | |
|---|---|
| Color | Black |
| Package | Sold individually |
| Length (m) | 1.0 |
| Shielding | Yes |
| Section (mm²) | N/A |
| Connector | Jack 3.5mm |
| Conductors material (Cable) | Copper |
| Conductors material (Cable) | Silver |
| Conductors Plating (Cable) | None |
