CD Player PCM1795 GE5670 Tubes 32bit 192kHz

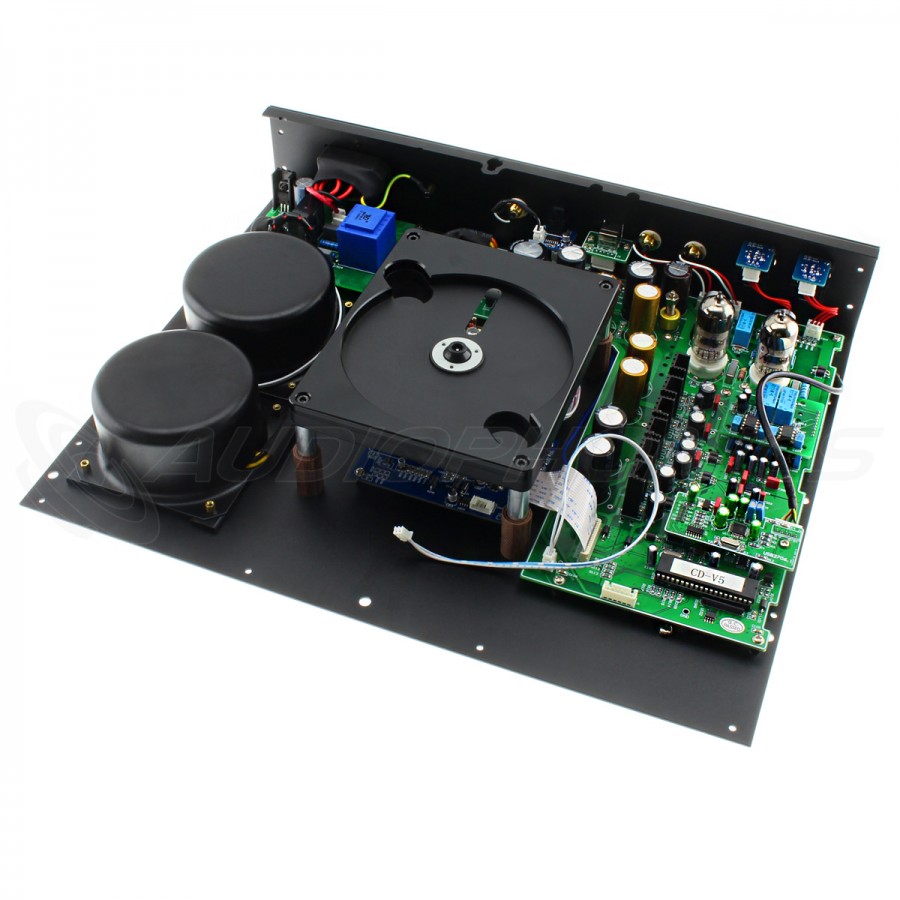

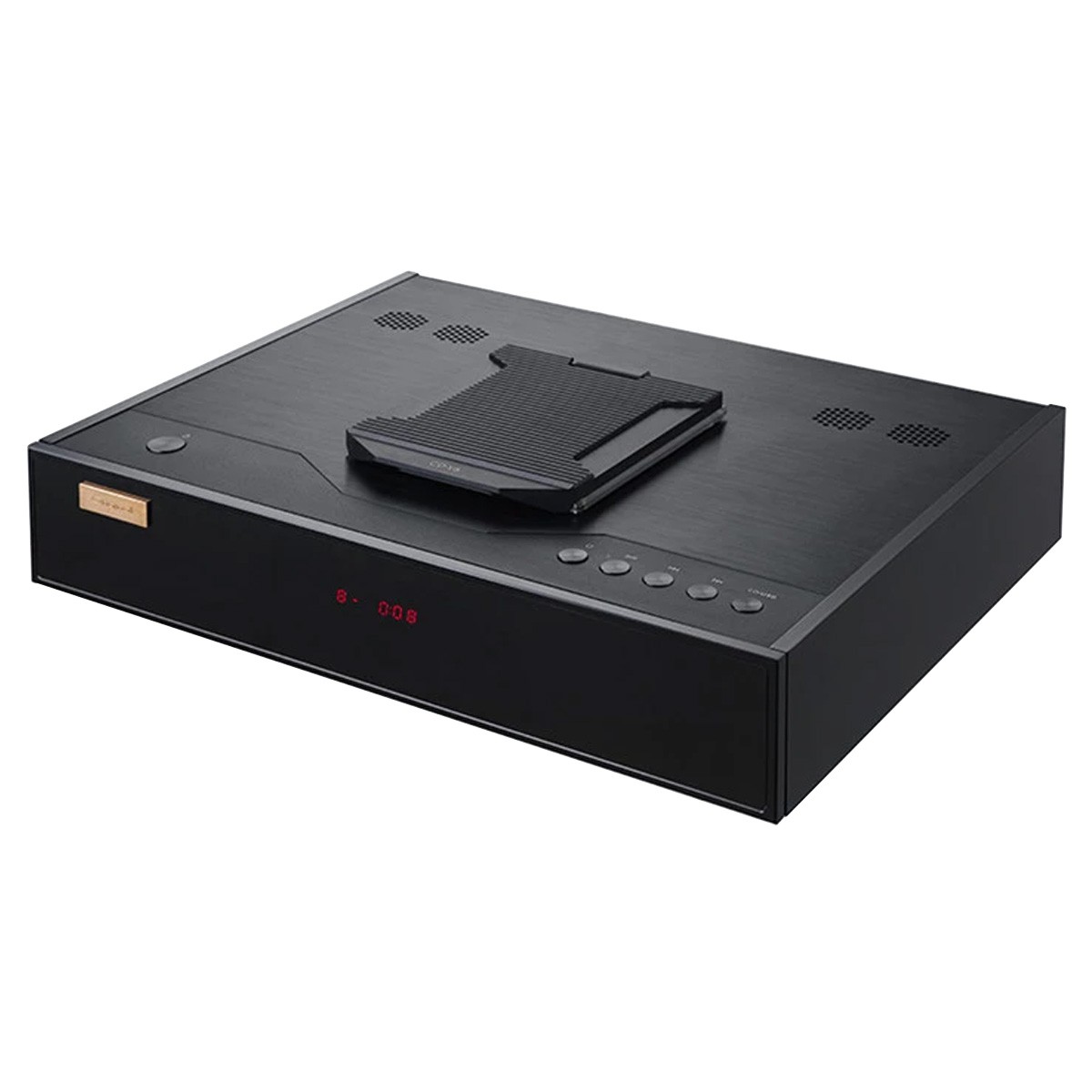

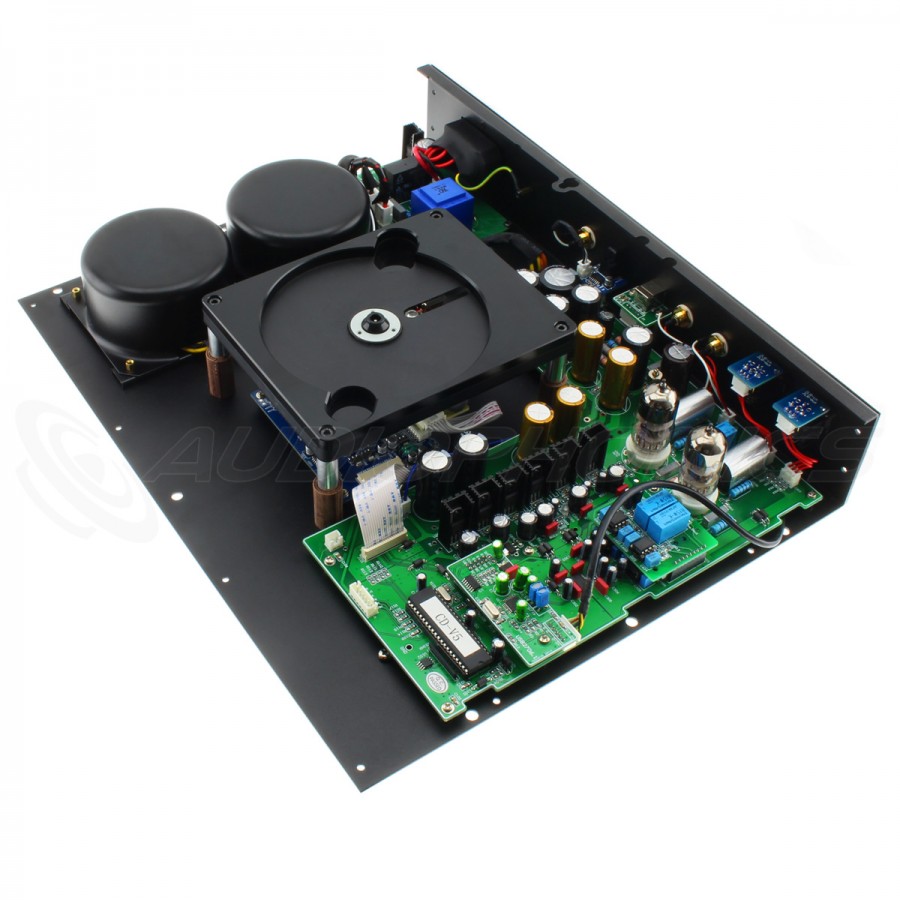

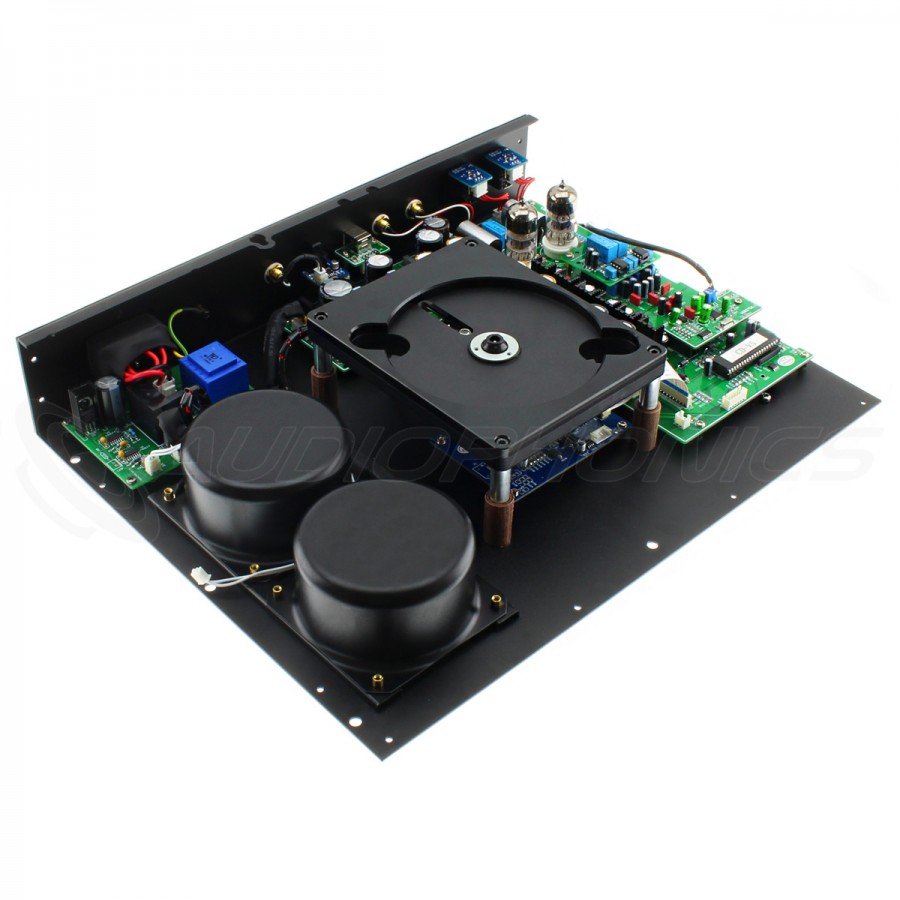

The Original Audio CD-V5 is firstly noticed by its modern and pure design, with assertive lines. This aesthetic is complemented by excellent performance with an SNR and a dynamic range measured at 100dB as well as a THD of only 0.0025%. To achieve this, the CD-V5 uses quality components, including five OPA2134 PDUs and a digital-to-analog conversion stage based on a PCM1795 DAC chip. Of singular design, the analog RCA output stage is amplified by a pair of GE5670 tubes. The power supply stage embeds two toroidal transformers with shields, ensuring a clean and stable electrical signal, effectively limiting interference.

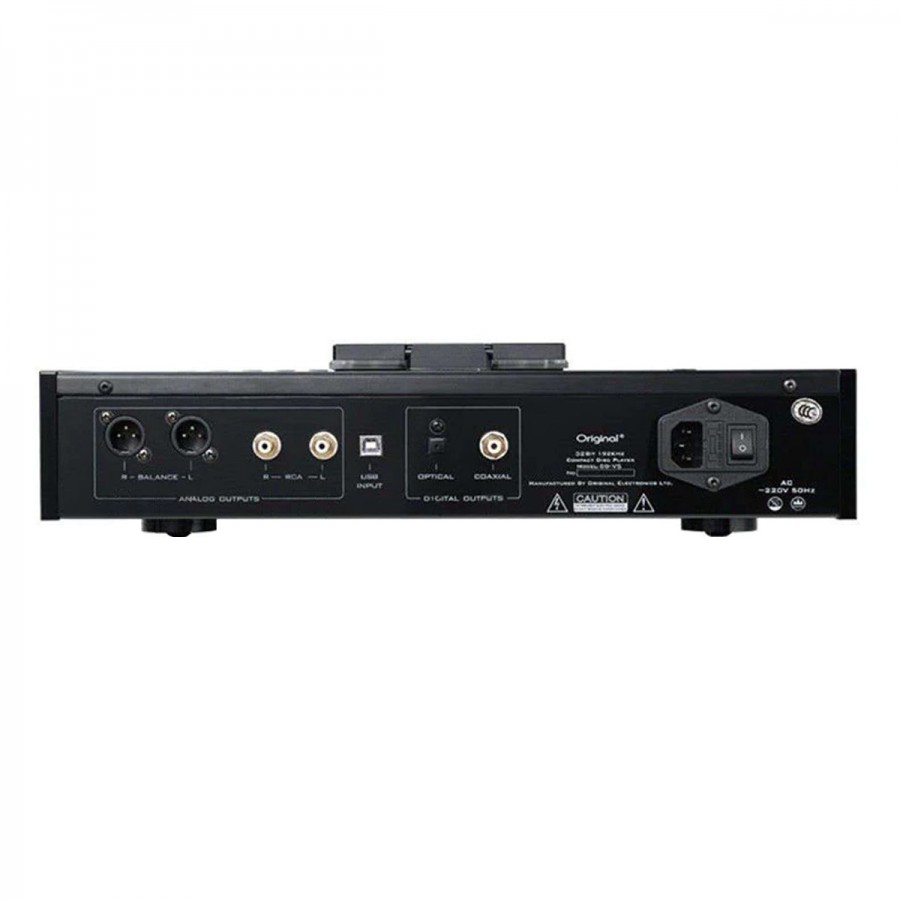

In addition to CD playback, the CD-V5 provides a USB-B audio input, supporting sample rates up to PCM 32bit 192kHz. On the output side, there are Toslink optical and coaxial outputs, as well as a single-ended RCA output and a balanced XLR output.
Specifications | |
---|---|
Product type | CD Player |
Inputs | CD 1x USB-B |
Outputs | 1x Balanced stereo XLR 1x Single-ended stereo RCA 1x Optical Toslink 1x Coaxial |
DAC Chip | PCM1795 |
Supported sampling rates | PCM up to 192kHz |
OPA | 5x OPA2134 |
Tubes (RCA analog output) | 2x GE5670 |
Frequency response | 20Hz-20kHz, 2dB |
SNR | 100dB |
Dynamic range | 100dB |
THD | 0.0025% |
Output level | 2Vp-p |
General | |
---|---|
Supply voltage | 220VAC 50Hz |
Dimensions | 430 x 330 x 80mm |
Weight | 8.5kg |
Color | Black |
Operating temperature | +5°C / +35°C |
