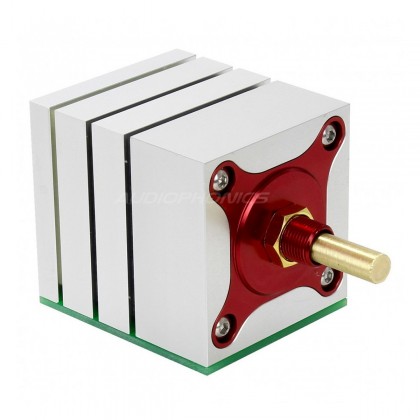

KHOZMO ACOUSTIC 48-Position Stereo Attenuator Shunt CMS 100k 1%

KHOZMO ACOUSTIC 48-position Stereo Attenuator Shunt CMS 100k 1%
This passive attenuator uses a precision resistor which is connected in parallel with a mechanical 1% SMD resistor switch.  This resistor is connected to the potentiometer, which, depending on its position, connects the output more or less to ground and thus varies the volume.

No customer reviews yet, login to write a review.

By buying this product you get 17 loyalty points


Reference : 14364
New product

179,00 €tax incl.

149,17 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 09-10-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Khozmo Acoustic Attenuator

48-Position Stereo Attenuator Shunt CMS 100k 1%

Khozmo Acoustic Atténuateur Stéréo 48 Positions Shunt CMS 100K 1%

This passive attenuator uses a precision resistor which is connected in parallel with a mechanical 1% SMD resistor switch.  This resistor is connected to the potentiometer, which, depending on its position, connects the output more or less to ground and thus varies the volume.

It is therefore the R-In resistor that conditions the minimum input impedance, when the potentiometer is on the 0 position. A true jewel of audio goldsmithing, this magnificent 48-position stereo attenuator is entirely assembled by hand in Europe. It is composed of 1% SMD resistors and a CNC machined aluminium body which gives it a very high end design. This type of potentiometer is clearly superior to carbon track potentiometers because the signal only passes through 2 resistors. Wear and tear is also much less important.

Technical characteristics

Specifications
Product typeAttenuator
ChannelStereo (2)
Number of position48
ResistanceCMS 100k 1%
Life cycle> 50000 cycles
Indexing angle7.2°
MachiningCNC
Body materialMassive Aluminium
Shaft diameterØ6mm
Type of mechanicsBall bearing
Shunt typeTwo resistors
SwitchingMBB
Range-60dB - 0dB
ContactsMassive gold
Contact treatmentPolishing
Channel balance±0.1dB
General
Dimensions hors axe (L x H x P)42 x 52 x 49mm
Total length (with shaft)75mm
Weight200g

Data sheet
ShaftSmooth
Channel2 (Stereo)
Resistance (Ohm)100000.0
Tolerance (%)1
