KHOZMO ACOUSTIC Motorized Attenuator Kit Shunt Stereo 48 positions CMS 100k 1%

KHOZMO ACOUSTIC Motorized Attenuator Kit Shunt Stereo 48 positions CMS 100k 1%

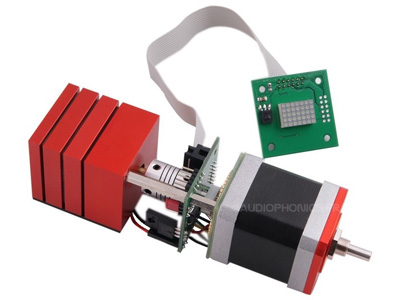

This kit consists of a motorized attenuator, a LED matrix display and its IR remote control. The attenuator uses a precision resistor mounted in parallel with a mechanical switch with 1% SMD resistance. This resistor is connected to the potentiometer, which, depending on its position, connects more or less the output to the ground and thus varies the volume.

No customer reviews yet, login to write a review.

By buying this product you get 46 loyalty points


Yes, notify me when available !
Reference : 16346
New product

469,00 €tax incl.

390,83 € tax excl.

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

KHOZMO ACOUSTIC Attenuator Kit

Motorized Shunt Stereo 48 positions CMS 100k 1%

KHOZMO ACOUSTIC Kit Atténuateur Motorisé Shunt Stéréo 48 Positions CMS 50K 1%

This kit consists of a motorized attenuator, a LED matrix display and its IR remote control. The attenuator uses a precision resistor mounted in parallel with a mechanical switch with 1% SMD resistance. This resistor is connected to the potentiometer, which, depending on its position, connects more or less the output to the ground and thus varies the volume. It is therefore the R-In resistor that conditions the minimum input impedance, when the potentiometer is on position 0.

A true jewel of audio craftsmanship, this magnificent 48-position stereo attenuator is entirely hand-assembled in Europe. It is made of 1% SMD resistors and a CNC machined aluminum body which gives it a high end design. This type of potentiometer is far superior to carbon track potentiometers because the signal only passes through two resistors. The wear is also much less important.

Technical characteristics

Specifications
Product typeVolume attenuator
Volume controlStepper motor
Number of positions48 positions
ChannelsStereo (2)
Resistances100k
Lifetime> 50000 cycles
Indexing angle7.2°
Body materialCNC machined solid aluminum
Shaft diameterØ6mm
MechanismBall bearing
Shunt typeTwo resistors
SwitchingMBB
Range-60dB / 0dB
ContactsOr massif
Channels balance±0.1dB
ResistorsCMS 1%
General
Supply voltage15V 1.5A (power supply not included)
Dimensions145 x 41 x 41mm
Weight600g

Data sheet
ColorRed
ShaftSmooth
Channel2 (Stereo)
Resistance (Ohm)100000.0
Tolerance (%)1.0
