KHOZMO ACOUSTIC Stereo Attenuator

Khozmo Acoustic presents a 51K stereo shunt attenuator. A shunt stepped attenuator is a simple design where the signal is fed through a fixed series resistor (Rin) and the shunt resistor (Rg), is selected from 48 values ranging from zero to infinity by means of a selector switch.

No customer reviews yet, login to write a review.

By buying this product you get 24 loyalty points


Reference : 20744
New product

249,00 €tax incl.

207,50 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 05-11-2025.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Khozmo Acoustic Stereo Attenuator 48-Position Shunt 51k 1%

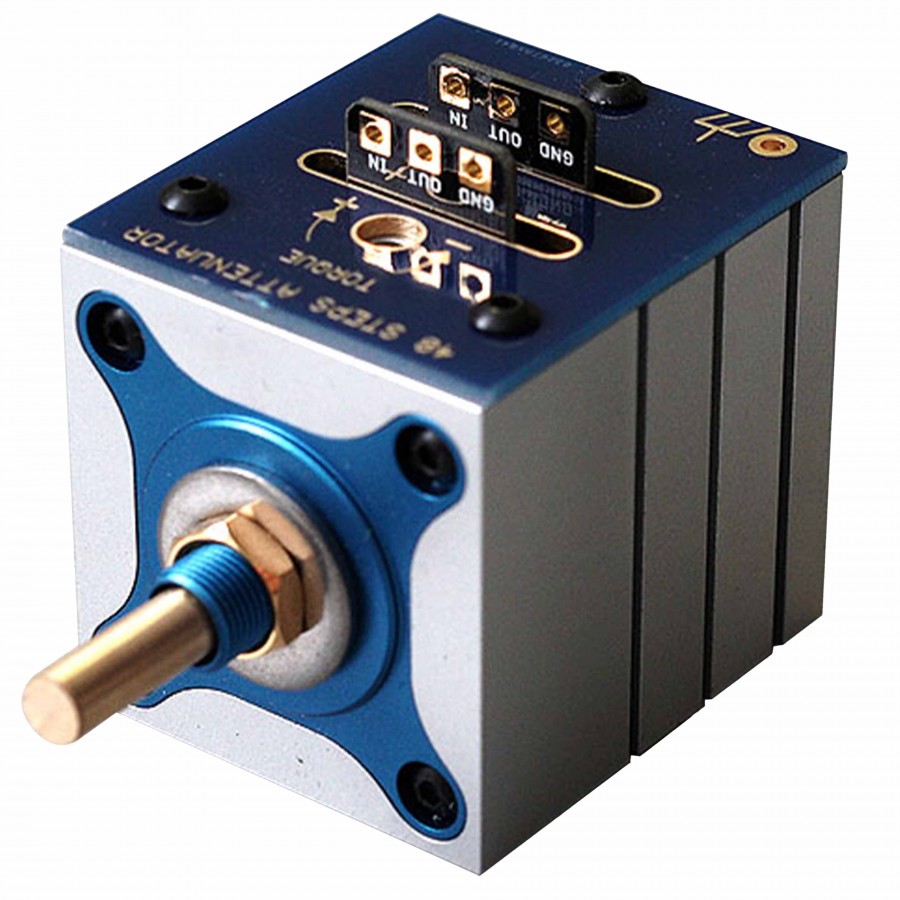

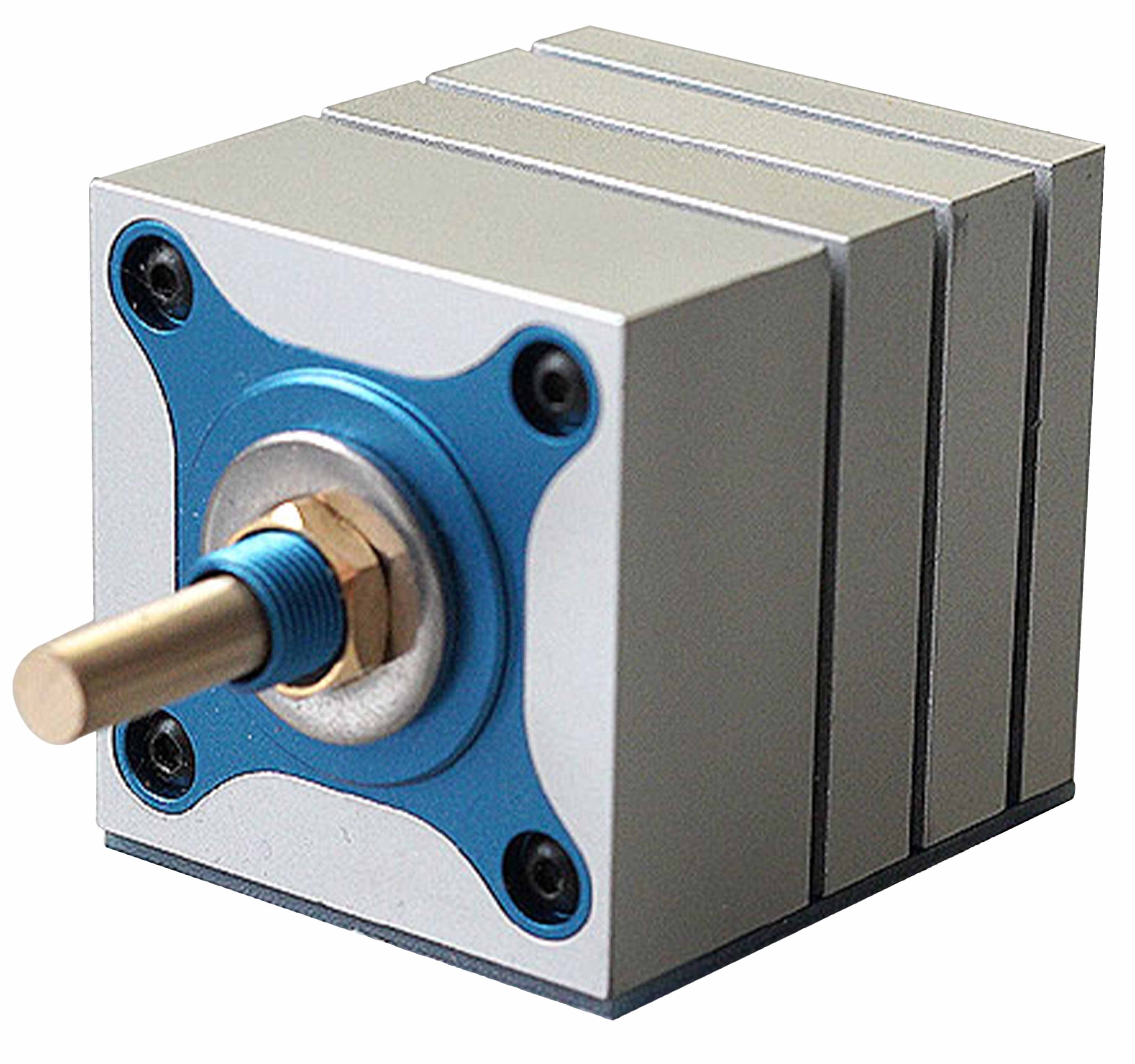

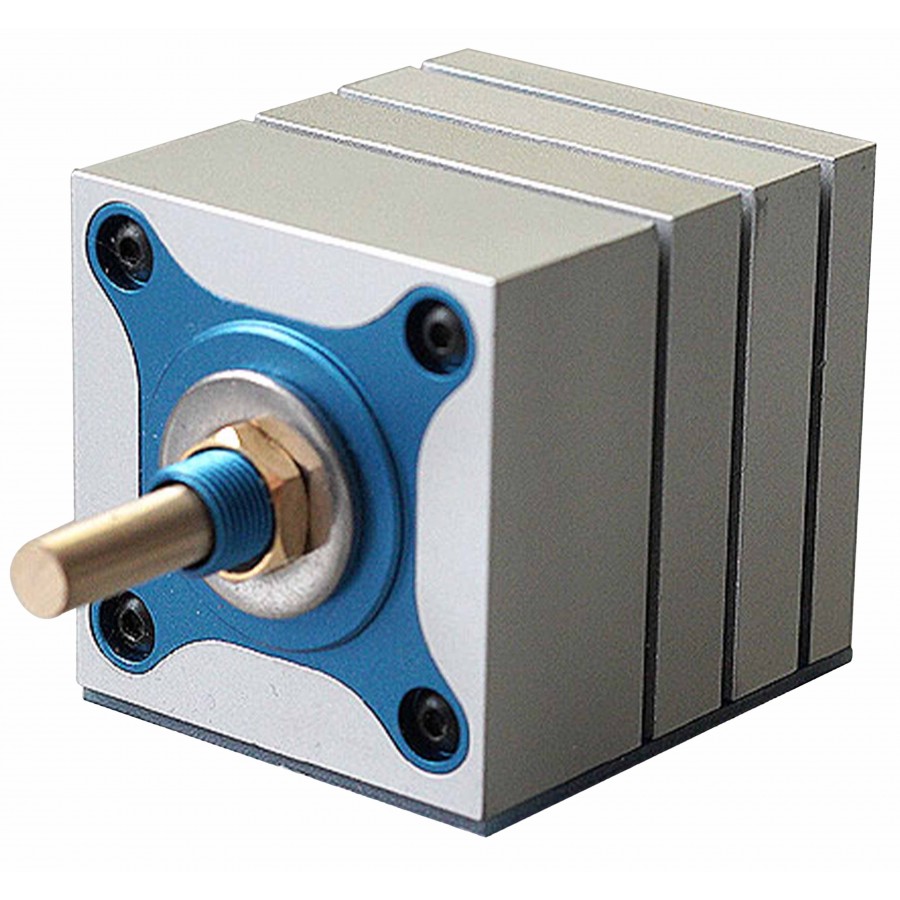

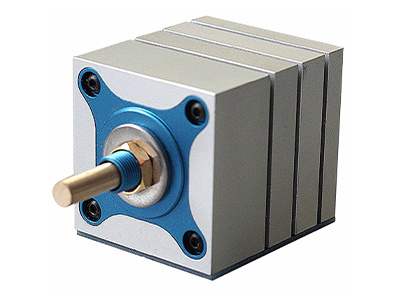

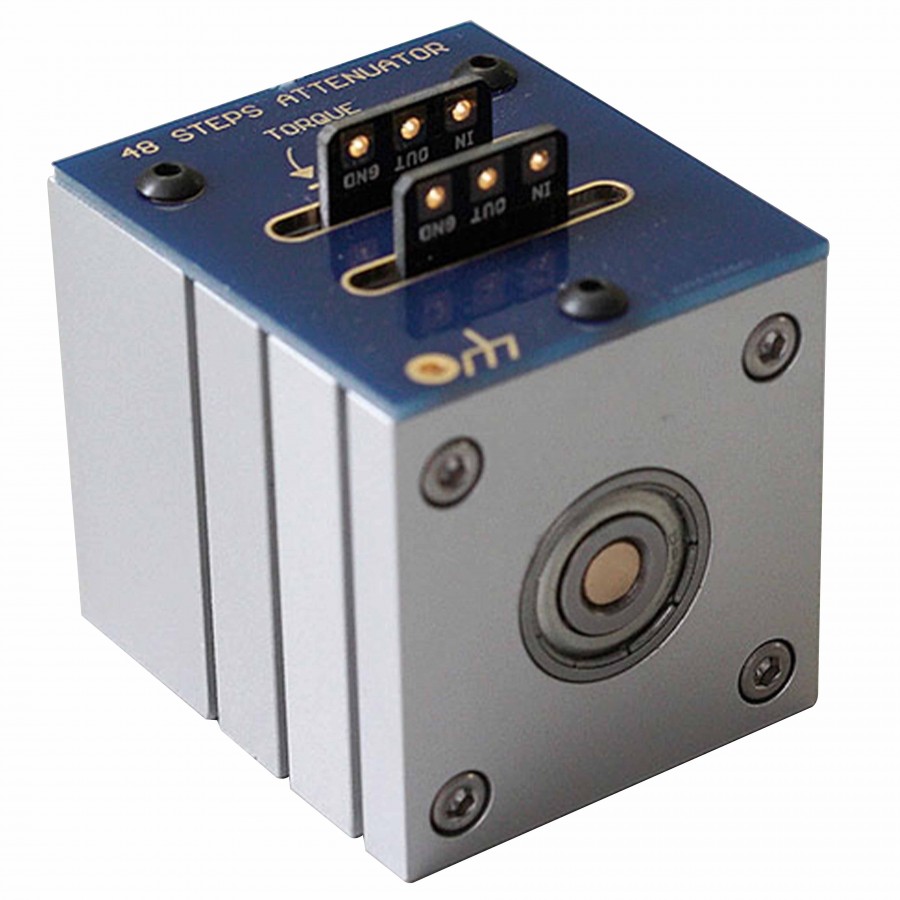

Photo of KHOZMO ACOUSTIC Stereo Attenuator

Khozmo Acoustic presents a 51K stereo shunt attenuator. A shunt stepped attenuator is a simple design where the signal is fed through a fixed series resistor (Rin) and the shunt resistor (Rg), is selected from 48 values ranging from zero to infinity by means of a selector switch. Although a shunt design presents a variable input impedance to the signal source, this has little effect in practice and the benefits of a single resistor and switch in the signal path far outweigh any potential matching issues.

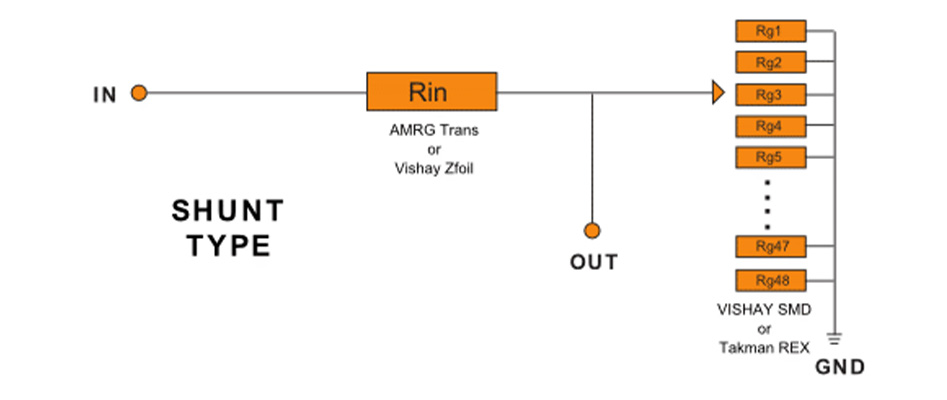

Shunt diagram

Technical characteristics

Specifications
Product typeShunt attenuator
Number of positions48
Shunt typeOnly two resistors in the signal path
Switching typeMBB (Make Befor Break)
Attenuation range-60dB à 0dB
Step attenuationStep 1 to 11: -2dB
Step 12 to 48: -1dB
Contact materialHard gold
Channel adaptation+/-0.1dB
Resistance51K
Mechanical life> 50000 cycles
Body materialCNC machined PA11 aluminum
Shaft diameter6mm
Indexing angle7.2deg
Input resistorsAMRG
Shunt resistorsVishay
GEnEral
Weight1kg
Dimensions42 × 52 × 5mm
Package1x Khozmo Acoustic Stereo Attenuator

Data sheet
ShaftSmooth
Channel2 (Stereo)
Resistance (Ohm)50000.0
Tolerance (%)1

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
