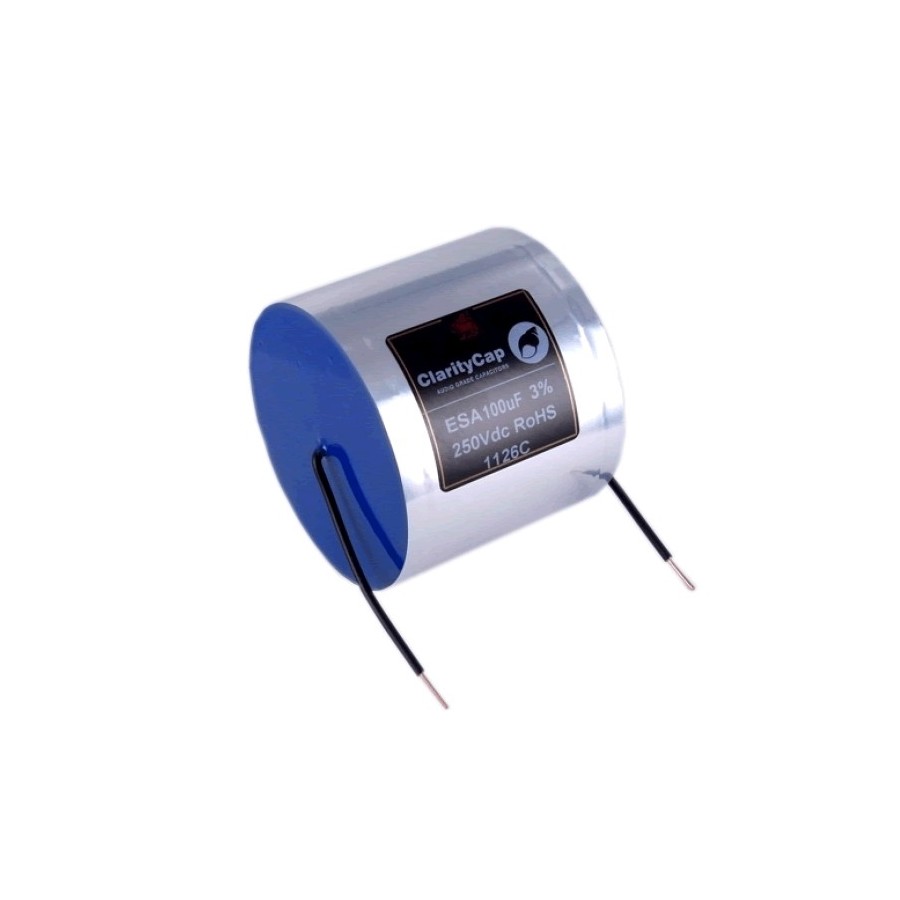

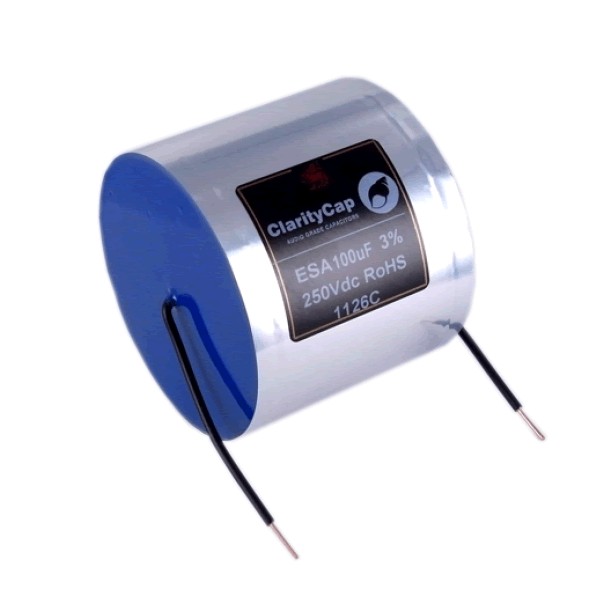

CLARITYCAP ESA Capacitor 250V 120μF

ClarityCap Condensateurs ESA 250VDC.. 120.0µf
10%
The performance of ESA capacitors has been significantly improved by reducing the effects of sound resonance from the capacitor winding. This is achieved by a careful selection of the quality of the Polypropylene base film, combined with pure Aluminium metallisation and a high level of control over the production process.
No customer reviews yet, login to write a review.


Reduced price!
Reference : 7517
New product
Limited special offer

54,08 €

-10%

48,67 €tax excl.

- +

Last items in stock !

Shipping date: 06-08-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

ClarityCap ESA

Capacitor 250V 120µF

ClarityCap ESA Capacitor 250V 120µF

The ESA range is the result of a 2-year research programme conducted between ClarityCap and the renowned Acoustic Research Centre at the University of Salford.

The performance of ESA capacitors has been significantly improved by reducing the effects of sound resonance from the capacitor winding. This is achieved by a careful selection of the quality of the Polypropylene base film, combined with pure Aluminium metallisation and a high level of control over the production process.

The ESA range offers exceptional performance in audio applications in both 250VDC and 630VDC. A guaranteed 3% tolerance ensures consistency between filter components for a balanced system.

ClarityCap ESA Condensateur

Technical characteristics

Specifications
Product typeCapacitor
Capacity120µF
Voltage250V
Tolerance3%
Dissipation factor0.001 @ 1kHz & 20±3°C
Insulation resistance10MΩ-µF @ rated voltage & 20±3°C
Dielectric absorption0.1% @ 20±3°C
Temperature range-40°C to +70°C
Wires materialOFC Copper
Wires sheathPVC
General
DimensionsØ60 x 80mm
Wires diameter1mm

Data sheet
Capacitor capacitance120
