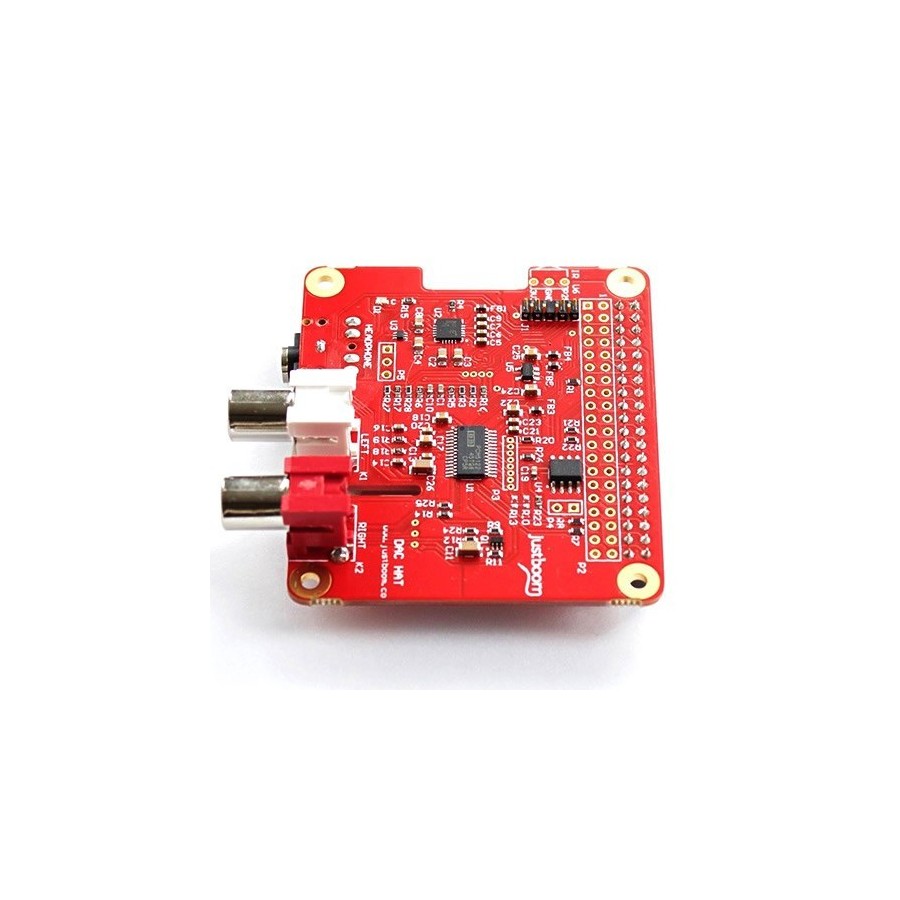

JustBoom DAC HAT DAC PCM5122 for Raspberry Pi 3 / Pi 2 / A+ / B+

JustBoom DAC HAT DAC PCM5122 for Raspberry Pi 3 / Pi 2 / A+ / B+

Average votes for this product
5.0 / 5

By buying this product you get 3 loyalty points

Reference : 11602
New product

39,00 €tax incl.

32,50 € tax excl.

- +

Shipping date: 21-09-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans


More info

The DAC JustBoom Raspberry Pi DAC HAT is designed to be simple to install and use. This product is also well suited for beginners and seasoned professionals as it requires no soldering.

just boom DAC HAT PCM 5122

Simply connect your HAT DAC to an audio amplifier to be operational quickly, enjoying high-quality, high-quality audio playback. We also include an optional IR receiver to allow remote operation of your Raspberry Pi.

This DAC includes a 32MB / 384kHz PCM5122 chipset with a Hardware volume and a 138mW headphone amplifier. The Just Boom DAC HAT uses the I2S interface for its audio input, which reduces the CPU load on the Raspberry Pi compared to USB solutions.

It is directly powered from the PiP or Pi3 GPIO connector, so no additional cables or power supplies are required. All GPIO pins of the Raspberry Pi are always accessible on the DAC HAT to facilitate the customization of your project.

You can add additional sensors, buttons, LEDs, rotary encoders or whatever your heart desires.

The DAC JustBoom Raspberry Pi DAC HAT can be used in many applications:

  • Streaming High Definition Audio Player
  • Multi-room audio player
  • Multimedia center / decoder lounge entertainment system
  • Shop / lift / music room
  • High quality audio player with local storage
  • High Definition audio player with amplified headphone output

Find here all JustBoom editing guides:

Get Started JustBoom

JustBoom DAC HAT Bundle PCM5122

Features:/ Strong>

  • Resolution DAC: 32bit 384KHZ
  • Includes both a DAC amplifier and a headphone
  • 3.5 mm jack outputs amplified headphones and RCA output
  • Compatibility Plug and Play
  • Hardware and software volume control of your Raspberry Pi
  • No welding required
  • Compatible with Raspberry Pi A +, B +, Pi 2, Pi3
  • Infrared soldering receiver included in package
  • Compatible with the JustBoom amp easily stacking on the HAT DAC (offers additional outputs)
  • All GPIO pins of the Raspberry Pi always accessible via a 40pin extension header
  • DAC fully compatible HAT Raspberry Pi
  • Full support for Raspbian drivers
  • Compatible with OSMC / RuneAudio / Volumio / Moode / PiCorePlayer / PiMusicBox / OpenELEC and others

Technical informations :

  • Chips: TI PCM5122 DAC 32 bits 384kHZ
  • Headphone Amplifier TPA6133A2 138mW
  • Fully integrated hardware volume mixing via ALSA compatible "alsamixer"
  • Built-in EEPROM: Automatic configuration of the Raspberry Pi driver (depending on the distribution)
  • IR receiver included in Vishay TSOP4838 package (solder if necessary)
  • 112dB signal-to-noise ratio (SNR) and -93dB total harmonic distortion (THD + N to -1dB)
  • Advanced anti-static (ESD) protection on headphone and RCA outputs
  • Ultra Low Voltage Voltage Regulator LDO

Dimensions and weight:

  • Dimensions: 13 x 7.5 x 2.5 cm
  • Weight: 65gr

Installation guide :JustBoom HAT DAC

JustBoom Test - How to turn a Raspberry nano computer into a multiroom audio system

ON-mag logo

Schematic diagram and example of JustBoom products -

just boom DAC HAT PCM 5122

Data sheet
Channel2 channels (Stéréo)
