DAC Module ES9038Q2M I2S RCA 32bit 384kHz DSD256
This DAC module is equipped with an ESS ES9038Q2M digital-to-analog conversion chip. This enables it to support high-resolution audio streams up to PCM 32bit 384kHz and DSD256. Input is via I2S on a 2.54mm XH connector (5 pins), and output is via stereo RCA or a 2.54mm XH connector (3 pins). The module offers excellent audio performance for transparent, accurate sound reproduction.

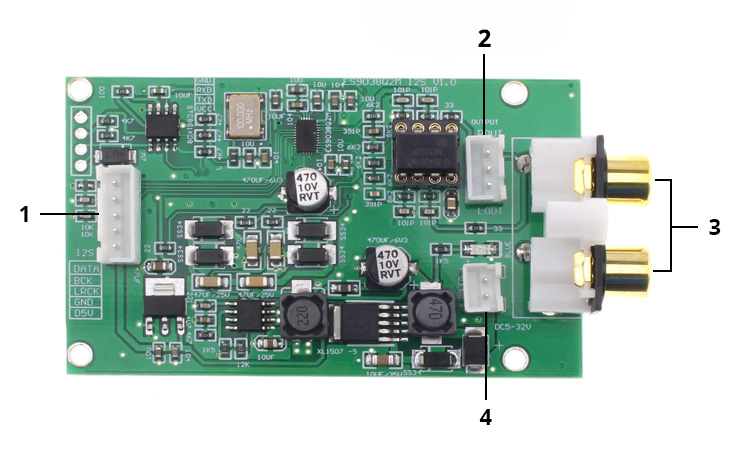

| 1 | I2S input |
| 2 | Audio output (3 pins) |
| 3 | RCA audio output |
| 4 | Power input 5-32V DC (2 pins) |
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC module |
| DAC chip | ES9038Q2M |
| Input | I2S |
| Outputs | 1x Stereo RCA or XH 2.54mm connector (3 pins) |
| Supported sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 |
| SNR | 129dB |
| THD+N | 120dB |
| Output level | 3V |
| OPA | NE5532P |
| General | |
|---|---|
| Supply voltage | 5-32V DC on XH 2.54mm connector (2 pins) |
| PCB dimensions | 80 x 48mm |
| Total dimensions | 90 x 48mm |
| Mounting holes spacing | 67 x 42mm |
| Input | I2S |
| Output | PCB Connector |
| Output | RCA |
| DAC / ADC Chip | ES9038Q2M |
| Max sampling rate | 384kHz |
| Max sampling rate | DSD256 |
