DIY USB DAC Board ES9023 PCM2706 16bit / 44khz

DIY USB DAC 24bit/96kHz ES9023 PCM2706 TCXO 16bit / 48khz

Average votes for this product
3.0 / 5
  Based on 1 customers reviews.

By buying this product you get 1 loyalty point


Reference : 11559
New product

19,90 €tax incl.

16,58 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

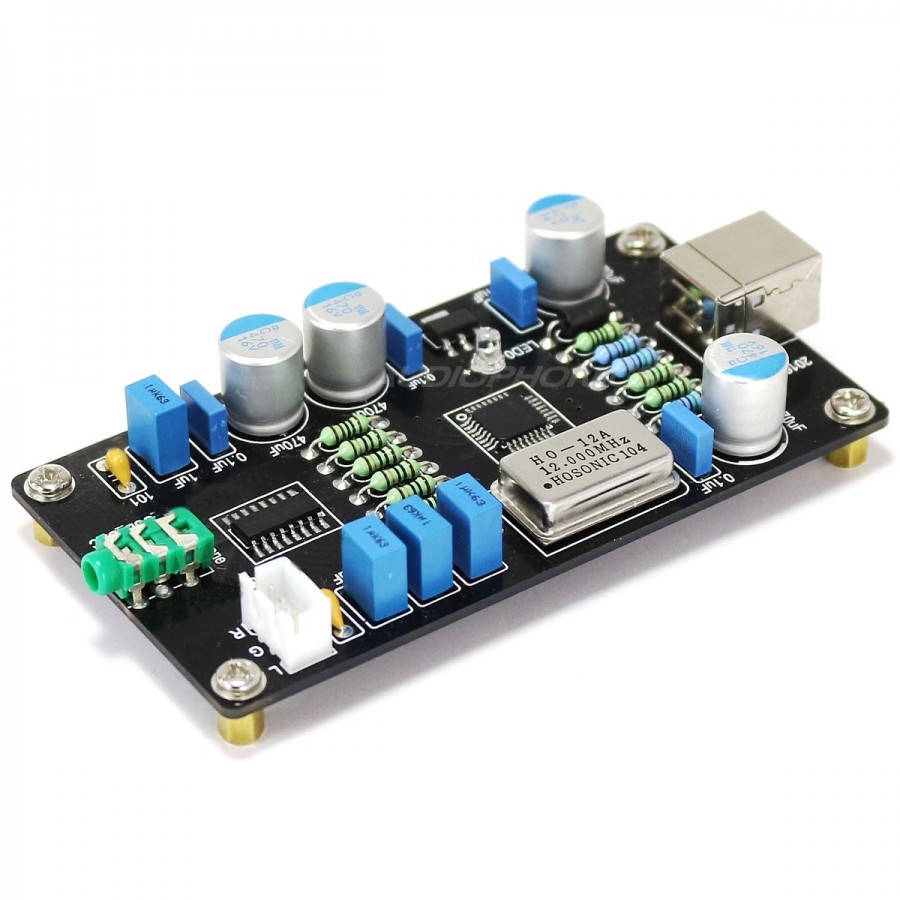

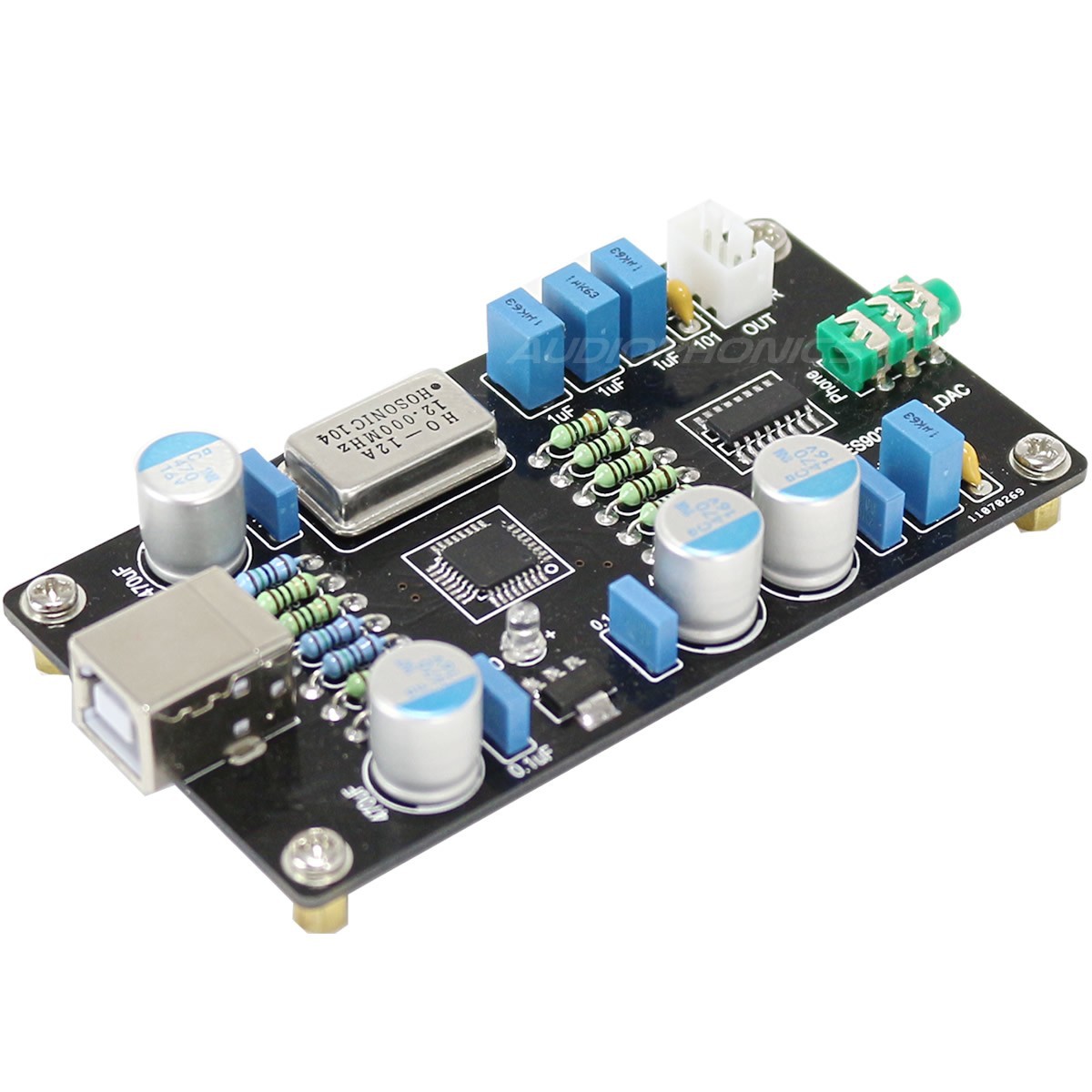

This DAC based on PCM2706 (USB management) and a analog digital converter ESS SABER ES9023offers a very affordable music solution. Equipped with high-quality passive components anditle = "TCXO clocks" href = "http://www.audiophonics.com/en/components-electronics-clock-c-600.html" target = "_ blank">clock 12Mhz full size, it will suit any DIY project.

This DAC provides analog outputs on XHP connector facilitating soldering forRCA plugs CINCH.

Its installation requires no driverwhether on PC LINUX, Windows or MAC-OS. Simply connect the card in USB 1.1 to a computer, Raspberry Pi 3 or Pi 2.

Features:/ Strong>

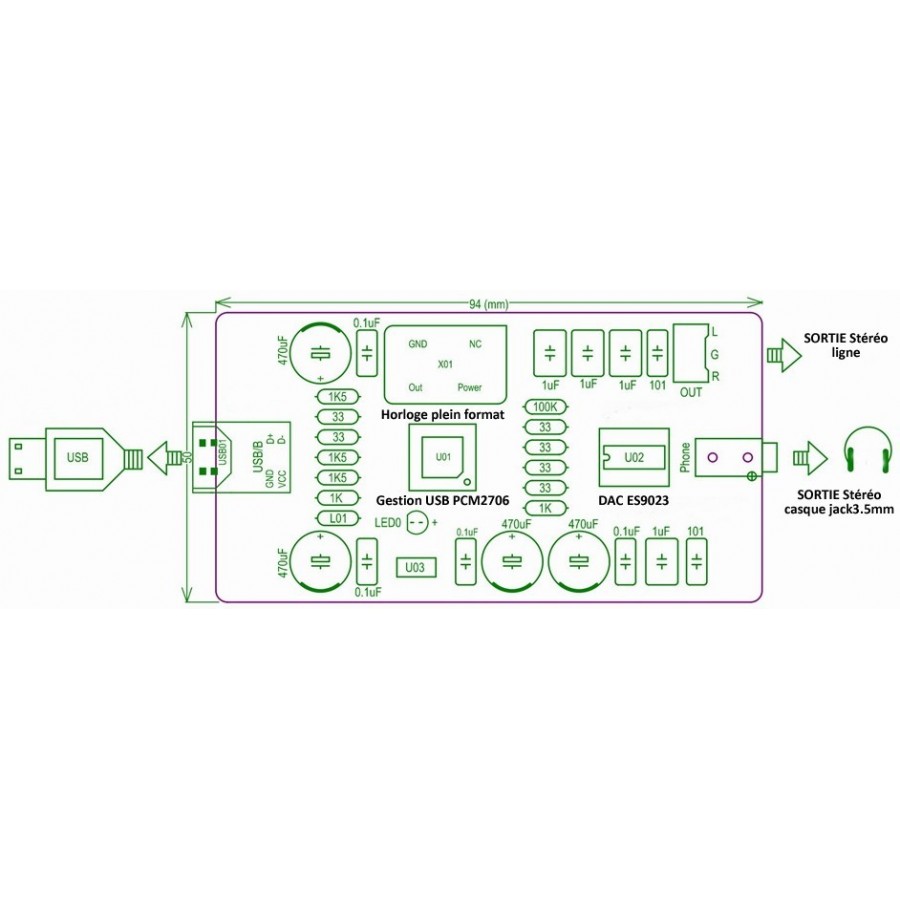

  • USB 1.1 interface: PCM2706: 16/24 bit and 32kHz, 44.1kHz, 48kHz
  • Digital to analog converter (DAC): Saber ES9023
  • Input: USB-B isochronous
  • Analog Outputs: 3.5 mm jack (headphone impedance 16 to 160ohms)
  • Analog outputs: on 3-pin XHP connector (L = left, R = right, G = ground)
  • No external power required (5V via USB port)
  • Clock full size 12Mhz
  • Product shipped naked (no connectors or operating instructions)
  • USB Mode: Isochrone USB 1.1
  • Direct-out: Without AOP output
  • Dimensions: 94x50x14mm
  • Spacing: 85x41mm
  • Weight: 35g

es9023 pcm2706


Data sheet
InputUSB
Channel2 (Stereo)

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
3.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 3/5
Date :
Bon DAC mais controle du volume pas vraiment disponible sous windows
Le pilote pour ce DAC semble outrepasser le contrôle du volume général sous windows, le son est donc forcément à fond. Il est bizarrement possible de baisser le son des applications individuelles. Toutes mes applications sont donc réglées à environ 10% du max dans le mixeur windows 10.

Au delà de ça le DAC me semble de bien meilleur qualité que la carte son de mon ordinateur portable mais le problème du volume en gênant.
