AUDIO-GD MASTER 11 Singularity Pre / Headphone Amp / Balanced DAC 4x PCM1704UK I2S HDMI

AUDIO-GD MASTER 11 Singularity Pre / Headphone Amp / Balanced DAC 4x PCM1704UK

The Audio-GD MASTER-11 Balanced Preamplifier and DAC is available in Singularity version and always incorporates PCM1704UK DAC conversion.

KEY POINTS:

  • 4x DAC PCM1704UK
  • 32bits 384kHz
  • DSP V7 + NOS mode
  • I2S via HDMI
  • USB Amanero

No customer reviews yet, login to write a review.

By buying this product you get 239 loyalty points


Reference : 11724
New product

2 399,00 €tax incl.

1 999,17 € tax excl.
Including 0,05 € for green tax
This product is no longer in stock
Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

AUDIO-GD MASTER 11 Singularity

2x Clocks TCXO / DAC 4x PCM1704K

DAC Symmetry / Headphone Preamplifier / Amplifier

Audio-GD MASTER-11

A DAC DSP out of the ordinary ...

The MASTER 11 SINGULARITY (Limited Edition!) Is now backed up by the flagship of the Audio-GD converters with headphone amplification and preamplifier, and is now enhanced with its DSP V7 and the addition of 2 Xilinx CPLDs dedicated to the management of asynchronous transfers. making it now capable of handling record sampling rates: up to 32 bit / 384kHz.

DSP V7 3 Oversampling modes and a "NOS" mode

The new features include 3X, 4X (normal mode), 2X Oversampling modes and a NOS oversampling mode with the new fully programmable DSP V7 software supported by two high precision TCXO clocks for even lower jitter.

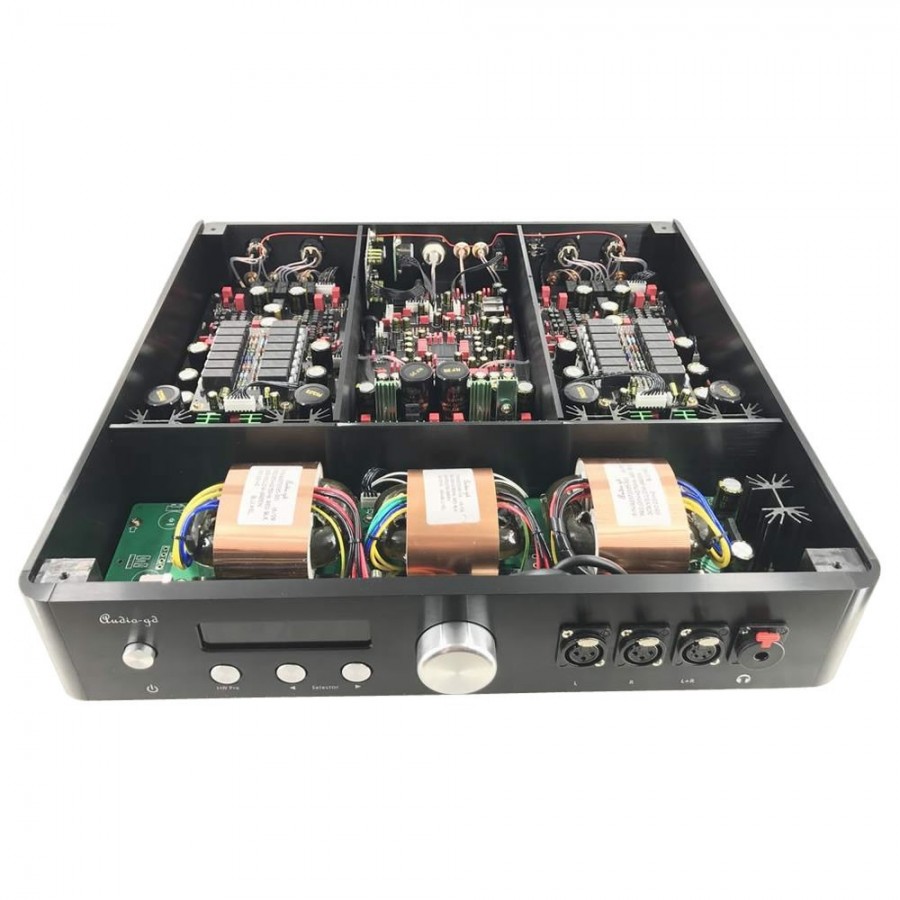

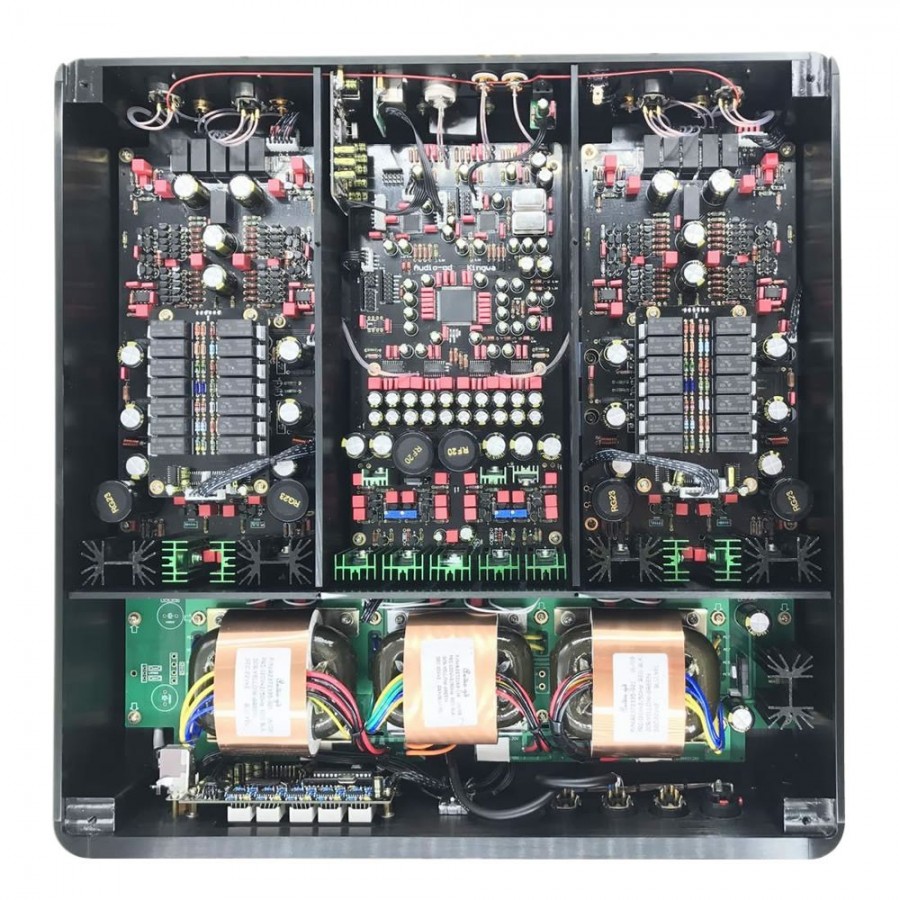

A particularly furnished interior

The integrated PCM1704UK converters allow you to manage sources up to 32Bit / 384kHz. The MASTER 11 SINGULARITY has 6 inputs: BNC SPDIF, 2x Coaxial SPDIF, Toslink optics, and I2S via HDMI and USB (AMANARO), 3 analog inputs for preamplification: XLR and 2x RCA as well as 3 outputs: RCA, ACSS, and XLR.

The entire internal wiring is designed in Copper OCC, and two TCXO Audio-GD Clocks are directly integrated, allowing the significant drop of Jitter.

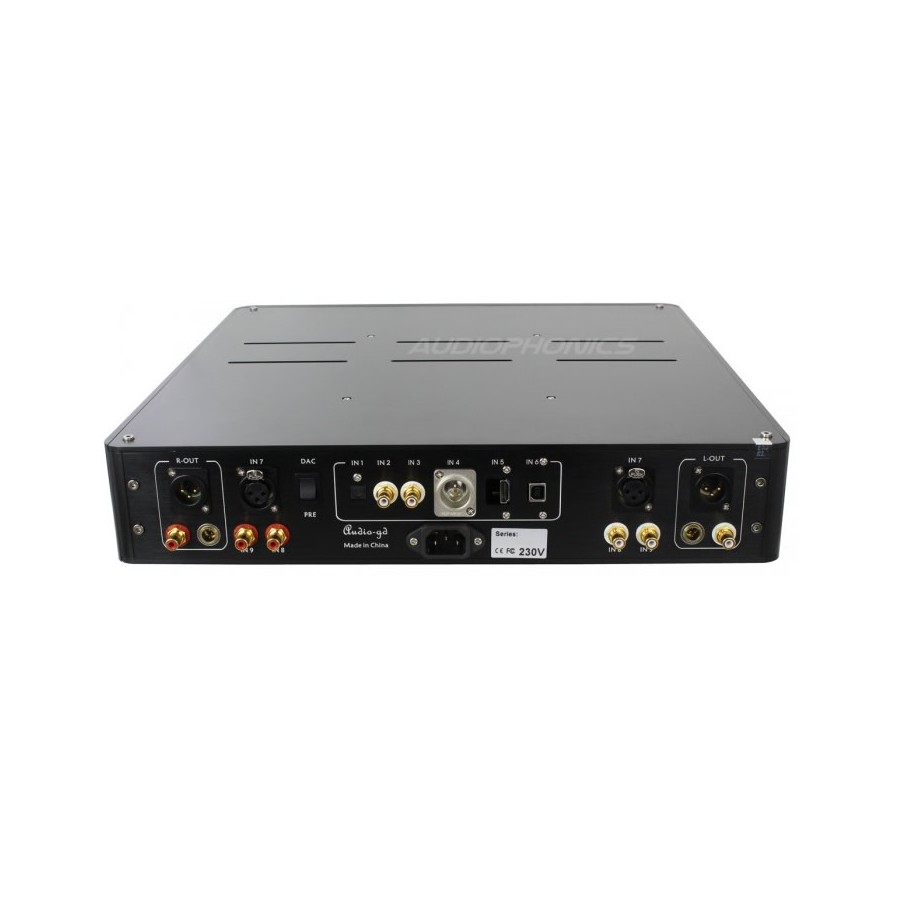

Back Audio-GD MASTER-11

A well-crafted architecture

32bit / 384kHz / I2S / TCXO / USB AMANERO

Its architecture with built-in DSP is associated with a separate power supply of 21 groups, including 19 in Class A high-flying. Its transformers develop up to 1500W of power, for only 48W of consumption. All the components are sorted on the shutter and paired by hand: very high fidelity

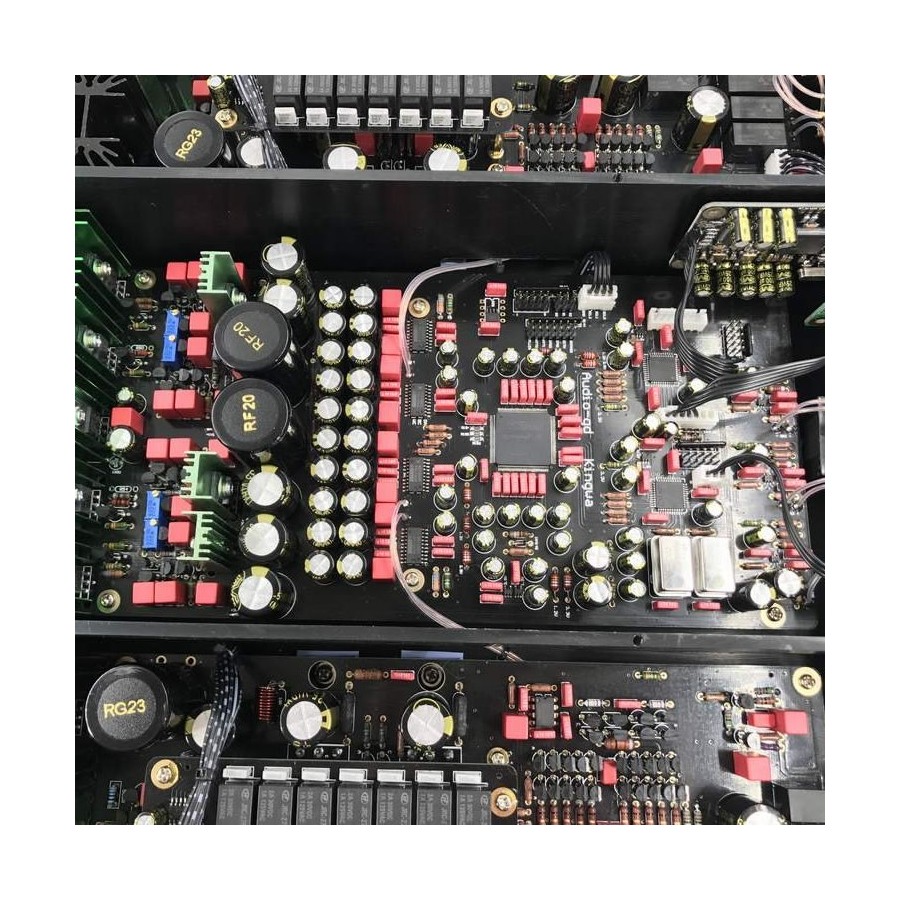

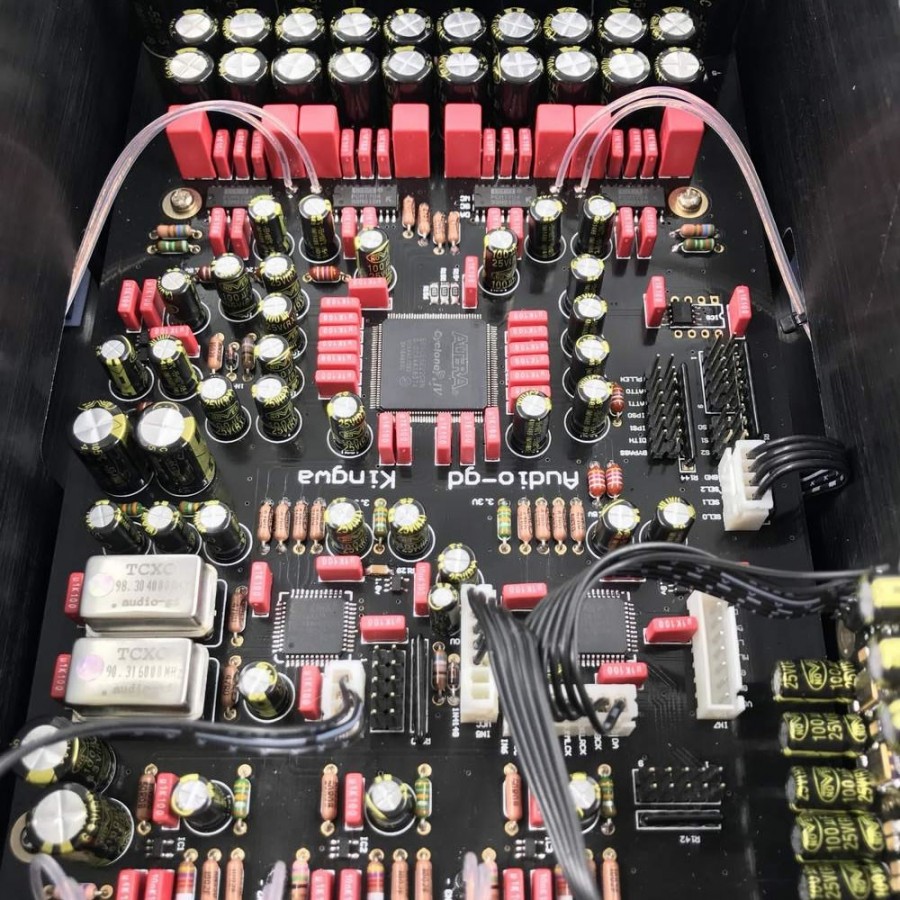

The MASTER 11 SINGULARITY is therefore designed around 4 PCM1704UK and DSPV7 (Altera Cyclone II) which work in parallel, alongside ultra discrete AOP. A structure 100% black anodized aluminum finishes this sober and elegant architecture, which reveals all its power.

Audio-GD MASTER-11

4x PCM1704UK

These four analog digital converters (DAC) make use of the R2R conversion which consists in directly using the bits of the digital signals to reconstruct the analog signals, all this acting on a network consisting solely of resistors having a given value (R) and its double (2R), without going through an over-sampling phase.

Class A

Specifications
SNR> 120dB
Gain+ 16dB (XLR)
Digital volume control100 steps (exponential)
Frequency Response20Hz-20kHz (-0.01dB) / 1Hz-140kHz (-3dB)
Max Output LevelDAC 5V / Preamp 10V / Headphone amplifier 19V
ACSS Output Level1.2mA + 1.2mA
Output Impedance DAC / Headphone Amp
Input sensitivity0.5Vp-p (Coaxial, 75Ω) / 19dBm (Optical)
Headphone output power(100Ω) / 1300mW (300Ω) / 650mW (600Ω) / 8000mW (50Ω) / 4000mW
Supported sampling ratesUSB and I2S up to 384kHz / BNC up to 96kHz / Optical and Coaxial up to 192kHz
Various
Consumption45W
WeightAbout 15kg
Housing material100% Aluminium
ColorBlack
Dimensions430 x 430 x 93mm

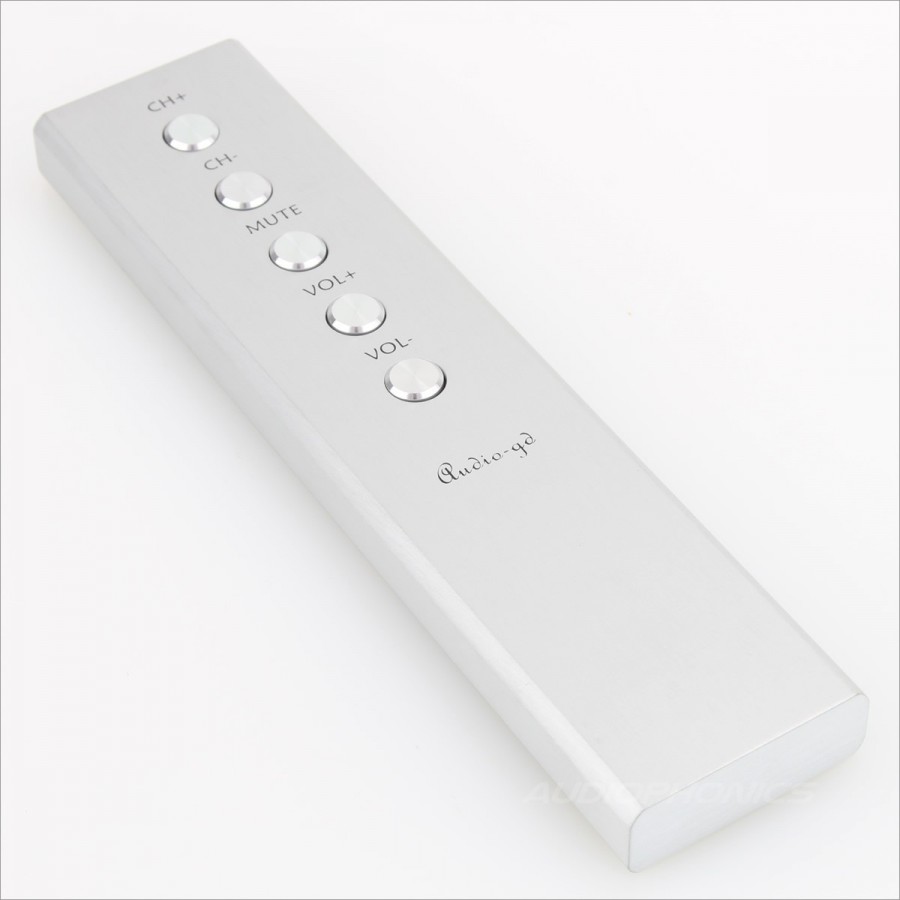

AccessoriesPower cable / USB cable / Remote control Aluminum

Data sheet
InputUSB Amanero
ColorBlack
Components / ChipPCM1704UK
MaterialMetal
StructureAluminium
Channel2 channels (Stereo)
ClassClass A / AB
