AUDIO-GD NFB-27.77 DAC / Preamp / Headphone Amplifier DSD 2xES9038Pro TCXO

AUDIO-GD NFB-27.77 DAC / Preamp / Headphone Amplifier DSD 2xES9038Pro TCXO
This Audio-GD NFB-27.77 features an expansive design with two ES9038 Pro DACs, an FPGA processor and an Amanero USB interface as well as Non-Feedback technology for a detailed and highly neutral sound.

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 12210
New product

2 195,00 €tax incl.

1 829,17 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Audio-GD NFB-27.77 TCXO HDMI

DAC / Headphone Preamplifier / Amplifier Audio GD NFB-27.77

A versatile and efficient HiFi device ...

The DAC NFB-27.77 is equipped with two ES9038PROs, the latest ESS ES9038 high-end saber component, an FPGA processor and the Amanero latest generation asynchronous USB interface.

Implementing 2 DAC ES9038PRO instead of one, in addition to increasing the signal-to-noise ratio, allows dual Mono Pur work and a wider and more precise sound stage.

The FPGA (Field-Programmable Gate Array) processor used is the same as used in very high-end DACs, such as the popular ROCKNA WAVEDREAM DAC. Your DAC NFB-27-77 can always be updated at the firmware level, and therefore never be obsolete.

Non-Feedback is the technology used by Audio-GD so that it does not "color" the sound at the level of the electronics of the output stage, giving you a sound of professional neutrality.

Unique interior and connectivity

This unit has two ES9038pro SABER DACs supporting up to 32bit signals/ 384kHz and DSD in USB, all thanks to the new asynchronous AMANERO 384 combo interface of the manufacturer. In order to use the AMANERO correctly, here are the indications of Audio-GD as well as the download link of the driver: Amanero Combo 384 USB Interface.

The DAC preamplifier NFB27.77 also has a potentiometer with switched resistors of the highest quality on 100 stages.

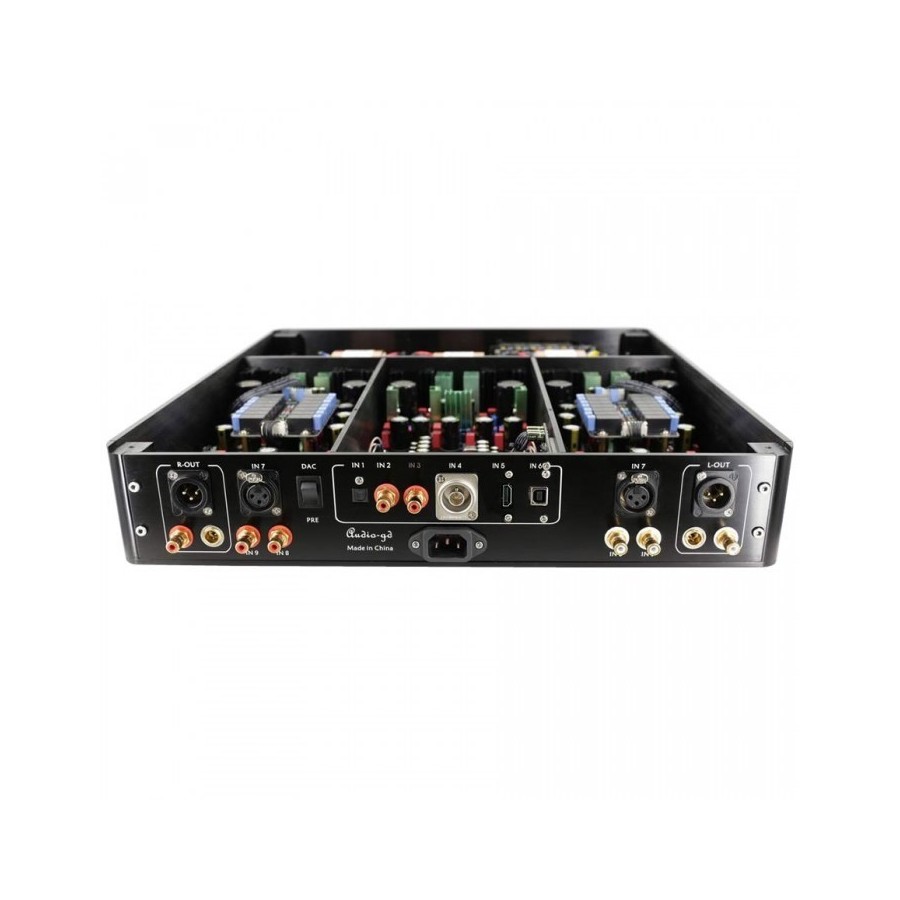

The NFB-27.77 has 8 inputs: XLR / RCA x2 / USB / Coaxial / BNC / I2S via HDMI / Toslink optics, along with 3 analog inputs: XLR / RCA / RCA. Including the DAC and Preamplifier outputs: XLR / RCA, as well as the 4 outputs Headphones: 1x XLR 4 PIN (ACSS) / 2x XLR 3 PIN / 1x 6.35mm stereo jack.

Audio-GD NFB27.77 Connectors

Trumps and features HIGH FIDELITY

32bit / 384kHz / DSD / DXD / PCM / TCXO / ES9038

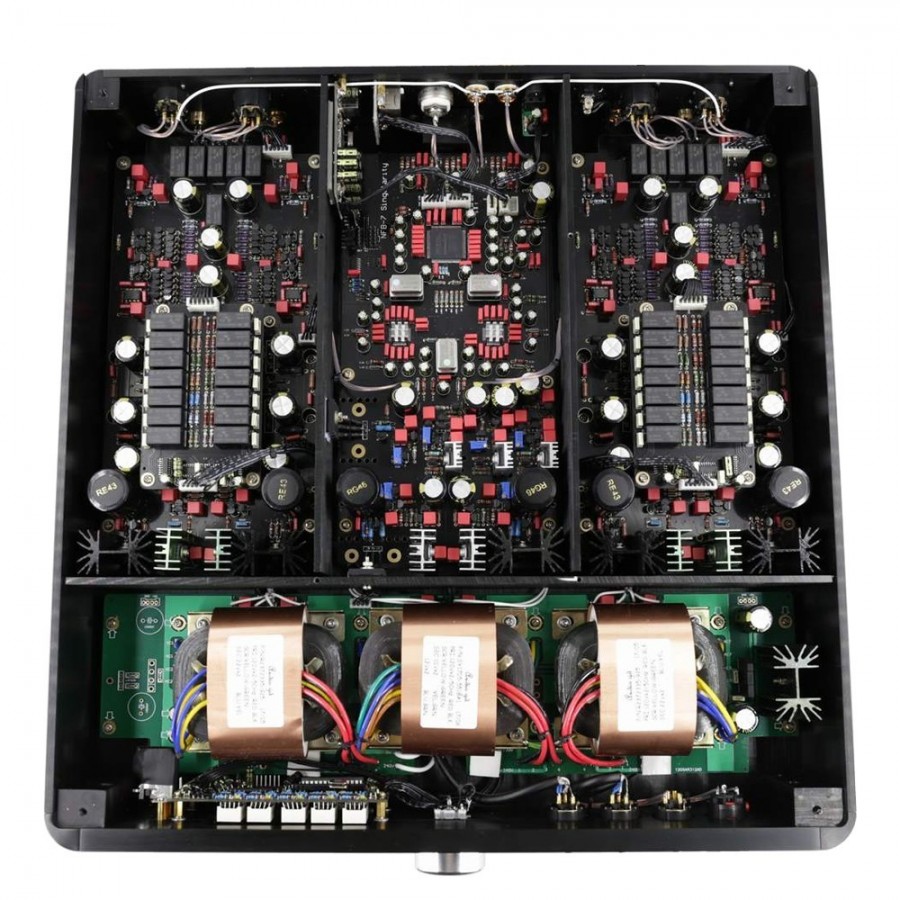

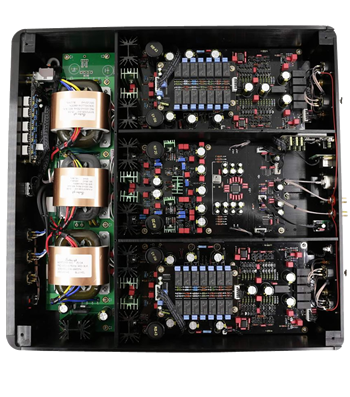

The 100% symmetrical and discreet design of this converter is backed by 5 groups of Class A power supplies. 24K Gold Plated RCA Plugs as well as Nover (UK) capacitors have been specially manufactured on specifications audio-GD. The NFB-27.77, in addition to all the rest, has a TCXO Audio-GD internal clock directly integrated into the system lowering the Jitas well as internal wiring designed entirely in OCC copper.

Audio-GD NFB27.77 Composants
Audio-GD NFB27.77 Télécommande

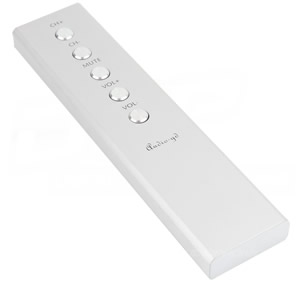

Remote Control Metal

This NFB-27.77 is accompanied with its metal remote control, brushed aluminum finish. All the sobriety and class of Audio-GD stand out from this remote, as it is purified and functional. You will find 2 buttons to change your input sources, as well as 3 buttons to adjust the volume: Plus / Minus / Mute.

SABER ES9038 - DAC

This SABER ES9038 conversion chipset built into the NFB-27.77 is one of the first generation 32bit converters capable of reading high-definition signals up to 32bit / 384kHz, not forgetting DSD and PCM files. It is recognized as one of the most efficient and effective converters. You can find all its detailed documentation on the official website of ESS: ES9038Pro - Reference 32-bit Audio DAC.

Audio-GD NFB27.77 DAC Saber ES9038
Audio-GD NFB27.77 ACSS

Acss Connectors

The ACSS analog output stage, which is a feature of AUDIO GD, reduces the signal with only one buffer stage and an original Dale (USA) resistor. This shorter signal path allows the ES9038Pro to reproduce the highest level of detail and dynamics on ESS SABER DACs.


Technical characteristics

Specifications
Signal / Noise Ratio> 120dB
Output Impedance+ 16dB (XLR)
Output LevelDAC: 1Ω / Headphones: 22V RMS / Variable preamplifier output: 10V RMS / Variable DAC output: 2V RMS / ACSS: 2mA + 2mA
PHeadphone output (Balanced)(100Ω) / 1300mW (300Ω) / 650mW (600Ω) / 8000mW (50Ω) / 4000mW
Input sensitivity0.5Vp-p (75Ω, Coaxial) / 19dBm (Optical) / USB 1.1 - 2.0 (Full Speed, Class 2)
Sample ratesUSB: 44.1kHz to 192kHz / Coaxial: 44.1kHz to 192kHz / Optical: 44.1kHz to 96kHz
Frequency Response20Hz - 20kHz (<-0.1dB) / 1Hz - 140kHz (-3dB)
Supported Operating SystemsWindows / OS X / Linux
Various
Consumption43W
Dimensions430 x 430 x 93
Weight15kg
ColorBlack
AccessoriesPower cable / USB cable / Remote control Aluminum

Data sheet
InputXLR
InputI2S via HDMI
InputRCA
InputSPDIF
OutputRCA
OutputACSS
OutputXLR
DAC / ADC ChipES9038PRO
Max sampling rate192kHz
ColorBlack
