FOSI AUDIO DAC-Q5 DAC ES9018K2M Headphone Amplifier TPA6120 24bit 192kHz

FOSI AUDIO DAC-Q5 DAC ES9018K2M Headphone Amplifier TPA6120 24bit 192kHz
Compact, versatile and affordable, the Fosi Audio DAC-Q5 brilliantly takes on the role of DAC and headphone amplifier. Ideal for a desktop installation, it will fit just as well into a more traditional audio system. Its digital/analogue conversion stage is based on an ESS ES9018K2M DAC chip, ensuring high-quality decoding for rich, accurate sound reproduction.

No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points


Reference : 17960
New product

69,90 €tax incl.

58,25 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 25-06-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

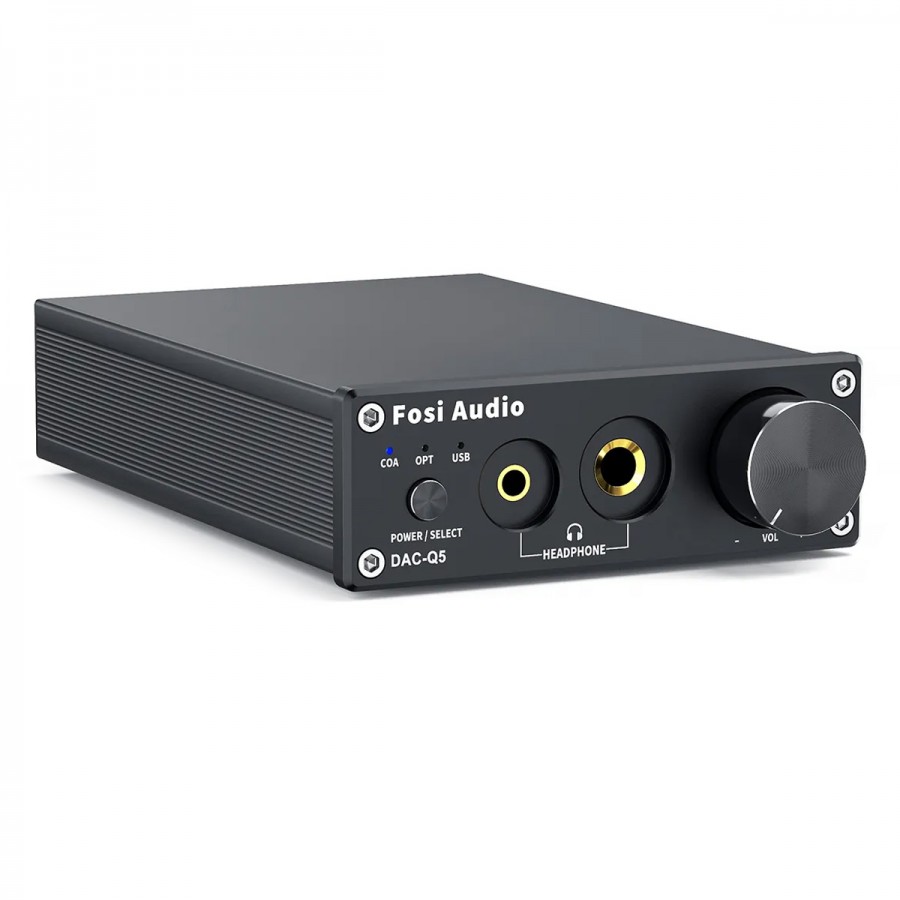

Fosi Audio DAC-Q5

DAC ES9018K2M Headphone Amplifier TPA6120 24bit 192kHz

Fosi Audio DAC-Q5 DAC ES9018K2M Amplificateur Casque TPA6120 24bit 192kHz

Compact, versatile and affordable, the Fosi Audio DAC-Q5 brilliantly takes on the role of DAC and headphone amplifier. Ideal for a desktop installation, it will fit just as well into a more traditional audio system. Its digital/analogue conversion stage is based on an ESS ES9018K2M DAC chip, ensuring high-quality decoding for rich, accurate sound reproduction. It is accompanied by an MS8416 SPDIF receiver and a SA9123L USB interface accepting PCM signals up to 24bit 192kHz. The headphone amplification stage of the Fosi Audio DAC-Q5 is entrusted to a TPA6120 chip and NE5532 OPAs, enabling it to develop a power of 400mW at 32Ω. In terms of connectivity, the inputs are USB-B, optical and coaxial. Outputs are either RCA or amplified headphone outputs with Jack 3.5mm and Jack 6.35mm connectors.

Fosi Audio DAC-Q5 DAC ES9018K2M Amplificateur Casque TPA6120 24bit 192kHz
1Input indicator
2Jack 3.5mm headphone output
3Volume knob
4Power ON-OFF / Input selection
5Jack 6.35mm headphone output
6Coaxial input
712VDC Power input
8USB-B input
9Optical Toslink input
10Stereo RCA output

Technical characteristics

Specifications
Product typeDAC
Inputs1* USB-B
1* Optical Toslink
1* Coaxial
Outputs1* Stereo RCA
1* Jack 3.5mm headphone output
1* Jack 6.35mm headphone output
DAC ChipESS ES9018K2M
USB interfaceSA9123L
OPALME49720
Headphone amplifier chipTPA6120A2
Supported sampling ratesPCM up to 24bit 192kHz
Frequency response10Hz-20kHz (±0.5dB)
Headphone output power400mW @ 32Ω
SNR> 110dB
THD+N (1kHz)< 0.002%
Recommended headphone impedance16-250Ω
General
Supplu voltage12VDC 1A
Dimensions98*165*35mm
Housing materialAluminum alloy
ColorBlack
Package1* Fosi Audio DAC-Q5
1* Power supply
1* USB cable

Data sheet
InputSPDIF
InputUSB
InputOptical
OutputJack 3.5mm
OutputRCA
OutputJack 6.35mm
DAC / ADC ChipES9018K2M
Max sampling rate192kHz
ColorBlack
ClassN/A
NetworkingNo
Remote ControlNo
