Loxjie offers with its D40 a powerful, versatile DAC, dressed in a sober and modern chassis. This one benefits from a double DAC ES9068AS chip, a complete connectivity, with Bluetooth wireless reception, and a neat general design, using many quality audio components.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 15907
New product
Limited special offer

399,17 €

-10%

359,25 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 22-09-2023.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Loxjie D40

DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

Loxjie offers with its D40 a powerful, versatile DAC, dressed in a sober and modern chassis. This one benefits from a double DAC ES9068AS chip, a complete connectivity, with Bluetooth wireless reception, and a neat general design, using many quality audio components.

Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA
Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

Dual ES9068AS DAC

At the heart of the D40 is an extremely efficient conversion stage, using two ESS ES9068AS DAC chips. These 32bit converters support high sampling rates up to PCM 32bit 768kHz and DSD512, and allow the decoding and reading of MQA files. It is also the assurance of a particularly precise and rich sound reproduction, with a THD+N of -122dB.

MQA

LMQA (Master Quality Authenticated) is an award-winning British technology that restores the sound of the original recording. The MQA Master file is authenticated by the artists, producers or rights holders. These files are light enough to stream or download. The D40 includes an MQA decoder to play these files for the best possible audio quality.

Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA
Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

Bluetooth 5.0

With its Qualcomm Bluetooth 5.0 receiver chip, the D40 enables remote music streaming directly from a smartphone or connected tablet. In addition, it supports the high-quality transmission codecs aptX, aptX-HD and LDAC.

PLL & Digital filters

The D40 incorporates a PLL and provides three filters. It is thus possible to adjust the filter according to the stability of the clock signal received at the input of the device, in order to improve the sound quality.

Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

Different I2S modes

In order to adapt to the majority of devices with I2S connectivity, the D40 offers no less than 8 modes to adapt the HDMI pinout and therefore the type of I2S interface.

Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA
Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

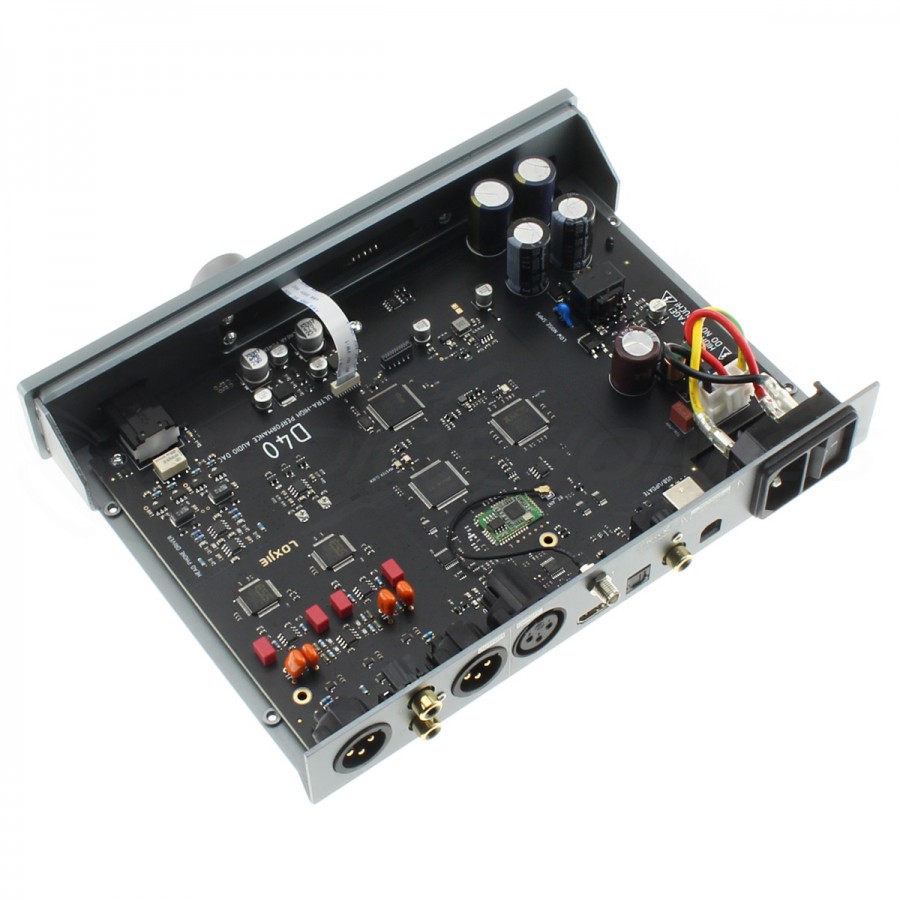

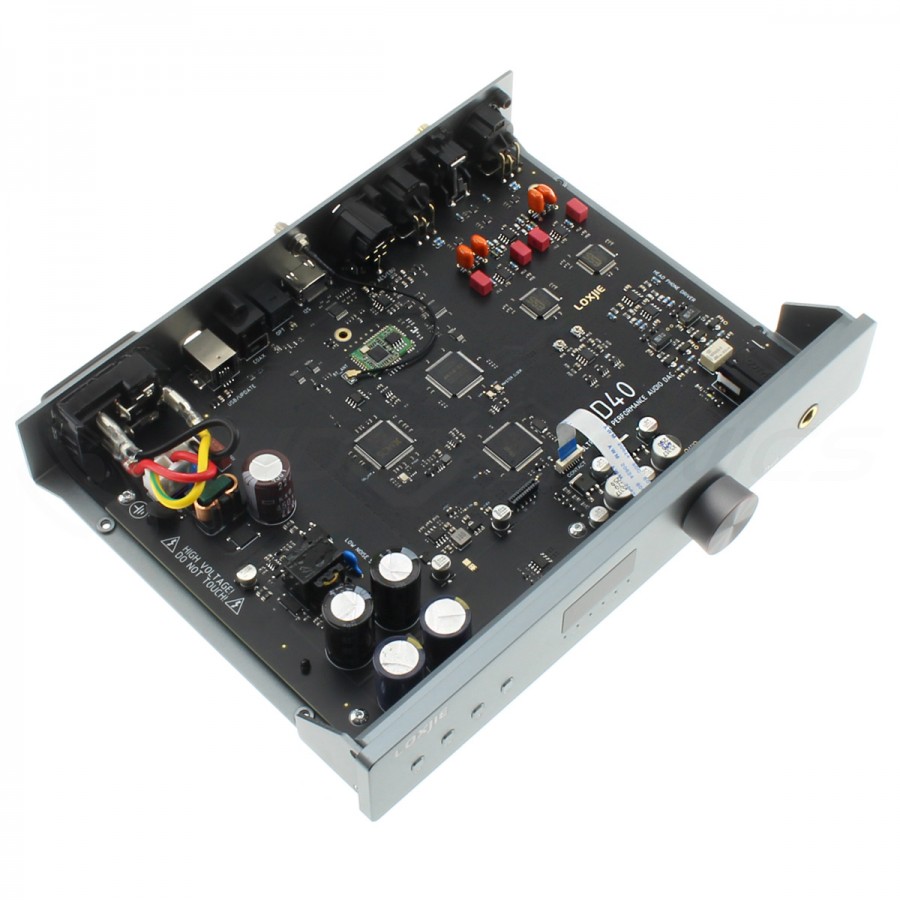

High quality components

The whole architecture and internal design of the D40 benefits from high quality components adapted to audio. In addition to the two ES9068AS DAC chips, we find a XMOS XU216 USB interface, two ultra-low distortion OPA1612 AOPs and a totally optimized power supply. This set, perfectly integrated, participates greatly in the quality of sound restitution of the D40.

Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

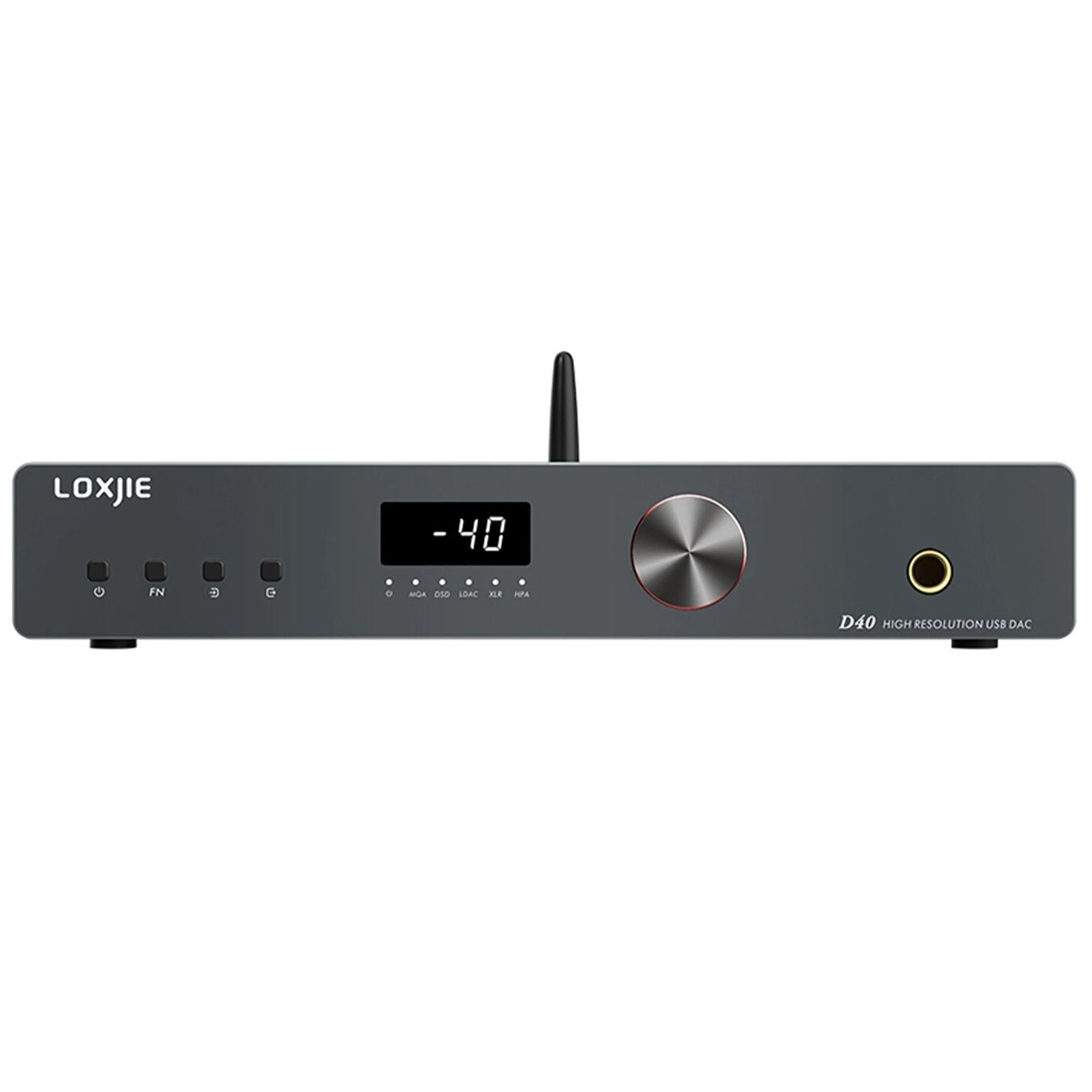

1ON/OFF
2Filter selection
3Input selection
4Output selection
5Screen
6Multifunction knob
7Jack 6.35mm headphone output
8RCA Output
9XLR Output
10AES/EBU Input
11Bluetooth antenna
12I2S Input
13Optical input
14Coaxial input
15USB input
16Power connector

Test du Loxjie D40 par Audio Science Review (Amir)

" Playing at this level of performance is not easy: tons of attention needs to be paid to circuit design and layout to stomp any and all sources of noise and distortion. Other than leaving some ESS IMD distortion on the table, the D40 performs superbly in DAC department. The headphone output while not at the same level, still provides excellent performance and volume level."
Test du Loxjie D40 par Audio Science Review (Amir)

Technical characteristics

Specifications
Product typeDAC
DAC ChipESS ES9068AS
Inputs1x USB-B
1x Optical Toslink
1x Coaxial
1x I2S via HDMI
1x AES/EBU
Bluetooth
Outputs1x Single-ended stereo RCA
1x Balanced stereo XLR
1x Jack 6.35mm headphone output
THD+N0.00008% (-122dB)
Dynamic rangeRCA : 125dB
XLR : 128dB
SNRRCA : 125dB
XLR : 128dB
Supported Bluetooth codecsAAC, SBC, aptX, aptX-HD, LDAC
USB transmissionAsynchronous
USB compatibilityWindows 7/8/8.1/10/11
Mac OSX
Linux
Supported sampling ratesUSB/I2S : PCM up to 32bit 768kHz, DSD up to DSD512
Optical/Coaxial/AES : PCM up to 24bit 192kHz, DSD DoP up to DSD64
Output impedance100Ω
Output levelXLR : 4Vrms
RCA : 2Vrms
General
Dimensions240 x 195 x 43mm
Consumption5W
Weight1.1kg
Housing materialAluminum
ColorGray
Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA Loxjie D40 DAC 2x ES9068AS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

Data sheet
InputUSB
InputOptical
InputI2S via HDMI
InputSPDIF
InputBluetooth
InputAES/EBU
OutputXLR
OutputRCA
OutputJack 6.35mm
DAC / ADC ChipES9068AS
Max sampling rateDSD512
Max sampling rate768kHz
ColorGray
NetworkingNo
Remote ControlYes
