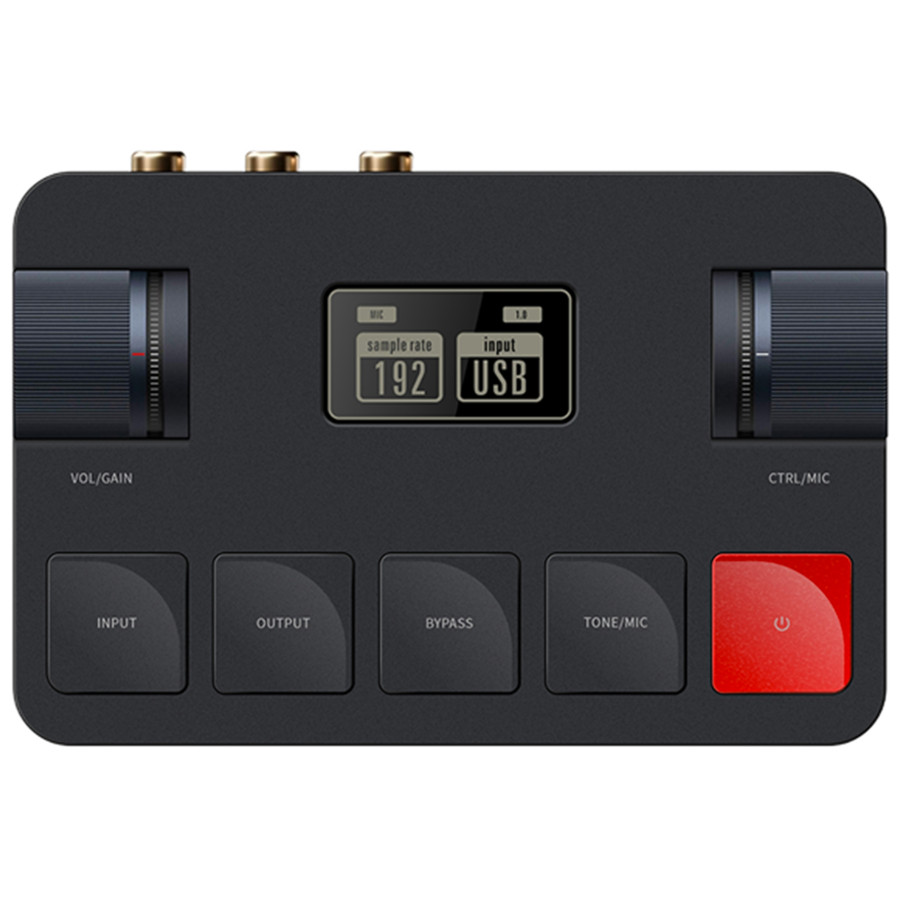

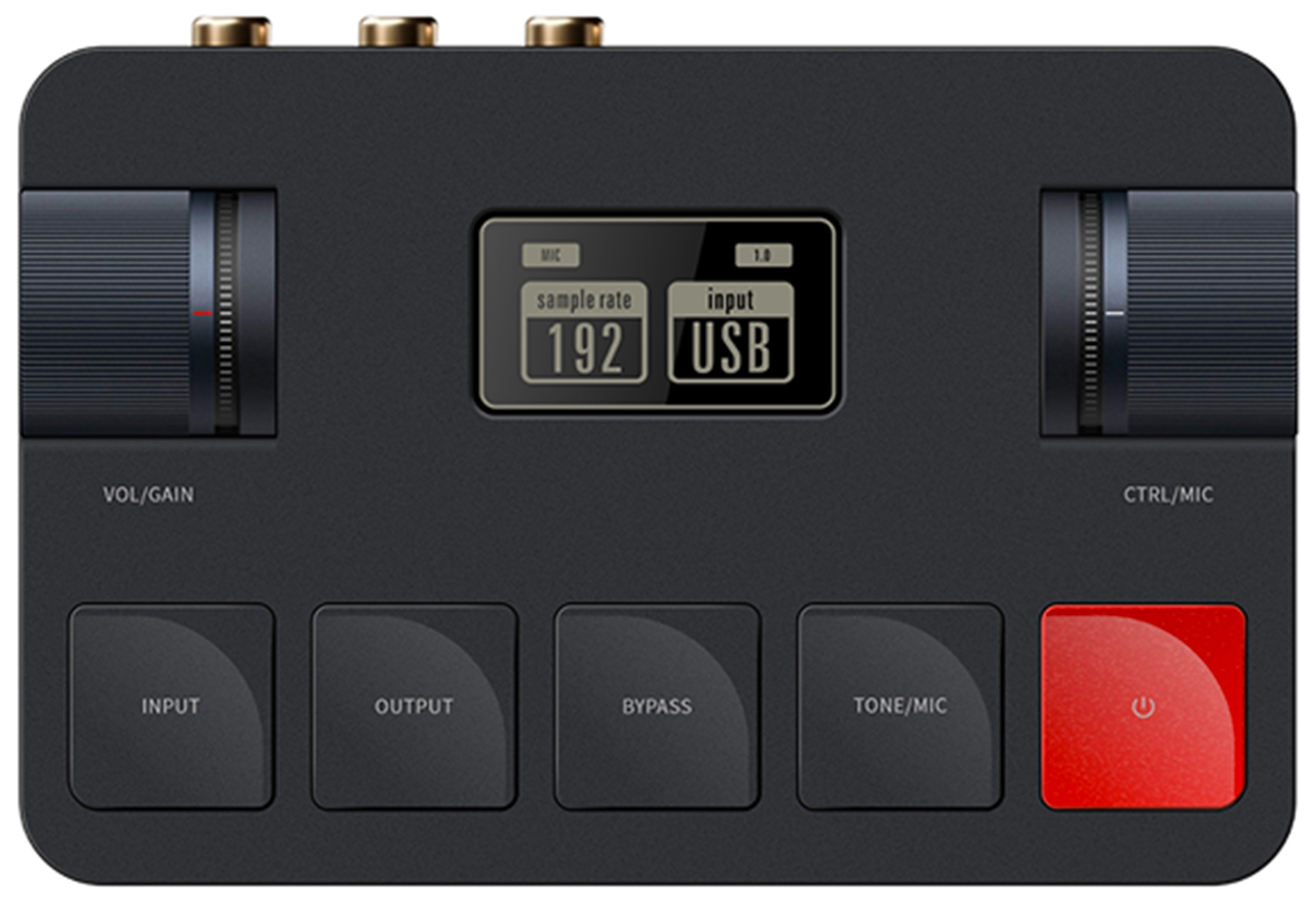

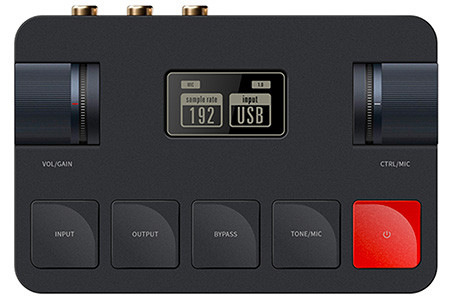

Lyreman DAC-3 Portable DAC Headphone Amplifier 2x ES9039Q2M 32bit 768kHz DSD1024
The Lyreman DAC-3 is a portable DAC, built around an octa-core Qualcomm 6115 processor and two ES9039Q2M DACs. This architecture supports files up to DSD1024 and PCM 32bit 768kHz, while its 4.7-inch touchscreen makes it easy to browse content and settings.

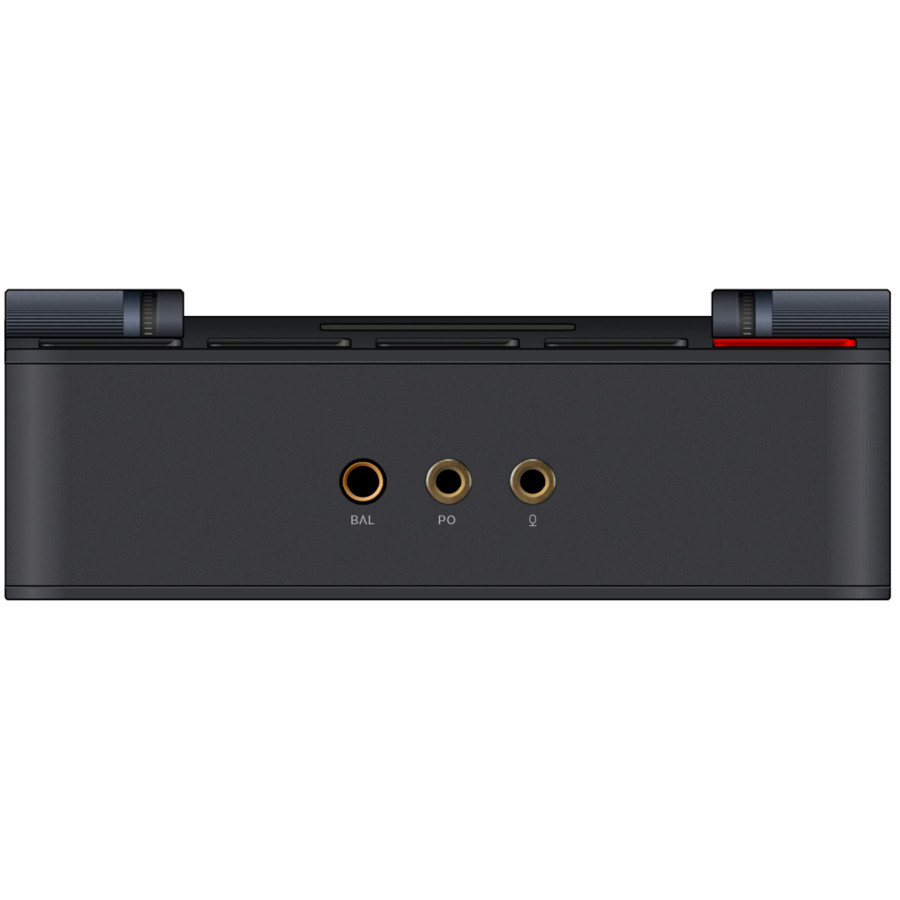

Its single-ended 3.5mm jack and balanced 4.4mm jack headphone outputs allow it to be integrated into various listening setups. Bluetooth 5.0 connectivity rounds out its wireless linking options, while its 4,800mAh battery supports on-the-go use.
Technical specifications
| Specifications | |
|---|---|
| Product type | Portable DAC Headphone amplifier |

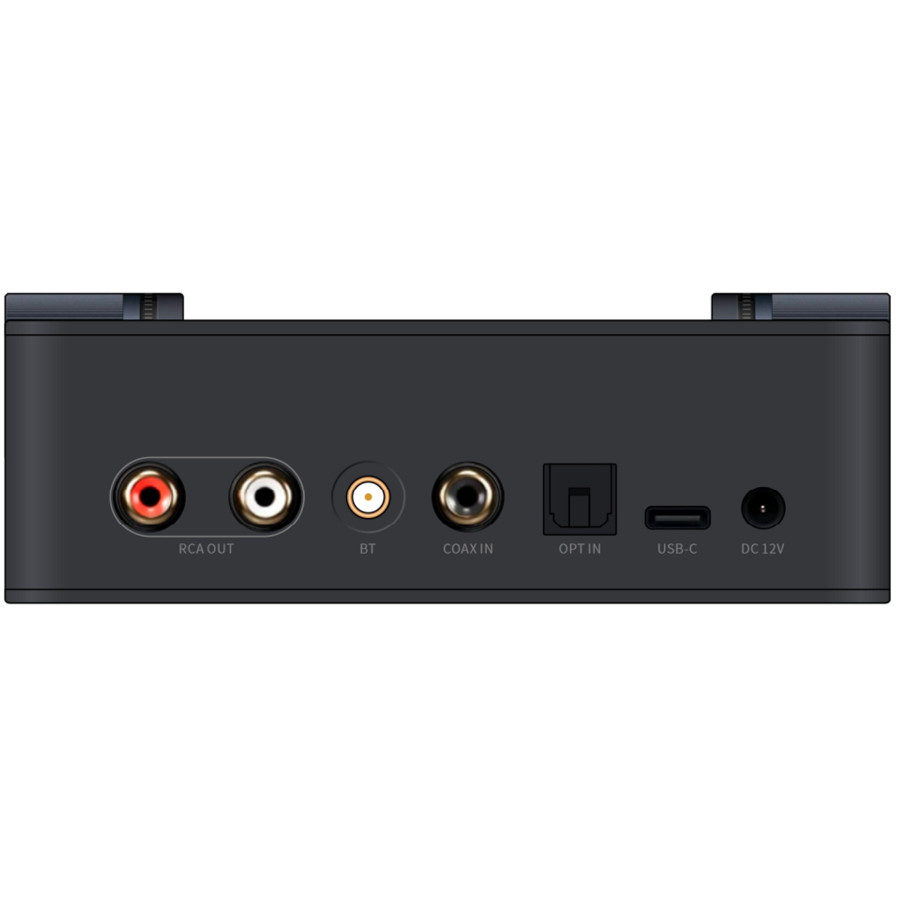

| Inputs | 1x Coaxial 1x Toslink Optical 1x USB-C Bluetooth |
| Outputs | 1x Stereo RCA 1x 3.5mm Jack headphone output 1x 4.4mm Jack headphone output |
| Supported sample rates | PCM up to 32bit 768kHz DSD up to DSD1024 |
| DAC chips | 2x ES9039Q2M |
| Frequency response | 20Hz-20kHz (±0.5dB) |
| Dynamic range | 3.5mm Jack: 124dB 4.4mm Jack: 128dB |
| Signal-to-noise ratio (SNR) | 3.5mm Jack: 124dB 4.4mm Jack: 128dB |
| THD+N | 3.5mm Jack: 0.000439%(−107.15 dB)@1Khz/A-W 4.4mm Jack: 0.000912%(−100.80 dB)@ 1Khz/A-W |
| Amplification chips | 4x OPA1656 4x BUF634A |
| Bluetooth version | 5.0 |
| Supported audio formats | mp3 / wav / ogg / apewma / aif / aiff / oga / flac / m4a / aac / dsf / dff / dsd / dst / dts / iso / cue / m3u / m3u8 |
| Battery | 4800mAh |
| CPU | Qualcomm6115 Octa Core 2.0GHz |
| General | |
|---|---|
| Supply voltage | 12V DC |
| Dimensions | 122 x 80 x 40mm |
| Color | Black |
| Package | 1x LYREMAN DAC-3 |
| Input | USB |
| Input | Optical |
| Input | SPDIF |
| Input | Bluetooth |
| Output | RCA |
| Output | Jack 4.4mm |
| Output | Jack 3.5mm |
| DAC / ADC Chip | ES9039Q2M |
| Max sampling rate | 768kHz |
| Max sampling rate | DSD1024 |
| Color | Black |
| Class | Class D / T |
| Networking | No |
| Remote Control | No |
