MUSICIAN PEGASUS III DAC R2R Black
By buying this product you get 144 loyalty points

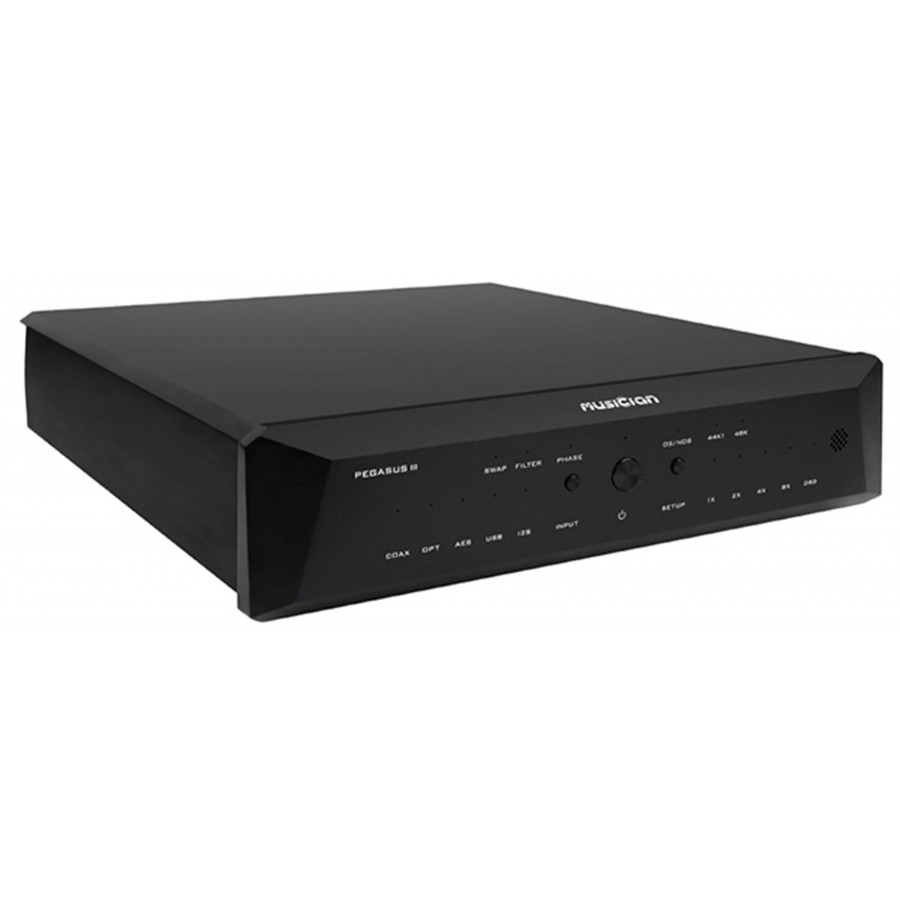

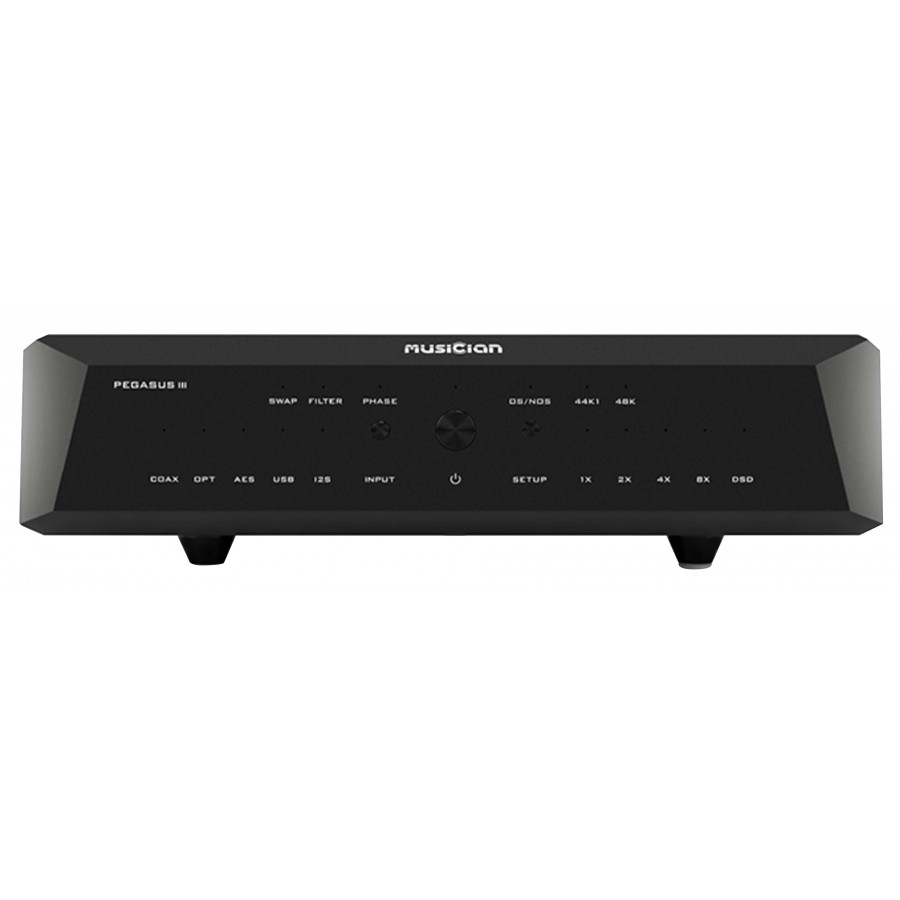

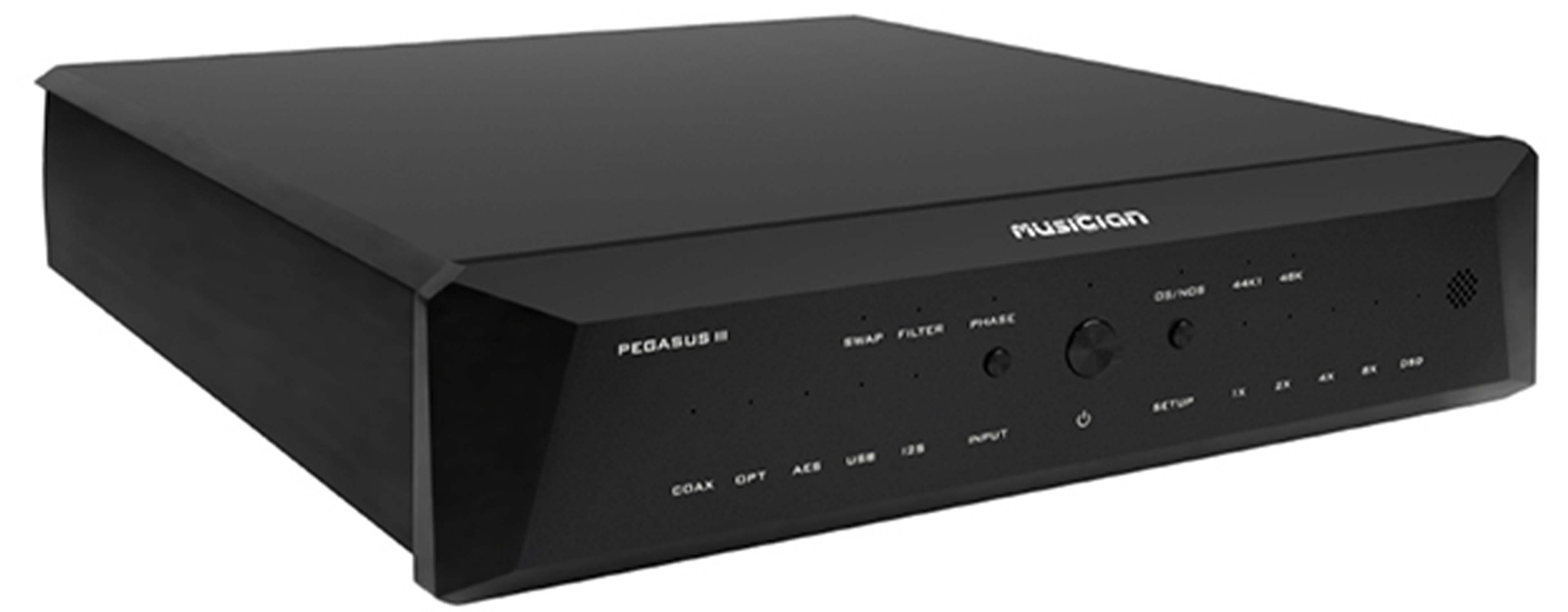

Musician Pegasus III Discrete Balanced R2R DAC 32bit 1536kHz DSD1024 Black
Building on the concept of version II, the Musician Pegasus III is a highly performant R2R DAC based on audiophile-grade components. Like its predecessor, it features a low-noise power supply as well as a FIFO buffer. For signal processing, it integrates an Altera Cyclone IV FPGA, a FIR filter and an STM32F446 interface. This concentration of technology allows it to support ultra-high resolution streams up to PCM up to 32bit 1536kHz and DSD up to DSD1024.
The main improvements brought to the Pegasus III include the optimization and enhancement of its R2R architecture, now fully balanced, the addition of high-speed multi-channel digital isolators, and the upgrade of its crystal oscillator with two custom high-precision oscillators for outstanding clock stability.
In terms of connectivity, it retains a complete range of digital inputs including USB-B, I2S via HDMI, optical Toslink, coaxial and AES/EBU. For signal output, classic analog RCA and balanced XLR outputs are available.
Musician Pegasus III: High-performance balanced R2R DAC with dedicated DSD architecture
The fully balanced R2R circuit is built using 0.005% high-precision resistors for accurate digital-to-analog conversion. Furthermore, this architecture allows processing of high-resolution sampling rates up to PCM 32bit 1536kHz and DSD1024.
Musician Pegasus III: Custom TCXO crystal oscillators
The Musician Pegasus III is equipped with two custom TCXO clocks supporting its FPGA chip. These new crystal oscillators provide excellent clock stability, allowing the Pegasus III to handle numerous sampling rates.

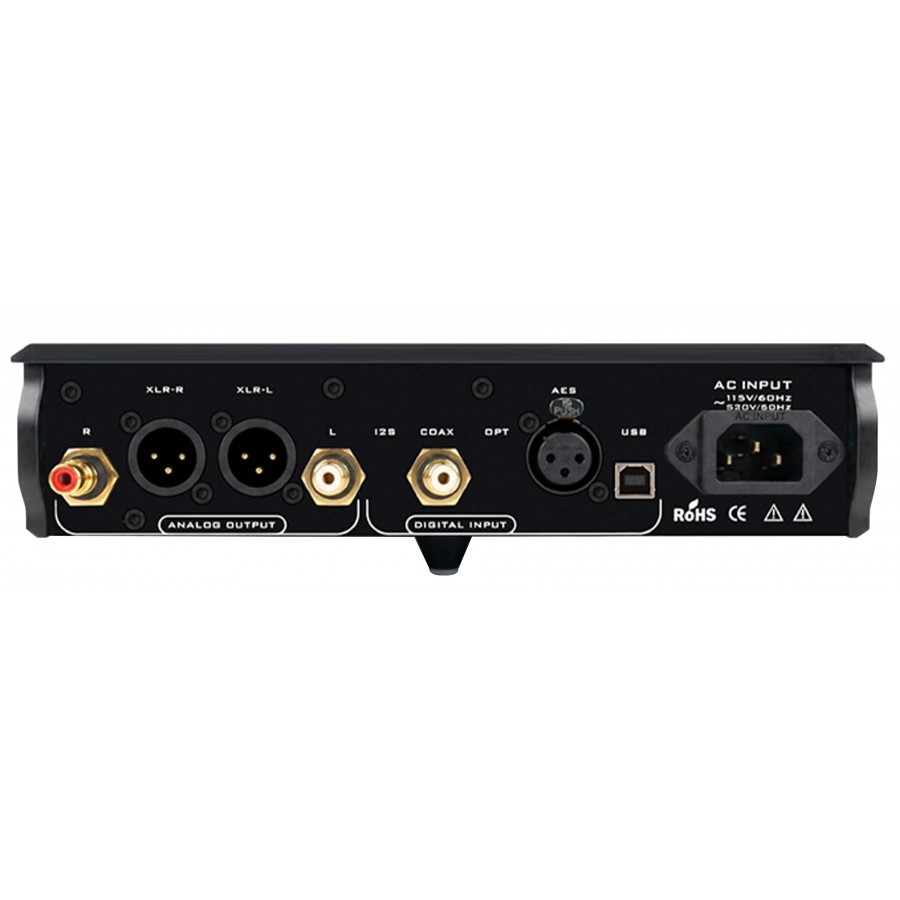

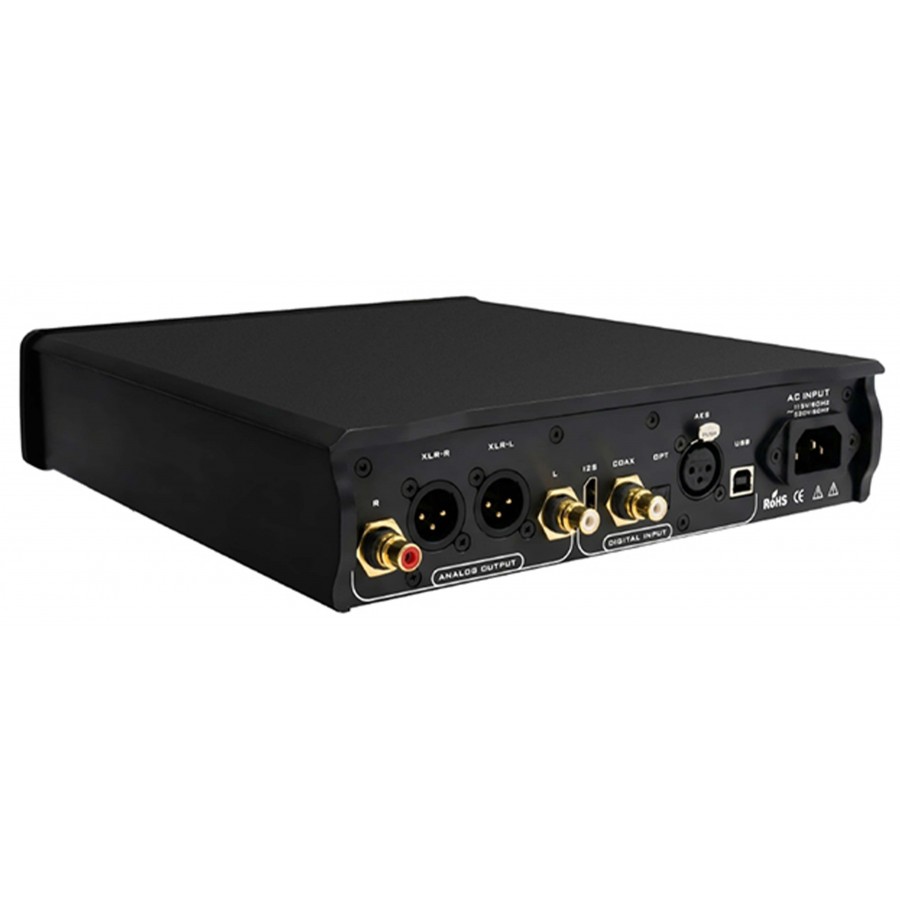

Overview of the Musician Pegasus III connectivity
| 1 | Input selection |
| 2 | Power button |
| 3 | NOS button |
| 4 | Single-ended RCA output |
| 5 | Balanced XLR output |
| 6 | I2S input via HDMI |
| 7 | Coaxial input |
| 8 | Optical Toslink input |
| 9 | AES/EBU input |
| 10 | USB-B input |
| 11 | IEC power input |
It is not recommended to use XLR and RCA outputs simultaneously, as they share the same circuitry.
I2S pinout configuration
To ensure compatibility with most devices, the Musician Pegasus offers several I2S pinout configurations. To change this setting, follow the steps below:
- Select the I2S input.
- Press and hold the NOS button for 3 seconds until the I2S indicator starts blinking.
- Press the NOS button again to change the I2S mode.
- Once the correct mode is selected, the device confirms the setting and automatically exits the configuration mode.
If the setting does not provide satisfactory sound (for example if a whistling noise is heard), this should not be considered a device malfunction but simply an incompatibility. The recommended solution is to use a custom HDMI cable adapted to the pinout of your source device and the Pegasus.
Technical specifications

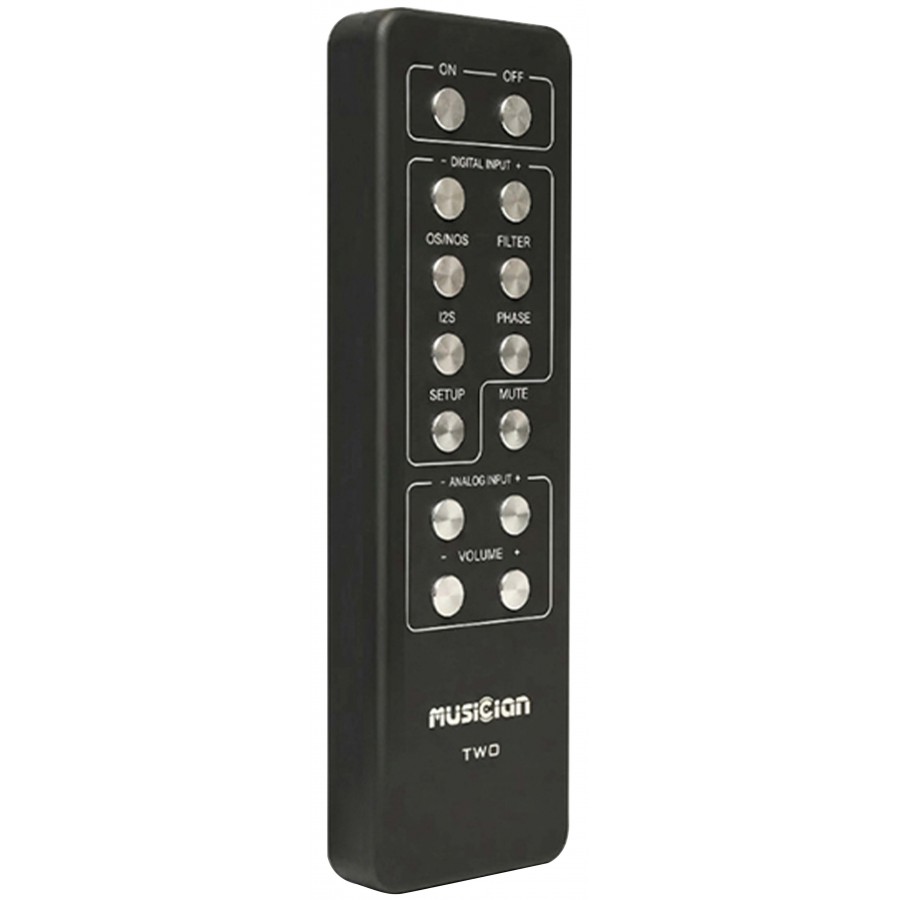

| Specifications | |
|---|---|
| Product type | R2R DAC |
| Inputs | 1x USB-B 1x Coaxial 1x Optical Toslink 1x AES/EBU 1x I2S via HDMI LVDS |
| Outputs | 1x Single-ended RCA 1x Balanced XLR |
| Supported sampling rates | USB: PCM up to 32bit 1536kHz, DSD up to DSD1024, DSD DoP64 I2S: PCM up to 32bit 768kHz, DSD up to DSD1024, DSD DoP64 Optical Toslink, coaxial, AES/EBU: PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
| Frequency response | 10Hz - 75kHz (+1/-3dB) |
| THD+N | < 0.002% (A-Weighted) |
| SNR | ≥ 120dB (A-Weighted) |
| Dynamic range | ≥ 121dB |
| Crosstalk | ≥ 110dB |
| Output levels | RCA: 2Vrms XLR: 4Vrms |
| Operating mode | NOS/OS |
| General | |
|---|---|
| Power supply | 115V/60Hz, 230V/50Hz (Auto switch) |
| Power consumption | ≤ 20W |
| Dimensions | 280 x 250 x 50mm |
| Weight | 3.9kg |
| Color | Black |
| Package | 1x Musician Pegasus III 1x IR remote control 1x Power cable |
| I2S Pinout | ||||||||
|---|---|---|---|---|---|---|---|---|
| PIN | Mode 1 | Mode 2 | Mode 3 | Mode 4 | Mode 5 | Mode 6 | Mode 7 | Mode 8 |
| 1 | DATA- | DATA- | DATA+ | DATA+ | DATA- | DATA- | DATA+ | DATA+ |
| 3 | DATA+ | DATA+ | DATA- | DATA- | DATA+ | DATA+ | DATA- | DATA- |
| 4 | BCK- | BCK- | BCK- | BCK- | BCK+ | BCK+ | BCK+ | BCK+ |
| 6 | BCK+ | BCK+ | BCK+ | BCK+ | BCK- | BCK- | BCK- | BCK- |
| 7 | LRCK- | LRCK+ | LRCK- | LRCK+ | LRCK- | LRCK+ | LRCK- | LRCK+ |
| 9 | LRCK+ | LRCK- | LRCK+ | LRCK- | LRCK+ | LRCK- | LRCK+ | LRCK- |
| Input | USB |
| Input | Optical |
| Input | AES/EBU |
| Input | SPDIF |
| Input | I2S via HDMI |
| Output | RCA |
| Output | XLR |
| DAC / ADC Chip | R2R LADDER DAC |
| Max sampling rate | DSD1024 |
| Max sampling rate | 1536kHz |
| Color | Black |
| Networking | No |
| Remote Control | Yes |
