AUDIO-GD NFB-7.38 DAC ES9038Pro DSD 32bit / 384K USB Amanero I2S HDMI TCXO

AUDIO-GD NFB-7.38 DAC ES9038Pro DSD 32bit / 384K USB Amanero I2S HDMI TCXO

The Audio-GD NFB-7.38 is a DAC with ES9038Pro converter with an Amanero asynchronous USB interface and I2S connectivity via HDMI.

KEY POINTS:

  • DAC ES9038
  • 32bits 384kHz
  • USB Amanero / I2S HDMI
  • Symmetrical design
  • TCXO

Average votes for this product
5.0 / 5

No loyalty points for this product.


Reference : 12020
New product

1 690,00 €tax incl.

1 408,33 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

AUDIO-GD NFB-7.38 ES9038 TCXO

DAC 32bit 384khz USB AMANERO I2S HDMI Symmetrical AUDIO-GD NFB-7.38 ES9038

Versatile, efficient, unmissable

The NFB-7.38 DAC is equipped with the latest ESS ES9038 saber component and Amanero's latest generation Asynchronous USB interface.

This new edition proposes a better implementation of the Saber proposing a path of the even shorter signal actually symmetrical and the possibility to select the hardware filters FIR PCM, DSD. The detection of different DSD formats (with switching without noise switching) is now automatic.

NFB is the acronym for "No Feedback" used by Audio-GD. This technology on the analog stages allows a great respect of the harmonics, without distortions, without digital hardness.

USB AMANERO and I2S HDMI

This Audio-GD has 6 digital inputs: BNC / RCA / Coaxial SPDIF / Optical / USB AMANERO / I2S via HDMI. Alongside 3 analog outputs: XLR / RCA / ACSS.

The built-in ES9038 SABER allows you to manage 32Bit / 192kHz sources both in SPDIF and USB, and up to 384kHz in USB.In order to use the NFB-7.38 in Windows via its USB-B input on the back panel, you will first need to download the Driver Amanero Combo 384 AUDIO GD:= "http://audio-gd.com/Pro/dac/Amanero/AmaneroEN.htm" target = "_ blank">Amanero Combo driver.

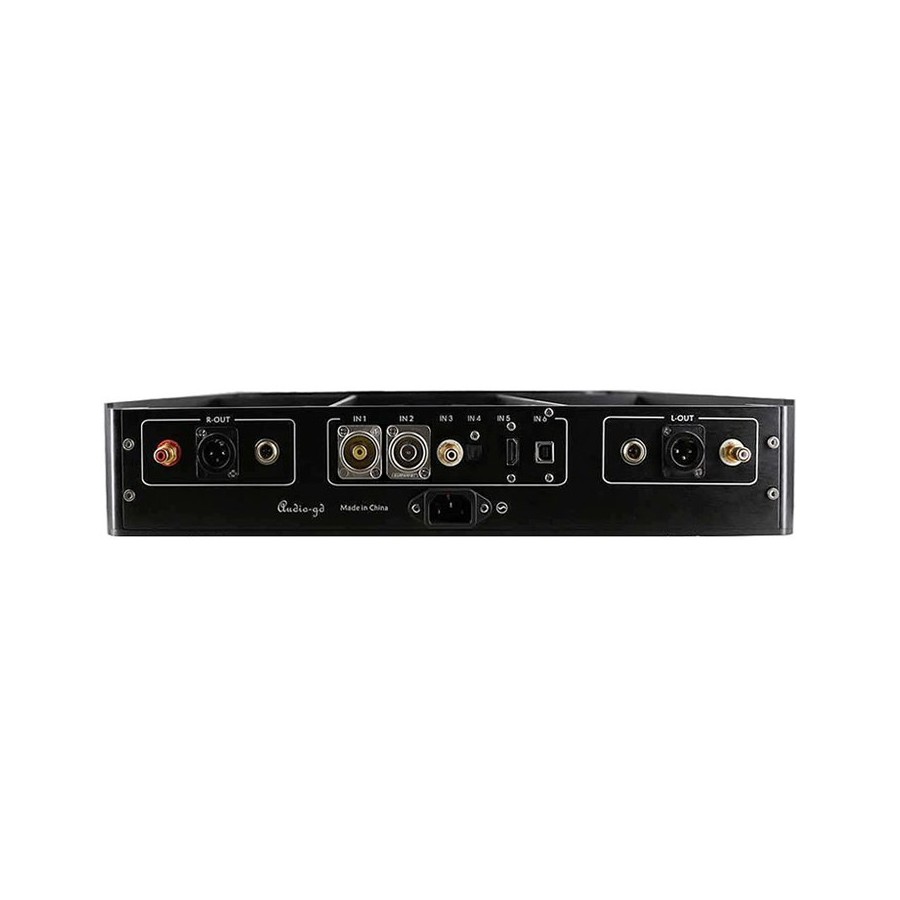

Back Audio-GD NFB-7.38

Stunning sound reproduction

32bit / 384kHz / DSD / DXD / TCXO / HDMI

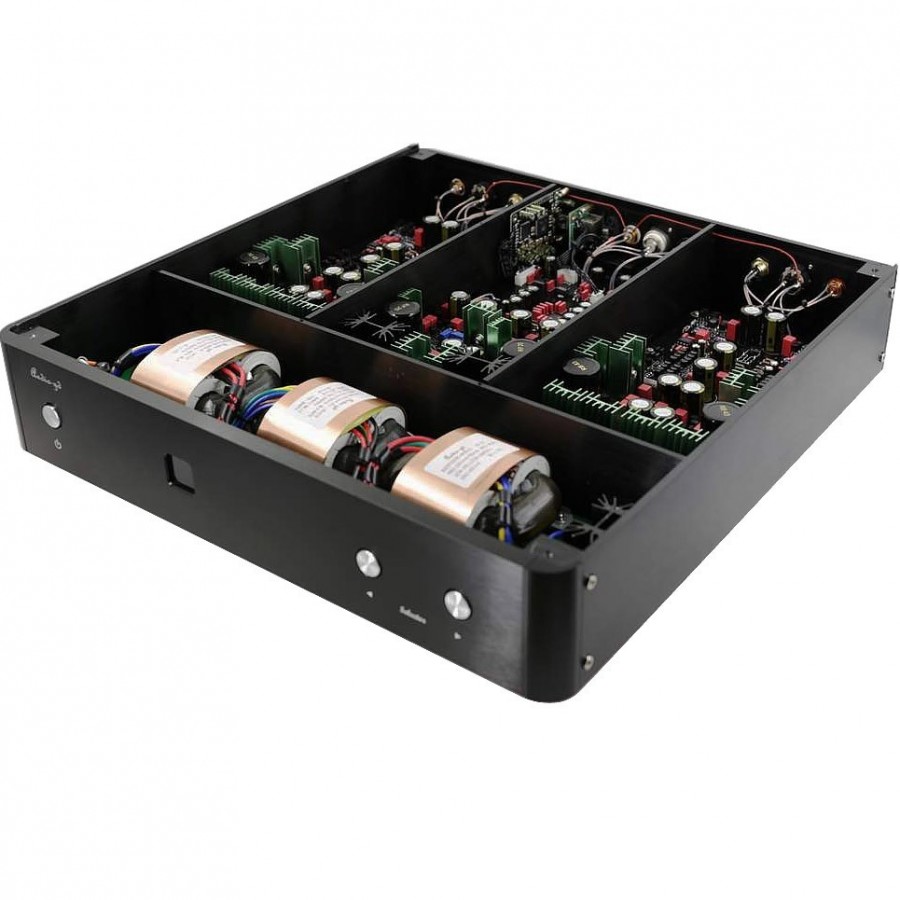

The 100% discrete design of this DAC (no PDO) goes through three stages (voltage, low pass filter, buffer) with transistors without any capacitors on the audio path, supported by a class A power supply with a fast rise time capable of provide the necessary energy. This version 7.38 has three fully separated Class A power supplies for the digital, left and right stages for analog outputs.

The CNover (UK) dampers have been specially manufactured on Audio-GD specifications. The output transistors Toshiba and Hitachi have been manually paired. AUDIO GD use the best available components: Wima, Dale, ESS, Atmel. The internal wiring is made of OCC copper.

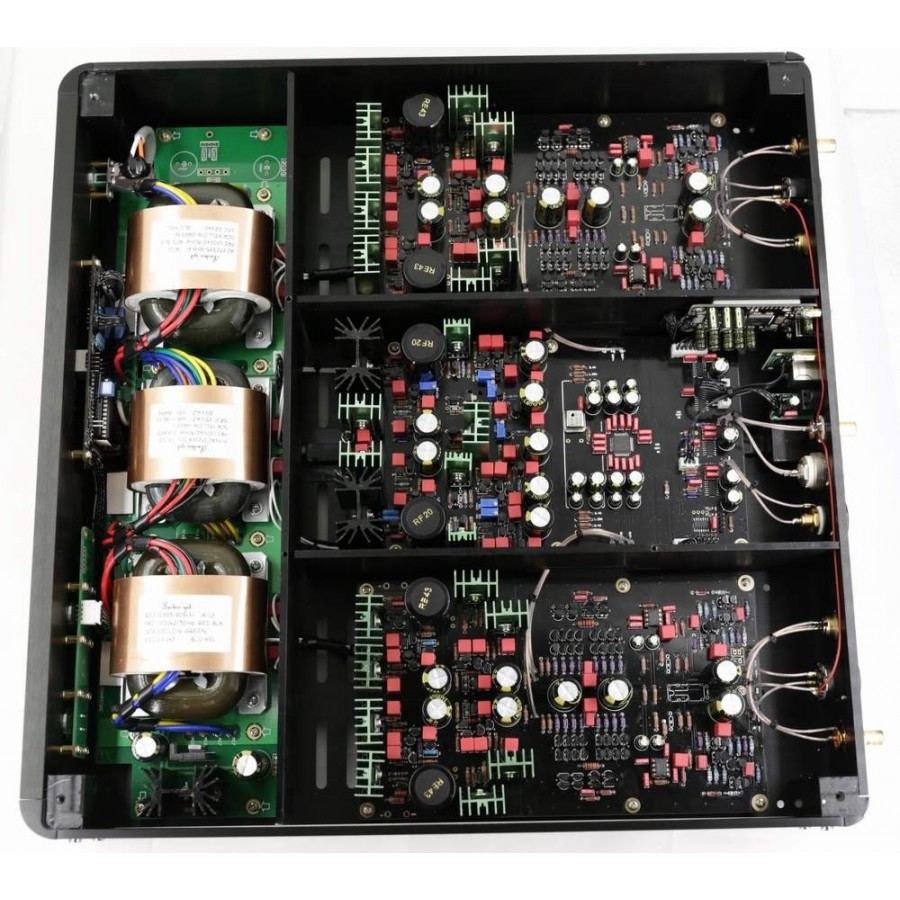

Audio-GD NFB-7.38 de haut

SABER ES9038PRO

This high-fidelity DAC NFB-7.38 is equipped with the famous ESS ES9038 32 bit / 384kHz. This conversion chipset is capable of reading High Definition formats from DSD to PCM with one of the best signal-to-noise ratios on the market (120dB real on XLR). The ACSS analog output stage, which is a feature of AUDIO GD, reduces the signal with only one buffer stage and an original Dale (USA) resistor. This shorter signal path allows the ES9038 to reproduce the highest level of detail and dynamics on the ESS SABER DACs.

ESS SABRE ES9038PRO

Signal-to-Noise Ratio Consation
Specifications
120dB (XLR outputs)
Output Level2.5V RMS (RCA) / 5V (XLR) / 2mA + 2mA (ACSS)
Output impedance10 Ohm
Supported Operating Systems/ Windows (44.1kHz to 384kHz) / OSX (44.1kHz to 384kHz) / Linux (44.1kHz to 384kHz) / USB compatible iPhone and iPad via Apple Camera Kit
Sampling rateCoaxial: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Optical: 44.1kHz, 48kHz, 88.2kHz, 48kHz, 88.2kHz, 96kHz DSD 64/128 and DXD
Input sensitivity0.5Vp-p (75 Ohm, Coaxial) / 19dBm (Optical) / USB 2.0 (Full Speed)
Digital inputsSPDIF RCA x2 / SPDIF BNC / Optical Toslink / HDMI / USB
Analog outputsXLR balanced / RCA / ACSS
Frequency Response20Hz - 20kHz (-0.2dB)
Miscellaneous
45W
Dimensions430x430x85mm
chassis100% aluminum
Weight15kg
ColorBlack Anodized
AccessoriesPower cord / USB cable

Data sheet
InputOptical
InputBNC
InputSPDIF
InputI2S via HDMI
OutputRCA
OutputACSS
OutputXLR
DAC / ADC ChipES9038PRO
Max sampling rateDSD128
Max sampling rate384kHz
ColorBlack
