AUDIO-GD NFB-7.77 2xES9038Pro DSD 32bit / 384K USB Amanero I2S HDMI TCXO

AUDIO-GD NFB-7.38 DAC ES9038Pro DSD 32bit / 384K USB Amanero I2S HDMI TCXO
15%

The Audio-GD NFB-7.77 is an exceptional DAC incorporating a dual converter ES9038Pro in a careful and rigorous symmetrical design. It also incorporates USB Amanero and I2S HDMI.

KEY POINTS:

  • Double DAC ES9038Pro
  • 32bits 384kHz
  • USB Amanero / I2S HDMI
  • Symmetrical design
  • TCXO

No customer reviews yet, login to write a review.


Reduced price!
Reference : 12108
New product
Limited special offer

2 109,00 €tax incl.

-15%

1 792,65 €tax incl.

1 493,88 € tax excl.
Including 0,05 € for green tax
Available
Last items in stock !

- +

Shipping date: 17-12-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

AUDIO-GD NFB-7.77 - Double ES9038 TCXO

DAC 32bit 384khz USB AMANERO I2S HDMI Symmetrical AUDIO-GD NFB-7.77 ES9038

Versatile, efficient, unmissable

The NFB-7.77 DAC is equipped with the latest ESS double saber component ES9038 PRO and the Amanero latest generation asynchronous USB interface.

This new DAC is a "next level" in the AudioGD range. Equipped with an ARRAY FIFO FPGA processor to perfectly synchronize the two DAC ES9038 PRO dual mono, the NFB 7.77 pushes the current limits of music reproduction.

This DAC is based on a tandem of ES9038PRO (16 DAC!) With programming that does not have the usual defects of 32 bit chips to artificial sound. This DAC reconciles the old and new generations bringing matter, balance, a perfect fusion between sense of rhythm and High Definition.

Thanks to its NFB analogue acronym of No Feedback, the ultra-fast rise time of its pure class A stages allows a great respect for the harmonics, without distortions, without digital hardness, transcribing without fail the information of the two DAC ES9038PRO HyperStream II.

CettThe new generation includes aOCC copper wiring and three original TCXO clocks.

USB AMANERO and I2S HDMI

The two built-in ES9038 PRO SABS allows you to manage 32Bit / 192kHz sources in SPDIF and up to 384kHz in USB. In order to use the NFB-7.77 in Windows via its USB-B input on the rear panel, you will first need to download the Driver Amanero Combo 384 AUDIO GD:ttp: //audio-gd.com/Pro/dac/Amanero/AmaneroEN.htm "target =" _ blank ">Amanero Combo driver.

Back Audio-GD NFB-7.38

Stunning sound reproduction

32bit / 384kHz / DSD / DXD / TCXO / RJ45

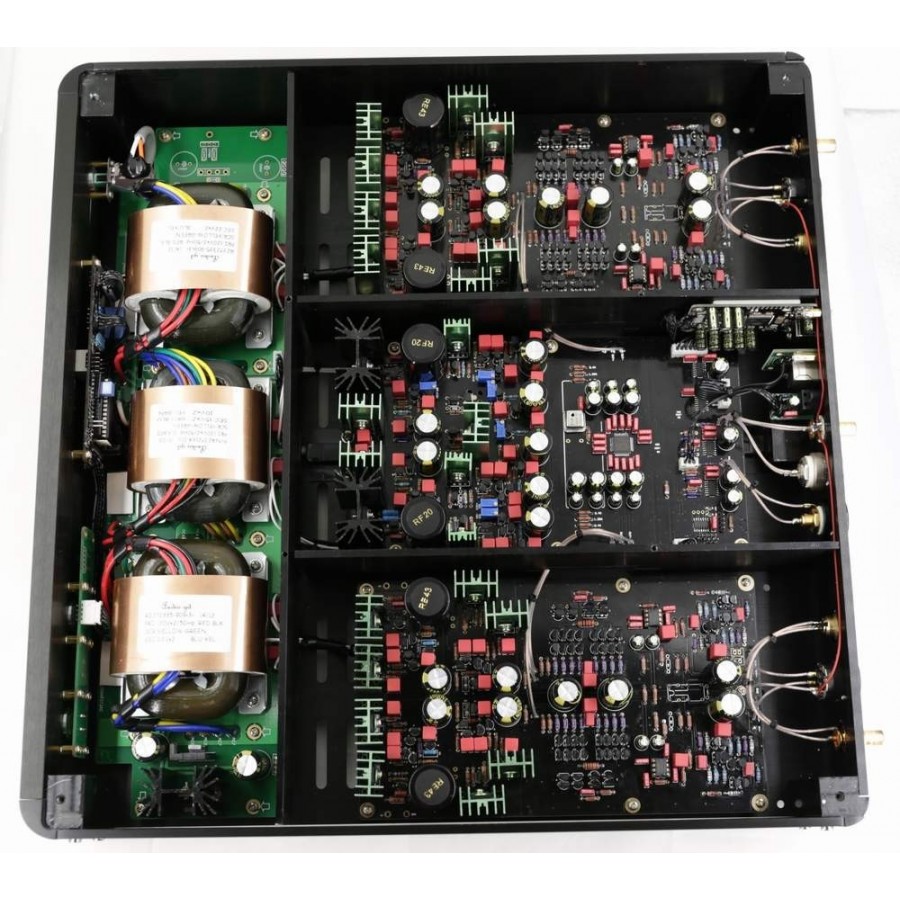

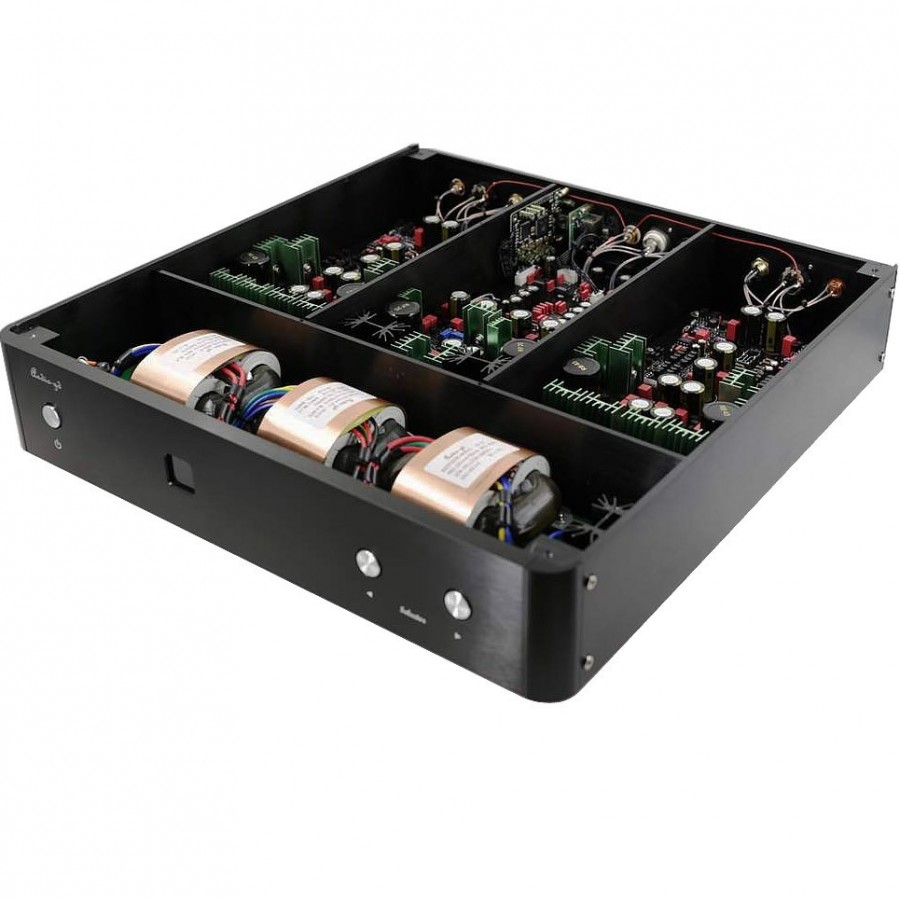

The 100% discrete design of this DAC (no PDO) goes through three stages (voltage, low pass filter, buffer) with transistors without any capacitors on the audio path, supported by a class A power supply (15 separate controls) of rapid rise able to provide the necessary energy (40000 μf of filtering). This 7.77 version has three fully separated class A power supplies for digital, left and right digital output stages for analog outputs.

TheNover (UK) manufacturers have been specially manufactured,on Audio-GD specifications. The output transistors Toshiba and Hitachi have been manually paired. AUDIO GD use the best available components: Wima, Dale, ESS, Atmel. The internal wiring is made of OCC copper.

Audio-GD NFB-7.38 de haut

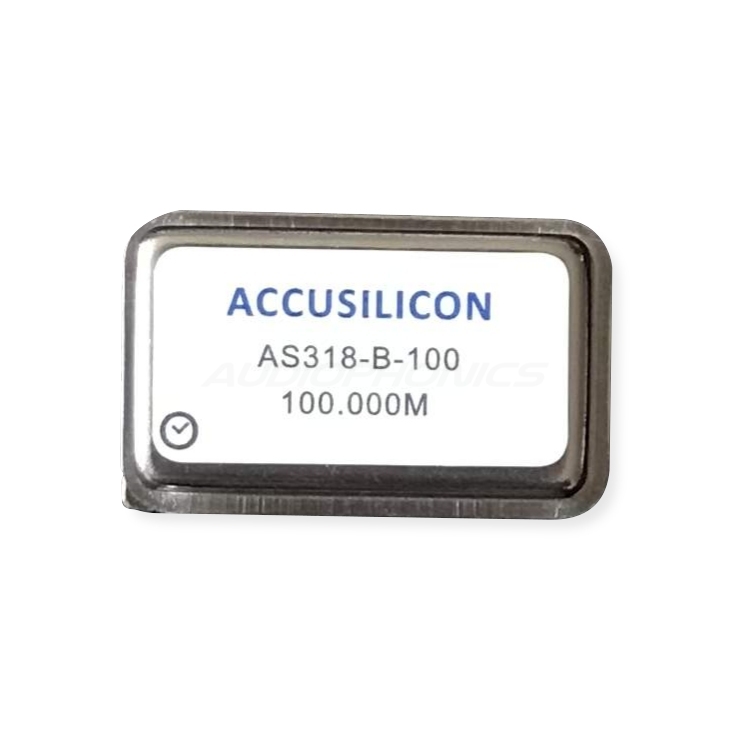

Horloge TCXO Audio-GD

TCXO 100Mhz

TCXO - 100MHz Usually the Audio-GD devices are equipped with standard 80MHz clocks, except this DAC Audio-GD NFB-7.77 includes the 100MHz TCXO Ultra Low Jitter option, perfectly associated with the ES9038. This TCXO (temperature compensated oscillator) clock is more accurate significantly lowering the Jitter.

SABER ES9038PRO x2 / ACSS

This high-fidelity DAC NFB-7.77 is equipped with the famous ESS ES9038 32 bit / 384kHz. This conversion chipset is capable of reading High Definition formats from DSD to PCM with one of the best signal-to-noise ratios on the market. ACSS Analog Output Stage, AUDIO GD Specification, Reducedt signal with only one buffer stage and an original Dale resistor (USA). This shorter signal path allows the ES9038 to reproduce the highest level of detail and dynamics on the ESS SABER DACs. This version equipped with 2 ES9038PRO reduces background noise, doubles dynamic capacity and reduces crosstalk by a truly symmetrical pattern of conversion to the analog stage.

ESS SABRE ES9038PRO

Signal-to-Noise Ratio Consumption
Specifications
120dB (XLR outputs)
Output Level2.5V RMS (RCA) / 5V (XLR) / 2mA + 2mA (ACSS)
Output impedance4 Ohm
Supported Operating Systems/ Windows (44.1kHz to 384kHz) / OSX (44.1kHz to 384kHz) / Linux (44.1kHz to 384kHz) / USB compatible iPhone and iPad via Apple Camera Kit
Sampling rateCoaxial: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Optical: 44.1kHz, 48kHz, 8kHz, 8kHz, 8kHz, 8kHz,8.2kHz, 96kHz DSD 64/128 and DXD
Input sensitivity0.5Vp-p (75 Ohm, Coaxial) / 19dBm (Optical) / USB 2.0 (Full Speed)

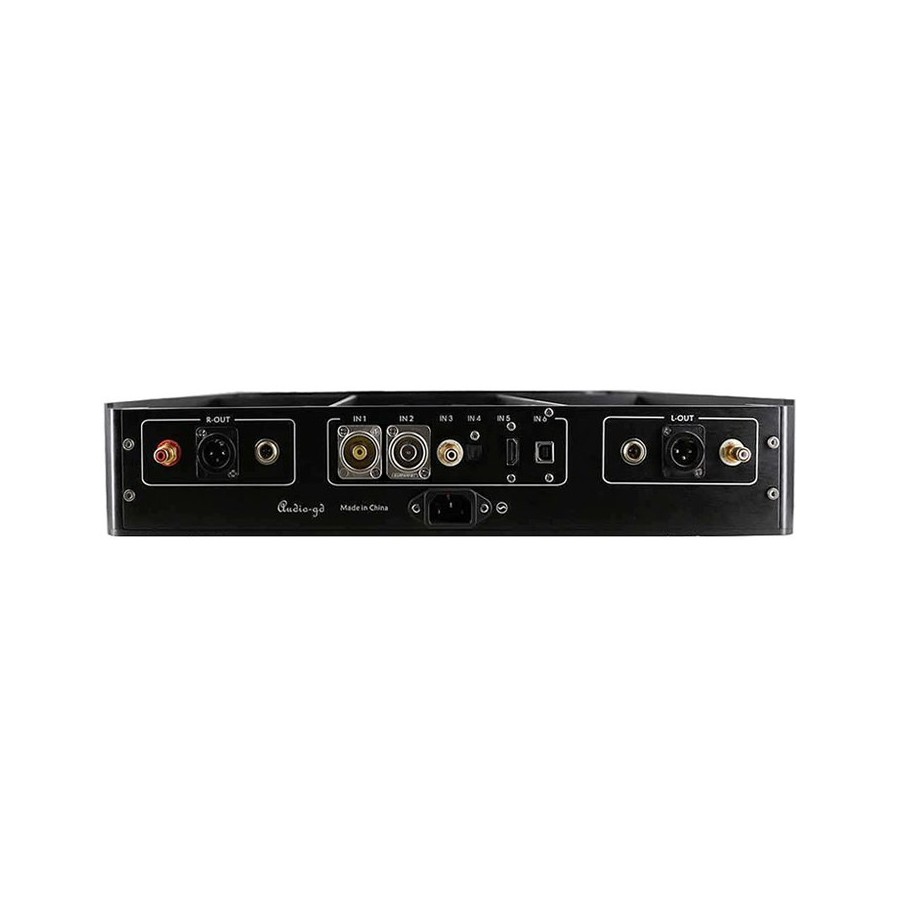

Digital inputsSPDIF RCA x2 / SPDIF BNC / Optical Toslink / HDMI / USB
Analog outputsXLR balanced / RCA / ACSS
Frequency Response20Hz - 20kHz (-0.2dB)
Miscellaneous
50W
Dimensions430x430x85mm
chassis100% aluminum
Weight15,5kg
ColorBlack Anodized
AccessoriesPower cord / USB cable

Data sheet
InputSPDIF
InputI2S via HDMI
InputUSB Amanero
InputOptical
InputBNC
OutputXLR
OutputRCA
OutputACSS
DAC ChipES0938PRO
Max sampling rateDSD128
Max sampling rate384kHz
ColorBlack
Components / Chipdouble ES9038PRO
MaterialAluminium
StructureMetal
