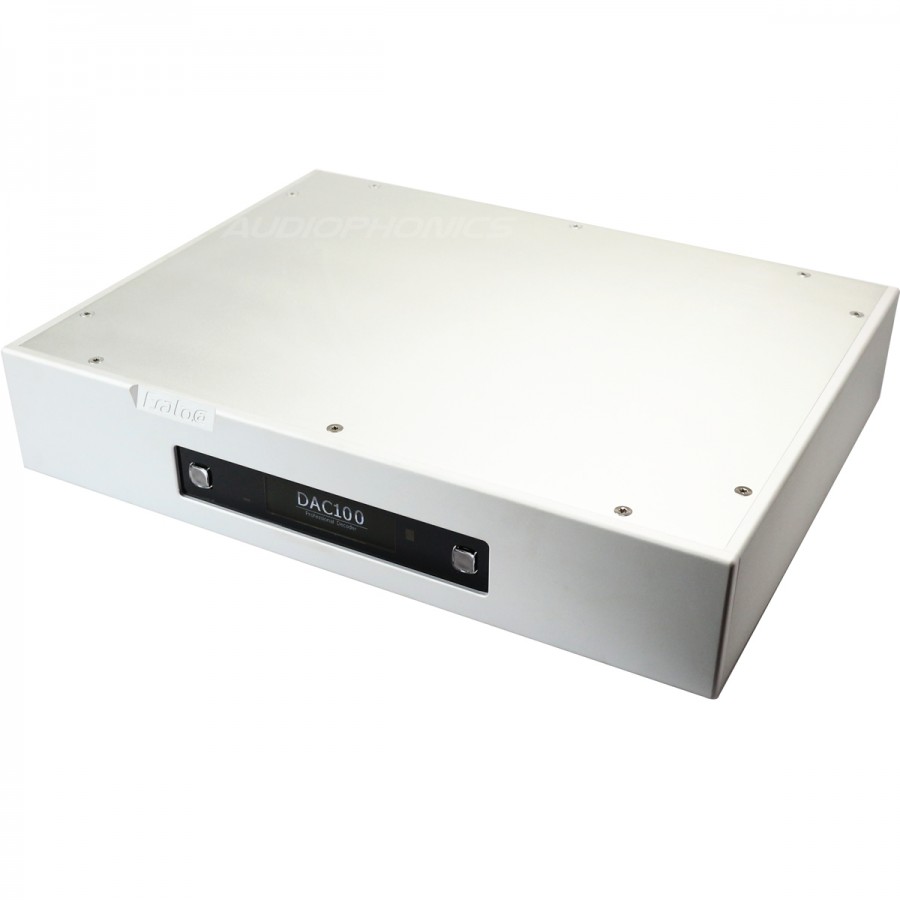

ERATO DAC100 V1 Balanced DAC XLR 24bit / 192Khz 2x AK4497 DSD128 XMOS U208

ERATO DAC DAC100 Symétrique XLR 32bit/384Khz AK4497x2 USB 2.0 XMOS U208

The DAC 100 uses two 32-bit AKM AK4497 AKM chips to provide very accurate stereo digital decoding while maintaining a minimum noise level (128dB signal-to-noise ratio and -166 dB THD+N).

No customer reviews yet, login to write a review.

By buying this product you get 132 loyalty points


Reference : 12607
New product

1 325,00 €tax excl.

Available
Last items in stock !

- +

Shipping date: 26-08-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product


More info

ERATO DAC100 V1

DAC Double AKM AK4497 Full balanced JFET

DAC 100 ERATO

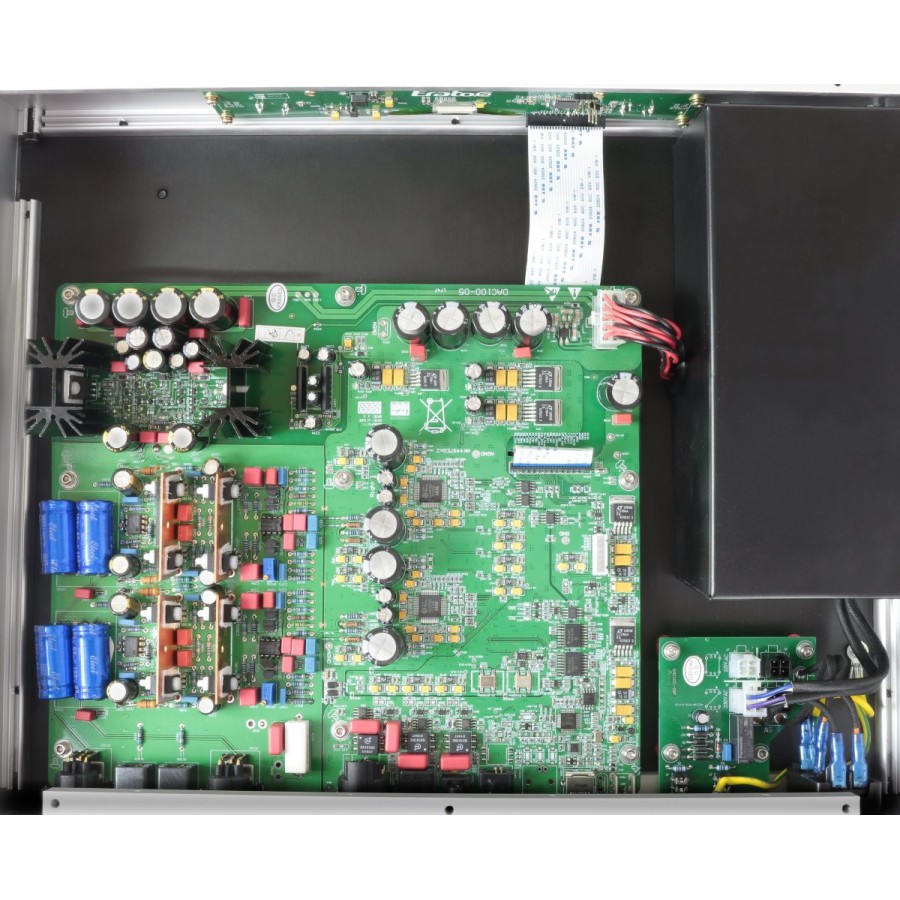

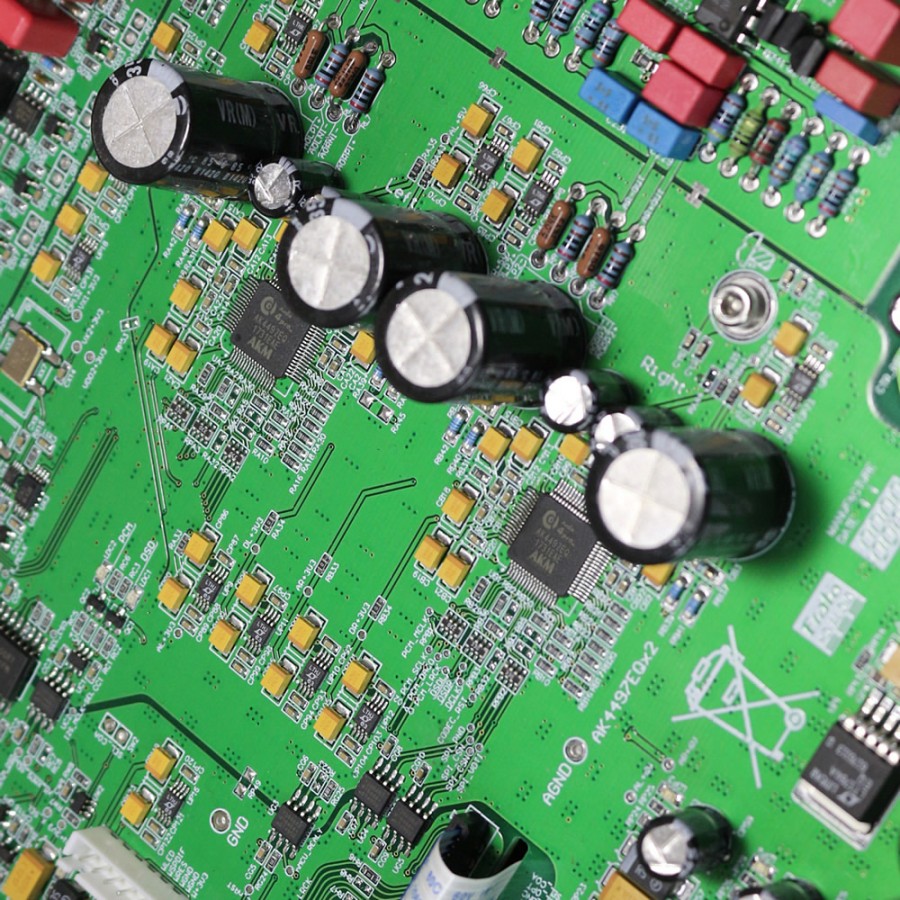

Both decoding chips DAC DAC 100 ERATO

Duo AKM AK4497

The DAC 100 uses two chips AKM AK4497 32-bit stereo digital to ensure decoding of high accuracy while maintaining a minimal noise level (S / N ratio of 128dB and THD + N of -166 dB).

This architecture allows it to decode finesse the high resolution audio files. It thus supports the PCM to 192KHz / 16/24 bits, the  as well as the DOP 64

These chips also can refine the decoding through technology Velvet Sound that promotes the deployment of the sound stage for extended listening space. This helps to create a stereo effect rich in detail.

6 digital filters are available to choose from to accommodate the peculiarities and preferences of the user and its audio system.

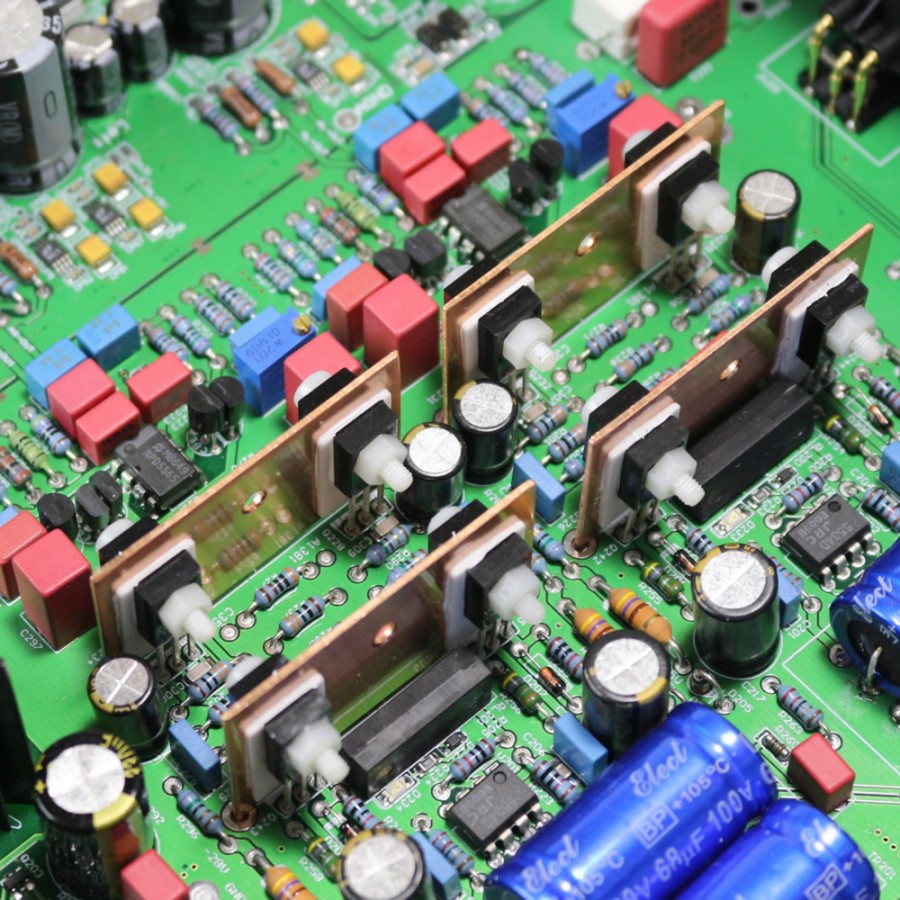

High precision analog output

The analog part is extremely neat.
outputs and analog buffers filters use a scheme based on discrete JFET transistors.
This type of system allows a high supply voltage and a high buffering power class A.

Thus the bandwidth is very high, while maintaining a level of crossover distortion and minimal noise.
The result is a listening its relaxing, natural and rich in detail.

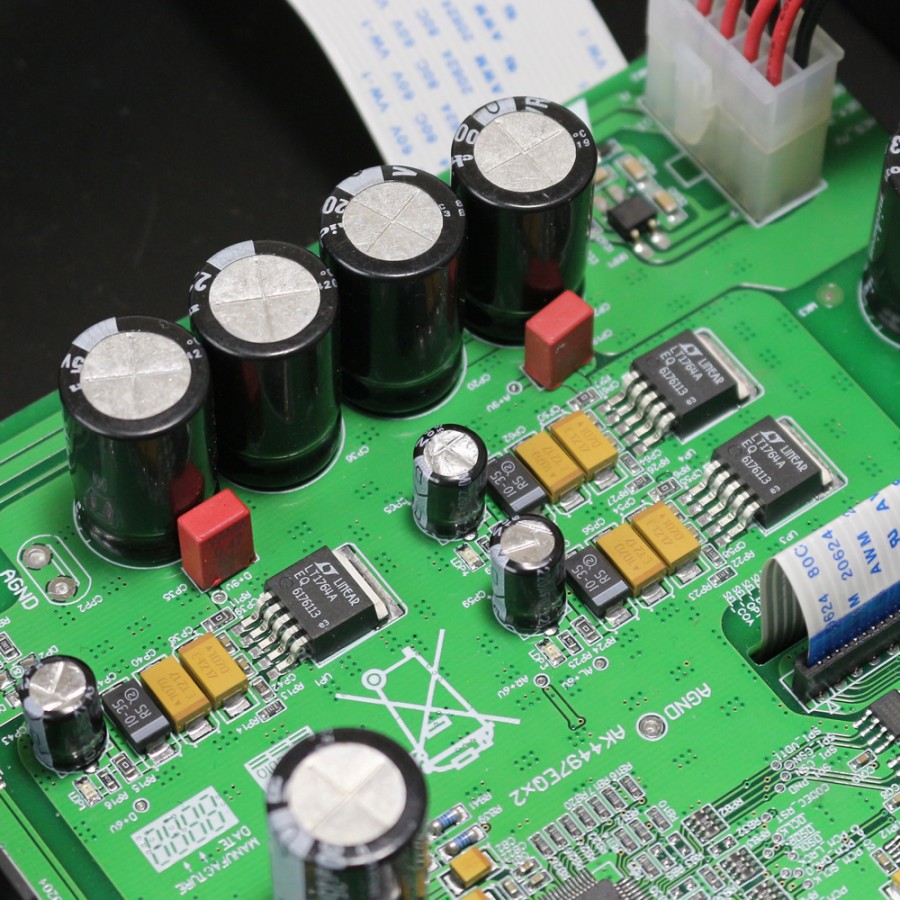

analog output stage ERATO DAC 100

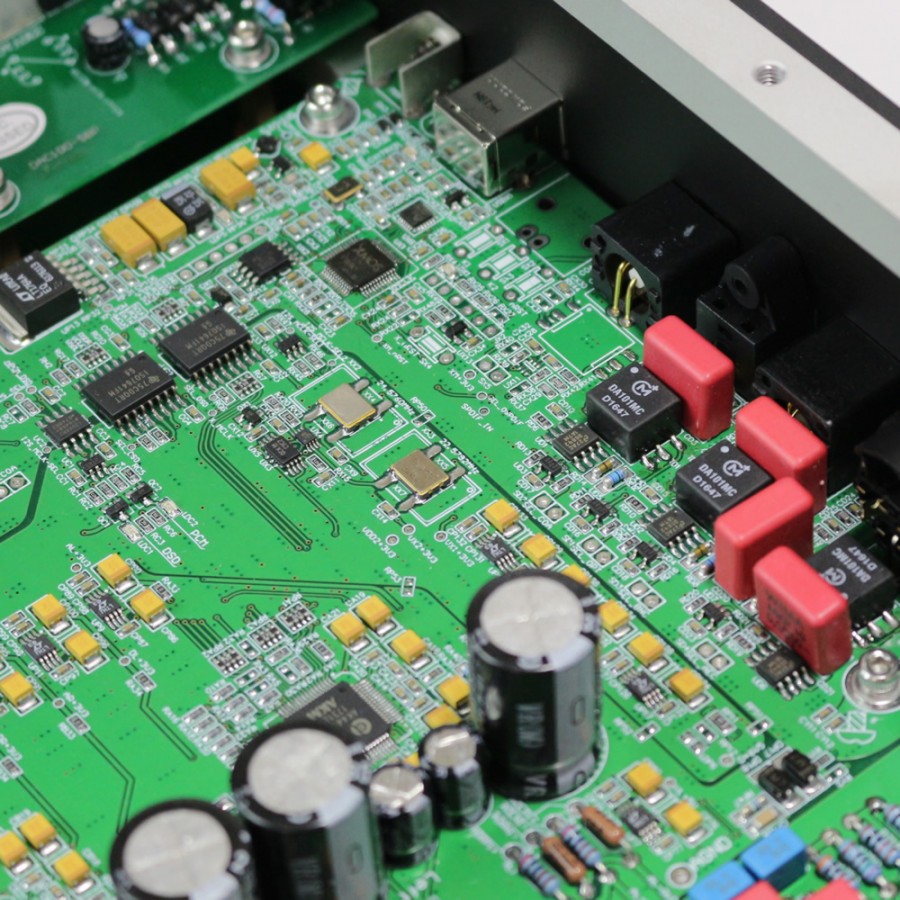

XMOS chip U208 DAC 100 ERATO

XMOS USB U208

The USB interface is based on a chip XMOS U208. An ideal choice for a high quality since the DAC U208 is equipped with two separate clocks femtosecond (asynchronous communication).

This construction also keeps the jitter and phase noise to a considerably low level (-160 dBc / Hz @ 1 KHz)

Driver XMOS available in the "Downloads" tab on this page.

A complete and efficient DAC

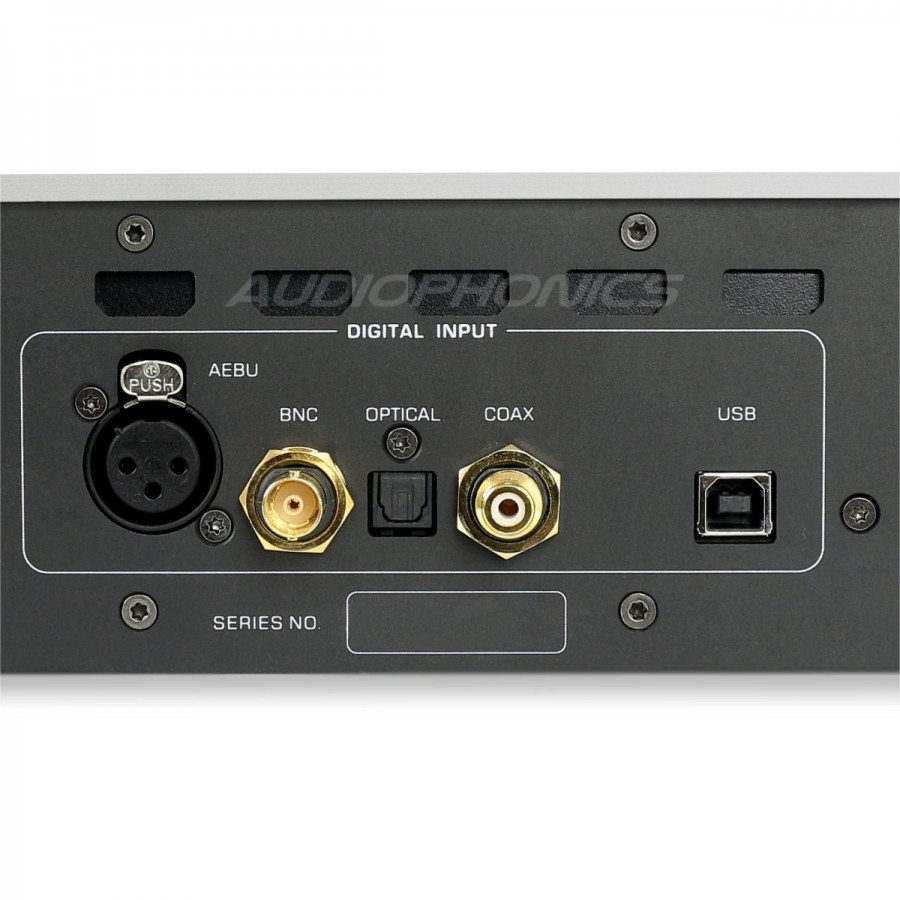

Digital Input DAC 100 ERATO



With its chips duo AKM AK4497, his (many) connectors high quality and a symmetrical design, the DAC 100 is a piece of choice for ambitious Hi-Fi facilities.

It is equipped with a wide range of digital inputs that allow it to operate with drives or digital sources varied while providing an extremely clear conversion. USB input We thus find :

  • USB (XMOS U208)
  • BNC
  • Optical
  • Coaxial
  • XLR balanced (AES/EBU)

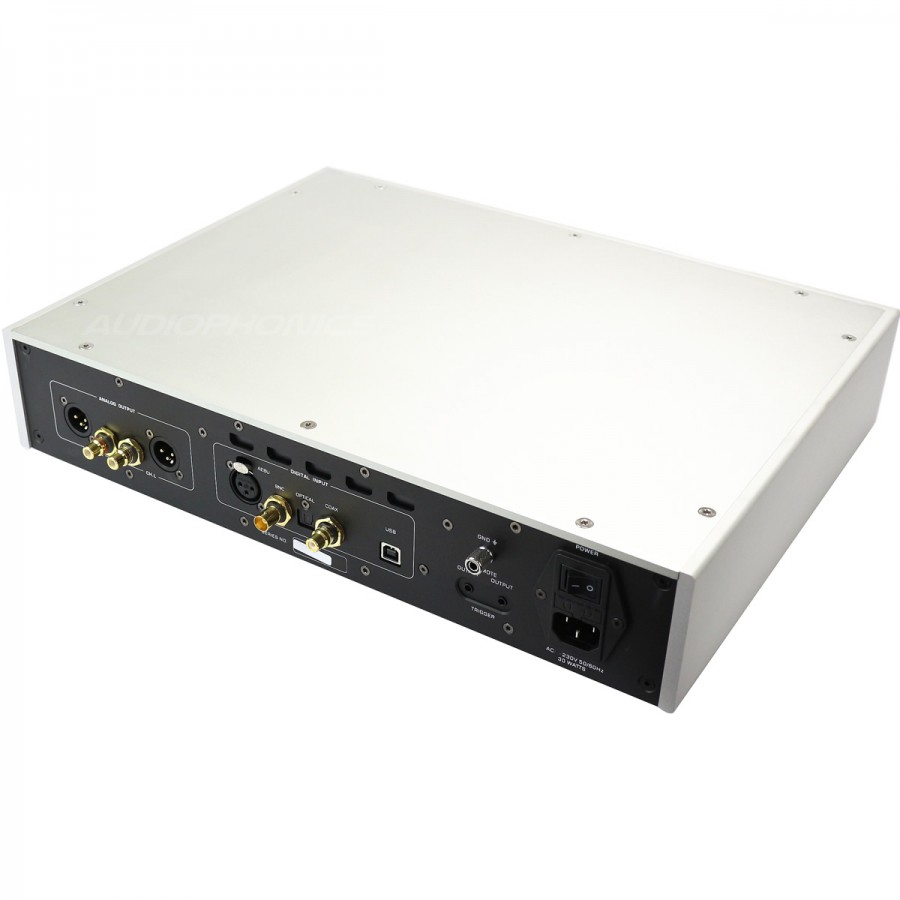

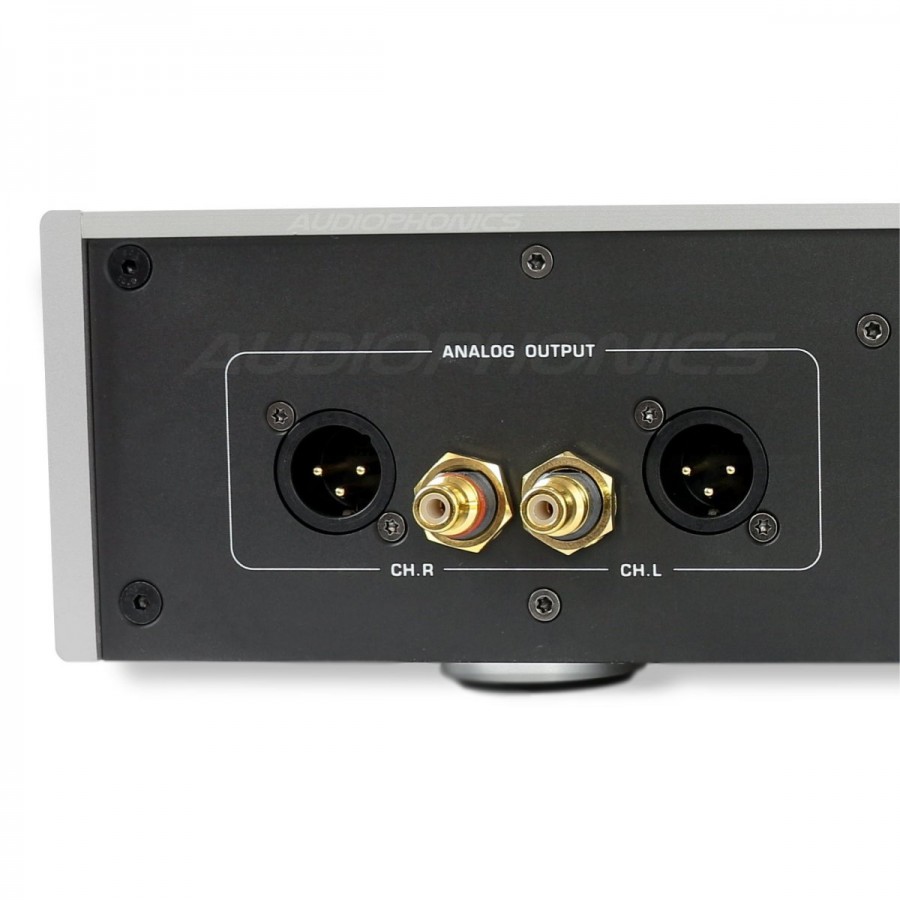

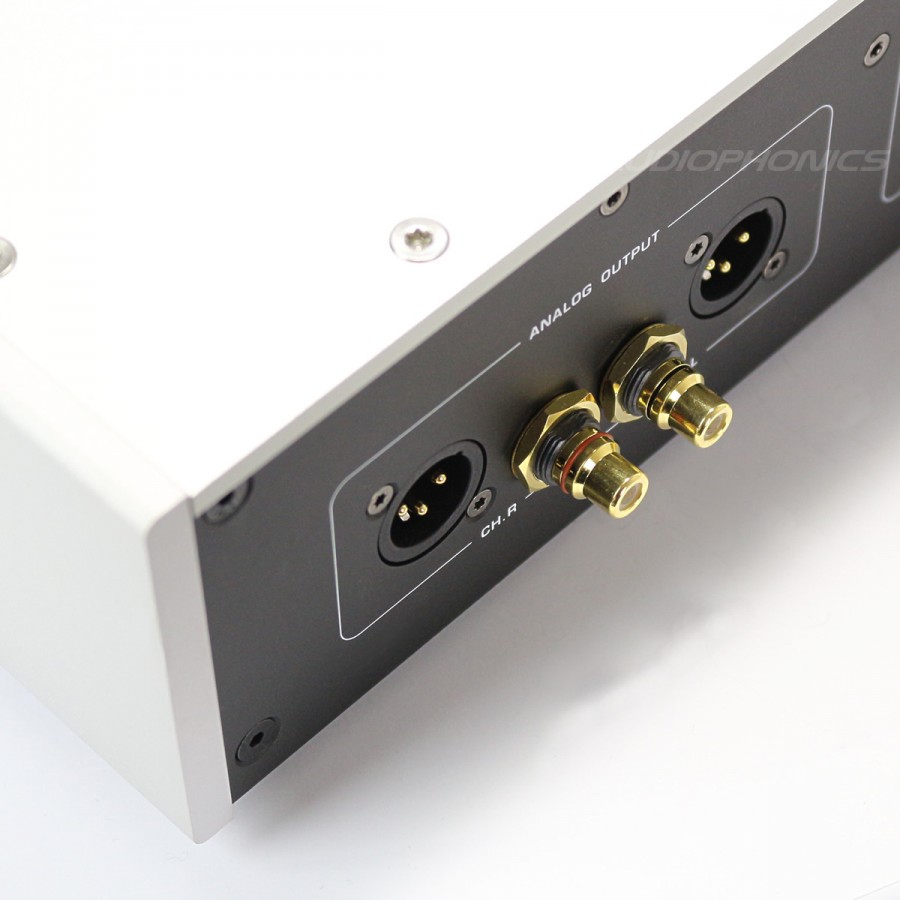

symmetrical and asymmetrical output

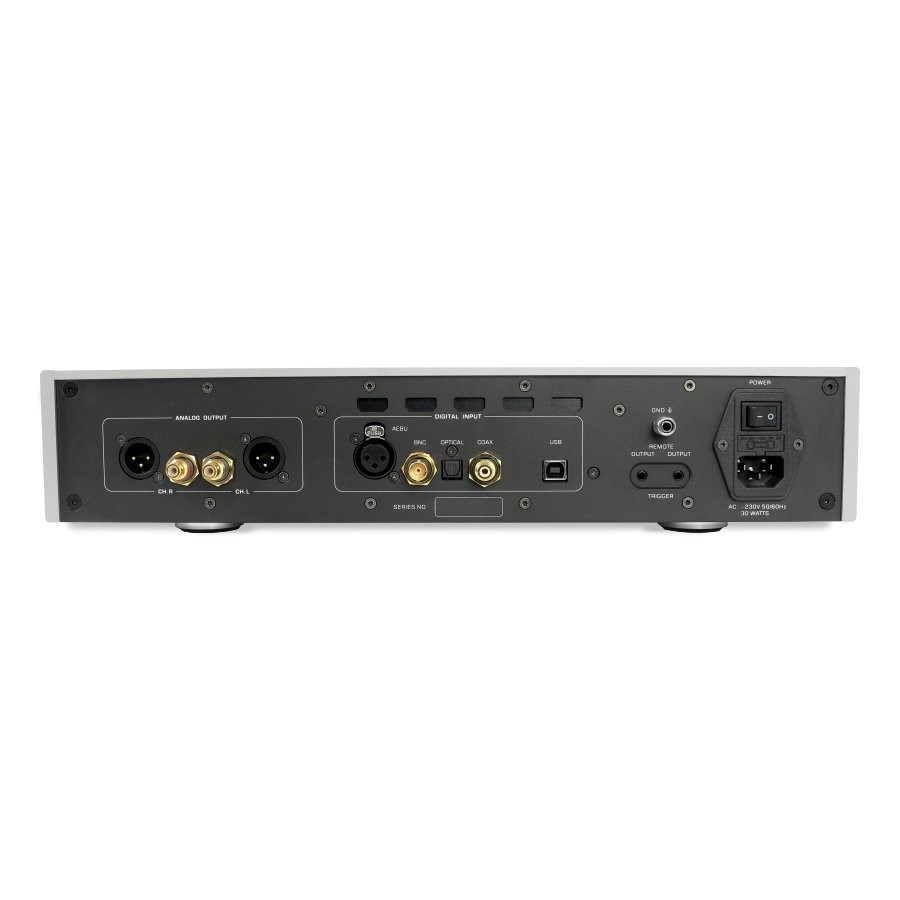

DAC100 erato balanced output Lundhal and asymmetrical

Two unbalanced RCA output are available. The rear pannel offers two balanced XLR outputs as well.

Large OLED display

3.12 inch OLED DAC 100 ERATO



An OLED generous size (8.5cm diagonal) displays real-time information about the conversion.

Two lateral buttons to navigate between the inputs to select the active source and the filter type natively available in chip AK4497

The sampling frequency and the mode (PCM / DOP) are detected automatically.


Detail of the screen
  • A: Input signal source
  • B: Selected filter
  • Source C: Button.
    • Short press : changer source
    • Long press: ON / OFF
  • D: PCM / DOP format
  • E: Frequency sampling of the source
  • F: Filter button
    • Short press: Next filter
    • Long press: Mute / cancel mute

DAC with Trigger

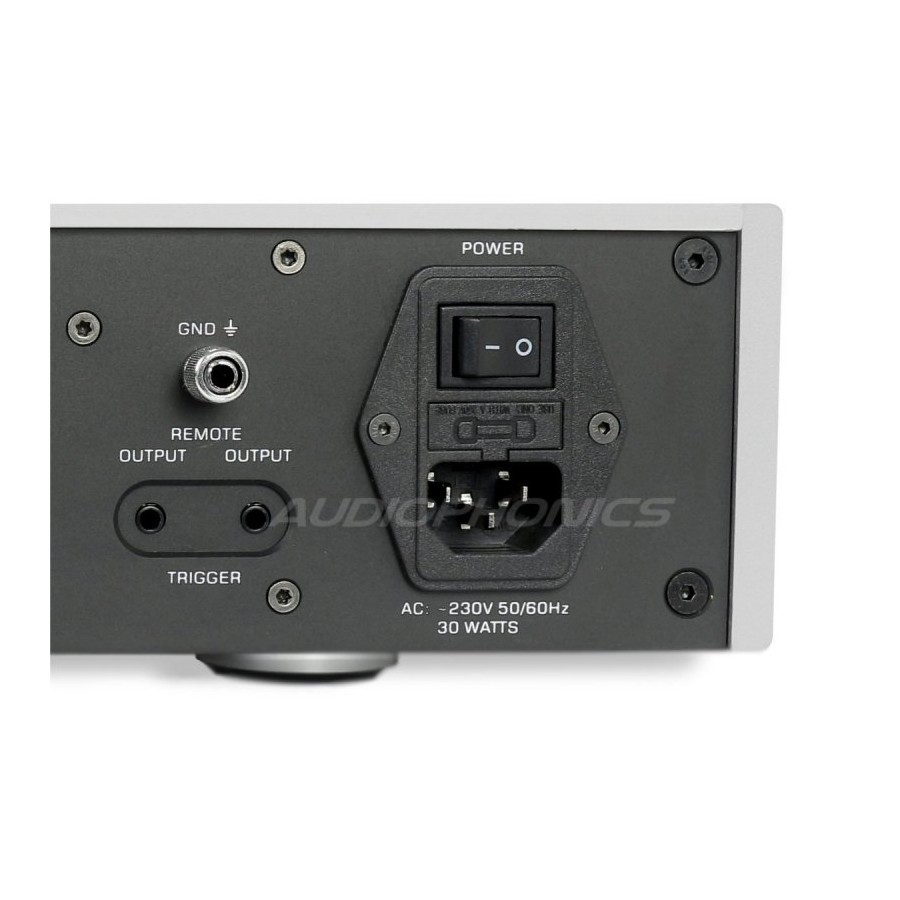

Rear of the DAC 100 with power / ground and trigger

The rear facade of the 100 Erato DAC has a trigger input that allows another device to turn the system on.


Specifications
TypeDAC
Chip decoder2x AKM AK4497
USB ModuleXMOS U208
Inputs

2x S / PDIF RCA & BNC 75Ω

1x AES / EBU 110Ω symmetrical

1x Toslink1x USB-B 2.0 (XMOS)

Outputs

1x stereo RCA unbalanced

1x balanced XLR

Distortion<% @ 0.0002 -2dbBFS
SNR> 120 dB
THD + N> 113dB @ 0 dBFS
Channel separation> 110 dB
Frequency response10Hz-20kHz (+ / - 0.1dB)
Maximum output+8dBu (1.95V RMS)
Power consumption25W
Supported sampling frequencies

PCM 192kHz / 16/24-bit

DoP64

Phase Noiseless than -160dBc / Hz @ 1 KHz
DisplayOLED display 8.5 cm
Volume ControlNo
Digital Filters- Short Delay Sharp Roll-Off
- Short Delay Slow Roll-Off
- Sharp Roll-Off
- Slow Roll-Off
- Low-dispersion Short Delay Filter
- Super Slow Roll-Off
Power supplyIncluded
Dimensions430 x 89 x 324 mm
Weight9.1 kg
Frequency response Erato DAC 100

Data sheet
InputSPDIF
InputXLR
InputOptical
InputUSB XMOS
OutputRCA
OutputXLR
DAC ChipAK4497EQ
Max sampling rateDSD256
Max sampling rate384kHz
ColorSilver
Components / ChipAK4497EQ
MaterialAluminium
Channel2 channels (Stereo)
External width (mm)430 mm
External height (mm)89 mm
External depth (mm)325 mm
