FIIO WARMER R2R DAC R2R Tube Buffer Black
By buying this product you get 37 loyalty points

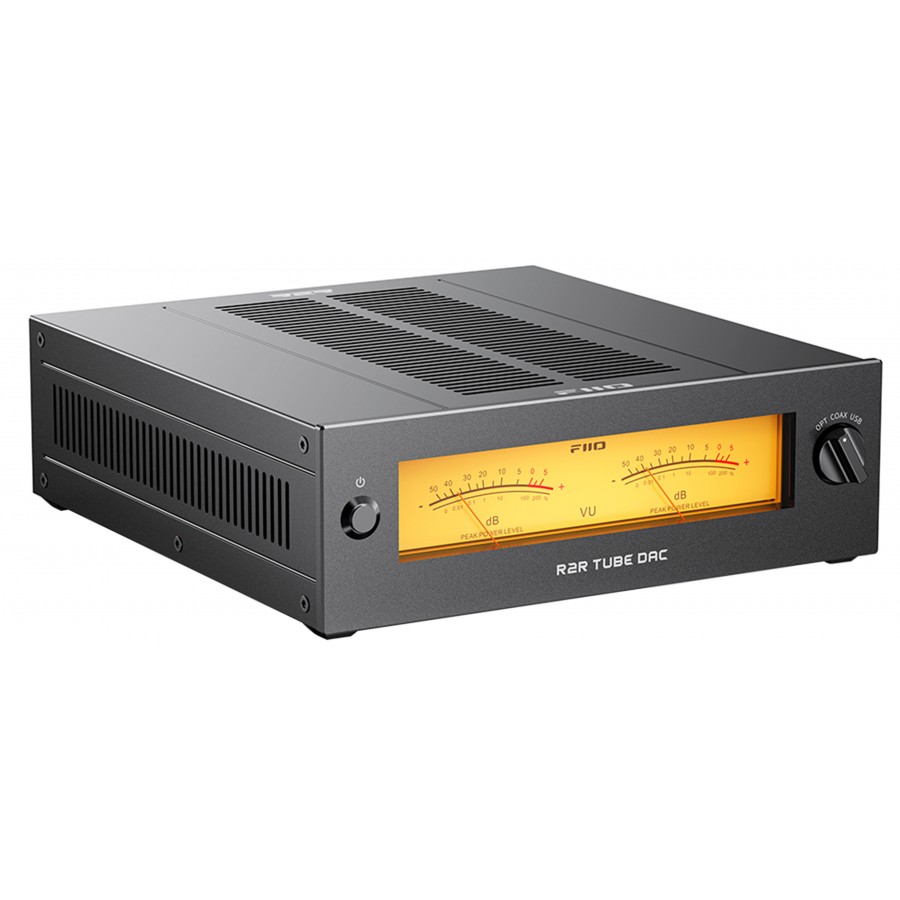

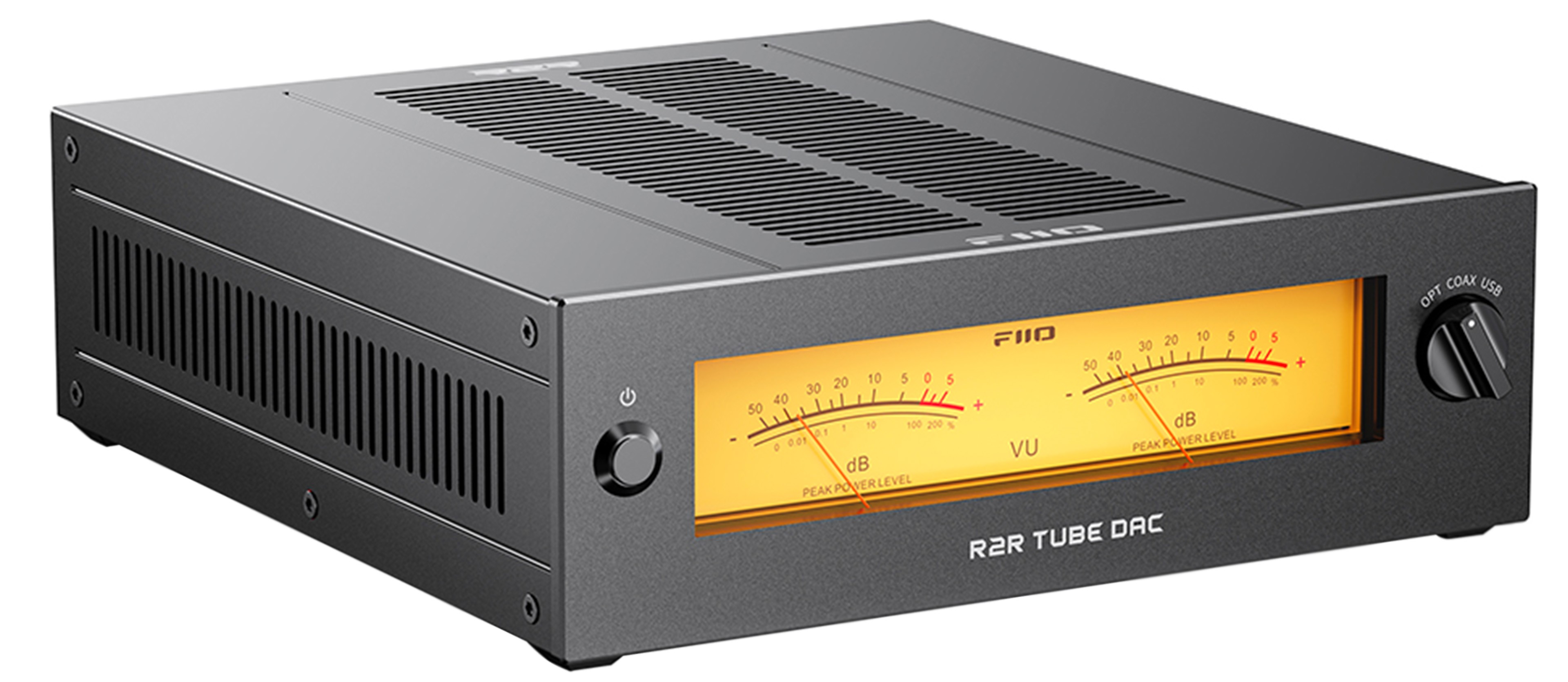

FiiO WARMER R2R DAC R2R 32bit 384kHz DSD256 Tube Buffer E88CC Black
The FiiO Warmer R2R is a DAC combining discrete R2R conversion, a JJ E88CC tube stage and a linear power supply, all housed in a retro-style chassis equipped with a mechanical VU meter. It aims to deliver both accurate and warm sound reproduction with a typically analogue tone.

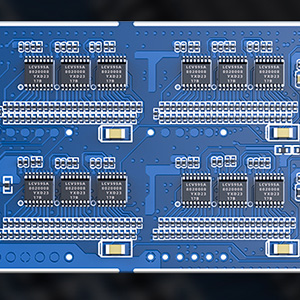

FiiO Warmer R2R: 24-bit DAC R2R
The FiiO Warmer R2R is based on a 24-bit R2R converter designed around a network totalling 192 precision resistors, divided into four channels of 48 resistors each. This entirely discrete architecture ensures conversion without a traditional DAC chip and emphasises warmer sound reproduction. The device also offers a choice of NOS (Non-Oversampling) or OS (Oversampling) modes, allowing for either a more raw and natural sound or a more detailed and cold sound, using oversampling up to 384kHz.

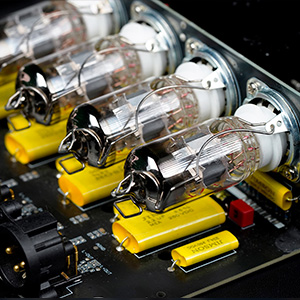

FiiO Warmer R2R: Tube buffer
The analogue section features four JJ Electronic E88CC tubes, used as a buffer stage to give the sound reproduction a warmer, more organic texture. These tubes, renowned for their stability and consistency, contribute to the deliberately soft, analogue sound signature of the Warmer R2R.

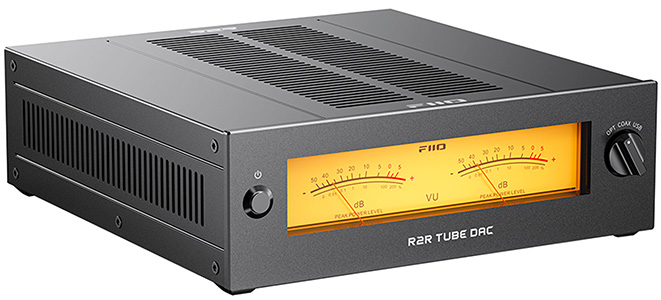

FiiO Warmer R2R: Mechanical VU meter
The Warmer R2R features a backlit mechanical stereo VU meter, providing immediate visual feedback on output levels. Beyond its aesthetic appeal, this choice provides a clear indication of the signal's dynamic behaviour, in a decidedly retro style.

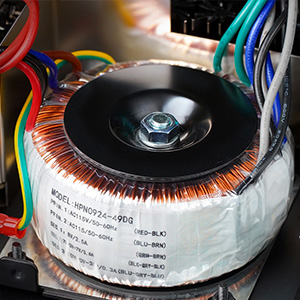

FiiO Warmer R2R: Linear power supply
The power supply is based on a 46W toroidal transformer. This linear approach ensures a clean power supply to the digital, analogue and tube stages, limiting interference and contributing directly to the overall stability of the device.

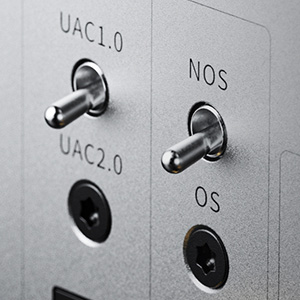

FiiO Warmer R2R: UAC Mode 1.0 and 2.0
Finally, the Warmer R2R offers a choice between UAC 1.0 and UAC 2.0 modes. This choice maximises compatibility with a wide variety of devices, including computers, consoles, media players, and USB sources, not all of which support the UAC 2.0 standard.
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC Buffer |

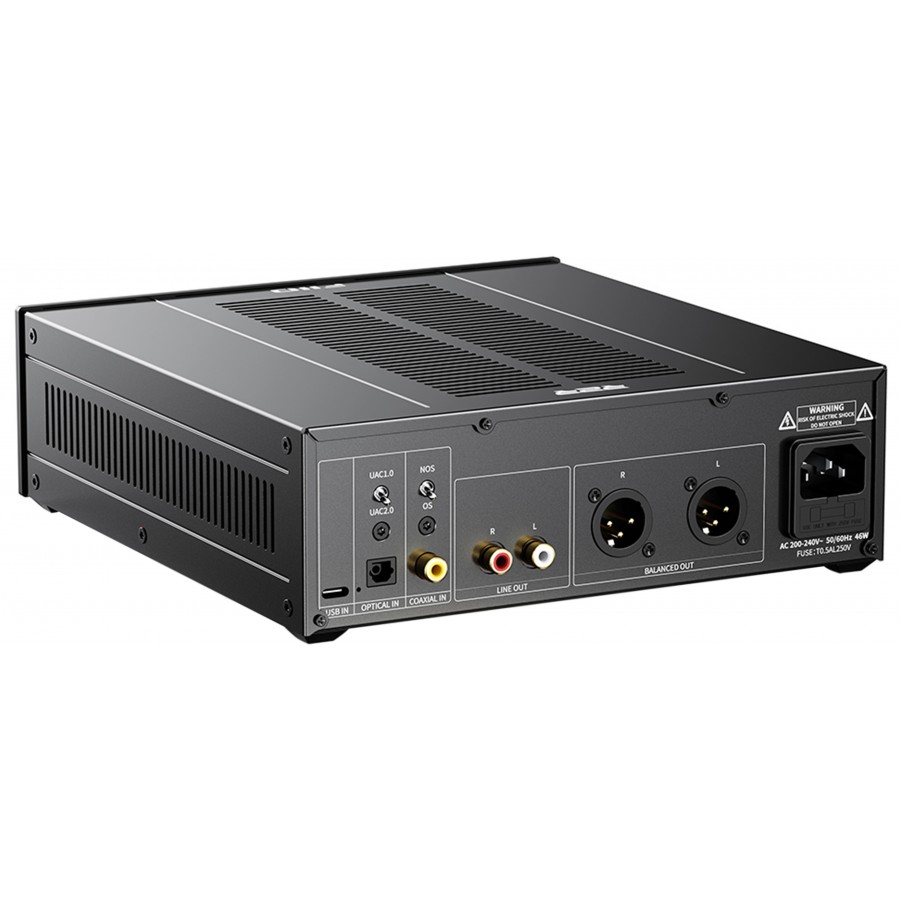

| Inputs | 1x USB-C 1x Coaxial 1x Optical Toslink |
| Outputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR |
| DAC | R2R 24bit |
| Supported sampling rates | USB: PCM up to 32bit 384kHz / Native DSD up to DSD256 Coaxial: PCM up to 24bit 192kHz Optical: PCM up to 24bit 96kHz |
| Buffer | 4x JJ Electronic E88CC |
| Output level | RCA: ≥ 1.8Vrms + 1.8Vrms XLR: ≥ 3.8Vrms + 3.8Vrms |
| Frequency response | 20Hz-45kHz |
| Signal-to-noise ratio (SNR) | ≥ 114dB |
| Noise Floor | ≤ 7μV |
| Total harmonic distortion more noise (THD+N) | ≤ 0.053% |
| General | |
|---|---|
| Power supply | 200-240V AC 50/60Hz |
| Dimensions | 223.5 x213 x 66.8mm |
| Weight | 2.9kg |
| Package | 1x FiiO Warmer R2R 1x Power cable 1x USB-A to USB-C cable |
| Input | Optical |
| Input | SPDIF |
| Input | USB |
| Output | XLR |
| Output | RCA |
| DAC / ADC Chip | R2R LADDER DAC |
| Max sampling rate | DSD256 |
| Max sampling rate | 384kHz |
| Color | Black |
| Networking | No |
| Remote Control | No |
