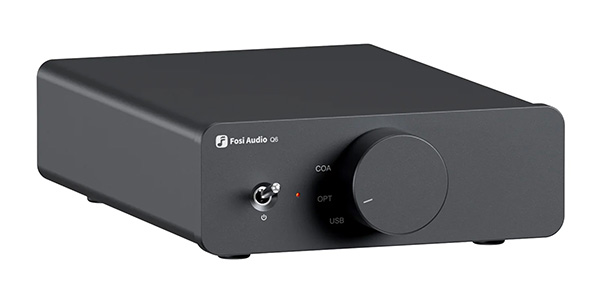

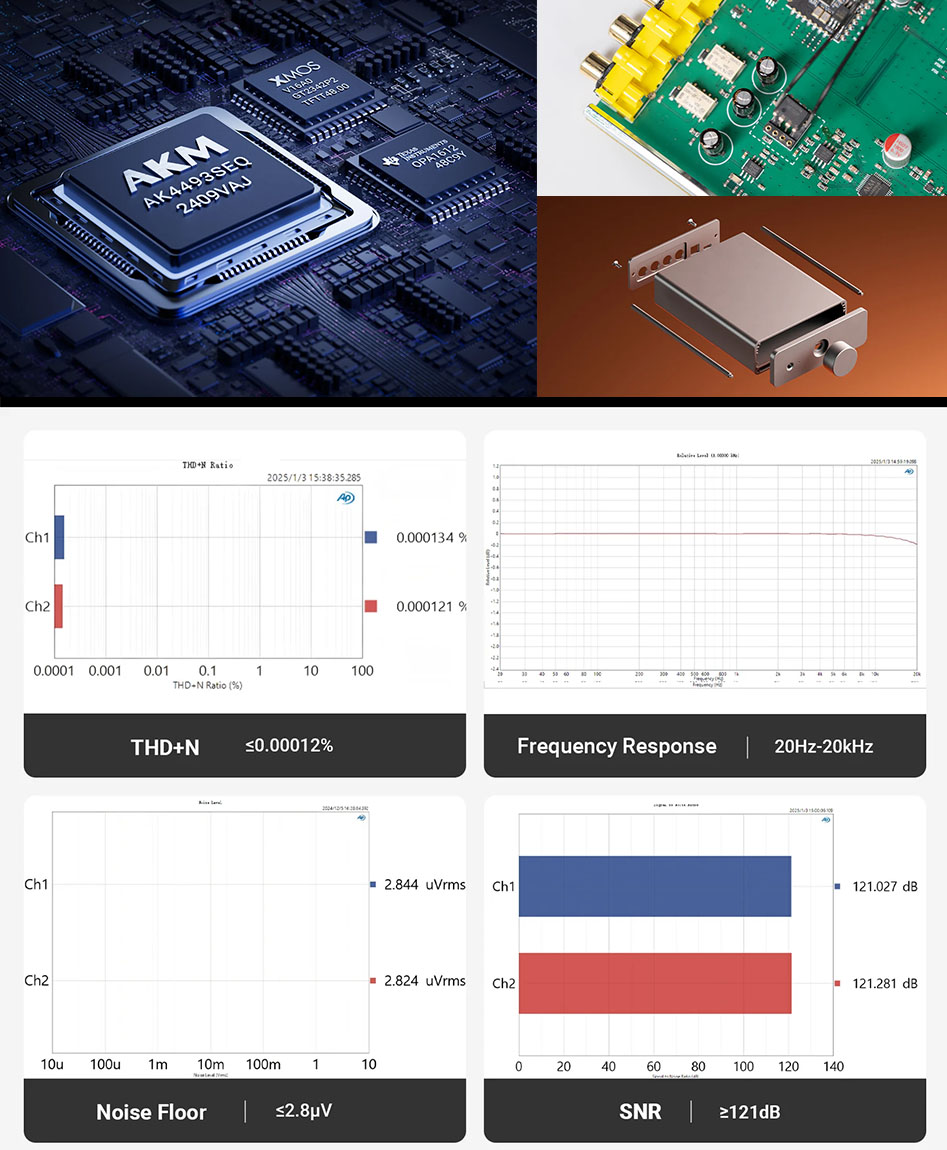

The Fosi Audio Q6 is a small, minimalist, high-performance desktop DAC based on an AKM AK4493SEQ solution and an XMOS XU316 USB interface. It supports high-fidelity sampling rates up to PCM 32bit 768kHz and DSD512, with clean, uncolored conversion for the most balanced sound reproduction. In terms of performance, it offers ultra-low distortion with a THD+N of 0.00012%, a noise figure of just 2.8uV and an SNR of up to 121dB. It also features a combination of DIP8-mounted AOP OPA1612 + NE5532DR. Control of the device is simple and efficient. Connectivity includes three digital inputs: USB-C, Toslink optical and coaxial, as well as an RCA output and a subwoofer output for setting up a 2.1-channel system with an active subwoofer.

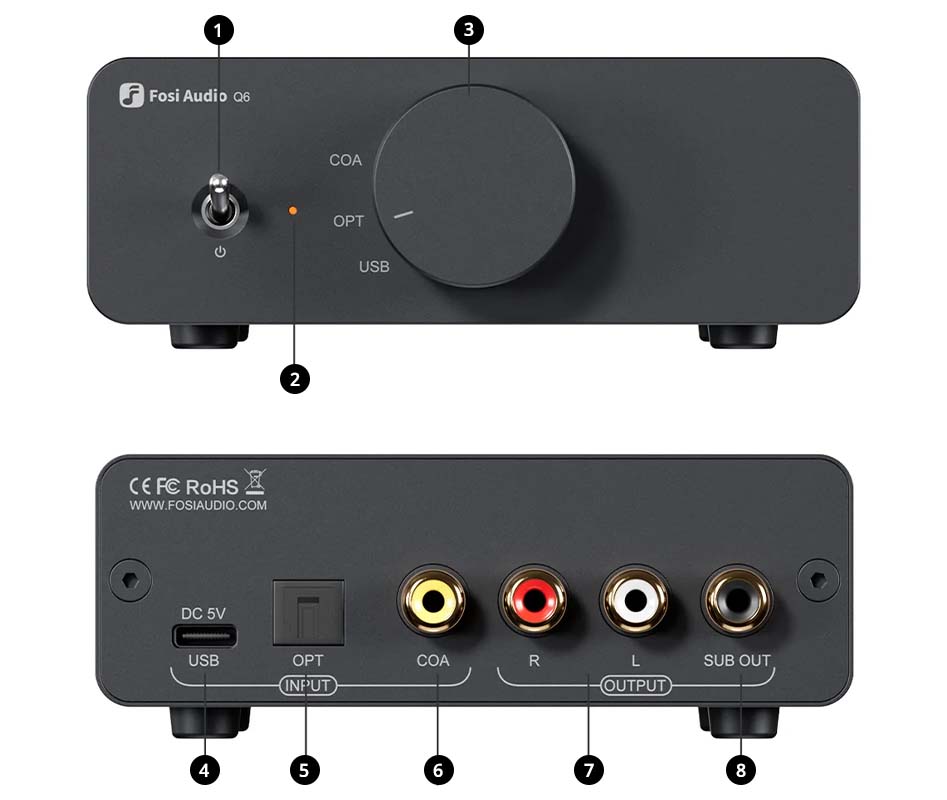

1 | Switch ON-OFF |
2 | Sampling rate indicator |
3 | Input switch |
4 | USB-C input / USB 5V 2A power port |
5 | Toslink optical input |
6 | Coaxial input |
7 | RCA output |
8 | Subwoofer output |
The Q6 doesn't break any barrier but is competently designed for its price point with some innovation on input selection and such.
Performance is good enough for me to put the Fosi Q6 on my recommendation list for a budget DAC.
Technical characteristics
Specifications | |
---|---|
Product type | DAC |
DAC chip | AK4493SEQ |
USB interface | XMOS XU-316 |
OPA | OPA1612 + NE5532DR |
Inputs | 1x USB-C 1x Optical Toslink 1x Coaxial |
Outputs | 1x RCA output 1x Subwoofer output |
Supported sample rates | USB: PCM up 32bit 768kHz, DSD up to DSD512 Toslink optical / Coaxial: PCM up to 32bit 192kHz |
THD | < 0,00012% |
SNR | ≥ 121dB |
USB-compatible OS | XP/W7/W8/W10/W11/MAC/Linux |
General | |
---|---|
Power supply | 5V 2A via USB-C |
Dimensions | 105 x 142 x 37mm |
Weight | 410g |
Package | 1x DAC Q6 1x USB-C to USB-C/A cable |
Input | SPDIF |
Input | USB |
Input | Optical |
Output | Subwoofer |
Output | RCA |
DAC / ADC Chip | AK4493SEQ |
Max sampling rate | 768kHz |
Max sampling rate | DSD512 |
Color | Gray |
Networking | No |
Remote Control | No |
