KHADAS TONE2 DAC ES9038Q2M 768kHz DSD512 Blue

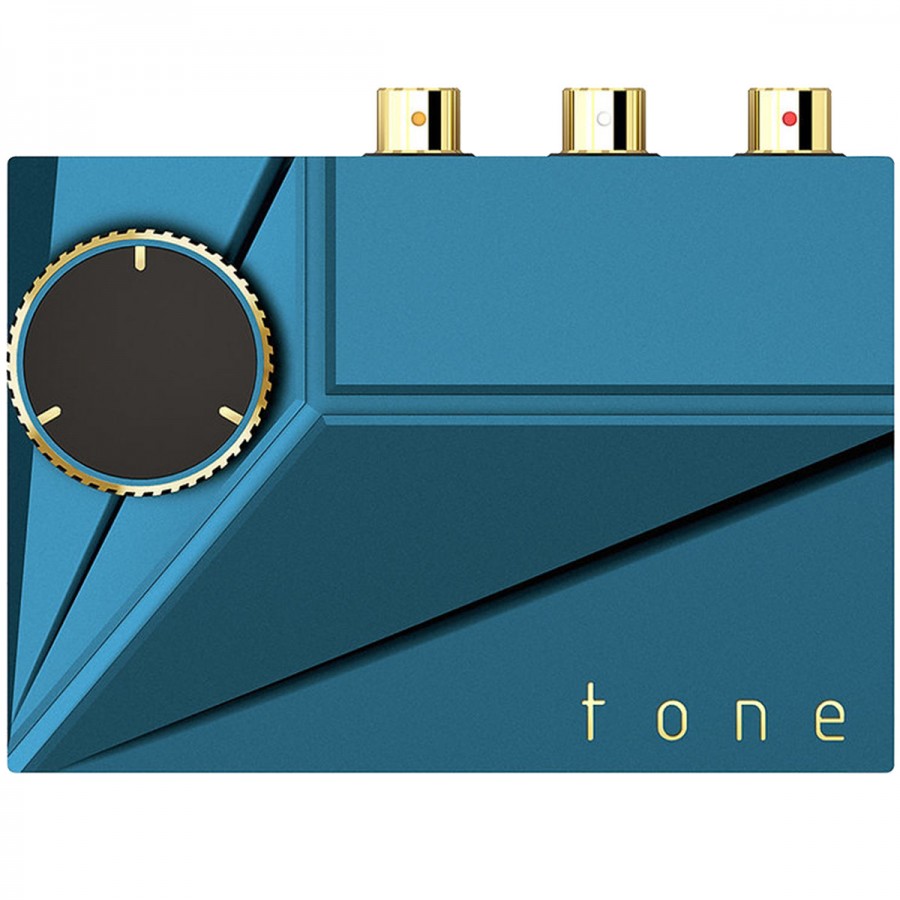

KHADAS TONE2 DAC ES9038Q2M 768kHz DSD512 Black: front view
The Tone2 is the second generation of the Tone Board. After a successful first model, Khadas returns with a revised version that incorporates user feedback from the first occurrence. Here, an ESS ES9038Q2M DAC module has been coupled to four operational amplifiers, two OPA1612, and two RT6862. The Tone2's aluminum enclosure incorporates a hybrid digital/analog volume control knob, allowing you to rely entirely on analog signal attenuation for precise sound reproduction.

No customer reviews yet, login to write a review.

By buying this product you get 17 loyalty points


Reference : 18799
New product

179,00 €tax incl.

149,17 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 25-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

KHADAS TONE2 DAC ES9038Q2M 768kHz DSD512

KHADAS TONE2 DAC ES9038Q2M 768kHz DSD512: front view

The Khadas Tone2 is the second generation of the Tone Board. After a successful first model, Khadas returns with a revised version that incorporates user feedback from the first occurrence. Here, an ESS ES9038Q2M DAC module has been coupled to four operational amplifiers, two OPA1612, and two RT6862.
The Tone2's aluminum enclosure incorporates a hybrid digital/analog volume control knob, allowing you to rely entirely on analog signal attenuation for precise sound reproduction.

Input connectors are located on the back panel. There's an SPDIF (coaxial) connector, plus two USB-C ports. With this dual port, you can connect a 5V linear power supply to the second USB-C port and still have data data transmission through the first USB-C port, providing excellent isolation from interference generated by the power supply.
Finally, Khadas has added a balanced RCA output, an industry first. These new RCA ports have three signal pins instead of two, while keeping the same size and shape as ordinary RCA ports, ensuring compatibility with traditional RCA cables.

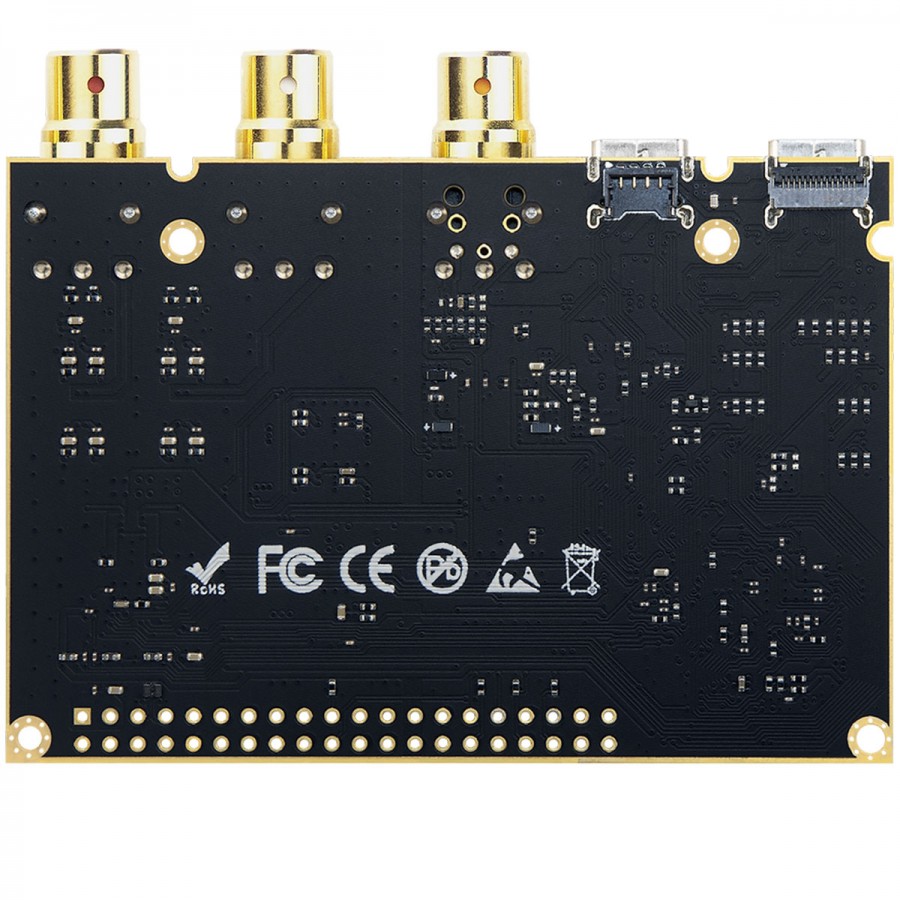

KHADAS TONE2 DAC ES9038Q2M 768kHz DSD512: back view

Technical characteristics

SPECIFICATIONS
Product typeDAC
Imputs1x USB-C (USB Data or power)
1x USB-C (I2S Data or power)
1x SPDIF coaxial
Outputs1x RCA Stereo hybrid single-ended / balanced
Balanced RCA Output THD+N0.000126% (-118dB)
Single-ended RCA Output THD+N0.000158% (-116dB)
Power SupplyDC 5.0V
Output ImpedanceBalanced RCA Output: 200 Ohms
Single-end RCA Output: 100 Ohms
Supported sample frequencyUSB Input: PCM 768KHz 32bit DSD512 (Native)
Coaxial Input: 192KHz 24bit
OS CompatibilityWindows 7, 8, 10, 11 (Khadas USB ASIO driver required)
MacOS
Linux (with UAC2 compliant kernel)
Android (supports OTG function)
IpadOS
General
Package1x Blue Tone2
1x USB-C to USB-C cable
Net weight100g
ColorBlue

Data sheet
InputUSB
InputSPDIF
OutputRCA
DAC / ADC ChipES9038Q2M
Max sampling rate768kHz
ColorBlue
NetworkingNo
Remote ControlNo
