Digital Audio Payer DAP Balanced 2x BD34301EKV Bluetooth 5.0 WiFi 5G

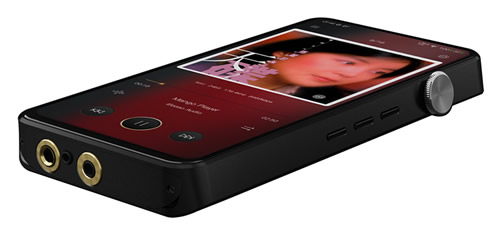

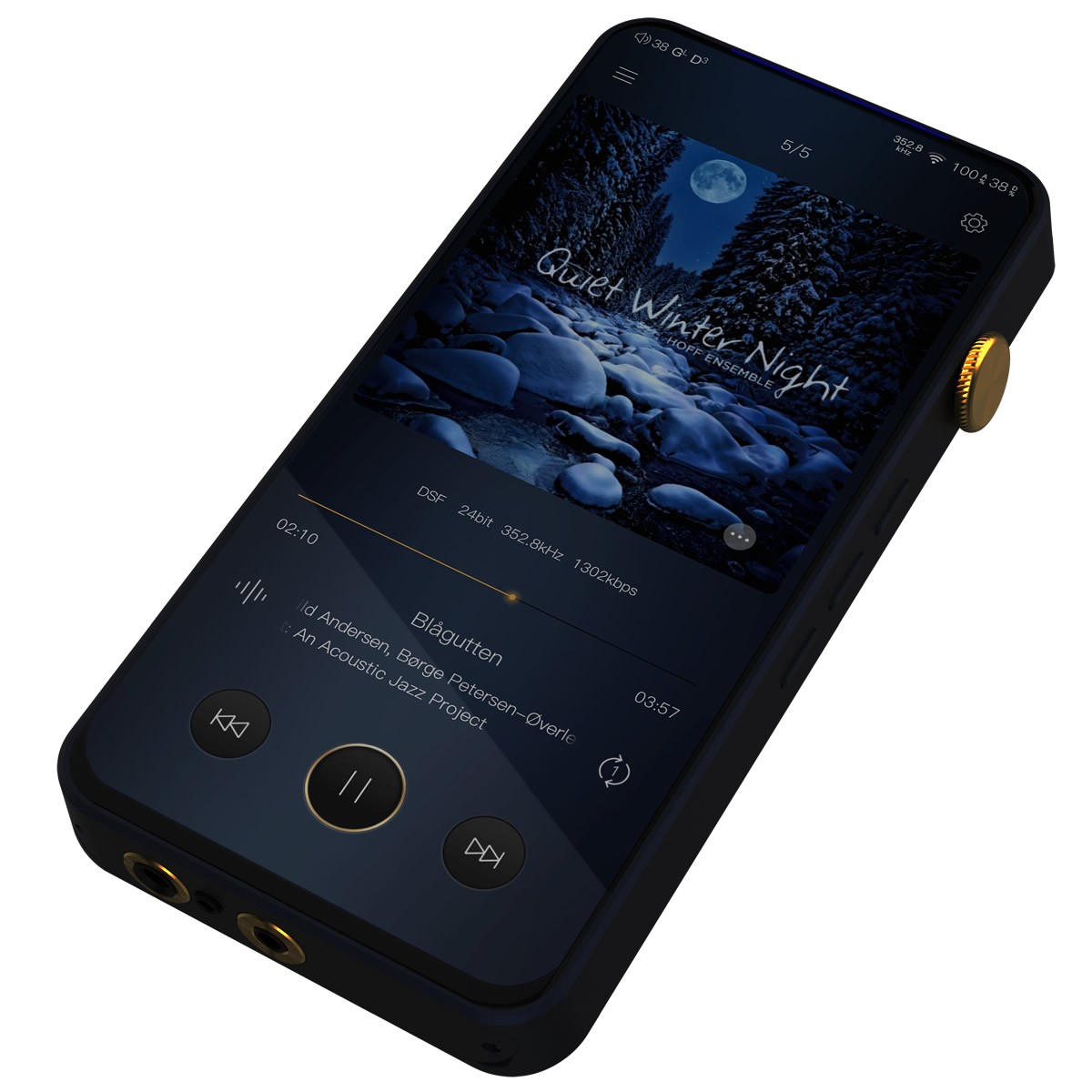

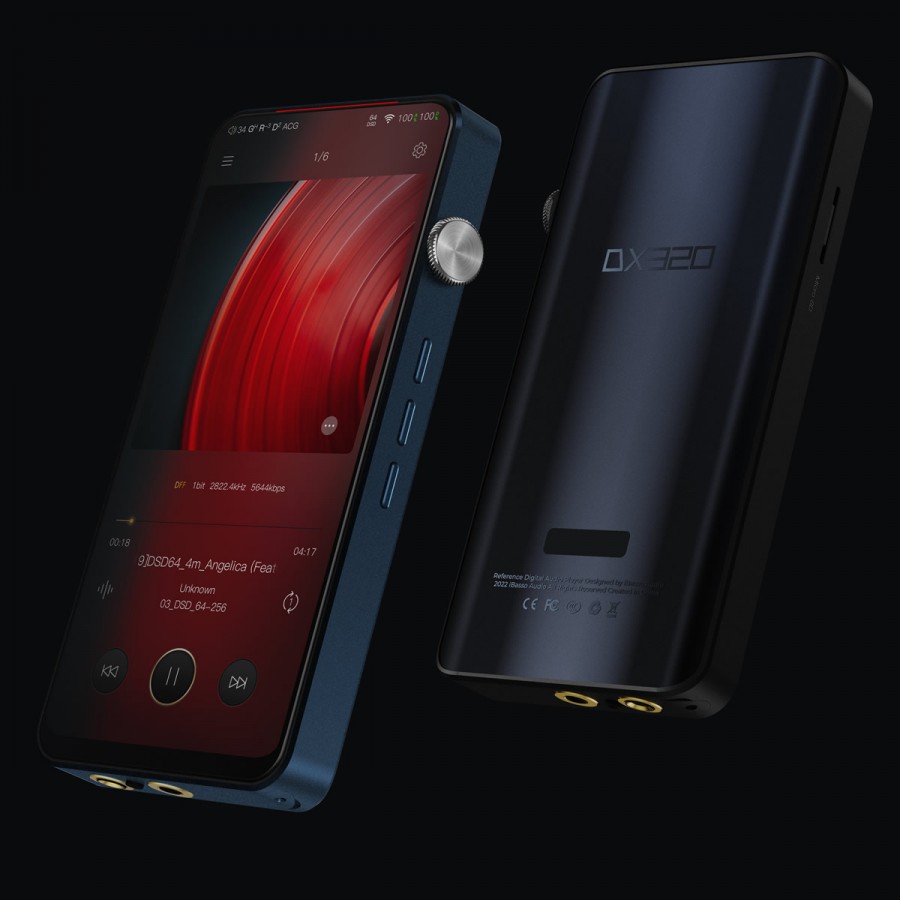

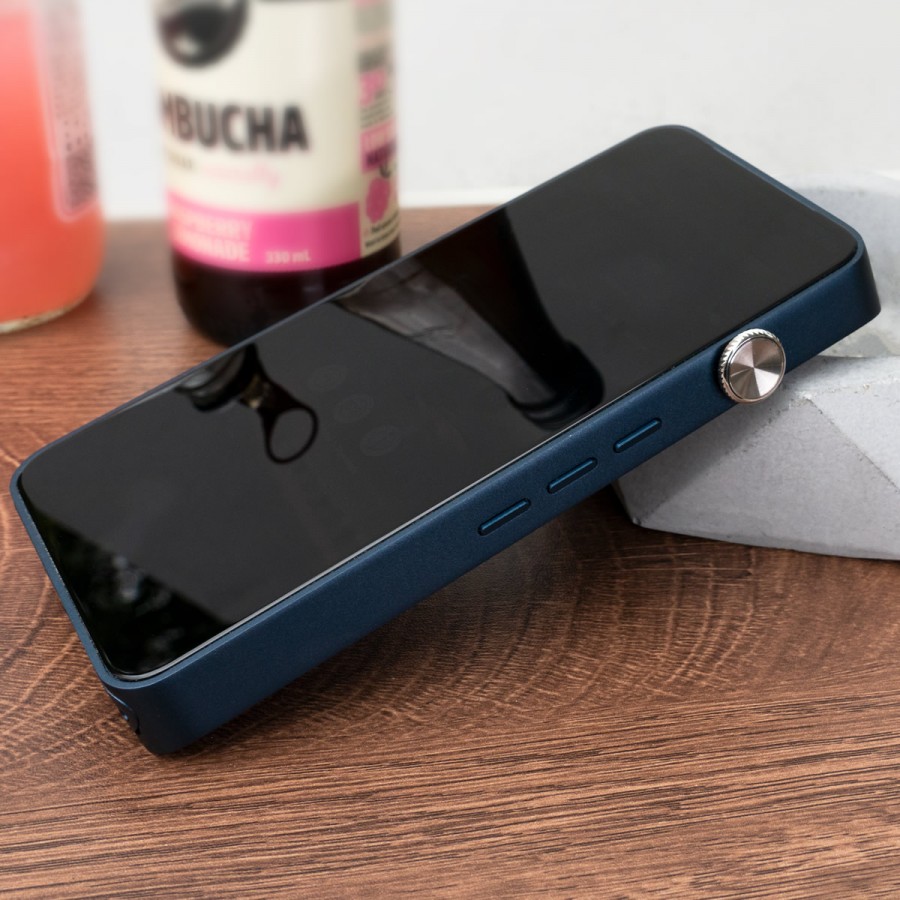

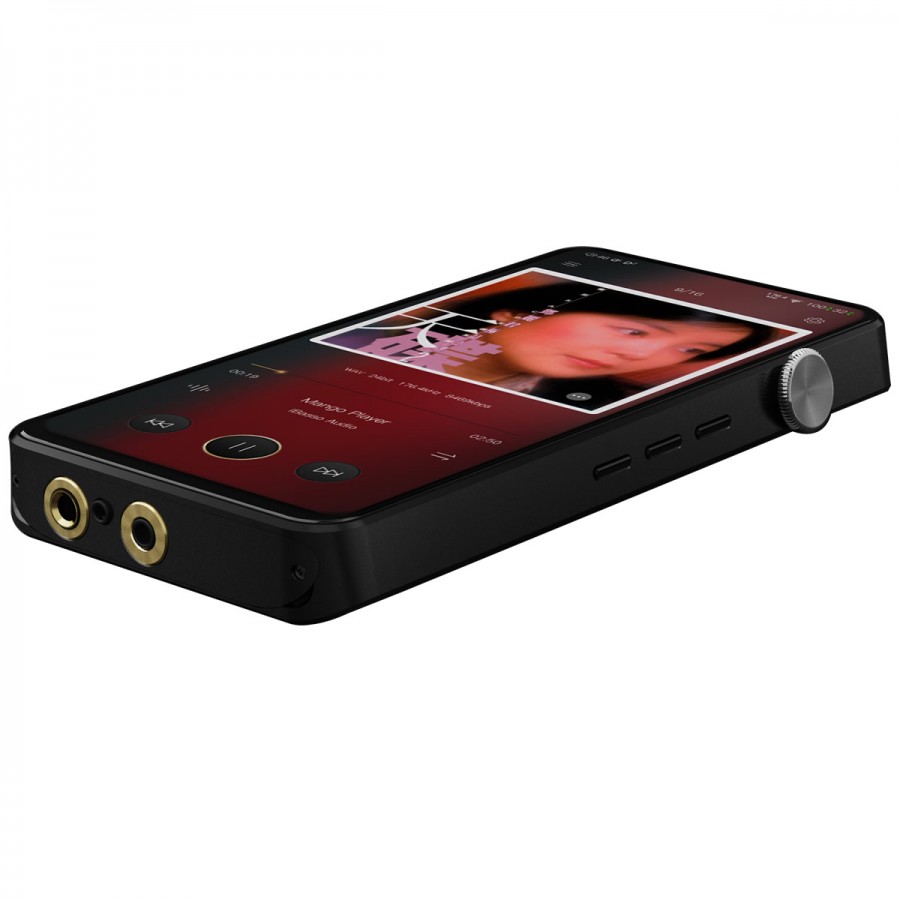

The iBasso DX320 is a high-end digital music player with a careful design that offers the best sound performance for an outstanding music experience. Powerful and feature-rich, the DX320 is the perfect companion for listening at home or on the go.
At the heart of the DX320 is an FPGA-Master designed specifically for this model. The role of the FPGA-Master is to recover the audio data sent by the SoC in order to maintain a clean and stable signal. Combined with two Accusilicon clocks (45.1584M and 49.152M), it generates and perfectly synchronises the clock signals. In short, it ensures a drastic reduction in jitter to provide an extremely clean digital audio signal.
The integrated 8-core Qualcomm Snapdragon 660 processor, etched in 14nm, offers incredible power to efficiently process audio signals while allowing smooth navigation within the device's interface. This SoC is combined with 6GB of RAM and 128GB of storage (ROM) (expandable via Micro SD card not included).
The DX320's power stage incorporates two independent batteries. The first powers the digital stage, while the second powers the headphone amplifier. This separation of the power supplies limits possible interference between the digital and analogue circuits in order to reduce the level of distortion as much as possible.
No less than two RHOM BD34301EKV DACs are used in the digital/analogue conversion stage of the iBasso DX320, for a total of 4 conversion channels. These combined channels allow the DAP to have a totally symmetrical conversion circuit while favouring its sound performance.
Specifications | |
---|---|
Type of product | Digital music player (DAP) |
Input | 1x Slot Micro SD |
Outputs | 1x 2.5mm balanced jack 1x 4.4mm balanced jack 1x 3.5mm unbalanced jack 1x 3.5mm coaxial jack |
Other connectors | 1x USB-C 3.1 SuperSpeed |
Connectivity | 802.11 b/g/n/ac (2.4GHz/5GHz) 2x2MIMO 5G WiFi Bluetooth 5.0 |
DAC chips | 2x RHOM BD34301EKV |
FPGA | |
RAM | 6Go |
ROM (Storage) | 128Go |
Touch screen | 6.5" IPS Full Screen 2340 x 1080 pixels |
Battery | 4000mAh 3.8V + 2000mAh 3.8V |
Charging time | 2.5h |
Autonomy | 10h |
Supported audio formats | MQA 16x, APE, FLAC, WAV, WMA, ACC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, DST, CUE, ISO, M3U, M3U8 |
measures Balanced outputs 4.4mm jack / 2.5mm jack | |
---|---|
Maximum output level | 7.1Vrms |
Power output | 1200mW @ 32Ω 168mW @ 300Ω |
Frequency response | 10Hz - 40kHz ±0.3dB |
SNR | 125dB |
Dynamic range | -125dB |
THD+N | -112dB (no load, 2.8Vrms) -110dB (300Ω) -103dB (32Ω) |
Separation of channels | -120dB |
Impedance | 0.38Ω |
Measures unbalanced output 3.5mm jack | |
---|---|
Maximum output level | 3.5Vrms |
Power output | 380mW @ 32Ω 40mW @ 300Ω |
Frequency response | 10Hz - 40kHz ±0.3dB |
SNR | 122dB |
Dynamic range | -122dB |
THD+N | -110dB (hors charge, 2Vrms) -110dB (300Ω) -99dB (32Ω) |
Separation of channels | -114dB |
Impedance | 0.34Ω |
measures Balanced line output 4.4mm jack / 2.5mm jack | |
---|---|
Maximum output level | 7.1Vrms |
Frequency response | 10Hz - 40kHz ±0.3dB |
SNR | 125dB |
Dynamic range | -125dB |
THD+N | -110dB (hors charge, 2.8Vrms) |
Separation of channels | -120dB |
Measures unbalanced line output 3.5mm jack | |
---|---|
Maximum output level | 3.5Vrms |
Frequency response | 10Hz - 40kHz ±0.3dB |
SNR | 122dB |
Dynamic range | -122dB |
THD+N | -108dB (hors charge, 2Vrms) |
Separation of channels | -110dB |
general | |
---|---|
Power supply | Via USB-C |
Chassis material | Aluminium |
Color | Black |
Dimensions | 162 x 77 x 17mm |
Weight | 205g |
Package | 1x iBasso DX320+AMP11 MK2 1x USB-C cable 1x Coaxial cable 1x Protective case 1x Screen protector |
Input | Micro SD |
Input | Bluetooth |
Input | WiFi |
Output | Coaxial SPDIF |
Output | Jack 4.4mm |
Output | Jack 3.5mm |
Output | Jack 2.5mm |
DAC / ADC Chip | ROHM BD34301EKV |
Max sampling rate | DSD128 |
Max sampling rate | 384kHz |
Color | Black |
