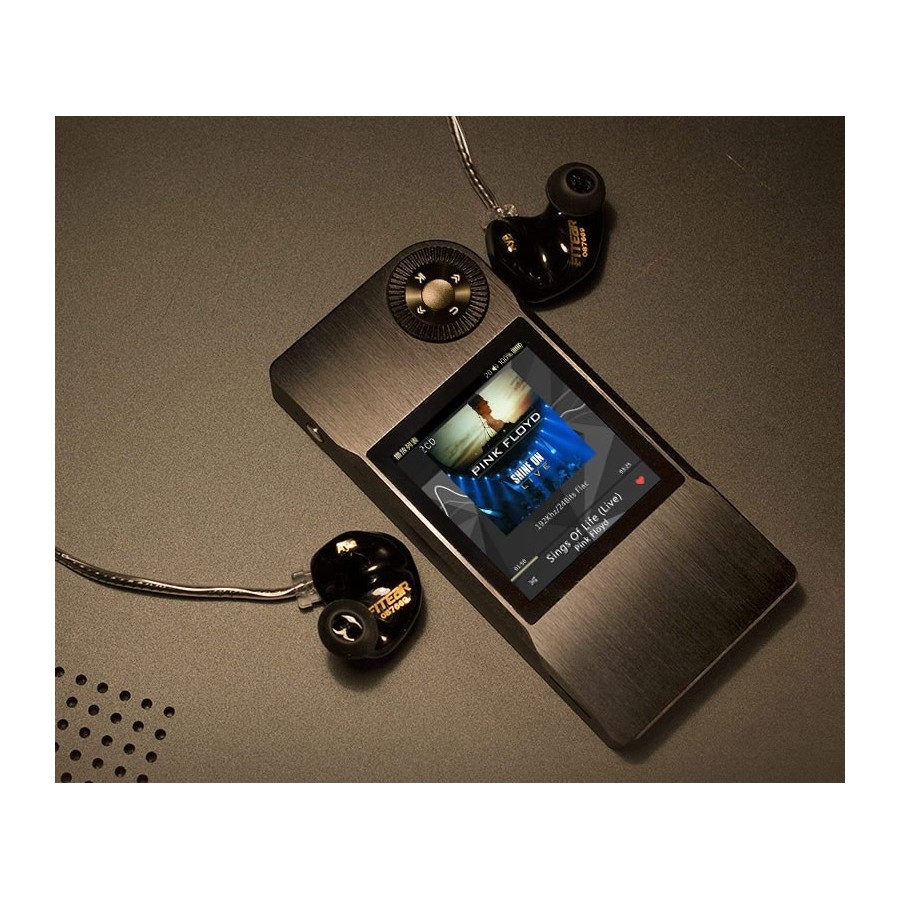

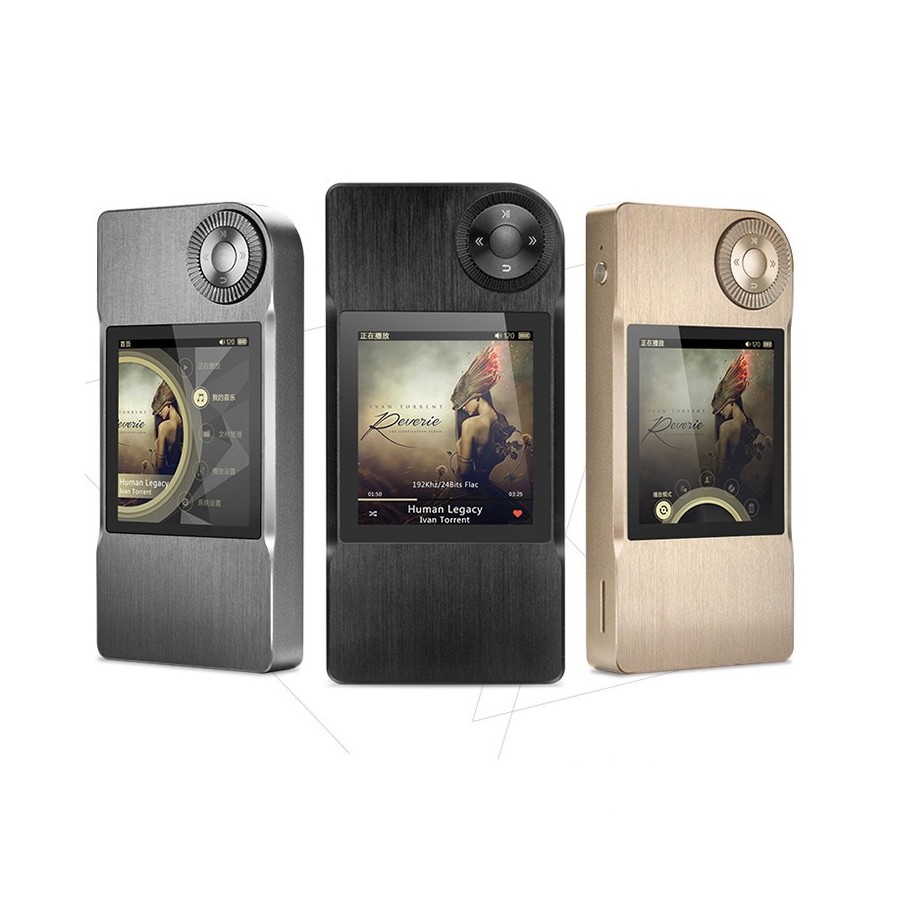

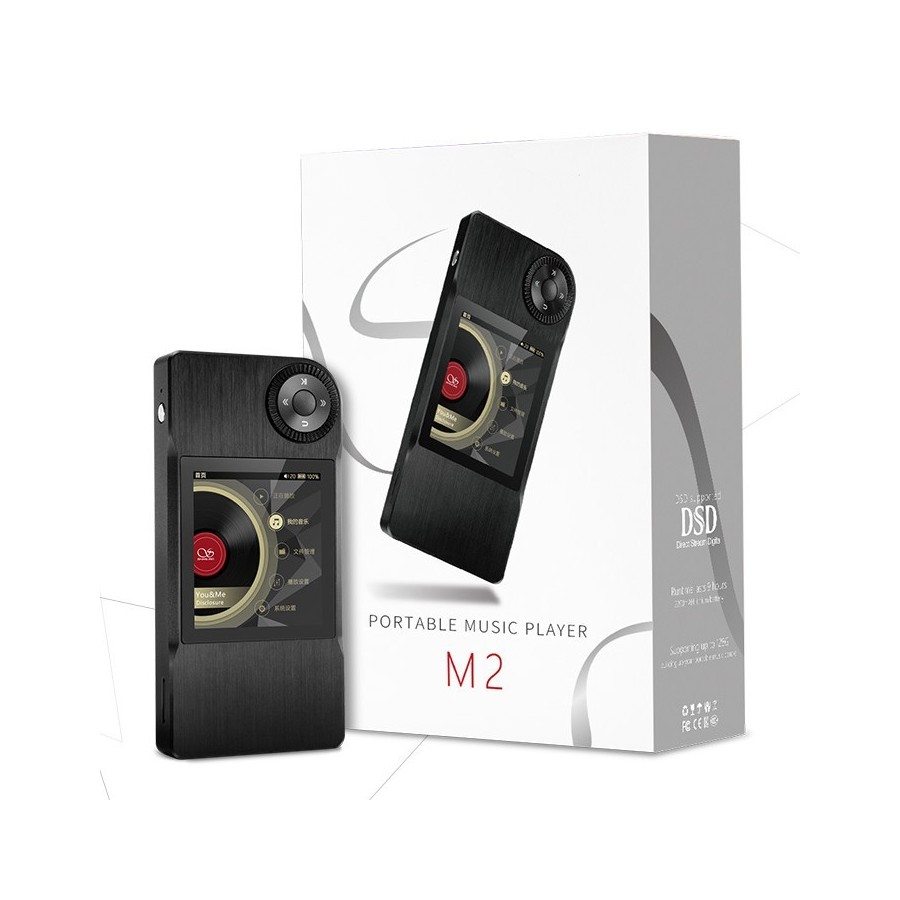

The famous firm here unveils the compact DAP of its range of high fidelity players: the Shanling M2.
Surprising in efficiency and designed around a sober and elegant design at once, it is as comfortable as DAP, as a sedentary Audiophile or DAC USB source.

It's a full-featured Hi-Fi player that gives you the ability to play almost all high-resolution PCM files up to 32bit 192kHz or DSD.

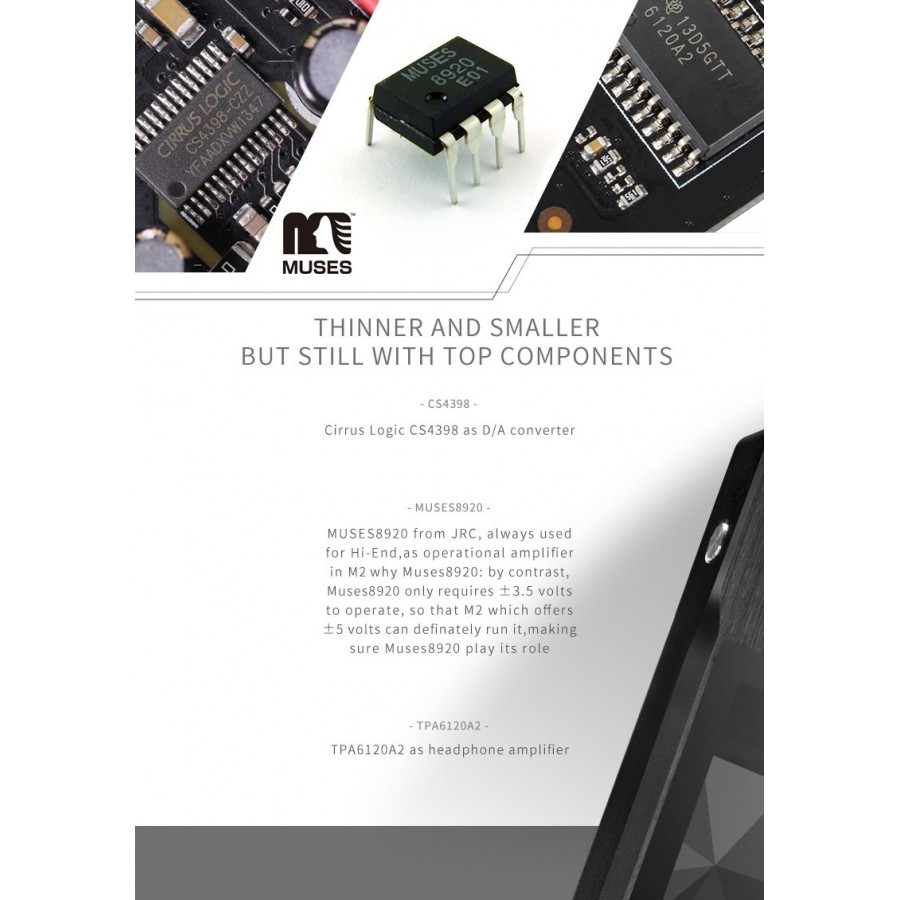

heuses a Cirrus Logic CS4398 converter and a combination of new components (low-pass filter MUSE8920 3.5V low voltage, AOP TPA6120A2 headphone output) resulting in great musicality.

The Shanling M2 is a compact DAP with reflective and neat electronic architecture.
It is a very good value for money.

Its very ergonomic design makes it a successful product that represents an alternative to larger digital players.

Test of the Shanling M2 by Nomad.

Features:/ Strong>

  • DAC Cirrus Logic CS4398
  • USB DAC function
  • Taux supported: 32bit 192kHz, including the 88.2kHz
  • Supported Audio Files: APE, FLAC, ALAC, WMA, AAC, OGG, MP3, WAV, AIFF, DSF, DIFF, DSD
  • Headphone amplifier: TPA6120A2
  • Low-pass filter CCR MUSE8920 low voltage (3.5V) on DIP8 support
  • Frequency response: 20Hz - 20kHz to -0.5dB
  • THD + N: <0.004%
  • Signal Noise Ratio (SNR):> 102dB
  • High precision clock (jitter: 200fs)
  • Analog volume control via ALPS potentiometer

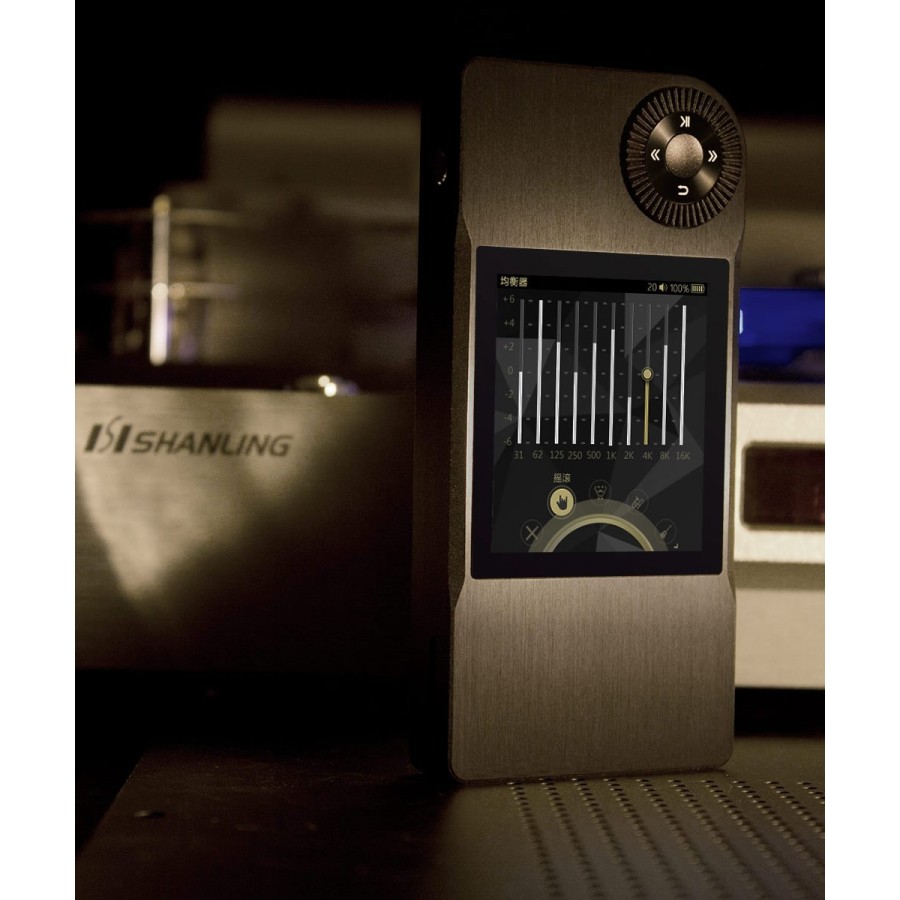

  • Digital Equalizer
  • Output Level: 1.3Vrms
  • Output power: 125mW under 32 Ohms, 13mW at 300 Ohms
  • Impedance: 32 - 300 Ohms

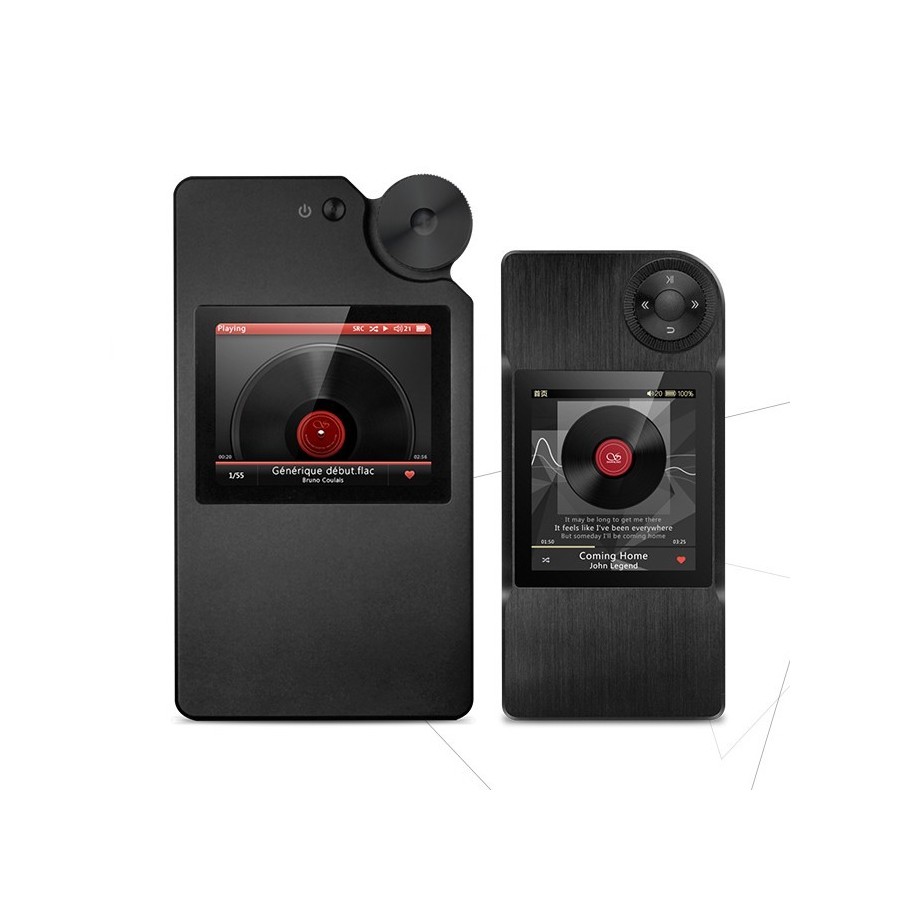

  • 2.4 "TFT screen
  • External memory: Micro SD up to 128 Giga (not included)
  • Micro USB port

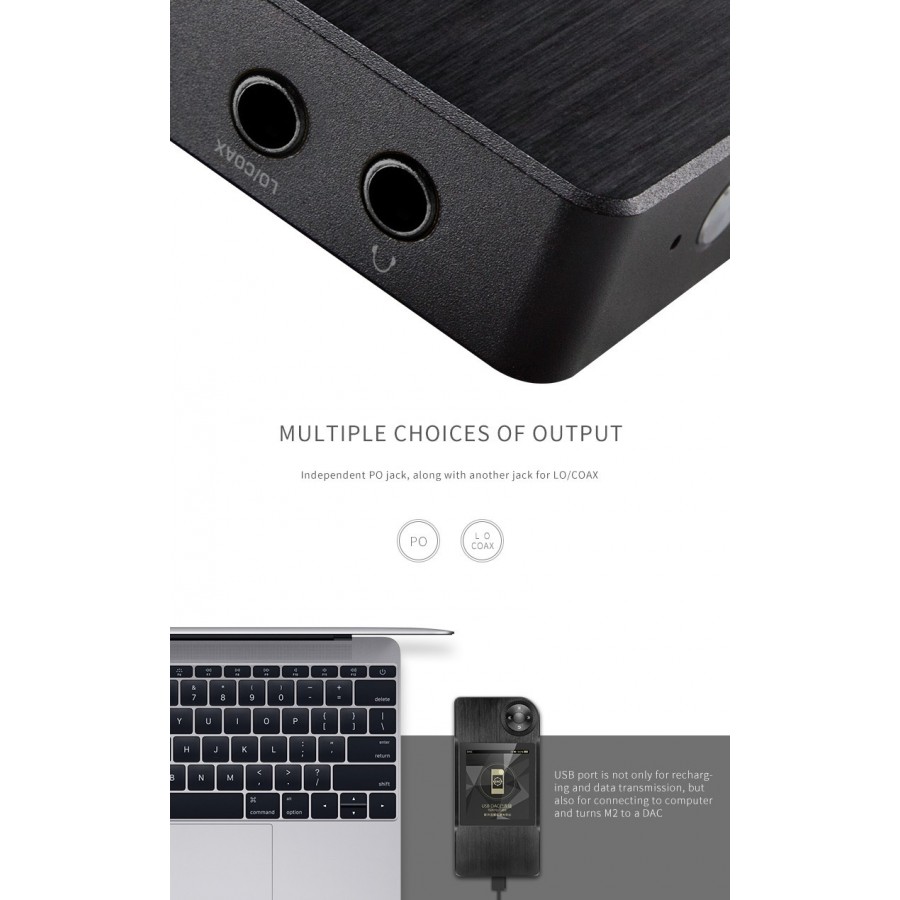

  • Output Jack 3.5mm: Headphone (amplified), line (not amplified)
  • Battery: 2200mA / h
  • Autonomy: 9 hours
  • Dimensions: 110x52.5x13.8mm
  • Weight: 115g

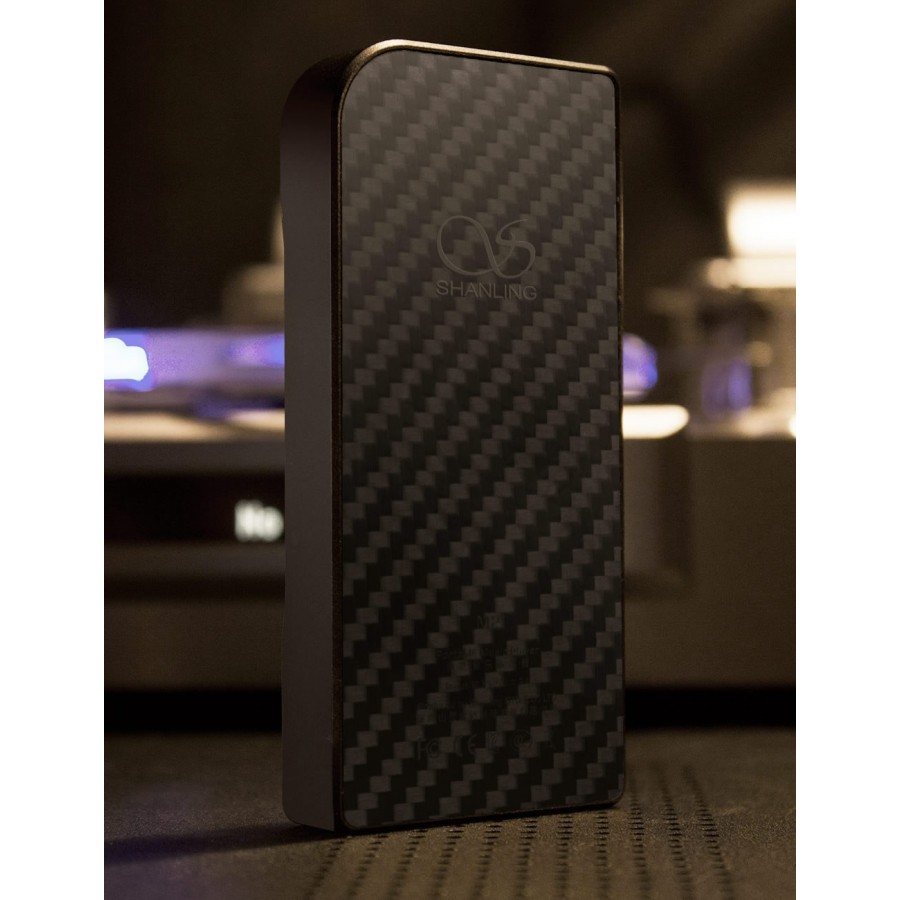

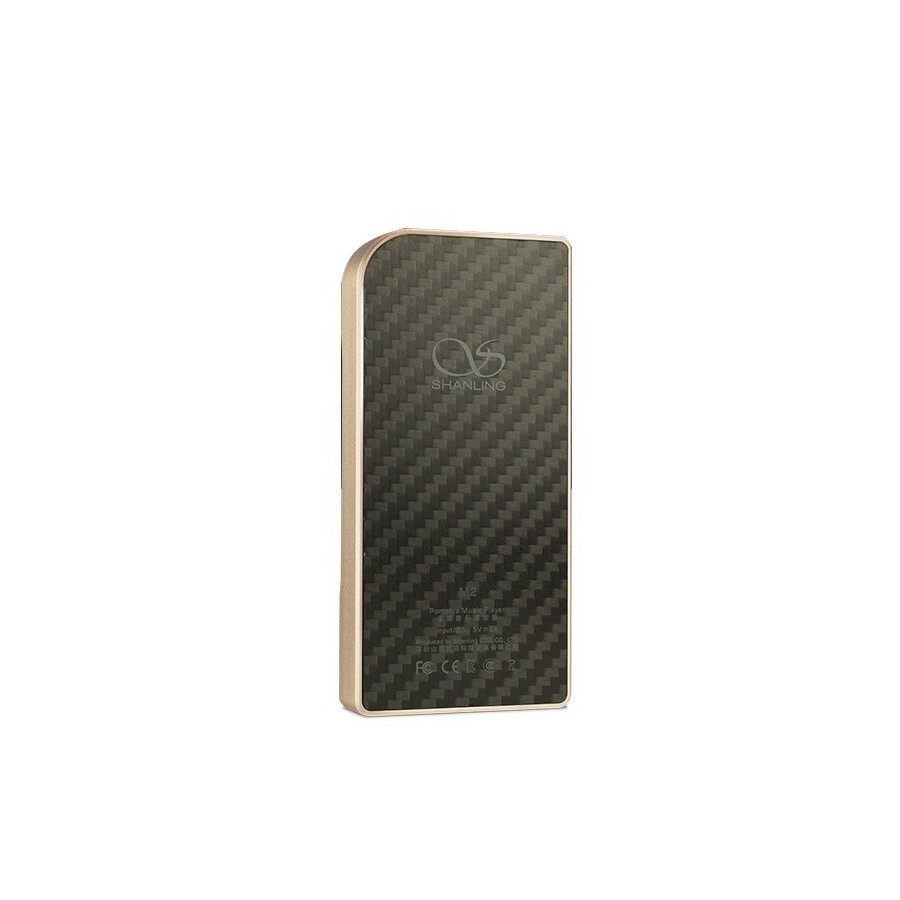

  • Chassis Aluminum, Carbon finish

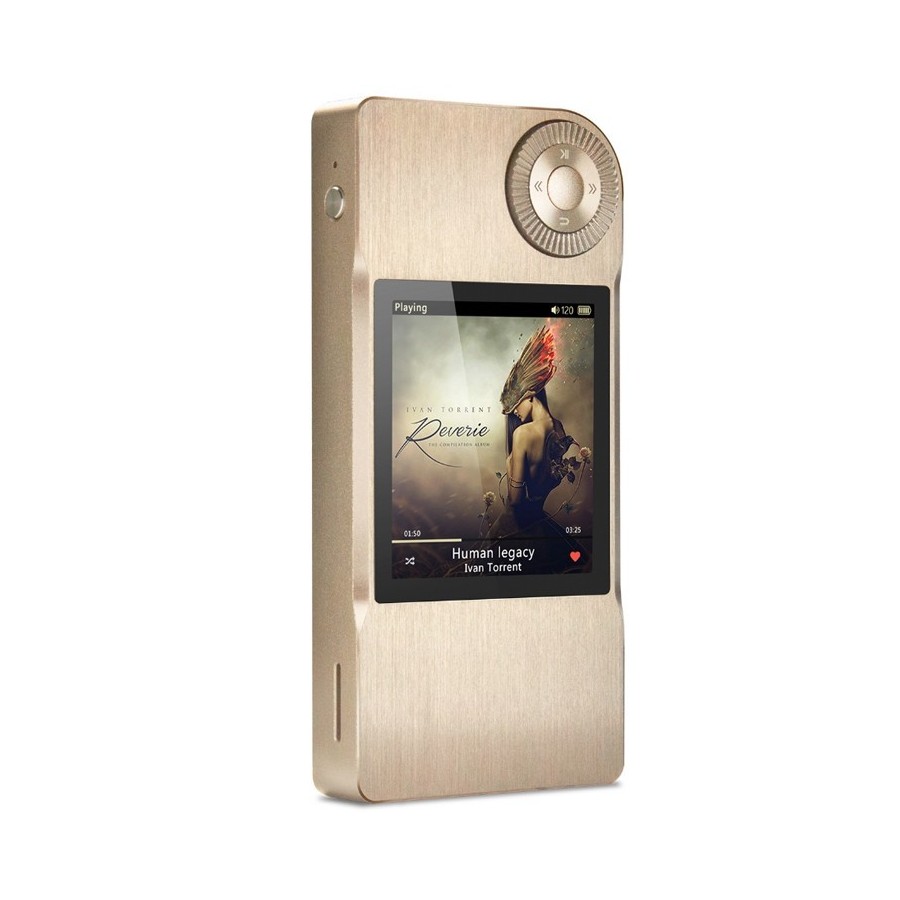

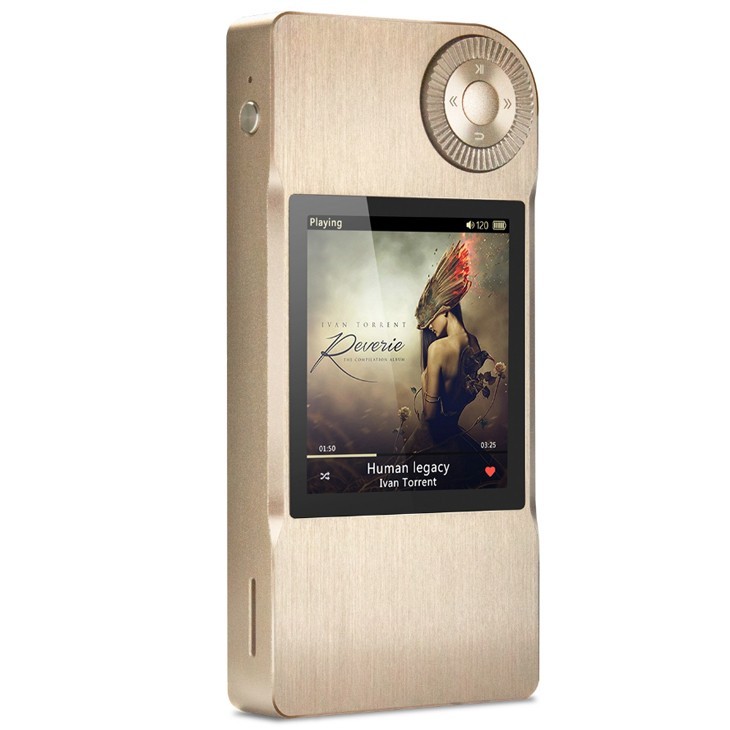

  • Anodized Gold

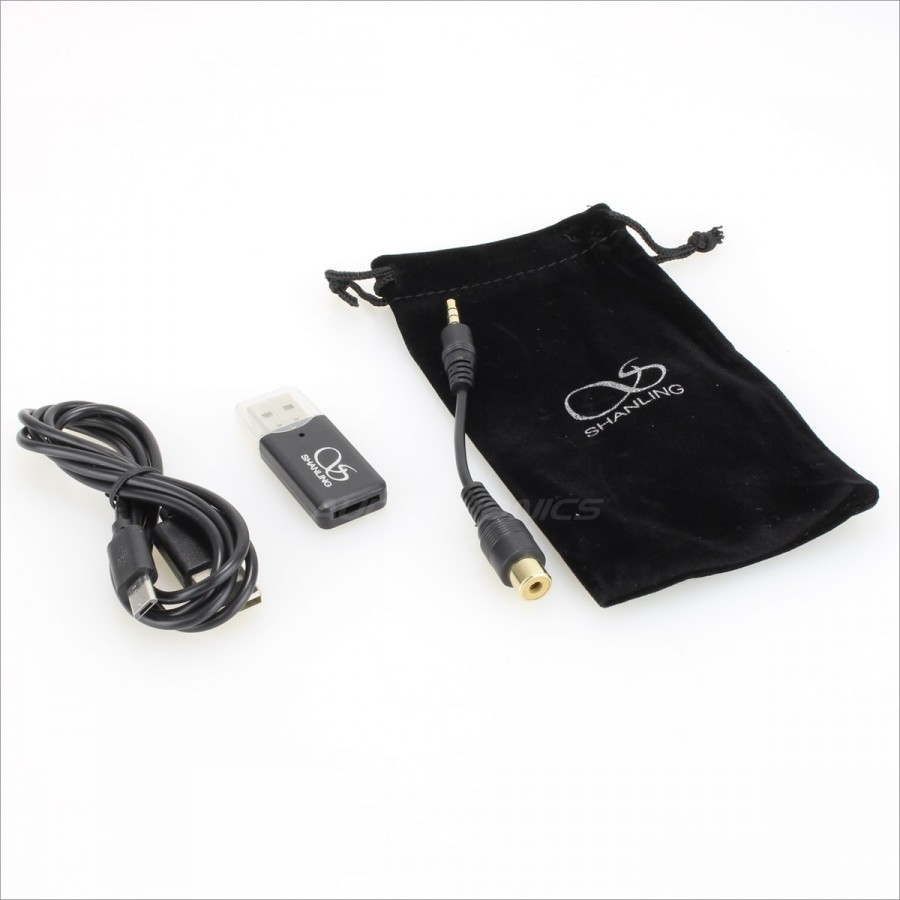

  • USB A to Micro USB cable, 3.5mm to S / PDIF RCA coaxial cable, USB stick adapter for micro SD card and supplied cover
  • Compatible with Mac OS 10.7 and Linux without drivers and Windows XP, 7, 8 (driver needed)
-align: center; ">Head-Fi
Test in English (Click here).


Data sheet
ColorBlack
Components / ChipCS4398
Channel2 channels (Stereo)
