SHANLING M5 ULTRA Digital Audio Player Black

The new DAP Shanling M5 Ultra is equipped with cutting-edge components and a new look, making it an original device. It features the AKM AK4499EX + AK4191EQ chip combo, as well as a USB XMOS XU316 interface, enabling it to support high-resolution PCM 32bit 768kHz and native DSD streams up to DSD512.

No customer reviews yet, login to write a review.

By buying this product you get 56 loyalty points


Reference : 19092
New product

569,00 €tax incl.

474,17 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 10-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

SHANLING M5 ULTRA DAP Digital Audio Player AK4499EX + AK4191EQ TPA6120A2 XMOS XU316 Bluetooth 5.2 32bit 768kHz DSD512 Black

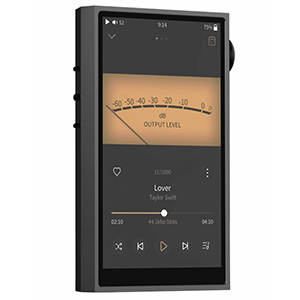

Shanling M5 ULTRA picture

The new DAP Shanling M5 Ultra is equipped with cutting-edge components and a new look, making it an original device. It features the AKM AK4499EX + AK4191EQ chip combo, as well as a USB XMOS XU316 interface, enabling it to support high-resolution PCM 32bit 768kHz and native DSD streams up to DSD512. The M5 Ultra features the same I/V conversion stage as the brand's M9 Plus for perfect conversion quality.

On the amplification side, it features a TPA6120A2 chip for output power of up to 1070 mW at 32 Ohm. Many other features are available, such as bi-directional Bluetooth 5.2. In terms of connectivity, it works with WiFi 2.4/5G and supports DLNA and Airplay protocols, enabling it to connect to a NAS, for example. It also natively supports the TIDAL streaming service.

Regarding its appearance, Shanling has opted for sobriety, with a 4.7" IPS touchscreen and elegant angled curves on the edge. The connectivity interface goes straight to the essential, with a bi-directional USB-C port, a microSD slot up to 2TB and, of course, two headphone outputs: a 3.5mm jack and a balanced 4.4mm jack.

Shanling M5 Ultra: DAC AKM AK4499EX + AK4191EQ et interface USB XMOS XU316

Shanling has equipped its M5 Ultra digital music player with a combo of AKM chips. An AK4499EX DAC chip and an AK4191EQ digital filter chip. Added to this is an XMOS XU316 USB interface. Together, they enable the M5 Ultra to support 32bit 768 kHz PCM and native DSD streams up to DSD512.

Photo of AKM AK4499EX DAC chip
Photo of a TPA6120A2 headphone amplifier chip

Shanling M5 Ultra: TPA6120A2 headphone amplifier

A Texas Instrument TPA6120A chip provides the headphone amplification. This high-fidelity chip with Class AB architecture delivers wide bandwidth, low noise and up to 128dB dynamic range, giving the M5 Ultra an output power of up to 1070mW at 32 ohm on its balanced output and 305mW at 32 ohm on its single-ended output.

Shanling M5 Ultra: Bi-directional Bluetooth 5.2

A bi-directional Bluetooth 5.2 chip enables the M5 Ultra to support high-resolution codecs: aptX, aptX HD and LDAC. The Shanling M5 Ultra is therefore able to receive and transmit high-resolution data wirelessly, in a reliable and stable way.

Bluetooth logo
WiFi Shanling M5 ULTRA

Shanling M5 Ultra: a high level of connectivity

Thanks to its WiFi 2.4/5G connection, the Shanling M5 Ultra DAP offers a wide range of streaming services. It also supports TIDAL, DLNA, AirPlay and NAS protocols for connection to local servers.

Shanling M5 Ultra: Ingenic X2000 processor and ergonomic interface

An Ingenic X2000 processor provides a fast, easy interface and an advanced operating system. The 4.7" touchscreen offers optimal navigation space. Three buttons on the left side panel and a rotary knob complete the package for fast, fluid control of certain functions.

Shanling M5 Ultra interface

Shanling M5 Ultra: an elegant appearance

The M5 Ultra's case is simple and elegant, with slightly beveled side panels. The M5 Ultra's modern design sets it apart from other Shanling DAPs.

Shanling M5 ULTRA, an aesthetically pleasing DAP
Shanling M5 ULTRA picture

Shanling M5 Ultra: long battery life

Inside the Shanling M5 Ultra is a 6000mAh battery, providing 10.5H unbalanced output and 8.5H balanced output.

Technical characteristics

Specifications
Product typeDAP Digital Audio Player
DAC chipKM AK4499EX + AK4191EQ
Headphone amplification chipTPA6120A2
ProcessorIngenic X2000
InputsUSB-C input (bi-directional)
microSD slot (2TB)

Bluetooth
Outputs1x 3.5mm headphone output
1x 4.4mm balanced headphone output
1x USB-C (bi-directional)

Bluetooth
Supported sample ratesPCM 32bit 768kHz, native DSD up to DSD512
Supported Bluetooth CodecsSBC, AAC, aptX, aptX HD, LDAC
ConnectivityWiFi 2.4/5G
Bluetooth 5.2 bi-directional
Headphone output powerJack 3.5mm : 305 mW @ 32 Ohm
Jack 4.4mm : 1070mW @ 32 Ohm
Output impedanceJack 3.5mm : 4.7 Ohm
Jack 4.4mm : 6.6 Ohm
Screen4.7" IPS touchscreen
SyncLink with Eddict Player App
Battery6000mAh
Autonomy10.5H on unbalanced output
8.5H on balanced output
General
ColorBlack
Package1x Shanling M5 Ultra DAP

Data sheet
InputUSB
InputMicro SD
InputBluetooth
InputWiFi
OutputJack 3.5mm
OutputBluetooth
OutputUSB
OutputJack 4.4mm
DAC / ADC ChipAK4499EX
Max sampling rate768kHz
Max sampling rateDSD512
ColorBlack
