WONDOM PS-SP12159 Car SEPIC DC / DC Converter 12V DC to 9V-24V DC 100W
By buying this product you get 2 loyalty points
![[GRADE S] MOGAMI W3103 Speaker Cable OFC Copper 2x4.mm² Ø12mm 2.9m](https://www.audiophonics.fr/60807-thumb_default/mogami-w3103-speaker-cable-ofc-copper-2x4mm-o12mm.jpg)
![[GRADE S] FURUTECH FP-S55N LIMITED EDITION Power Cable OFC Copper Silver Gold Nano Liquid Alpha Treatment 5.26mm² Ø18mm 2.65m](https://www.audiophonics.fr/60802-thumb_default/furutech-fp-s55n-limited-edition-power-cable-ofc-copper-silver-gold-nano-liquid-alpha-treatment-526mm-o18mm.jpg)
![[GRADE A] MATRIX MINI-I 4 DAC ES9039Q2M Streamer DLNA Airplay 24bit/768kHz DSD512 MQA](https://www.audiophonics.fr/60796-thumb_default/matrix-mini-i-4-dac-es9039q2m-streamer-dlna-airplay-24bit768khz-dsd512-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60791-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60786-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN CAN Class A Balanced Headphone Amplifier 15.2V](https://www.audiophonics.fr/60782-thumb_default/ifi-audio-zen-can-class-a-balanced-headphone-amplifier-152v.jpg)
SEPIC DC/DC Converter
12V DC to 9V-24V DC 100W

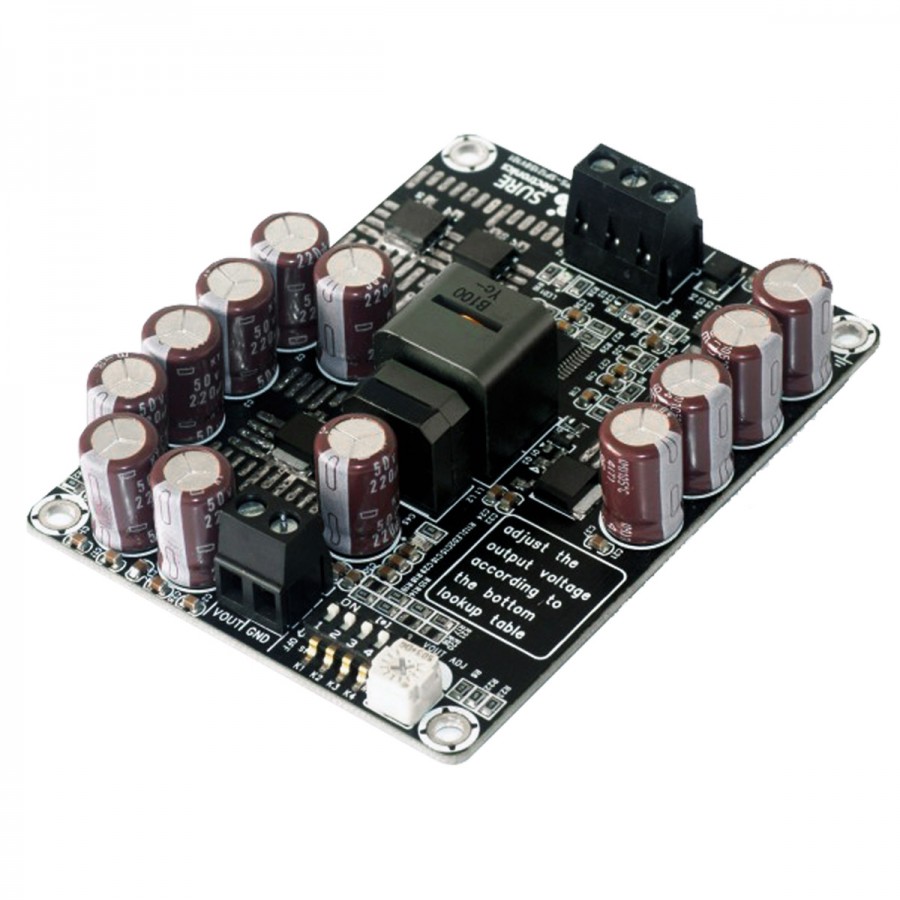

The Wondom PS-SP12159 is a SEPIC DC/DC converter (Single Ended Primary Inductor Converter), which converts a 12V DC DC voltage into an adjustable voltage via a DIP switch from 9V DC to 24VDC. To perform this conversion, this type of converter modifies the closing duty cycle of transistors.
The module is equipped with a status LED and has undervoltage and overload protection.
Voltage output selection
The module's DIP switch allows you to change the value of the output voltage from 9V to 24V DC. The table below details the different possible values and switch positions to be used. This table is also available on the back of the PCB.
| Tension de sortie | K1 | K2 | K3 | K4 |
| 9V DC | ON | ON | ON | ON |
| 10V DC | OFF | ON | ON | ON |
| 11V DC | ON | OFF | ON | ON |
| 12V DC | OFF | OFF | ON | ON |
| 13V DC | ON | ON | OFF | ON |
| 14V DC | OFF | ON | OFF | ON |
| 15V DC | ON | OFF | OFF | ON |
| 16V DC | OFF | OFF | OFF | ON |
| 17V DC | ON | ON | ON | OFF |
| 18V DC | OFF | ON | ON | OFF |
| 19V DC | ON | OFF | ON | OFF |
| 20V DC | OFF | OFF | ON | OFF |
| 21V DC | ON | ON | OFF | OFF |
| 22V DC | OFF | ON | OFF | OFF |
| 23V DC | ON | OFF | OFF | OFF |
| 24V DC | OFF | OFF | OFF | OFF |
All dimensions are millimeters
Technical characteristics
| Specifications | |
|---|---|
| Product type | DC/DC SEPIC Converter |
| Input voltage | 12V DC |
| Output voltage | Adjustable from 9V to 24V DC |
| Protections | Under voltage Overload |
| Dimensions | 68.5 x 91.5 mm |
| Spacings | 2mm / M3.5 |
| Measurements | |||
|---|---|---|---|
| Parameter | Min | Typ | Max |
| Supply voltage | 11V | 12V | 27V |
| Under voltage protection | - | 11V | - |
| Output power | - | 100W | - |
| Overload protection | - | 120W | - |
| Operating temperature | 0°C | 20°C | 80°C |
| Thermal protection | - | 150°C | - |
| Output voltage (V) | 24.0 |
| Output voltage (V) | 17.0 |
| Output voltage (V) | 16.0 |
| Output voltage (V) | 21.0 |
| Output voltage (V) | 19.0 |
| Output voltage (V) | 23.0 |
| Output voltage (V) | 11.0 |
| Output voltage (V) | 9.0 |
| Output voltage (V) | 14.0 |
| Output voltage (V) | 12.0 |
| Output voltage (V) | 20.0 |
| Output voltage (V) | 18.0 |
| Output voltage (V) | 22.0 |
| Output voltage (V) | 10.0 |
| Output voltage (V) | 15.0 |
| Output voltage (V) | 13.0 |
| Output current (A) | NC |
| Input voltage (V) | 12.0 |
