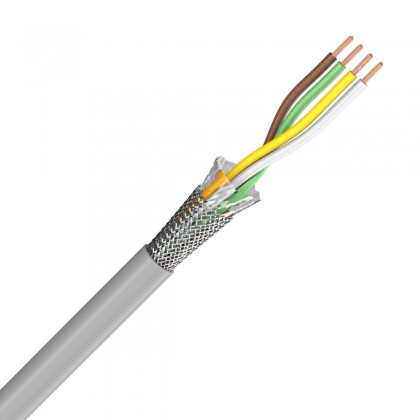

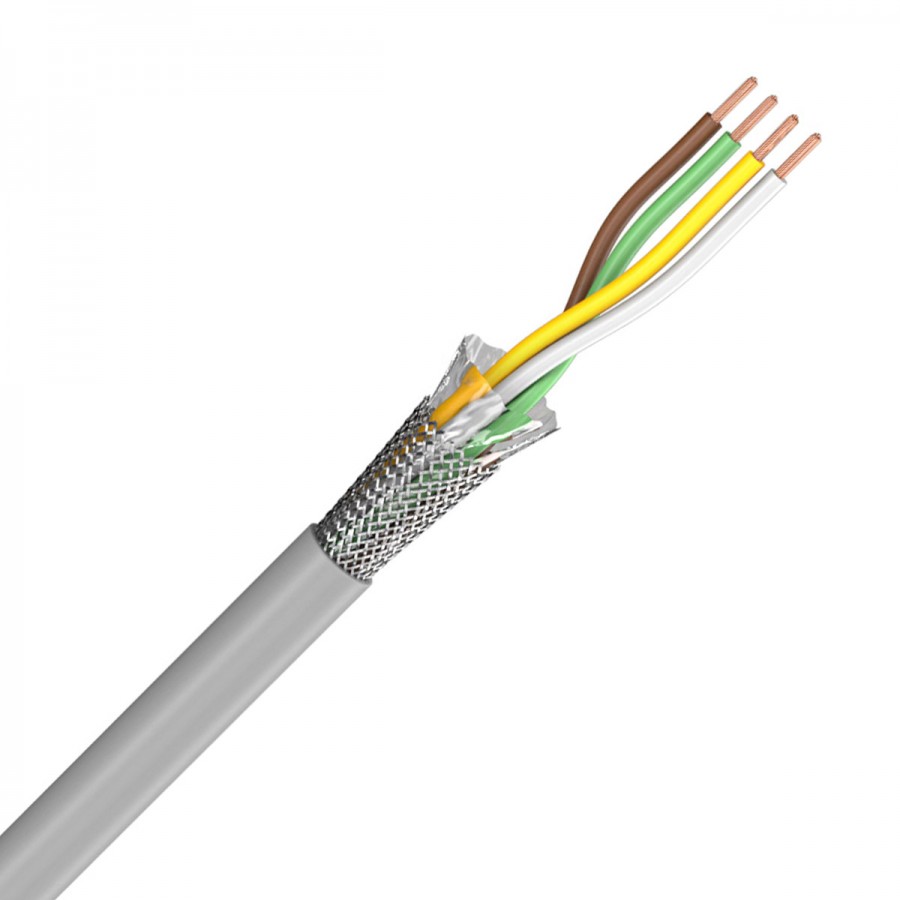

SOMMERCABLE CONTROL FLEX I2S transfert Cable 4x0.25mm² Ø 4.7mm

SOMMERCABLE CONTROL FLEX I2S transfert Cable 4x0.25mm² Ø 4.7mm

No customer reviews yet, login to write a review.

No loyalty points for this product.

Reference : 9655
New product

0,92 €tax excl.

- +

Shipping date: 25-01-2022.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans
More info

Trust is good, but "Control" is better ...

We supply a robust but very flexible cable for use as a control and signaling conductor for automation devices (eg RS232 or RS422) or computer systems in the milliampere zone. The special envelope is anti-flammable and self-extinguishing according to VDE 0472, part 804, mode B.
The CONTROL FLEX is protected by copper braid shielding (optical coverage> 90%), which makes it particularly suitable for problematic use of EMV.
Please note that we produce this cable for wholesale traders and for OEM customers, and that it is - at least in part - printed with the names prescribed by the DIN standard or other approvals, without the SOMMER CABLE logo.


  • Seven different sections available from our warehouses
  • Mobile, flexible up to a temperature of -10 ° C (fixed installation down to -30 ° C)
  • Practically resistant to oils
  • Self-extinguishing and anti-inflammableaccording to VDE 0472, part 804, mode B
  • Easy to work


  • Fixed installation of the building
  • Signal and automation driver
  • Retransmission of RS232 and RS422 standards
  • Loudspeaker cable in ELA technique
Envelope, diameter4.70 mm
Conductor inside4 x 0.25 mm2
Copper strands per coreaccording to DIN VDE 0295 mm
Insulation of the conductorPVC / FRNC according to DIN VDE0207 part 4
Protectioncopper braid, tinned
Optical cover90%
Operating temperatureFixed installations min. -30 ° C
Operating temperaturemobile min. -20 ° C
Operating temperatureFixed installations max. 80 ° C
Operating temperatureMobile phone 70 ° C
Color of envelopegray (RAL 7001)
Packaging, packaging unitroller 100/1000 m

Electrical Specifications :
Capacity metric cond./cond.120 pF
Metric Capacity Screen / Display240 pF
Odometer Resistance, Conductor<165 Ohm
Resistance, insulation> 20 MOhm
Inductance per 1 km0.65 MHz
Operating voltage500 V
Operating voltage
Operating voltage
Test voltagefor 50 Hz (Cond./Cond.) 1200 V
Test voltagefor 50 Hz (monitor / display) 800 V
Data sheet
Length (m)Sold by length
Number of conductors4
Insulation materialPVC
Section (mm²)0.25
Conductors material (Cable)Copper
