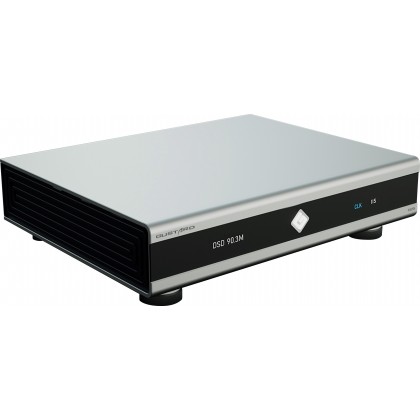

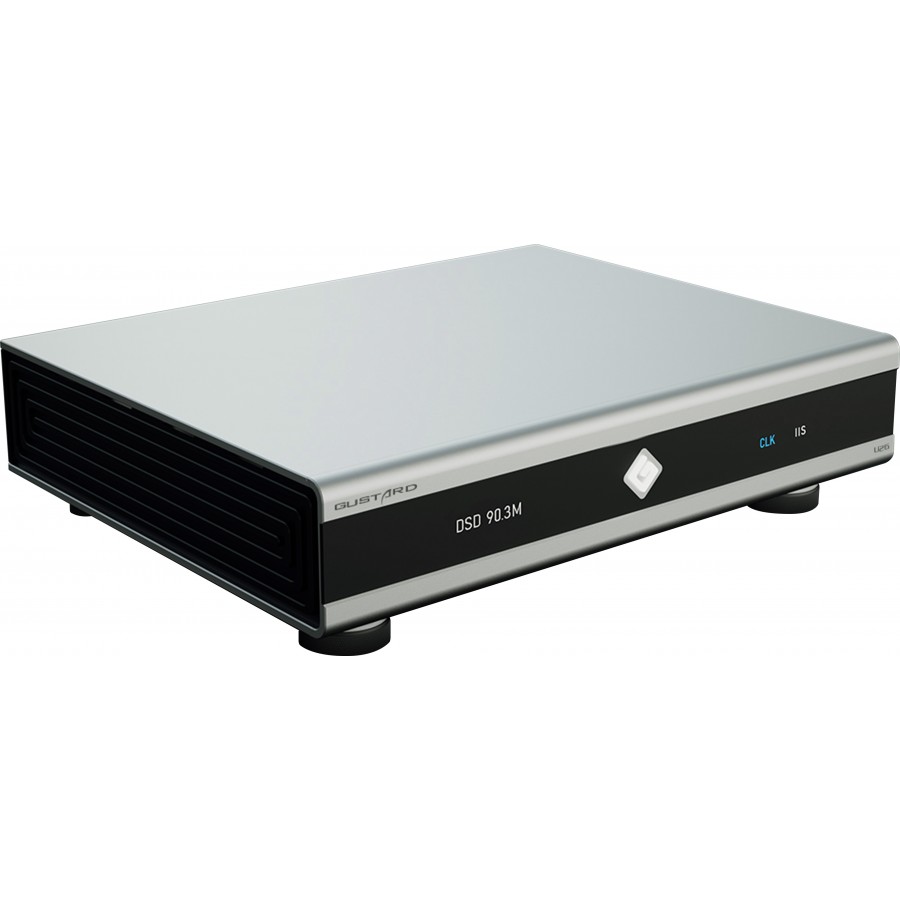

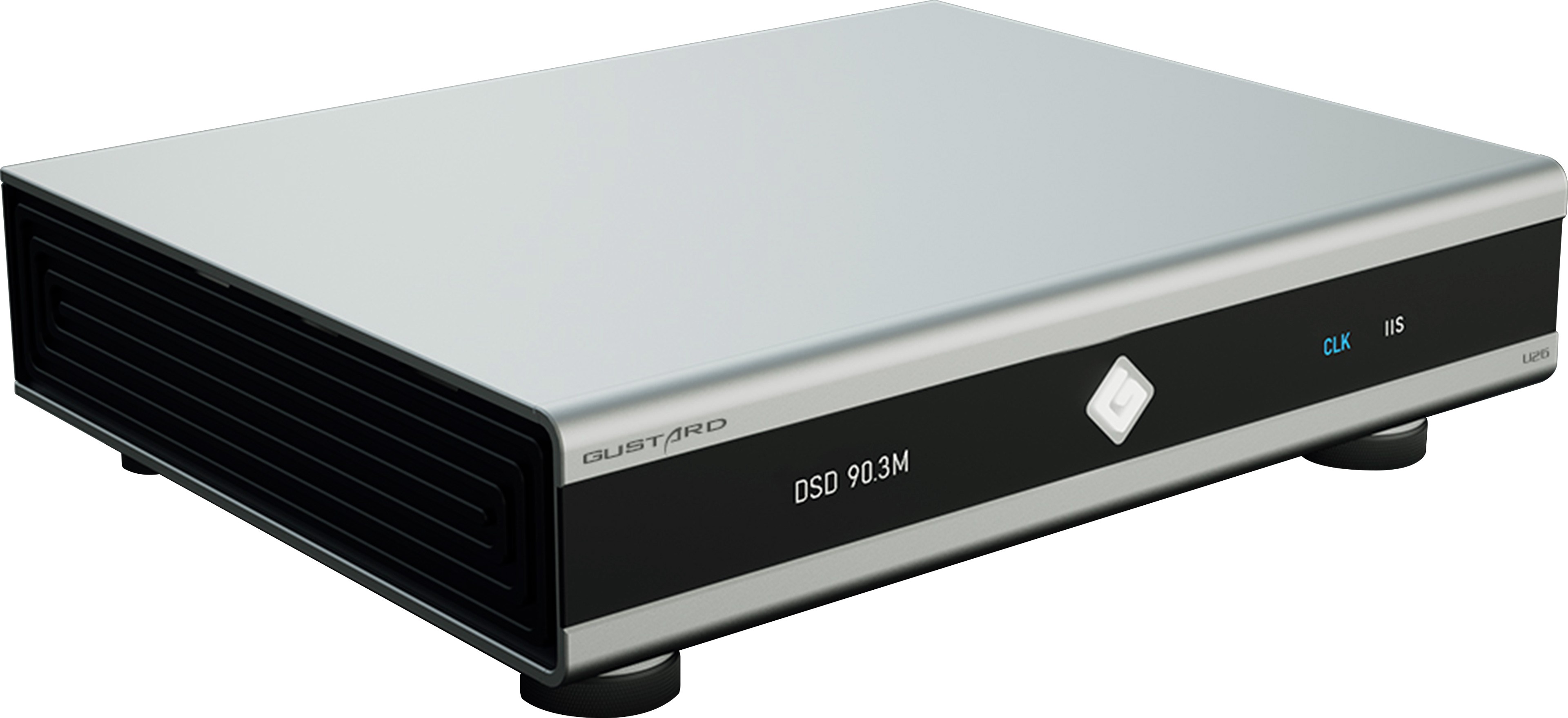

GUSTARD U26 Digital Interface Silver
By buying this product you get 99 loyalty points
Gustard U26 Digital Interface USB I2S SPDIF 32bit 1536kHz DSD2048 Silver
The Gustard U26 is a high-precision USB digital interface designed to deliver ultra-high-resolution audio quality to audiophiles and professionals. Developed in collaboration with Amanero Technologies, it transmits digital audio signals with exceptional accuracy and stability, minimizing jitter and electrical interference. With its isolated architecture, low-phase-noise OCXO clocks, and compatibility with PCM formats up to 32-bit 1536kHz and DSD2048, the U26 fits perfectly into high-end audio setups, whether for home or professional use.
Gustard U26: Cutting-edge technology for optimal audio quality
The Gustard U26 uses an ARM Cortex-M7 processor and a custom USB solution, the result of collaboration between Gustard and Amanero. This technology enables real-time management of very high-resolution audio streams, with reduced latency and increased stability.
Gustard U26: High-precision clock
The Gustard U26 is also equipped with an OCXO clock as its clock source, combined with K2 PLL technology, ensuring ultra-precise synchronization and significantly reduced jitter, which is essential for high-quality sound reproduction.
Gustard U26: Maximum compatibility
The U26's USB 2.0 interface provides Plug & Play compatibility with Mac, Windows, Linux, and mobile devices (OTG). For Windows users, a custom ASIO driver is available, allowing fine-tuning of latency and buffer settings, as well as phase and data alignment adjustments, for total optimization of the audio chain.
Gustard U26: Optimized insulation and power supply

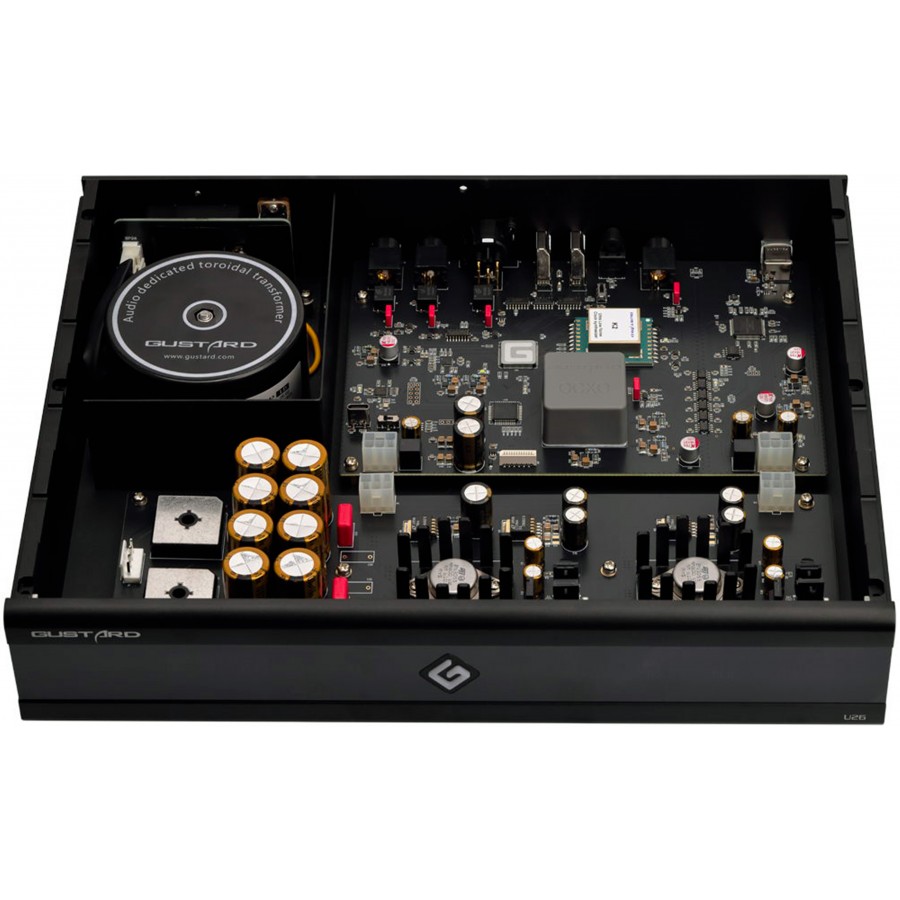

The Gustard U26 features a fully isolated power supply architecture, with a toroidal transformer and independent linear regulators for the USB and digital circuits. This physical and electrical separation eliminates noise and interference, ensuring a pure and stable audio signal. The U26 also incorporates a 200Mbps USB isolation chip, which effectively blocks electrical noise from the computer or streamer, preserving the integrity of the audio signal.
Gustard U26: Comprehensive connectivity
The U26 offers a wide range of digital outputs: Coaxial (RCA and BNC), Optical, AES (XLR), and I2S via HDMI, providing maximum compatibility with most DACs and audio systems. This versatility makes it an ideal choice for users who want to easily integrate the interface into their existing audio system, whether domestic or professional.
| 1 | I2S output (configurable pinout) |
| 2 | AES output |
| 3 | Power input connector |
| 4 | USB input |
| 5 | 10MHz clock input |
| 6 | Optical Toslink output |
| 7 | I2S-G output (Gustard pinout) |
| 8 | Coaxial (RCA) output |
| 9 | Coaxial (BNC) output |
| 10 | 220V/110V Power input switch |
| 11 | Power switch |
I2S pinout

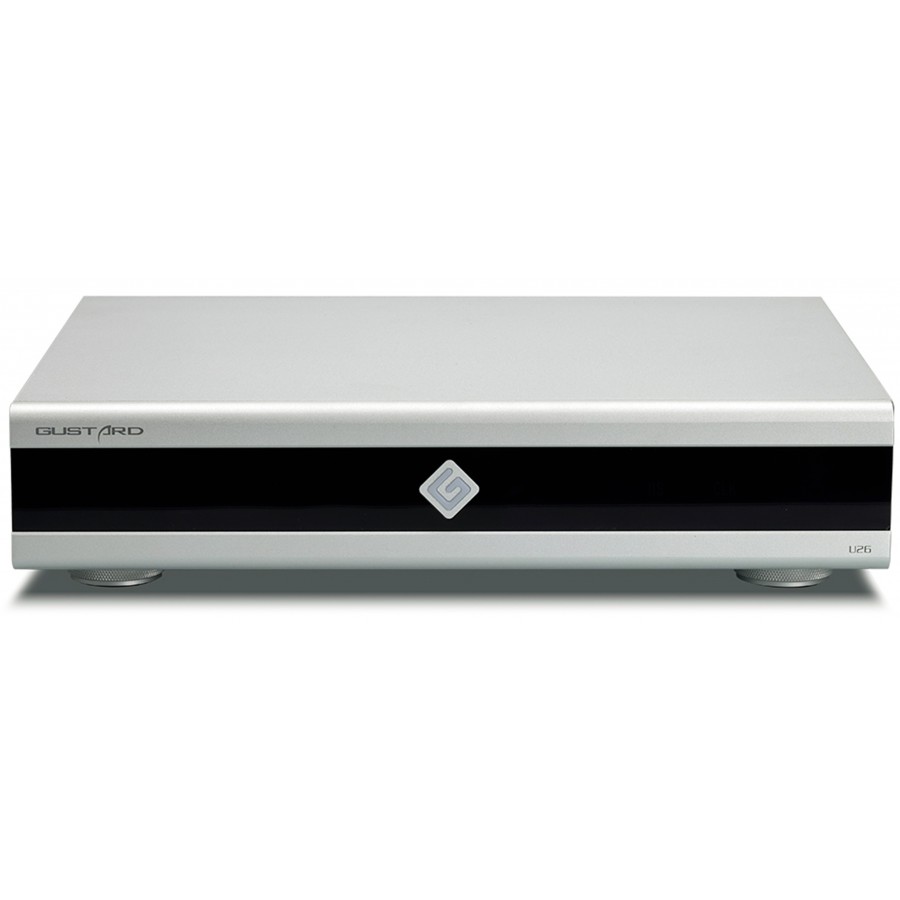

Gustard U26: Robust and elegant design
The aluminum alloy chassis of the U26 combines robustness and minimalist aesthetics, while providing effective protection against electromagnetic interference. Its sleek design and high-quality construction make it a powerful yet discreet device that blends seamlessly into high-end audio installations.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Digital interface |
| Inputs | 1x USB-B 2.0 1x 50Ω Clock input (input level 0dBm to 20dBm) |
| Outputs | 1x I2S (configurable pinout) 1x I2S-G (Gustard pinout) 1x Optical Toslink 1x Coaxial 75Ω (RCA) 1x Coaxial 75Ω (BNC) 1x AES/EBU 110Ω |
| Supported sampling rates | Coaxial: PCM up to 24bit 384kHz, DoP64-128 AES/EBU: PCM up to 24bit 384kHz, DoP64-128 Optical: PCM up to 24bit 192kHz, DoP64 I2S: PCM up to 32bit 1536kHz, DSD up to DSD2048 |
| Output level | Coaxial: 500mV P-P @ 75Ω AES/EBU: 2.1V P-P @ 110Ω I2S: LVDS |
| General | |
|---|---|
| Supply voltage | AC 115V / 230V, 50/60Hz (switchable) |
| Consumption | < 15W |
| Dimensions (excluding feet and connectors) | 330 x 260 x 65mm |
| Weight | 4.8kg |
| Color | Silver |
| Package | 1x Gustard U26 1x Power cable |
