HYPEX UCD700HG-HxR Class D Power Amplifier Module 700W 4 Ohm

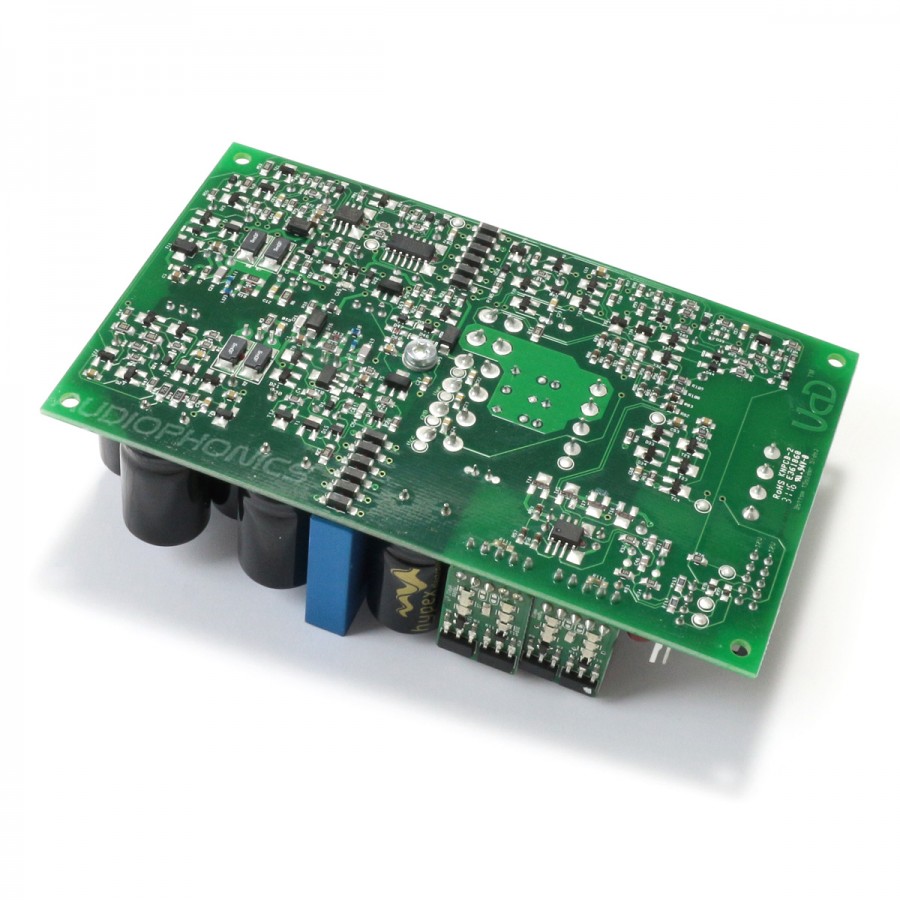

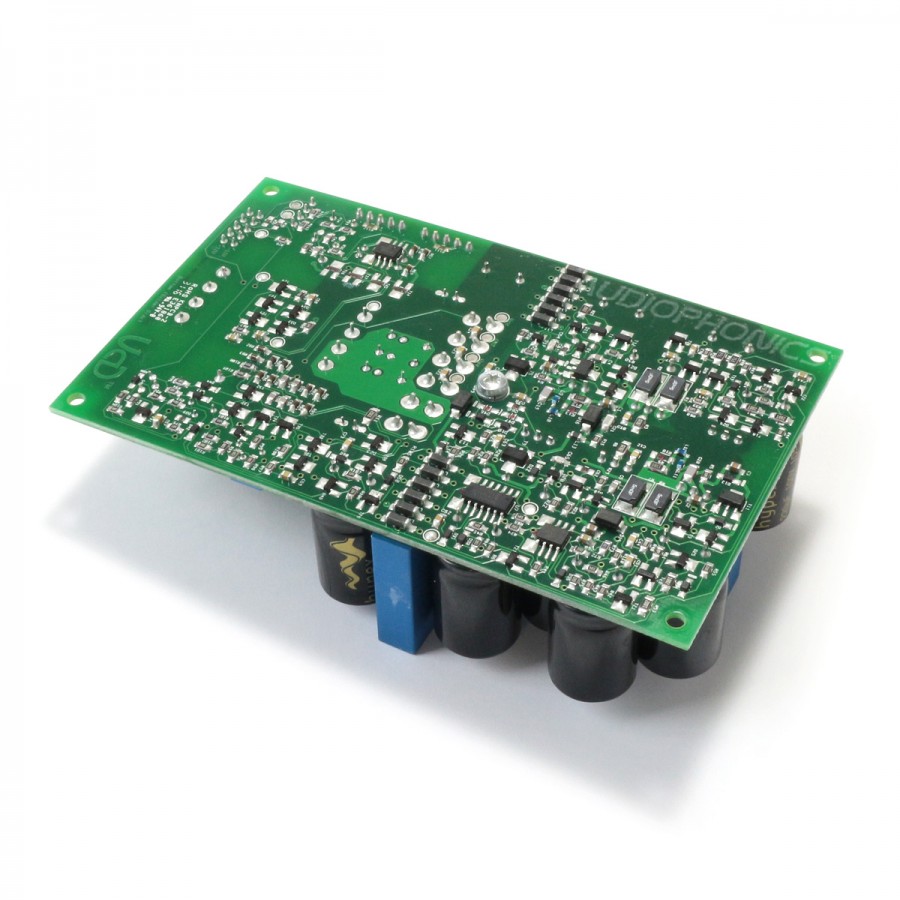

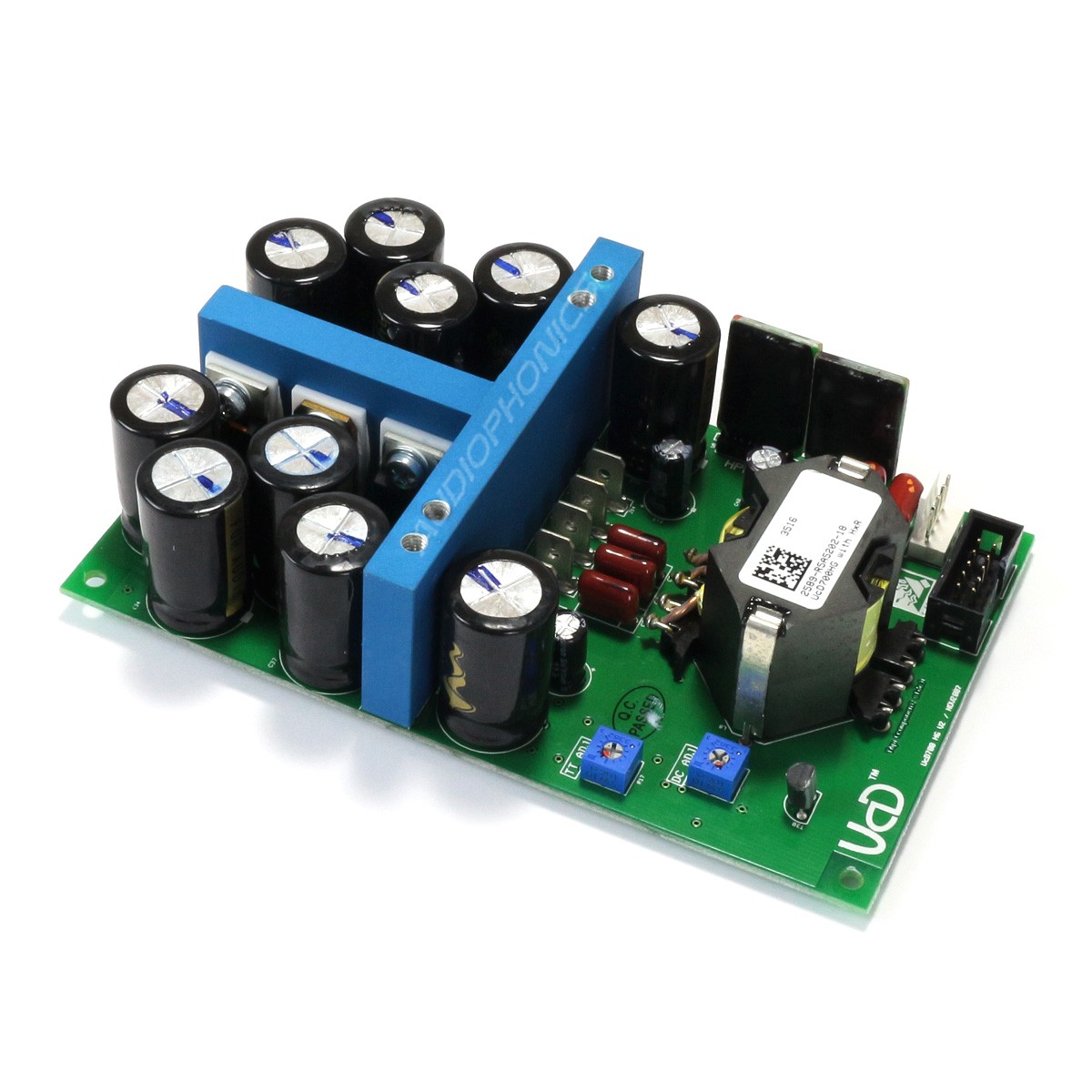

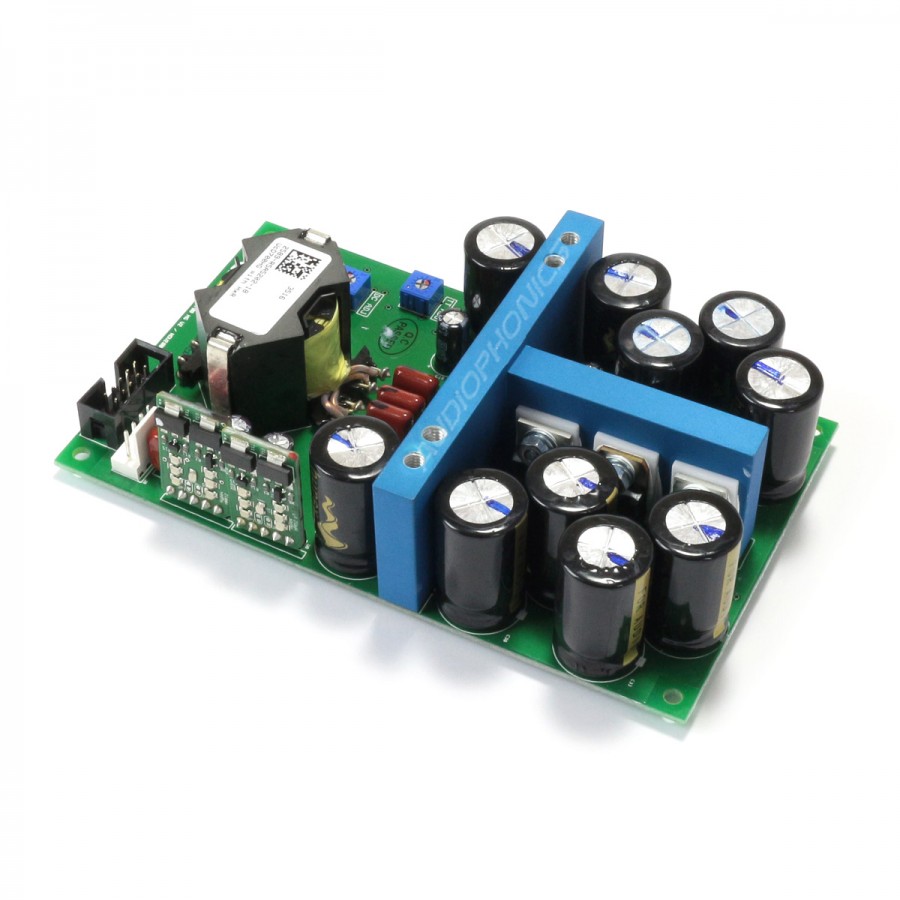

Hypex UCD700HG-HxR Amplifier board 700W
The Hypex UCD700HG-HxR module is a Class D power amplifier, capable of delivering 700W and which will be able to adapt to very varied options, up to high-fidelity audio systems, including for professional use.

No customer reviews yet, login to write a review.

By buying this product you get 33 loyalty points


Reference : 4123
New product

339,00 €tax incl.

282,50 € tax excl.
Available

- +

Shipping date: 15-08-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

Hypex UCD700HG-HxR

Class D Power Amplifier Module 700W

Module d'amplification de puissance Hypex UCS700

The Hypex UCD700HG-HxR module is a Class D power amplifier, capable of delivering 700W and which will be able to adapt to very varied systems, up to high-fidelity audio systems, including for professional use. The strong characteristics of this module are its flat response whatever the load, its almost frequency independent distortion and an extremely low EMI radiation rate.

Find in the tab "Download" of this page the complete technical sheet of the product.

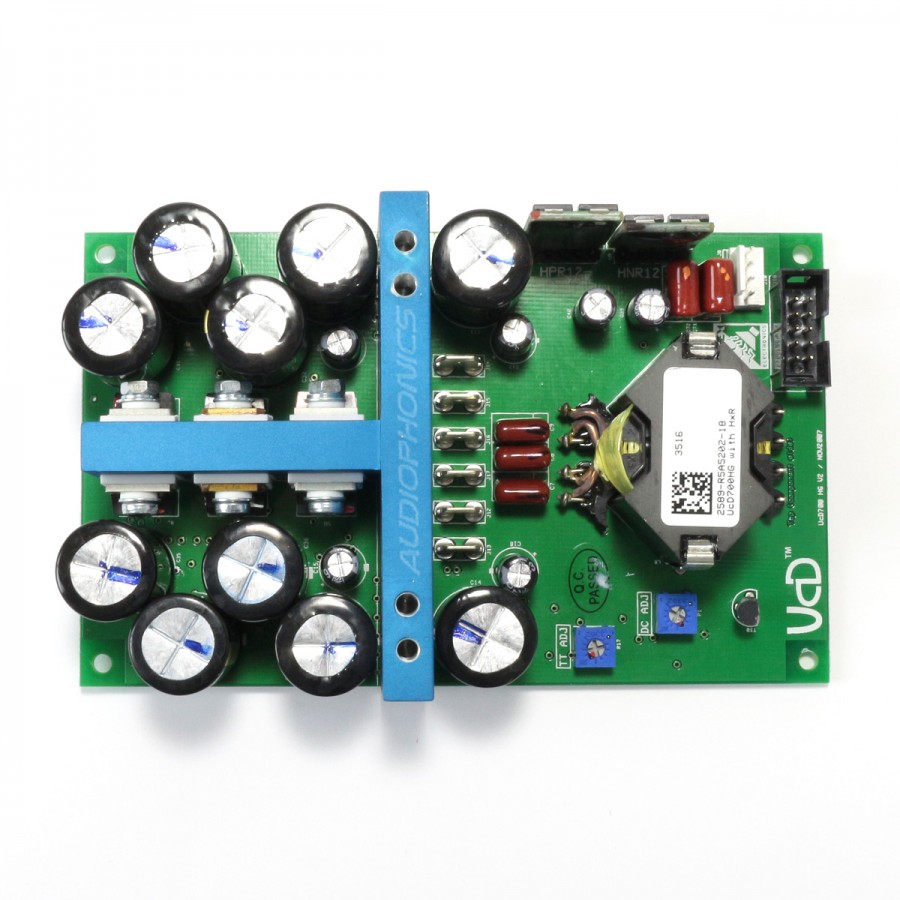

The DC offset can be adjusted by turning the potentiometer marked "DC ADJ".
Caution, never turn the potentiometer marked "TTADJ".

Technical diagram


Performances graphs


Technical characteristics

Components
Capacitorsx10 Hypex For Audio 200µF 100V
RégulatorsHxR Hifh performances regulators
Specifications
Amplifier typeClass D Power amplifier
Output power700W @ 4Ω, THD=1%
THD+N0.02% @ 20Hz < f < 20kHz, Pout < Po/2
0.005% @ 20Hz < f < 20kHz, Pout = 1W
Noise30µ
Frequency response10Hz - 50kHz @ +0/-3dB
Efficiency> 92%
General
Compatible caseCan be mounted in a 2U housing, even on the side
Recommanded power supply voltage+/- 90V
Dimensions130 x 79mm x 35.7mm
Fixing holes spacing122 x 71mm
Weight300g

Data sheet
Channel1 channel (Mono)
ClassClass D / T
Puissance Totale700-750
Puissance Totale650-700
