Module unbalanced to balanced symetrizer JRC 4580DD BTL stereo

This audio module balances any HIFI-RCA-CINCH line-level asymmetric signal into a balanced-XLR signal independently and qualitatively. Equipped with quality passive components, the asymmetric input signal is processed by an JRC 4580DD per side on DIP 8 support. It is possible to replace the original PDOs with other models DIP 8 with pinout JRC 4580DD (eg OP2134 or NE5532).

Average votes for this product
5.0 / 5

By buying this product you get 1 loyalty point


Reference : 12296
New product

19,90 €tax incl.

16,58 € tax excl.

- +


Shipping date: 03-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

Module unbalanced to balanced symetrizerJRC 4580DD BTL stereo

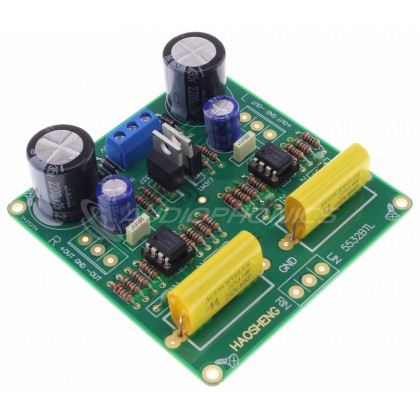

JRC 4580DD symetrizer module picture

This audio module balances any HIFI-RCA-CINCH line-level asymmetric signal into a balanced-XLR signal independently and qualitatively. Equipped with quality passive components, the asymmetric input signal is processed by an JRC 4580DD per side on DIP 8 support. It is possible to replace the original PDOs with other models DIP 8 with pinout JRC 4580DD (eg OP2134 or NE5532).

This card is easily "tweakable" especially to replace the original capacitors by higher quality models. (Blue filter capacitors from 2200μF to 35V and yellow capacitors from 2.0μF)

It is suitable for the following assemblies and figures:

  • Audio sources on CINCH-RCA analog output (CD players, BluRay, DAC) to studio and sound devices, eg mixing tables with balanced inputs.
  • Home theater or HIFI preamplifier with RCA outputs to professional amplifiers with balanced XLR inputs.
  • HIFI preamplifier with RCA outputs to HIFI High-End Audio amplifier high-end XLR balanced.


To operate, this module requires an AC 230 V to 15 V transformer. We recommend:

Features:

  • Line-to-Symmetrical Unbalanced Stereo Modules
  • Inputs / outputs by soldering on gold-plated wafer
  • Board provided assembly
  • Supply voltage required AC 15V
  • PDO balun JRC 4580DD on DIP support 8
  • Gold plated wide track tracks
  • Regulated DC voltage +/- regulators LM337 and LM317
  • AC to DC Diodes: In4007 x2 per channel

Dimensions and weight:

  • Dimensions: 81 x 80 x 27 mm (L x W x H)
  • Spacing: 75x74mm
  • Weight: 62 g

Data sheet
InputSolder pad
OutputSolder pad
Channel2 (Stereo)
