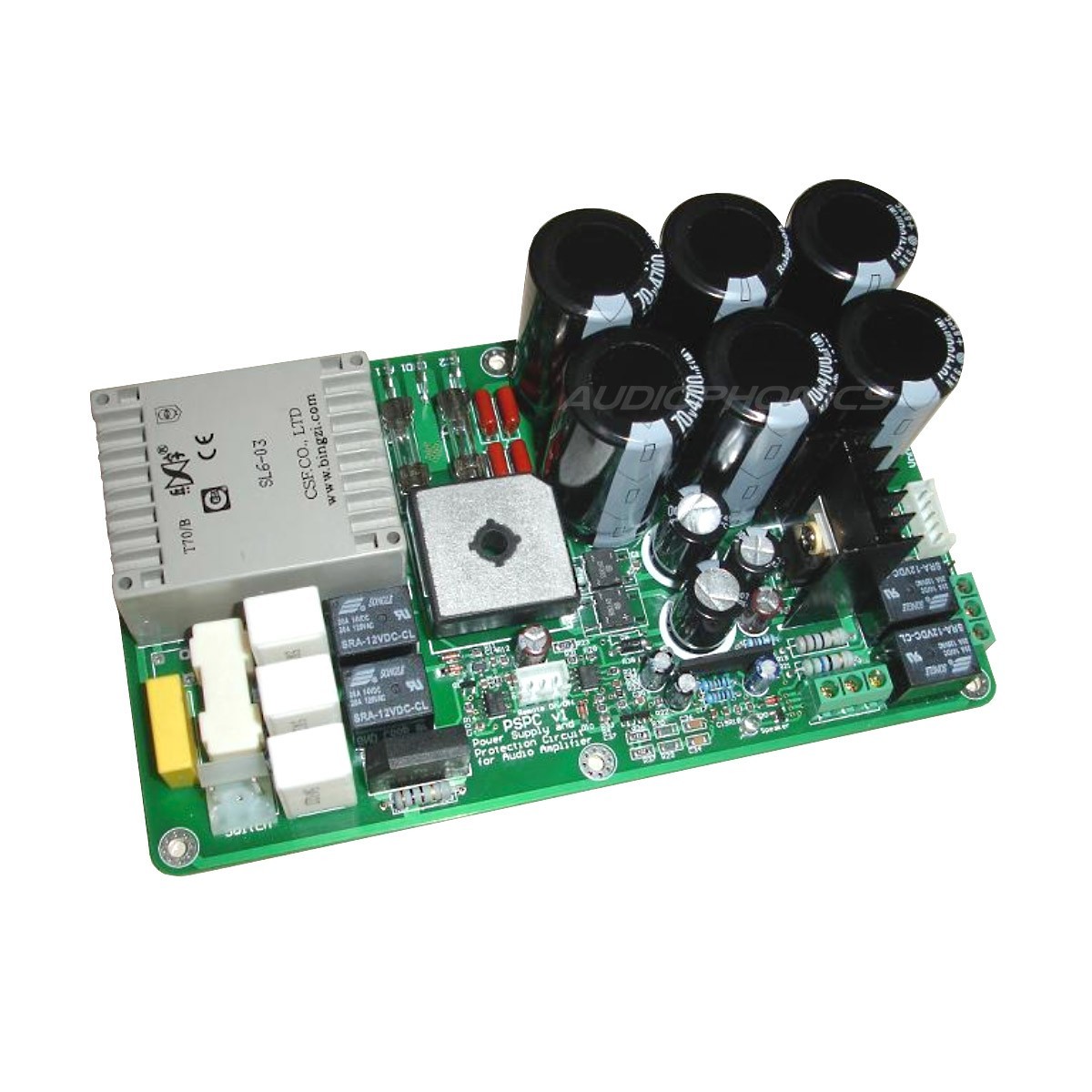

PSPC 230V Linear Power Supply & Speaker protection board (6x4700µF) +/-65V

PSPC 230V Linear Power Supply and Protection Circuit Module 6x4700µF 70V
No customer reviews yet, login to write a review.

By buying this product you get 8 loyalty points

Reference : 11981
New product

82,50 €tax excl.

Including 0,04 € for green tax

- +

Last items in stock !
Shipping date: 19-01-2021.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans
More info

Linear Power Supply and Protection Module PSPC 230V / 6x4700μF 70V

The PSPC 230V linear and protection module is used for class D and T amplifiers that require low voltages.

The module includes a power supply for the amplifier input, consisting of a high-intensity rectifier, a 35A bridge and six capacitors 4700μF to 70V and capable of delivering + -65V to 15A and 5V to 12V to 200mA regulated. On the other hand, it offers a regulated and isolated bias current of 10-12V.

font-size: 14px; line-height: 1.5em; ">In addition to the power supply, the module includes the "Mains Power Soft Start" technology which allows to limit the transient current

The protection circuit prevents noise pollution while allowing the loudspeaker to be disconnected if a DC current is detected at the output.

Finally, the module incorporates a circuit making it possible to pass the amplifier in mute mode if the stage of supply of the amplifier exceeds a certain threshold.

Download the documentationof the PSPC 230V power supply.




  • Capacitors: 6 x 4700μF 70V
  • Operating Temperature Max: +/- 65V
  • Max Current Rating: 15A
  • Dimensions: 170 x 100mm

Cotations alimentation PSPC 230V

Schéma interconnexion PSPC 230V
