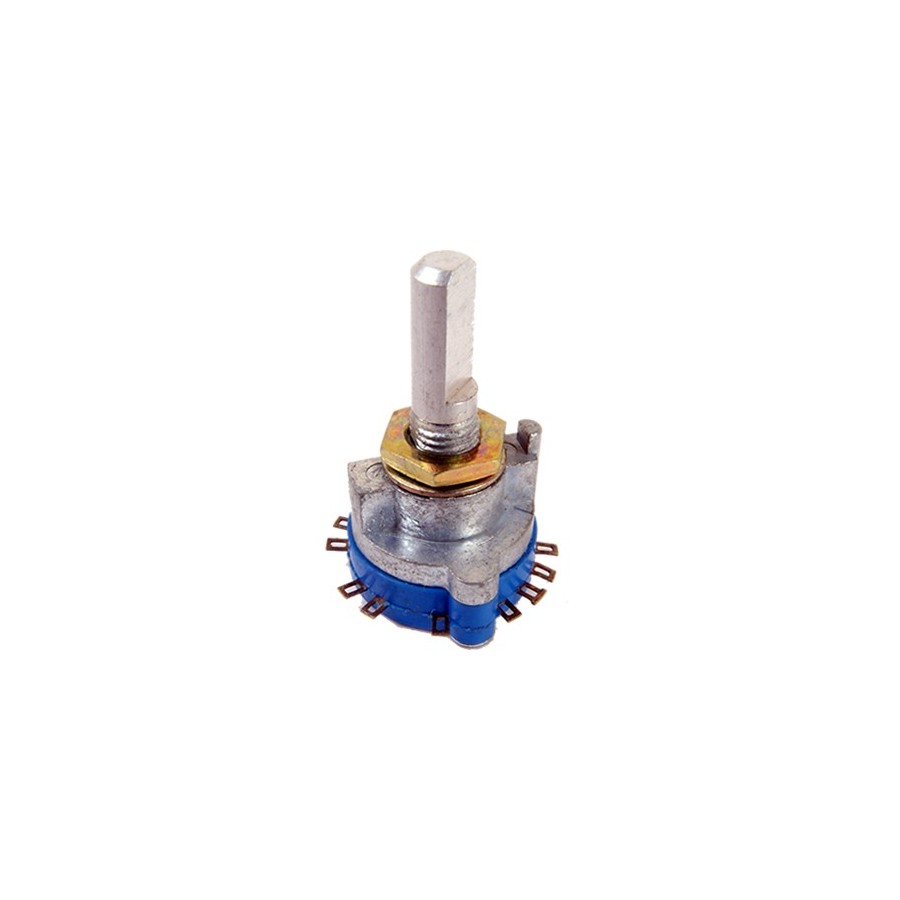

Source selector ALPS SRRN 820c 3 positions 1 way

Sélecteur de source ALPS SRRN 820c 3 positions 1 voie
No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 6704
New product

3,90 €tax incl.

3,25 € tax excl.
Including 0,30 € for green tax
Available

- +

Shipping date: 17-12-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

Source selector ALPS SRRN 820c 3 positions 1 channel

For example, they can be mounted in a preamplifier to select the sources.

  • Maximum Power: 0.15A 12V DC
  • Lifetime: 10000 cycles
  • Made in Japan
  • Length of the axis: 18 mm (flat 12mm)

Operating temperature range

-10 ° to + 60 °

Rating (max.) / (Min.) (Resistive load)

0.15A 12V DC / 50μA 3V DC

Electrical Performance

Contact resistance (Initial performance / After lifetime)

50mΩ max. / 100mΩ max.

Insulation resistance

100MΩ min. 500V DC

Voltage proof

500V AC for 1 minute

Mechanical performance

Terminal strength

5N for 1 minute

Actuator strength

Rotational direction

1N · m

Push direction

100N

Wobble of actuator (load at the tip of shaft: 5N)

Measuring position from surface mounting

15mm

Shaft wobble (max. Value)

0.25mm max.

Applicable mounting dimension

20mm

Resistance to soldering heat

Manual soldering

350 ± 10 °, 3 (+1.0) s

Dip soldering

260 ± 5 °, 10 ± 1 s

durability

Operating life without load

10,000 cycles 70mΩ max.

Operating life with load (Load: as ratings)

10,000 cycles 100mΩ max.

Environmental Performance

Cold

-20 ± 2 ° for 96h

Dry heat

85 ± 2 ° for 96h

Damp heat

40 ± 2 °, 90 to 95% RH for 96h

https://www.audiophonics.fr/images2/5648/5648_SRRN_D_11.jpg

https://www.audiophonics.fr/images2/6704/6704_ALPS712C1WAY_1.jpg
