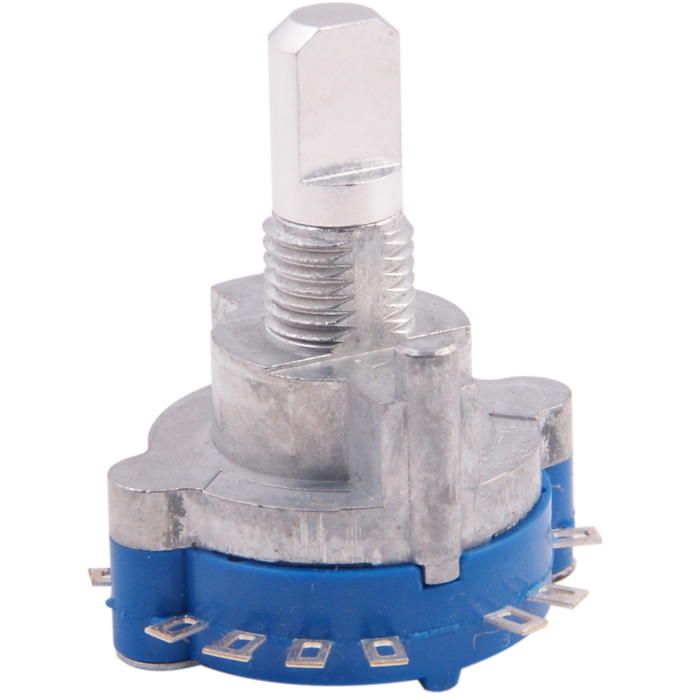

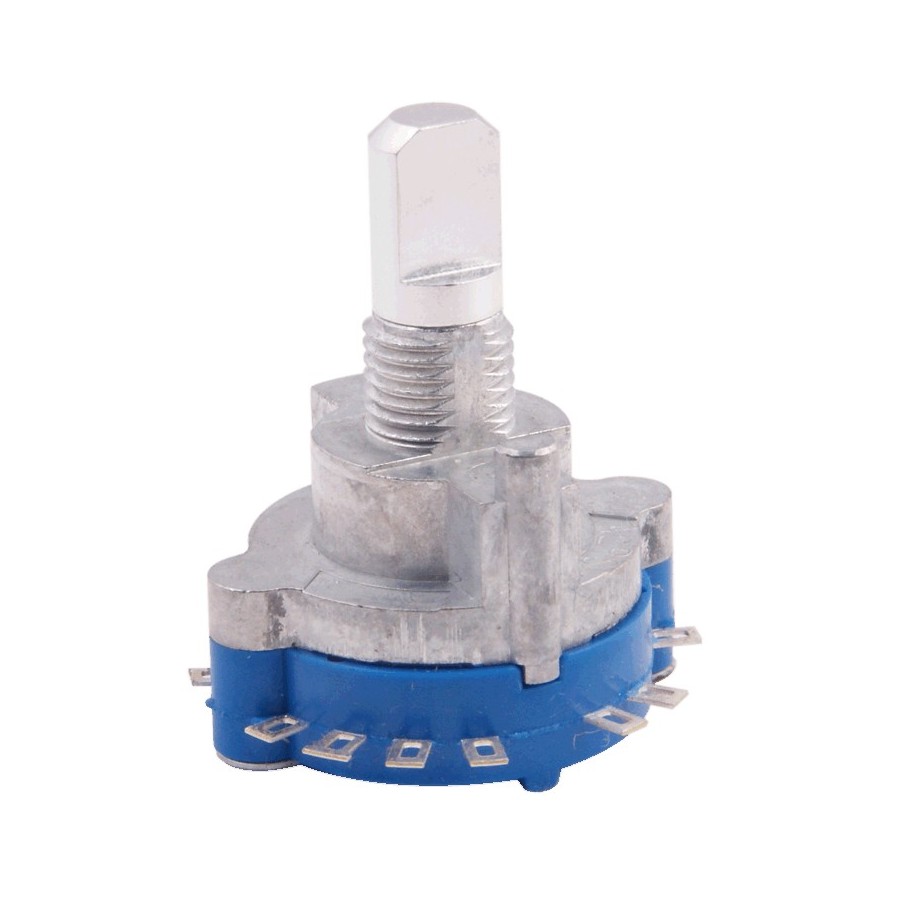

Source selector ALPS SRRN152000 5-position 2-way

Sélecteur de source ALPS SRRN152000 5 positions 2 voies
Average votes for this product
1.0 / 5

No loyalty points for this product.

Reference : 8612
New product

9,50 €tax incl.

7,92 € tax excl.
Including 0,30 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans
More info

Source selector ALPS SRRN152000 5-position 2-way

For example, they can be mounted in a preamplifier to select the sources.

  • Maximum Power: 0.15A 12V DC
  • Lifetime: 10000 cycles
  • Made in Japan
Number of wafer1
Changeover angle30 ± 3 °
Changeover timingNon shorting
Rotational torque70 ± 30 mN · m
Actuator configurationFlat
Actuator lengthL: 15mm

Operating temperature range-30 ℃ to + 65 ℃
Rating (max.) / (Min.) (Resistive load)0.15A 12V DC / 50μA 3V DC
Electrical PerformanceContact resistance (Initial performance / After lifetime)50mΩ max. / 100mΩ max.
Insulation resistance100MΩ min. 500V DC
Voltage proof500V AC for 1 minute
Mechanical performanceTerminal strength5N for 1 minute
Actuator strengthRotational direction1N · m
Push direction
Wobble of actuator (load at the tip of shaft: 5N)Measuring position from surface mounting10mm
Shaft wobble (max. Value)0.17mm max.
Applicable mounting dimension15mm
durabilityOperating life without load10,000 cycles 70mΩ max.
Operating life with load (at maximum rated load)10,000 cycles 100mΩ max.
Environmental PerformanceCold-40 ± 2 ℃ for 96h
Dry heat85 ± 2 ℃ for 96h
Damp heat40 ± 2 ℃, 90 to 95% RH for 96h

Manufacturer Page

PDF Manufacturer
