- We deliver this connector without marking, the small Elecaudio sticker visible on the pictures is not delivered -

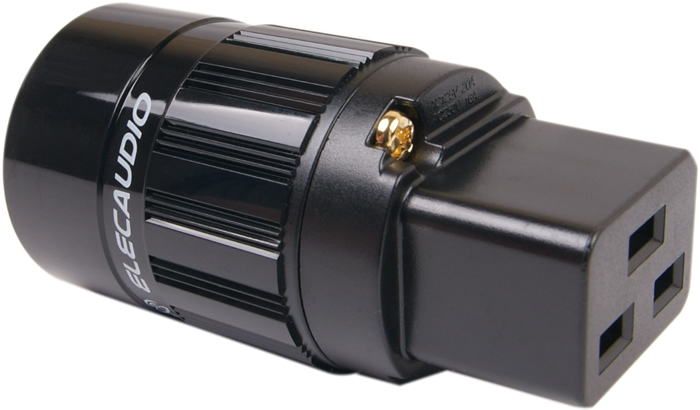

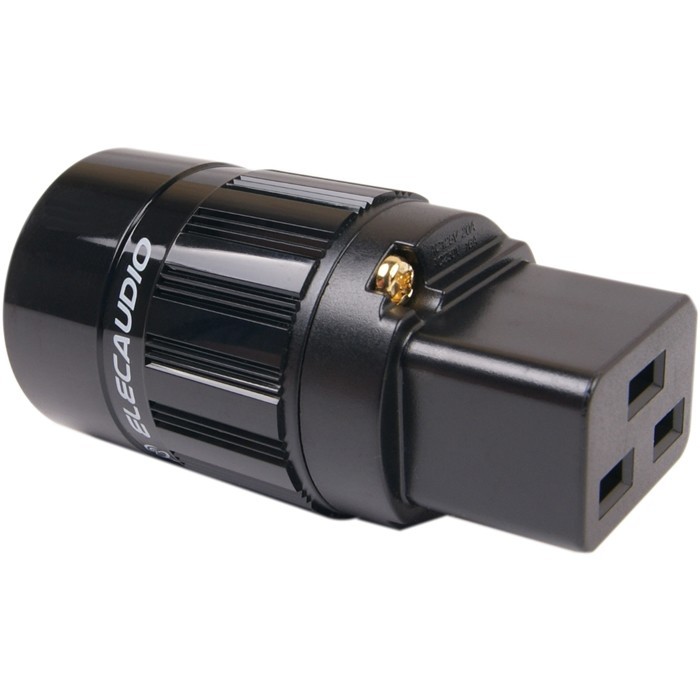

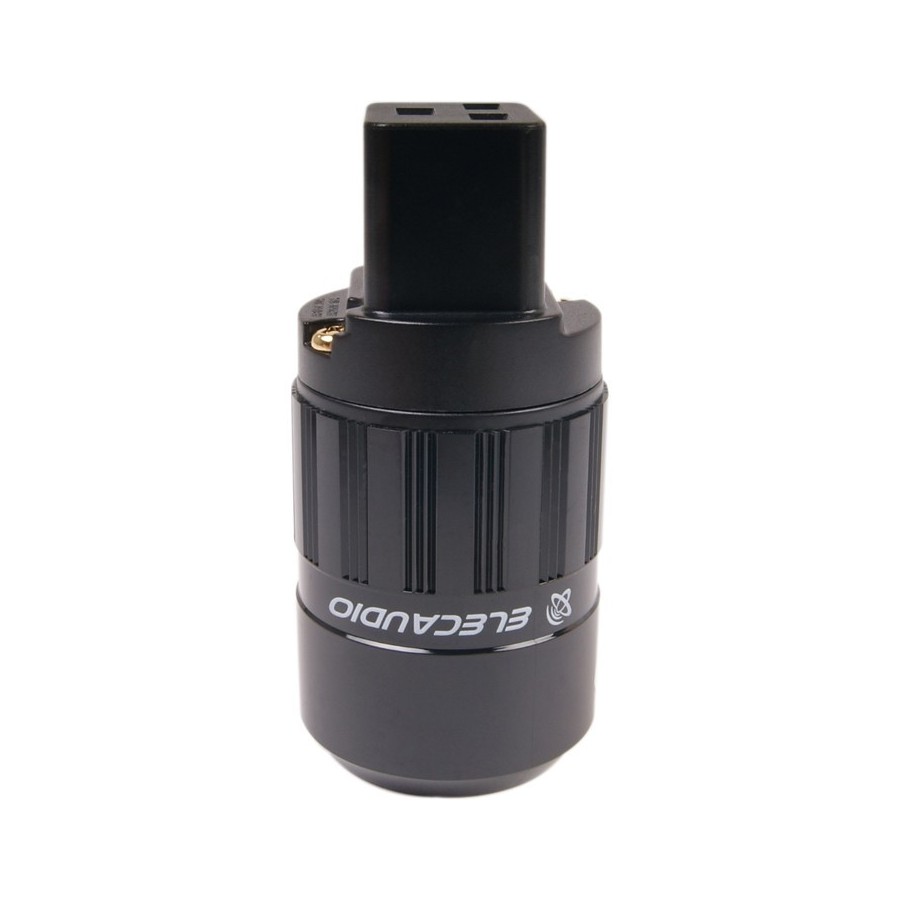

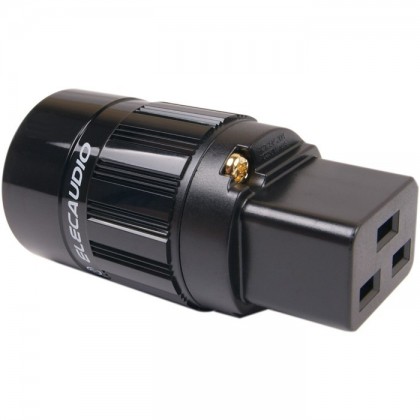

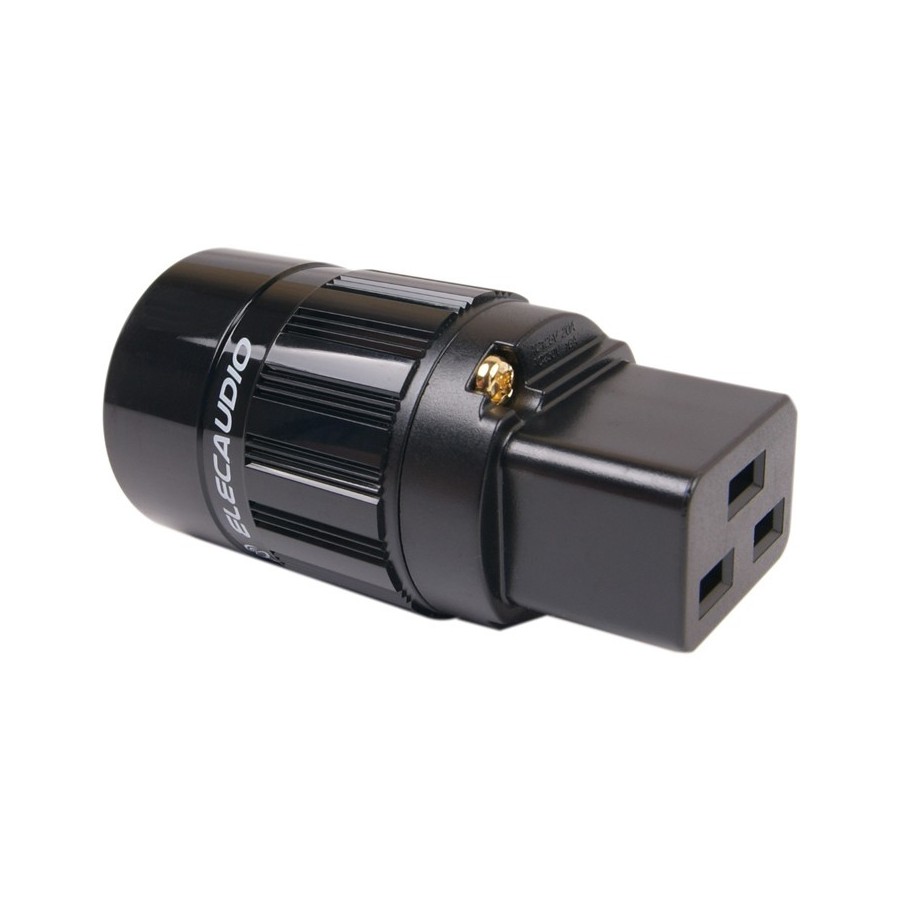

The PI-19GB reference connector is distinguished at first glance by its black nylon body with perfect finishing and ideal proportions.
The chassis is white to the brand's color and can accommodate the most sophisticated cables whose diameter is often incompatible with conventional power outlets.
The PI-19GB, with its insertion ring which limits the diameter to 16.5mm, is equipped with a flexible rubber cable clamp that perfectly complements the integration. CS-331B, the triple shielded mains cable of the same manufacturer.
Summum of the refinement, all the metal parts, and notably the poles of contact and the earthing, benefited from a plating Gold

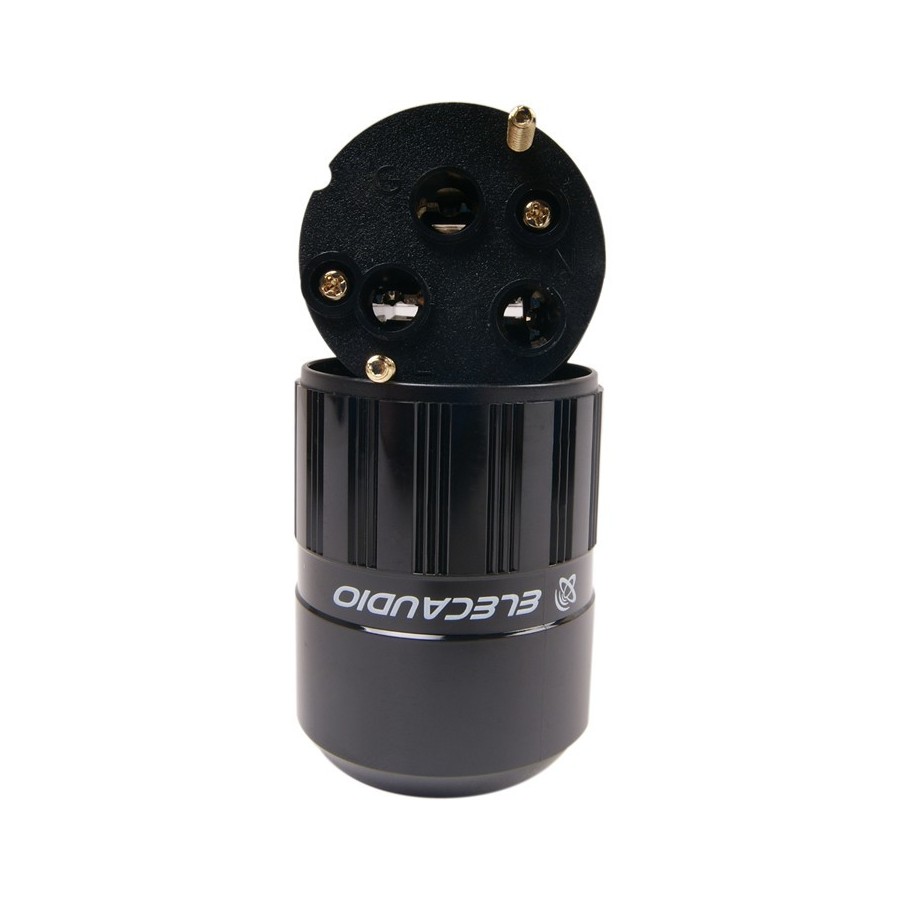

The internal connection terminals also deserve attention: They are equipped with large fastening screws and therefore do not require any soldering, they are able to receive very large conductors (up to 15mm² of cross-section!)
Thea screw is in direct contact with the cable, it is advisable to use copper tips to protect from shear.
- Connectors IEC C19 Screw Connectors
- Double Plating: Gold plating 0.2μ
- Contact composition: Brass alloy with 58% copper
- Maximum conductor cross-section: 15mm² (4.5mm diameter)
- Maximum Cable Diameter: 16.5mm
- Voltage / Voltage Rating: 16A / 250V - 20A / 125V
- Overall Length: 80mm
- Diameter: 38mm
- Weight: 60g
