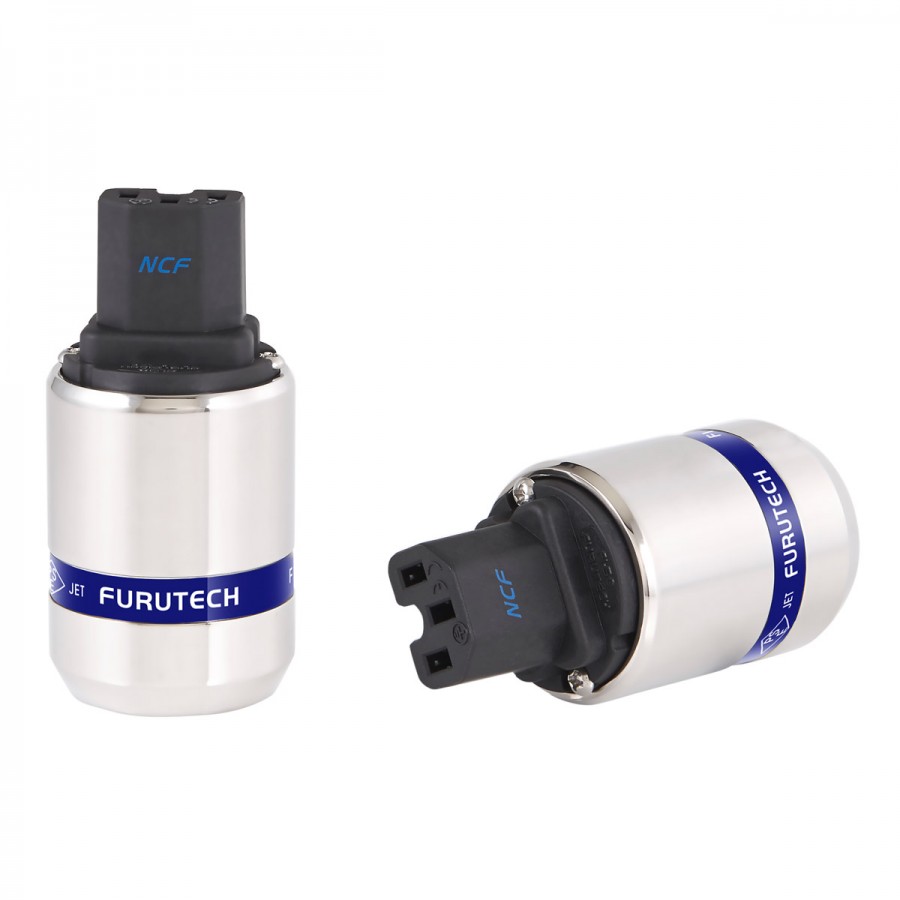

FURUTECH FI-48 NCF (R) Rhodium Plated Copper IEC C15 Connector Alpha Treatment NCF Ø20mm

FURUTECH FI-48 NCF (R) Rhodium Plated Copper IEC C15 Connector Alpha Treatment NCF Ø20mm
The Furutech FI-48 NCF (R) is part of the brand's range of connectors incorporating the NCF material and benefiting, as with all Furutech products, from an excellent quality design. It uses high quality components, carefully selected for their performance in audiophile use.
Average votes for this product
5.0 / 5

By buying this product you get 19 loyalty points


Reference : 13892
New product

199,17 €tax excl.

Including 0,01 € for green tax

- +

Shipping date: 02-12-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product


More info

Furutech FI-48 NCF (R)

Rhodium Plated Copper IEC C15 Connector Alpha Treatment NCF Ø20mm

Furutech FI-48 NCF (R) Connecteur IEC C15 Cuivre Plaqué Rhodium Traitement Alpha NCF Ø20mm

The Furutech FI-48 NCF (R) is part of the brand's range of connectors incorporating the NCF material and benefiting, as with all Furutech products, from an excellent quality design. It uses high quality components, carefully selected for their performance in audiophile use. The connector contacts are made of pure Rhodium-plated pure copper with Alpha treatment (α). The latter consists of a first cryogenization step and a second demagnetization step, which increases the conductivity of the contacts.

The connector body is made of Nylon and Fiberglass as well as NCF (Nano Crystal² Formula), an anti-resonance material. The latter uses a crystalline material with two active properties. The first is to generate negative ions to eliminate static electricity and the second is to convert thermal energy into infrared. Furutech combines NCF with ceramic nano-particles and carbon powder for a piezoelectric damping effect. The connector shell is made of non-magnetic SUS303 Steel, improving both the durability of the connector and limiting the impact of interference on the signal. The connector also uses an efficient cable holding system, using a metal clamp.

Floating Field Damper System

The magnetic field running through a cable and its connector create a magnetic and electrostatic field around them several times a second. This magnetic field induces current leakage and electrical potential in small components such as screws that hold the connector body and must be made of metal for effective clamping. Current leaks in these components create a magnetic field floating around them and interfering with the larger magnetic field of the cable and connector and generating distortion and noise.

The Floating Field Damper System technology solves this problem by grounding these metal parts. All the different metal parts of the connector are connected to each other and shunt the generated electrical potentials to ground. This significantly reduces noise by reducing distortion for extremely clean and stable energy transfer.

Technical characteristics

Specifications
Product typeIEC C15 Connector
Contacts materialPure Copper, Alpha Treatment (α)
Contacts platingRhodium
Insulation technologyFloating Field Damper System
Connector body materialNylon / Fiberglass and NCF
Damping materialCeramic nanoparticles and carbon powder for piezoelectric damping
Connector shell materialNon Magnetic SUS303 Stainless Steel
Min / Max cable diameterMin : 6mm
Max : 20mm
Connector dimensionsBody: 44 x Ø34.5mm
Total length: 80.3mm
Cable tightening systemMetal clamps
Weight186.4g

Data sheet
ColorSilver
MaterialCopper
PlatingRhodium
Max cable diameter20
ConnectionN/A
ConnecticFemale
ConnectorIEC C15
Contacts Material (Connector)Copper
Contacts Plating (Connector)Rhodium
IEC TypeC15

Delivery
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Furutech Fi-48 NCF (R)
Le boîtier extérieur du connecteur IEC est d’aspect très robuste et l’intérieur respire la qualité.
Je l’ai utilisé en remplacement d’un connecteur IEC Viborg VF 502 G ( triple plaquage ) monté sur un cable furutech FP-3TS-762 associé à un connecteur schuko VF 502 G. Le son se rapproche globalement du connecteur IEC Viborg .
Par contre, il est plus défini et étendu. Il demeure naturel malgré le fait que le plaquage est en rhodium.. Pour faire une comparaison plus honnête , j’aurais dû utiliser le même plaquage mais après différentes lectures j’ai tenté l’expérience du plaquage rhodium. Je ne le regrette pas . Ma seule réserve est au niveau du prix. A mon avis, Le connecteur Viborg demeure un excellent rapport qualité prix.
J’ai aussi la possibilité d’essayer un connecteur IEC Neotech Gold. Par rapport au connecteur Furutech et Viborg, je le trouve moins équilibré . La présence du médium grave l’emporte sur les autres registres. Il est toutefois bien conçu et peut s’insérer favorablement dans le montage de cable. Le connecteur Furutech demeure pour le moment le meilleur connecteur IEC que j’ai pu essayer. En ce qui concerne le prix, je le laisse à l’appréciation de chacun . Autrement, je serais curieux de connaître les différences au niveau du son entre le connecteur IEC FI -50 NCF et le Fi-48 NCF. Seul le boitier extérieur les distingue et le Fi-48 est déjà très robuste .
