VIBORG LF505G IEC C15 Angled Connector
By buying this product you get 2 loyalty points

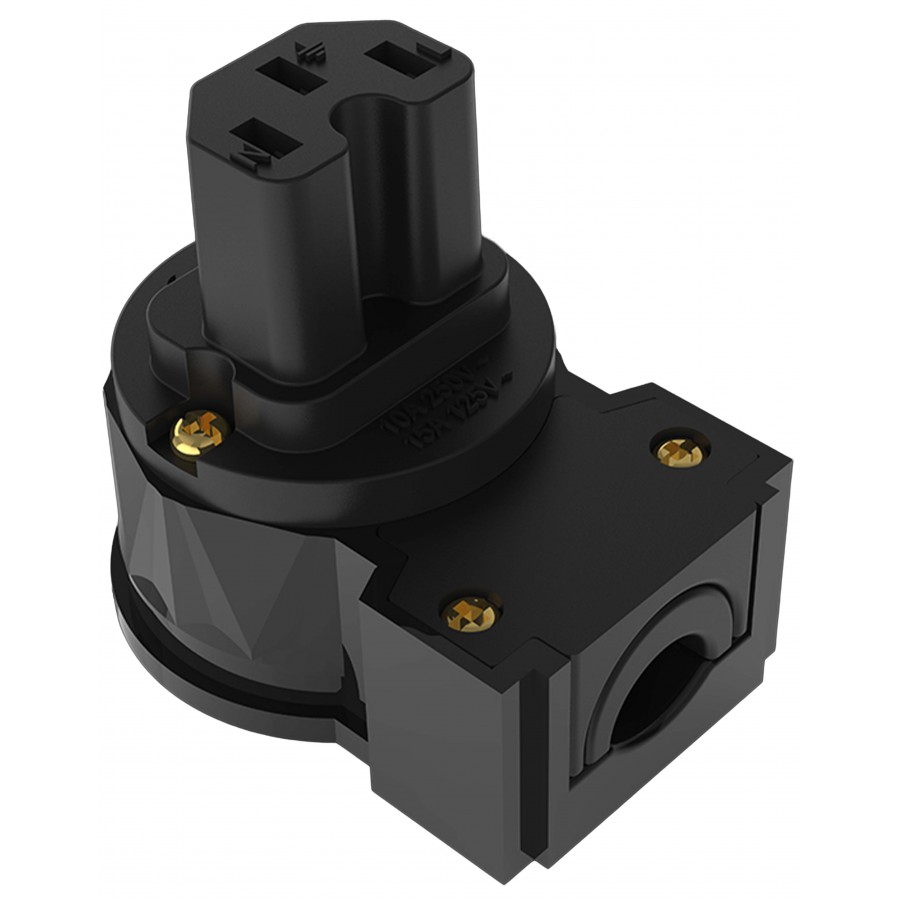

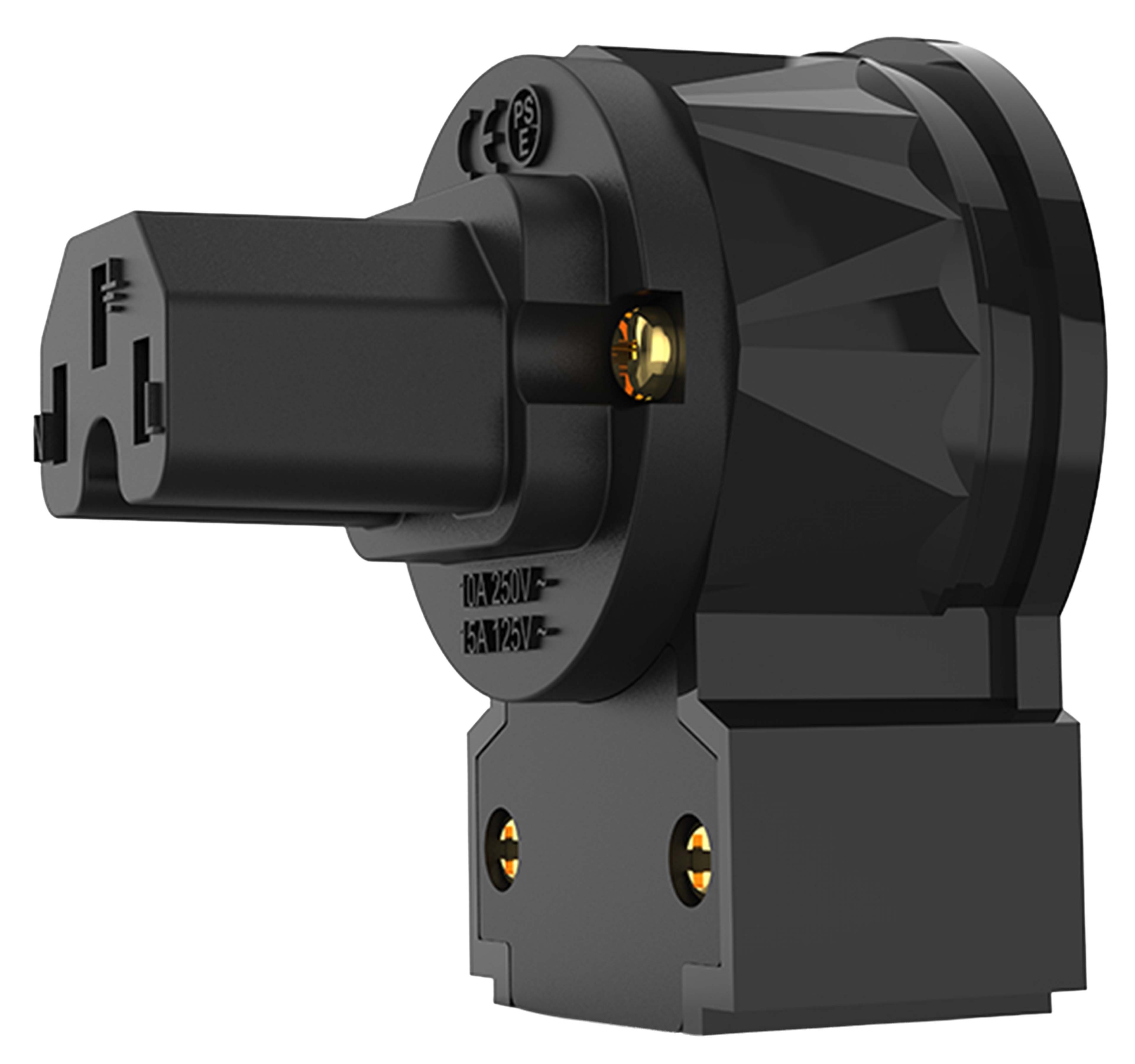

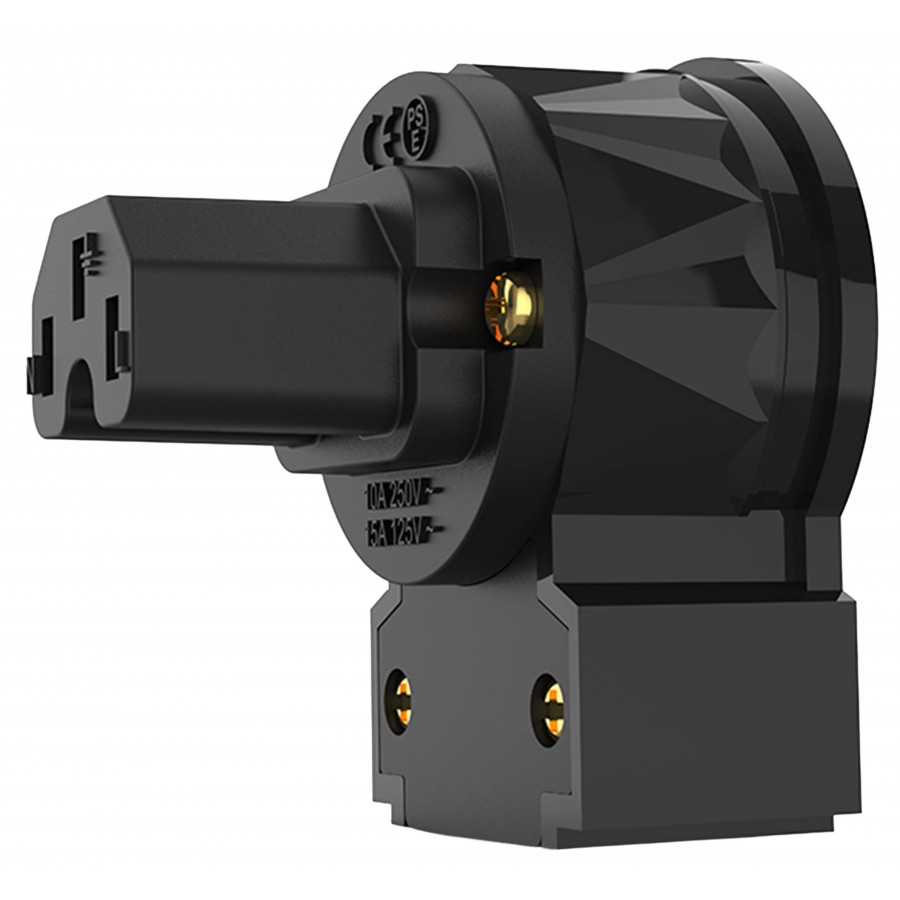

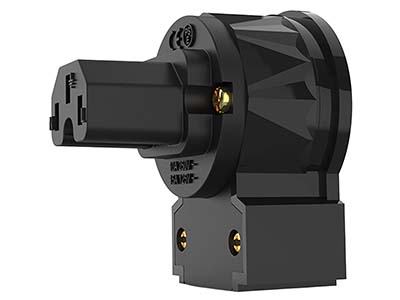

Viborg LF505G Right-Angle IEC C15 Connector Pure Copper OFC Copper / Silver / Gold Plated Ø19mm
This Viborg LF505G right-angle IEC C15 connector is ideal for designing and upgrading high-performance, high-quality power cables. Its pure copper contacts with OFC copper / silver / gold plating ensure very high conductivity and excellent resistance to oxidation. The insulation is made of nylon and fiberglass, robust and lightweight materials that are also electromagnetically neutral. Assembly is made very simple thanks to a screw-type mounting system.
Technical specifications
| Specifications | |
|---|---|
| Product type | Right-angle IEC C15 power connector |
| Contact material | Pure copper |
| Contact plating | OFC Copper / Silver / Gold |
| Insulation | Nylon and fiberglass |

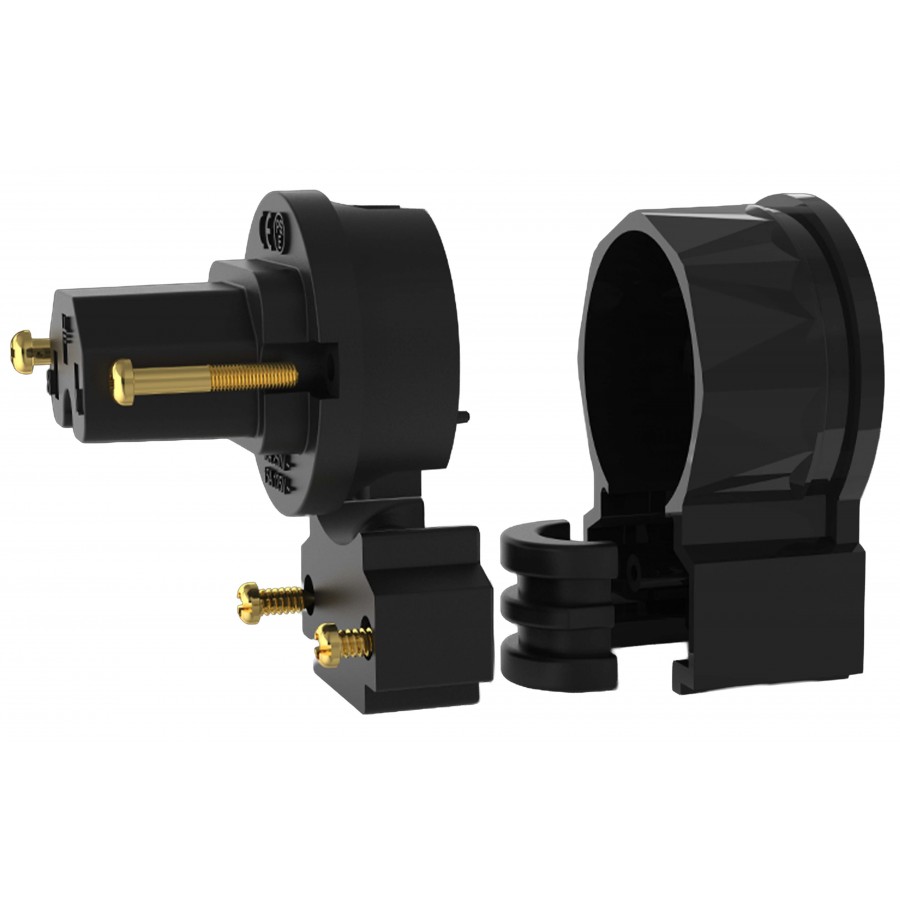

| Mounting | Screw-on |
| Accepted cable diameter | Ø7-Ø19mm |
| Max conductor diameter / cross-section | Ø4.8mm / 6AWG 16mm² |

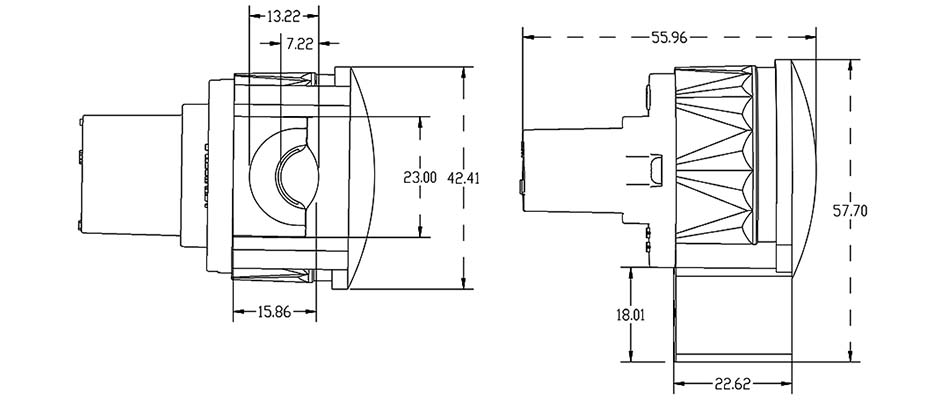

| Dimensions | 60 x 57.7 x 42.4mm |
| General | |
|---|---|
| Packaging | 1x VIBORG LF505G |
| Max cable diameter (mm) | 19.0 |
| Mounting type | To screw |
| Connectic | Male |
| Connector | IEC C15 |
| Contacts Material (Connector) | Copper |
| Contacts Plating (Connector) | Gold |
| Contacts Plating (Connector) | Copper |
| Contacts Plating (Connector) | Silver |
| Rated current (A) | 15.0 |
