ELECAUDIO RS-24GB Schuko Power Plug Fiber Glass 24k Gold Plated

ELECAUDIO RS-24GB Schuko Power Plug Fiber Glass 24k Gold Plated

Average votes for this product
4.8 / 5
  Based on 5 customers reviews.

By buying this product you get 2 loyalty points


Reference : 10024
New product

20,75 €tax excl.

- +

Shipping date: 29-05-2020.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Add to wishlist
Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

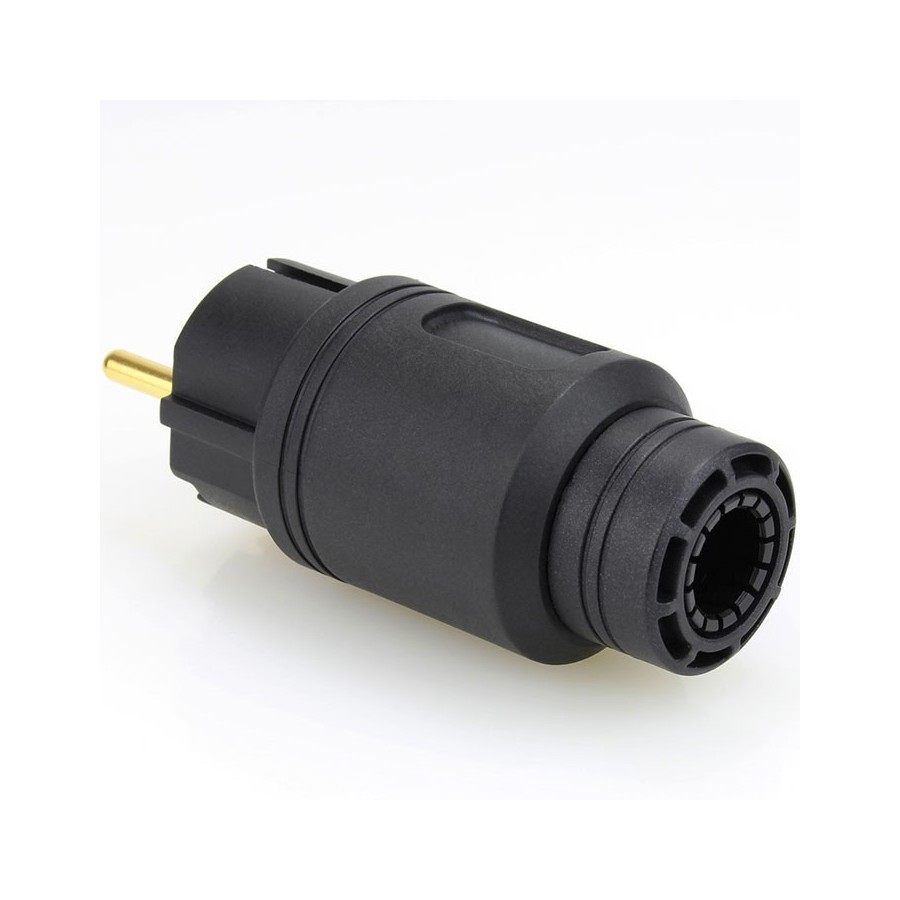

ELECAUDIO RS-24GB


These Hi-Fi connectors have been developed in France to be used with the most sophisticated cables there are.

The body has a modern and exclusive design, which is now molded under high pressure.
Made of 30% fiberglass and 66% Nylon it can withstand industrial-level constraints. (High temperature, crushing, scratches).

Because of this, the RS24GB connector can be seen as a hybrid model which offers industrial quality for Hi-Fi requierements.

Conjugated with a thickness of 4mm this material has a tremendous rigidity and resistance to vibrations and resonances.

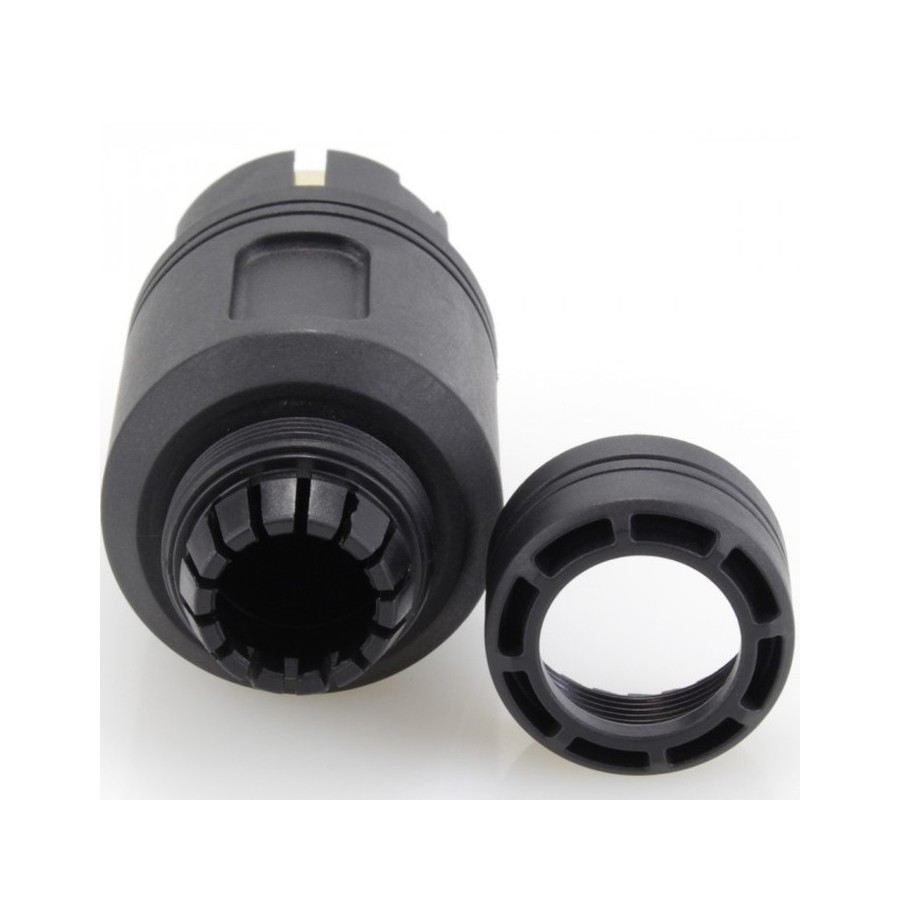

The cable clamping now works thanks to a rotary ring that of 13.5 to 16.5mm diameter. (A suited diameter reducer is available in the accessories above)
The advantage of this ring in addition to a very efficient clamping is that the cable remains centered and aligned regardless its diameter.

Each connectors is held by a stainless steel screw for maximum strength.

The head connector also benefits the alloy Fiberglass / Nylon for its dielectric and mechanical properties.
Contacts are made of copper alloy nonmagnetic in one piece and cut in the mass, on which is applied a 24K gold plating

The input diameter contacts enables compatibility with all cables market sectors. (15mm²)



Right Cable mount

Specifications
Materials30% glass fiber and 66% Nylon
Electric contactsScrew (Vis BTR 2mm)
Plating24k Gold
Conductor section max15mm² (4.5mm diameter)
Cable diameter13.5mm to 16.5mm
Intensité / Voltage16A / 250V
Total length103.7 mm
Diameter42 mm
Weight92 g

Data sheet
ColorBlack
MaterialBrass
PlatingGold
Max cable diameter16.5
ConnectionTo screw
ConnecticMale
ConnectorPLug CEE 7/7
Maximum conductor diameter4.5
