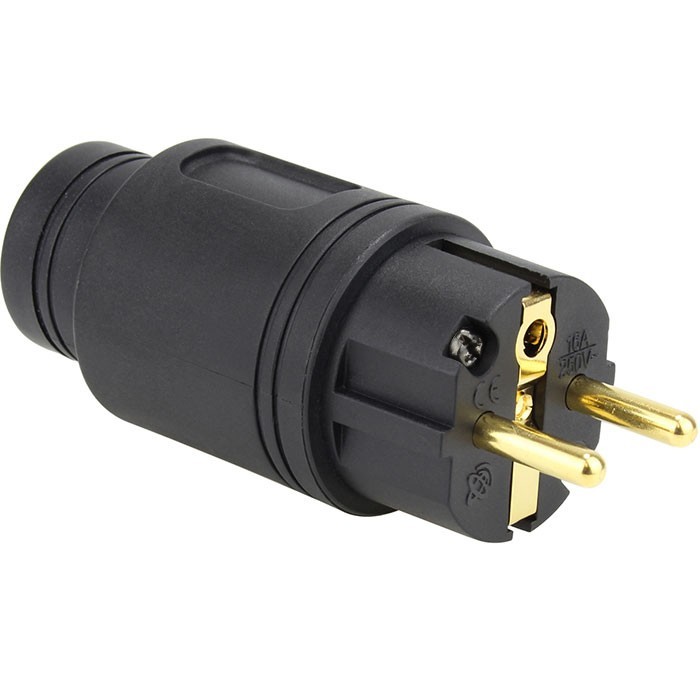

ELECAUDIO RS-34GB Schuko Type E/F Power Connector 24k Gold / SIlver Plated Ø16.5mm Black

ELECAUDIO RS-34GB Black Schucko Power Plug 24k Gold/SIlver Plated Ø16.5mm

Average votes for this product
5.0 / 5

By buying this product you get 2 loyalty points


Reference : 10027
New product

24,92 €tax excl.

- +

Shipping date: 06-06-2023.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

These Hi-Fi connectors have been developed in France to be used with the most sophisticated cables.

The body has a modern and exclusive design, which is now molded under high pressure.
Compound 30% fiberglass and 66% Nylon it can withstand industrial constraints. (High temperature, crushing, scratches).

We could consider this connector as a hybrid, an industrial grade adapted to the requirements of Hi-Fi use.

Conjugated with a thickness of 4mm this material offers it a rigidity and a resistance to the vibrations and resonances very important.

Tightening of the cable is now carried out with a rotating ring which adapts to a diameter from 13.5 to 16.5mm . (diameter reducer available in the accessories below)
The advantage of this ring in addition to a very effective tightening is that the cable remains centered and aligned whatever its diameter.

All of thescrewof the connectors areStainless Steel Blackfor maximum strength.

The connector head also benefits from the Fiberglass / Nylon alloy for its dielectric and mechanical qualities.

On the series of connectors "34"ELECAUDIO ato propose the best possible conductivity replacing the nickel undercoat with a layer of nickel, ATrgentof high thickness.
To avoid oxidation a veneer 24K Goldof finishing there is then applied./ P>

The input diameter of the contacts allows compatibility with all the cables sector of the market. ( 15mm² )

Features:/ Strong>

  • Body: 30% Glass Fiber and 66% Nylon
  • Screw-in contacts (BTR screws 2mm)
  • Plating:Silver / Gold 24k
  • Maximum Driver Section:15mm²(4.5mm of Diameter)
  • Cable Diameter: from 13.5mm to 16.5mm
  • Voltage / Voltage Rating: 16A / 250V
  • Overall Length: 103.7 mm
  • Diameter: 42 mm
  • Weight: 92g


Data sheet
Max cable diameter (mm)16.5
Mounting typeTo screw
ConnecticMale
ConnectorPLug CEE 7/7
Contacts Material (Connector)Copper Alloy
Contacts Plating (Connector)Gold
Contacts Plating (Connector)Silver
Rated current (A)16.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Excellent!
I was using cheap china made connectors before.

I bought this brand to try and you can tell the difference at first glance even when you get the product in your hands.

I will use it with a belden brand cable that I am a fan of. Im thinking of ordering again
 (0)
 (0)
This review has been posted for ELECAUDIO RS-34GB Schuko Type E/F Power Connector 24k Gold / SIlver Plated Ø16.5mm Black
Note :
 5/5
Date :
Prise shuko
Posée sur un câble secteur de qualité standard, apporte plus de matière et de poids au son... bon produit
 (0)
 (0)
This review has been posted for ELECAUDIO RS-34GB Schuko Type E/F Power Connector 24k Gold / SIlver Plated Ø16.5mm Black
