YARBO GY-903CF-G Schuko Type E/F Power Connector Red Copper Copper Ø18mm

YARBO GY-903CF-G Power Connector Schuko Carbon Red Copper Ø15mm
The Yarbo GY-903CF-C Schuko Power Connector offers high quality construction.

No customer reviews yet, login to write a review.

By buying this product you get 5 loyalty points


Yes, notify me when available !
Reference : 16626
New product

58,25 €tax excl.

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

yarbo gy-903cf-c

Schuko connector Red Copper Ø18mm

16626 - Yarbo

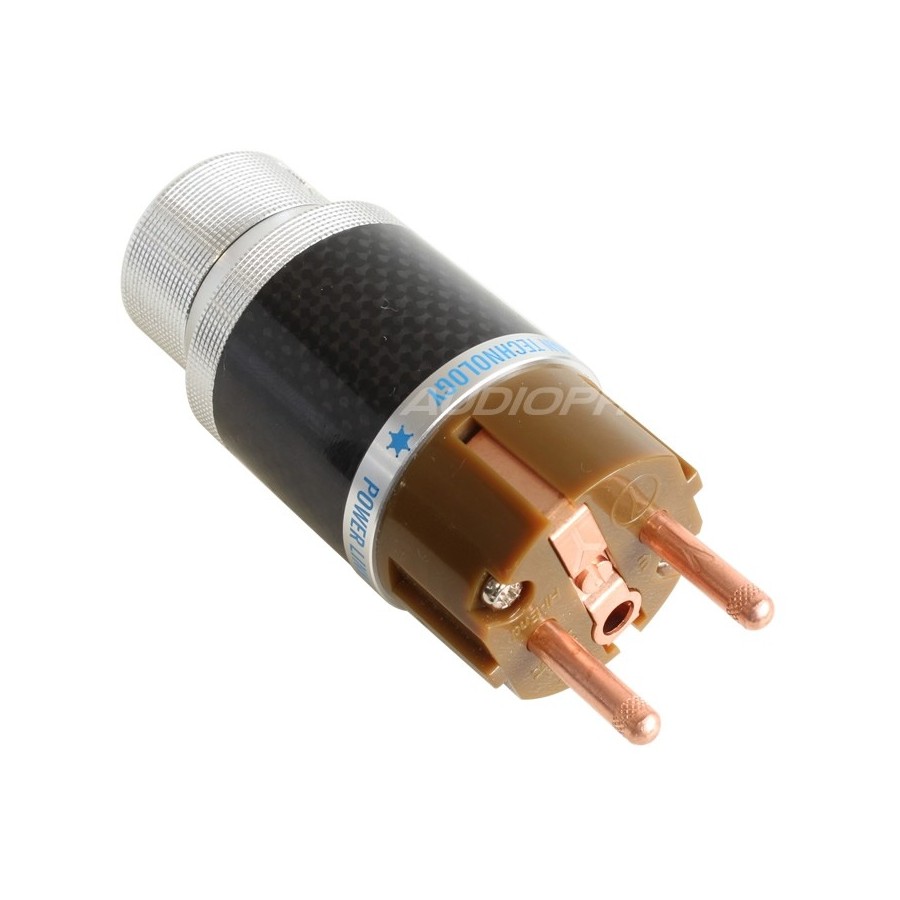

The Yarbo GY-903CF-C Schuko Power Connector offers high quality construction. Thanks to its red copper connectors, the electrical signal is transported perfectly and evenly.
The robust body is made of aluminium and carbon.
The connector accepts cables up to 18mm in diameter. The assembly is done by means of a simple screwing system.

The body of this connector has an insulating coating but it is made of aluminium, and therefore conducts current. It is essential that the 2 BTR screws that hold the cable in place are in contact with the shielding and therefore the earth in order to protect you if one of the conductors comes loose and touches the body.

Technical specifications

Specifications
Type of productSchuko plug
Contact materialRed Copper
Type de montageType of mounting
Cable diameter compatibleØ12-18mm
Max. conductor diameterØ4.5mm
Voltage / Current250V / 15A
general
DimensionsØ39 x 85mm
Net weight130g
ColorSilver / Black

Data sheet
PlatingRed Copper
Max cable diameter (mm)18.0
Mounting typeTo screw
ConnecticMale
ConnectorSchuko
Maximum conductor diameter (mm)4.5
Contacts Material (Connector)Copper
Contacts Plating (Connector)None
Rated current (A)15.0
