FX-AUDIO D502BT Amplifier FDA TAS5342A Subwoofer Output Bluetooth 5.0 2x60W 4 Ohm Black

The FX-Audio D502BT is, as its name suggests, the successor to the D502. The D502BT takes over its base and components, but this time it comes with a Bluetooth 5.0 receiver, which is very useful for remote music playback from a compatible device such as a smartphone.

Average votes for this product
4.4 / 5

By buying this product you get 8 loyalty points


Reference : 14523
New product

89,00 €tax incl.

74,17 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

FX-Audio D502BT

Amplifier FDA TAS5342A Subwoofer Output Bluetooth 5.0 2x40W 8 Ohm

FX-Audio D502BT Amplificateur FDA TAS5342A Sortie Subwoofer Bluetooth 5.0 2x40W 8 Ohm

The FX-Audio D502BT is, as its name suggests, the successor to the D502. The D502BT takes over its base and components, but this time it comes with a Bluetooth 5.0 receiver, which is very useful for remote music playback from a compatible device such as a smartphone.

The D502BT is therefore a complete, high-performance FDA (Full Digital Amplifier) amplifier at a contained price. It is equipped with a complete set of connectors, quality components, a beautiful OLED screen and treble / bass settings, while delivering a rich and precise sound.

FX-Audio D502BT Amplificateur FDA TAS5342A Sortie Subwoofer Bluetooth 5.0 2x40W 8 Ohm
FX-Audio D502BT Amplificateur FDA TAS5342A Sortie Subwoofer Bluetooth 5.0 2x40W 8 Ohm

An efficient TAS5342 amplifier chip

The amplification stage of the D502BT is entrusted to a high-performance TI TAS5342 chip. This one allows to deliver a power of 2x40W under 8 Ohm or 2x60W under 4 Ohm, while ensuring a low noise and distortion rate. A power which will allow you to associate the amplifier with many loudspeakers, especially since the D502BT offers a high efficiency of more than 90%.

In addition, the chip integrates a complete protection system, protecting the device from short circuits, undervoltage, overtemperature or loss of PWM signal.

Bluetooth 5.0

The great novelty of this D502BT version is of course its Bluetooth reception. For this purpose, it embeds a Qualcomm QCC3003 chip, supporting Bluetooth in version 5.0. This allows a fast and stable transmission of audio streams, for high quality listening.

High precision

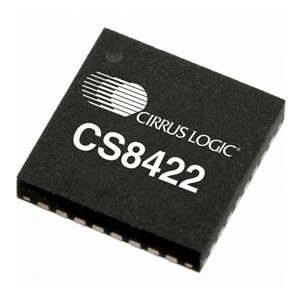

Cirrus Logic's CS8422 chip is a 24bit asynchronous sample rate converter that also incorporates an S/PDIF interface. The CS8422 allows synchronization with the Master Clock for perfect synchronization and thus ultra-low jitter.

FX-Audio D502BT Amplificateur FDA TAS5342A Sortie Subwoofer Bluetooth 5.0 2x40W 8 Ohm
FX-Audio D502BT Amplificateur FDA TAS5342A Sortie Subwoofer Bluetooth 5.0 2x40W 8 Ohm

USB SA9023 Interface

To allow you to connect a USB device such as a smartphone for example, the D502BT offers a USB Micro input. Behind this plug is a SA9023 USB interface chip, supporting sample rates up to 24bit 96kHz. A chip that has already proven itself in many audio devices.

NE5532 Subwoofer Output

The NE5532 is an efficient dual operational amplifier. It offers good performance in terms of noise, high gain, low distortion, high scanning speed and numerous protections. In the case of the D502BT, this chip takes care of the subwoofer output.

FX-Audio D502BT Amplificateur FDA TAS5342A Sortie Subwoofer Bluetooth 5.0 2x40W 8 Ohm
FX-Audio D502BT Amplificateur FDA TAS5342A Sortie Subwoofer Bluetooth 5.0 2x40W 8 Ohm

IR Remote Control

FX-Audio provides an IR remote control with its FDA to control the amplifier and all its functions. No need to get up to turn on the unit, adjust the volume, change sources or adjust bass and treble.

A complete set of connectors

The D502BT, like its predecessor, offers a full range of inputs and outputs to meet the vast majority of needs and allow integration into most audio systems.

FX-Audio D502BT Amplificateur FDA TAS5342A Sortie Subwoofer Bluetooth 5.0 2x40W 8 Ohm
1Bluetooth antenna connector
2Micro USB input
3AUX Jack 3.5mm input
4Optical Toslink input
5Coaxial S/PDIF input
6Subwoofer output
7Speaker terminals
8Power supply connector 24V 4A

OLED Screen & Sampling rate display

The front panel of the D502BT features a small, attractive OLED display that shows essential device information such as the current volume level or the active input. On the left side of this screen, a series of LEDs indicate the sampling rate of the file being played.

FX-Audio D502BT Amplificateur FDA TAS5342A Sortie Subwoofer Bluetooth 5.0 2x40W 8 Ohm

Technical characteristics

Specifications
Product typeFDA Amplifier
Power2x45W @ 8 Ohm
2x60W @ 4 Ohm
InputsBluetooth 5.0
1x AUX Jack 3.5mm
1x Micro USB
1x Optical Toslink
1x Coaxial S/PDIF
Outputs1x Subwoofer output
Speaker terminals
Asynchronous converter chip / SPDIF interfaceCS8422
Amplification chipTI TAS5342A
ADC chipPCM1808
Bluetooth chipQualcomm QCC3003
USB interface chipSA9023
MCU chipSTM8S103F3-32
PWM processorTI TAS5508C
Supported sampling ratesOptiqcal / Coaxial : PCM up to 24bit 192kHz
USB : PCM up to 24bit 96kHz
AUX : PCM up to 24bit 48kHz
Bluetooth : PCM up to 24bit 48kHz
Distortion0.22%
THD+N0.04%
SNR106dB
Subwoofer output level2.7V RMS
General
Supply voltage24V 4A (power adapter included)
Dimensions132 x 128 x 33mm
Weight525g
Housing materialAluminium
ColorBlack
Package1x FX-Audio D502BT
1x IR remote control
1x Power supply

Data sheet
InputSPDIF
InputBluetooth
InputJack 3.5mm
InputOptical
OutputSubwoofer
OutputSpeaker terminal
ColorBlack
Channel2.1
ClassClass D / T
Amplifier chipTAS5342A
Power (W)40.0
Remote ControlYes
