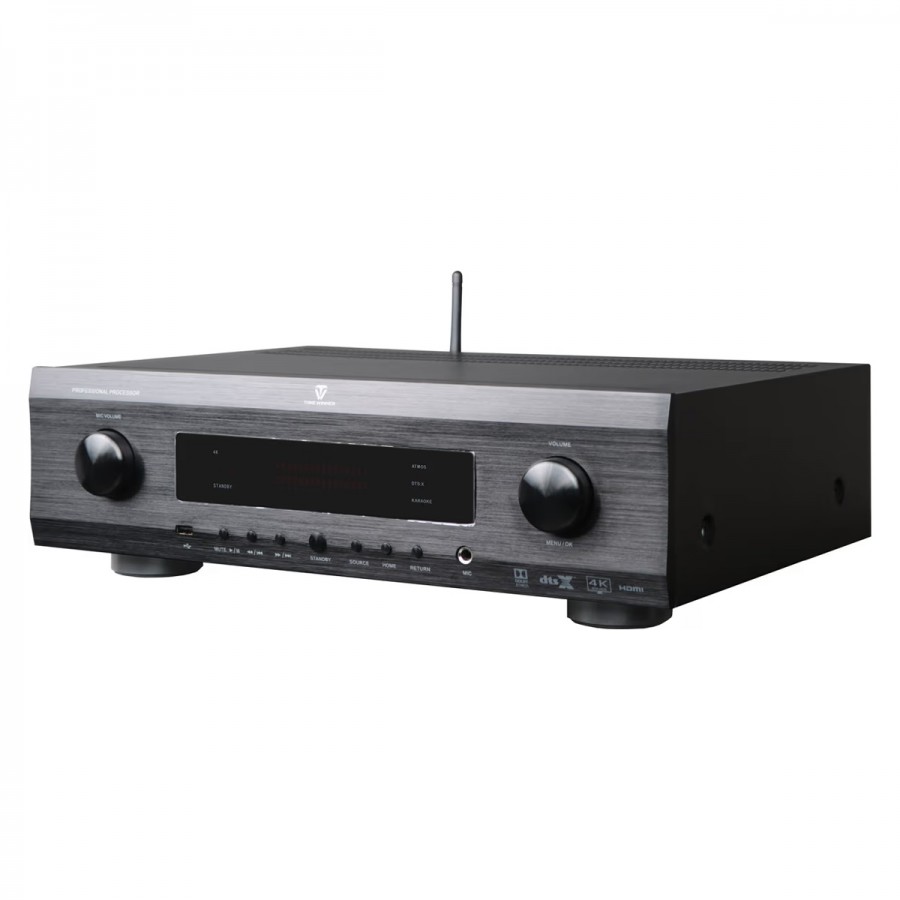

TONEWINNER AT-200
Processor / Home-Theater Preamplifier Dolby Atmos 13 Channels 7.2.4
With its AT-200, Tonewinner unveils a 13-channel Audio-Video processor and preamplifier ideal for a 7.2.4-channel home-cinema setup. It supports Dolby Atmos, Dolby True HD, DTS:X and DTS virtual audio files. On the video side, it accepts UHD 4K, HDR streams in HDR10, HDR10+ and Dolby Vision thanks to its HDMI 2.1 inputs. Tonewinner's AT-200 is therefore an excellent device for enjoying the most immersive, high-quality sound and visual experience possible.
Dolby Atmos and DTS:X sound
Tonewinner has integrated quality components into its AT-200 to give you the best possible experience. Here, they support the latest audio formats (Dolby Atmos, DTS:X) and pre-amplify them on 13 channels, allowing you to design your home cinema system on 7.2.4 channels, for example.
Video formats for outstanding picture quality
The Tonewinner AT-200 supports all current video formats and technologies. Thanks to its 18Gbps bandwidth and HDCP 2.2-compatible HDMI 2.1 connectivity, it easily decodes 4K UHD 60Hz video streams. It also supports HLG, HDR10 and Dolby Vision technologies, bringing incredible levels of brightness and contrast for outstanding image quality.
Automatic audio calibration
Thanks to the ETM-2 measurement microphone (sold separately), the AT-200 can automatically calibrate and correct the acoustics of your audio system. The microphone captures the sound information emitted by your speakers and applies automatic equalization to each channel, according to your listening position.
To go further in the equalization...
In addition to the automatic calibration, it is possible to adjust the equalization manually. Indeed, the Tonewinner AT-200 provides an 11-band parametric equalizer for the left, right and center channels and a 5-band equalizer for the surround, top and bass channels. This equalization can be done directly from the graphical interface of the device.
One memory for each group of inputs
Each group of inputs has an equalizer and independent effects. These different parameters are stored by the device and automatically selected according to the selected input.
Multiple configurations
The Tonewinner AT-200, in order to adapt to different environments, can be used in several configurations: 2.0, 2.1, 5.1, 5.1.2, 5.1.4, 7.1, 7.1.2, 7.1.4, 7.2.4,... So no matter what room you use it in, the AT-300 will fit right in and let you enjoy your audio and video content.
Storage of volume levels
For each channel, the AT-300 allows you to apply a volume level setting and limitations that can be saved and applied as soon as the unit is turned on.
Support of lossless audio music formats
The AT-200 takes USB storage devices and Micro SD cards up to 128GB, and supports APE, FLAC, WAV, MP3, WMA and more.
Bluetooth connectivity
The Tonewinner AT-200 is also Bluetooth-enabled, allowing you to enjoy an audio source such as your smartphone and stream your music remotely via streaming applications with the AT-200 control app.
Karaoke function
In addition to its full multi-channel connectivity, the Tonewinner AT-200 has 3 RCA and 3 XLR inputs specially designed for karaoke use. Added to this are two wireless microphone inputs and sound effects settings (reverb processing, clipping correction, etc.).
A full range of remote control functions
Tonewinner's RC-524 remote control has a wide range of functions. You can select all your sources at the click of a button.
A control application
The Tonewinner control application gives you access to a control center for broadcasting audio tracks via your internal library (U-Disk or Micro SD card) or via streaming services such as Apple music, Spotify or Pandora.
A complete connectivity
| 1 | RCA outputs |
| 2 | RCA inputs |
| 3 | Inputs for external effector (karaoke mixer) |
| 4 | Calibration microphone connector |
| 5 | Coaxial SPDIF inputs |
| 6 | Optical Toslink inputs |
| 7 | HDMI outputs (including 1x eARC) |
| 8 | Wireless mic input ports |
| 9 | Micro SD card input port |
| 10 | Bluetooth antenna |
| 11 | IR inputs |
| 12 | 5v trigger output |
| 13 | Mini USB input (USB Audio) |
| 14 | RS232 interface |
| 15 | XLR Karaoke outputs |
| 16 | XLR outputs |
| 17 | HDMI inputs |
| 18 | Power supply connector |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Audio / Video processor Home Cinema preamplifier |
| Channels | Total : 13 channels |
| Inputs | Bluetooth 6* HDMI 2.1 3* RCA stereo 2* Coaxial 2* Optical Toslink 1* Micro SD slot 1* Mini USB (USB Audio) 1* USB-A (USB Host) 3* External effector RCA port (Karaoke mixer) 3* XLR input 2* Wireless microphone input port |
| Outputs | 2* HDMI 2.1 (including 1 eARC) RCA 7.2.4 channels XLR 7.2.4 channels |
| Other connectors | 1* RS232 1* 5V trigger output |
| Supported audio formats | Dolby Atmos DTS/X Dolby True HD Dolby Digital Plus DTS Master DTS Hi-Res DTS Upmix DTS Neural X |
| Supported video formats / resolutions | 4K UHD 3D Dolby Vision HDR10 / HDR10+ HLG |
| HDCP version | 2.2 |
| eARC support | On one output |
| CEC support | On 5 inputs |
| Automatic EQ calibration | |
| Lip Synchronization | Up to 1000ms |
| DRC function | |
| Input impedance | 20kΩ |
| Output impedance | 1kΩ |
| Input level | ≥ 2Vrms |
| Gain | ≥ 13dB |
| THD | ≤ 0.01% (1kHz) |
| SNR | ≥ 98dB (A-Weighted) |
| Frequency response | 10Hz-50kHz (+1/-3dB) |
| Channel separation | > 80dB |
| General | |
|---|---|
| Supply voltage | 100V-240V (50Hz/60Hz) |
| Dimensions | 431 x 317 x 130mm (L×P×H) |
| Weight | 5.3kg |
| Color | Black |
| Package | 1* Tonewinner AT-200 1* Remote control 1* Power cable 1* HDMI cable 1.5m 1* RCA cable |
| Input | HDMI |
| Input | USB |
| Input | XLR |
| Input | Optical |
| Input | Micro SD |
| Input | RCA |
| Input | SPDIF |
| Input | Bluetooth |
| Output | XLR |
| Output | RCA |
| Output | HDMI |
| Max sampling rate | NC |
| Color | Black |
