Tonewinner SW-D4000 Active Subwoofer

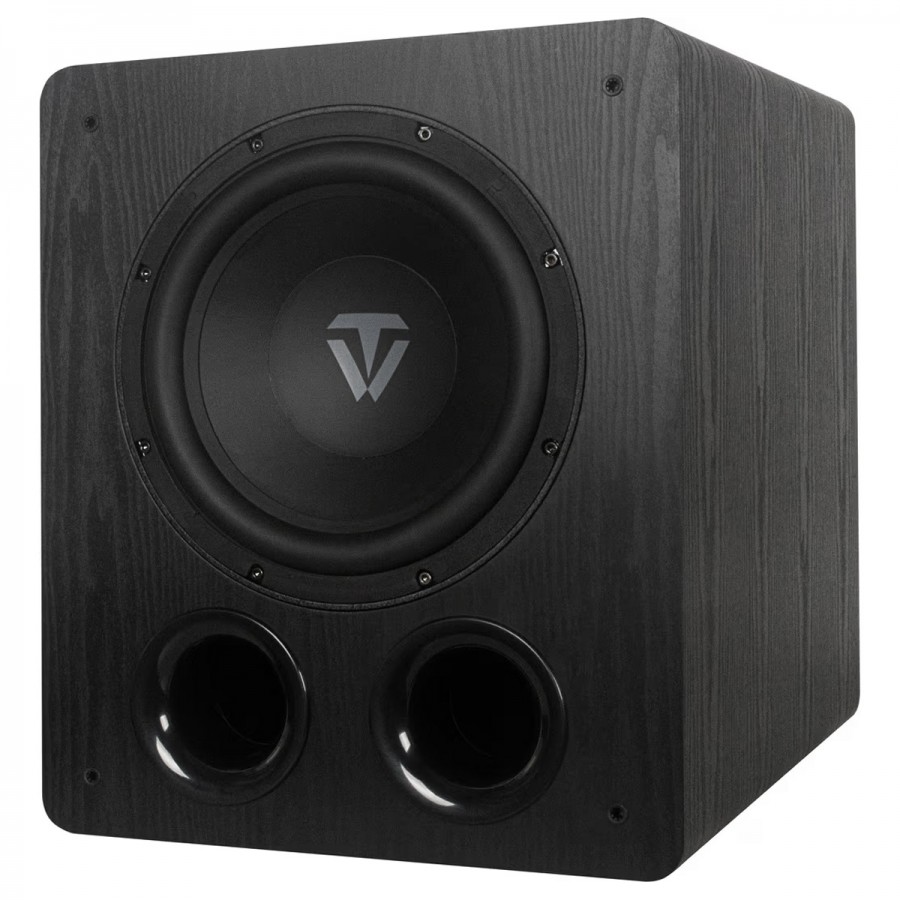

Tonewinner SW-D4000: Main view
The Tonewinner SW-D4000 is a bass-reflex-loaded active subwoofer. This model features a large 30cm driver, powered by a 800W amplification stage. It also features a DSP for fine-tuning the subwoofer's settings to perfectly match your system and listening room. This SW-D4000 is ideal for a home-cinema installation, delivering deep, punchy bass for total immersion.

No customer reviews yet, login to write a review.

By buying this product you get 99 loyalty points


Yes, notify me when available !
Reference : 18509
New product

990,00 €tax incl.

825,00 € tax excl.
Including 0,05 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Tonewinner SW-D4000 Active Subwoofer 800W 3 Ohm 16Hz - 240Hz Ø30cm

Tonewinner SW-D4000: Main view

The Tonewinner SW-D4000 is a bass-reflex-loaded active subwoofer. This model features a large 30cm driver, powered by a 800W amplification stage. It also features a DSP for fine-tuning the subwoofer's settings to perfectly match your system and listening room. This SW-D4000 is ideal for a home-cinema installation, delivering deep, punchy bass for total immersion.

Tonewinner SW-D4000: 30cm subwoofer

Tonewinner SW-D4000: 30cm diameter loudspeaker

The Tonewinner SW-D4000's large 30cm-diameter driver is capable of descending very low and without distortion, to reproduce the bass of your music and films more than convincingly. It features a rigid diaphragm, limiting distortion even when the driver is subjected to considerable deflection..

The 800W amplifier stage ensures powerful, dynamic bass reproduction, enabling the subwoofer to respond effectively to the signal supplied. The SW-D4000 is thus capable of descending without difficulty to a frequency of 16Hz.

Tonewinner SW-D4000: DSP and EQ

To perfectly match your audio system and listening room, the SW-D4000 comes with its own DSP and EQ directly accessible from the back of the cabinet. An LCD screen displays your settings in real time. These settings can also be accessed remotely via Tonewinner's free mobile application. Several predefined DSP modes are available, but you can also go further by customizing the subwoofer's equalization yourself.

Tonewinner SW-D4000: Control app interface
Tonewinner SW-D4000: Rear panel controls

Tonewinner SW-D4000: XLR & RCA

The rear of the Tonewinner SW-D4000 features a dual LFE input in unbalanced RCA and balanced XLR formats, as well as an RCA line input and an RCA LFE output. The SW-D4000 is thus capable of integrating into the majority of home-cinema or even HiFi audio systems. What's more, its output allows the association of a second subwoofer.

Tonewinner SW-D4000: Rear panel diagram
1Input voltage selection
2Power button
3Power input
4Fuse
5Balanced LFE input
6Single-ended LFE input
7LFE output
8RCA line input
9Volume + / Volume -
10Mute / OK
11Menu
12LCD screen
13ON/OFF LED

Technical characteristics

Specifications
Product typeActive subwoofer
Loudspeaker diameterØ30cm
Amplification typeClass D
Power output800W
Frequency response16Hz - 240Hz
Phase setting0 - 180°
Impedance3Ω
Cabinet materialMDF
DSP / EQ
Inputs1x LFE XLR
1x LFE RCA
1x RCA line in
Output1x LFE RCA
General
Dimensions440 x 533 x 558mm
Weight33kg
ColorBlack
