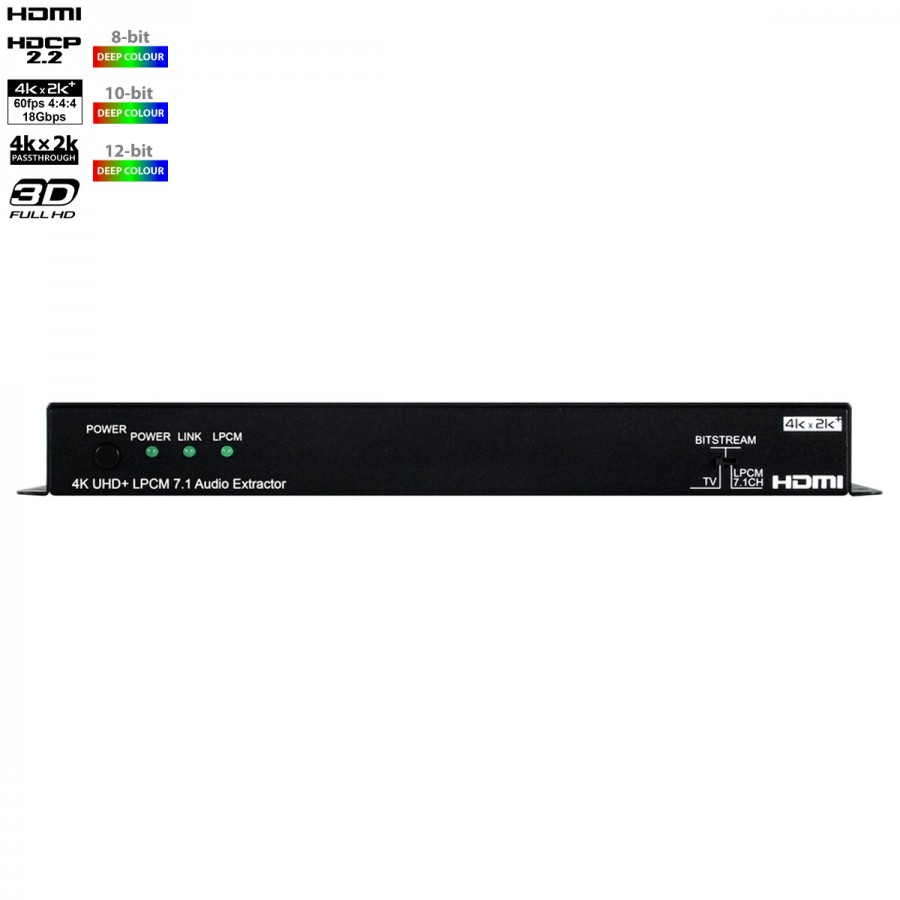

CYP CPLUS-V11PE8 HDMI Audio Extractor 4K60 LPCM 7.1 with EDID Management and RS-232 Control

CYP CPLUS-V11PE8 HDMI Audio Extractor 4K60 LPCM 7.1 with EDID Management and RS-232 Control
This HDMI audio extractor can retrieve up to 8 channels of the LPCM stream from an HDMI source, allowing you to convert a high-quality HDMI audio stream into a multi-channel analog signal for use with active speakers or AV receivers that do not have HDMI connectivity. Bitstream extraction is also supported via an Optical S/PDIF output.

Average votes for this product
5.0 / 5

By buying this product you get 29 loyalty points


Yes, notify me when available !
Reference : 15116
New product

299,00 €tax incl.

249,17 € tax excl.
Including 0,05 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

CYP CPLUS-V11PE8

HDMI Audio Extractor 4K60 LPCM 7.1 with EDID Management and RS-232 Control

CYP CPLUS-V11PE8 Extracteur Audio HDMI 4K60 LPCM 7.1 avec EDID et Contrôle RS-232

This HDMI audio extractor can retrieve up to 8 channels of the LPCM stream from an HDMI source, allowing you to convert a high-quality HDMI audio stream into a multi-channel analog signal for use with active speakers or AV receivers that do not have HDMI connectivity. Bitstream extraction is also supported via an Optical S/PDIF output.

The HDMI input and output support 4K UHD resolutions up to 4K 60Hz (4:4:4, 8bit) and are capable of delivering excellent audio and video performance. The unit also supports HD Bitstream audio formats, as well as standard Bitstream and LPCM 7.1 formats with sample rates up to 192kHz. Built-in support for EDID configuration allows you to choose from multiple profiles and, using optional PC software, download, upload or edit EDID files.

Technical characteristics

Specifications
Product typeHDMI Audio extractor
Inputs1x HDMI
1x Mini USB-B (Service)
Outputs1x HDMI
1x Optical Toslink
8x RCA (audio analog 7.1)
HDMI ResolutionUp to 3840x2160px @ 60Hz (4:4:4, 8bit) & 4096x2160px @ 60Hz (4:4:4, 8bit)
HDMI Bandwidth18Gbps (600MHz)
HDCP Version 2.2
Deep Colour Support48bit Deep Colour up to 1080p @ 60Hz
Max sampling rate192kHz
EDID Management
RS-232 CompatibilityControl via virtual COM port over USB
General
Supply voltage5V 2.6A
Dimensions213 x 116 x 30mm
Weight618g

Data sheet
InputHDMI
OutputOptical Toslink
OutputHDMI
OutputRCA
ColorBlack
