KECES P3 Regulated Linear Power Supply 5 / 7 / 9V + 12 / 15 / 16V 2A

KECES P3 Regulated Linear Power Supply 5 / 7 / 9V + 12 / 15 / 16V 2A
The Keces P3 is a high quality regulated linear power supply that will provide your high fidelity audio system with a clean electrical signal for quality playback. The power supply offers a neat design and two adjustable outputs.

No customer reviews yet, login to write a review.

By buying this product you get 33 loyalty points


Reference : 13405
New product

332,50 €tax excl.

Including 0,04 € for green tax
Available

- +

Shipping date: 25-06-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

Keces P3

Regulated linear power supply 5 / 7 / 9V + 12 / 15 / 16V 2A

Keces P3 Alimentation Linéaire Régulée 5 / 7 / 9V + 12 / 15 / 16V 2A

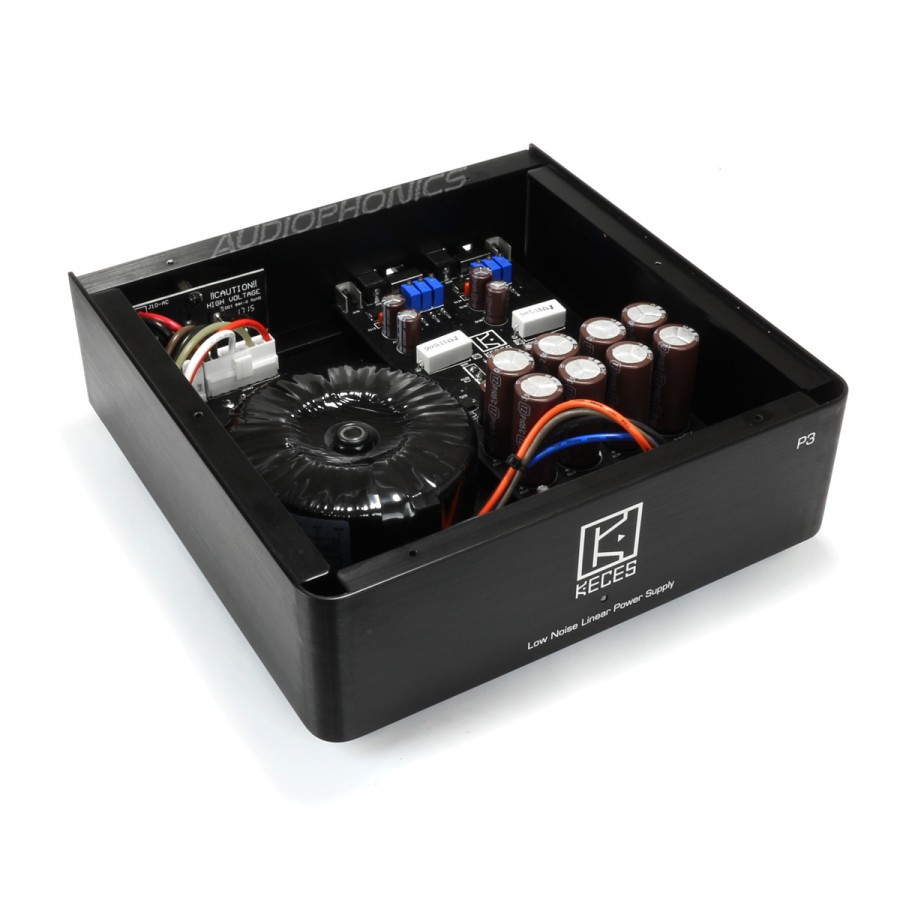

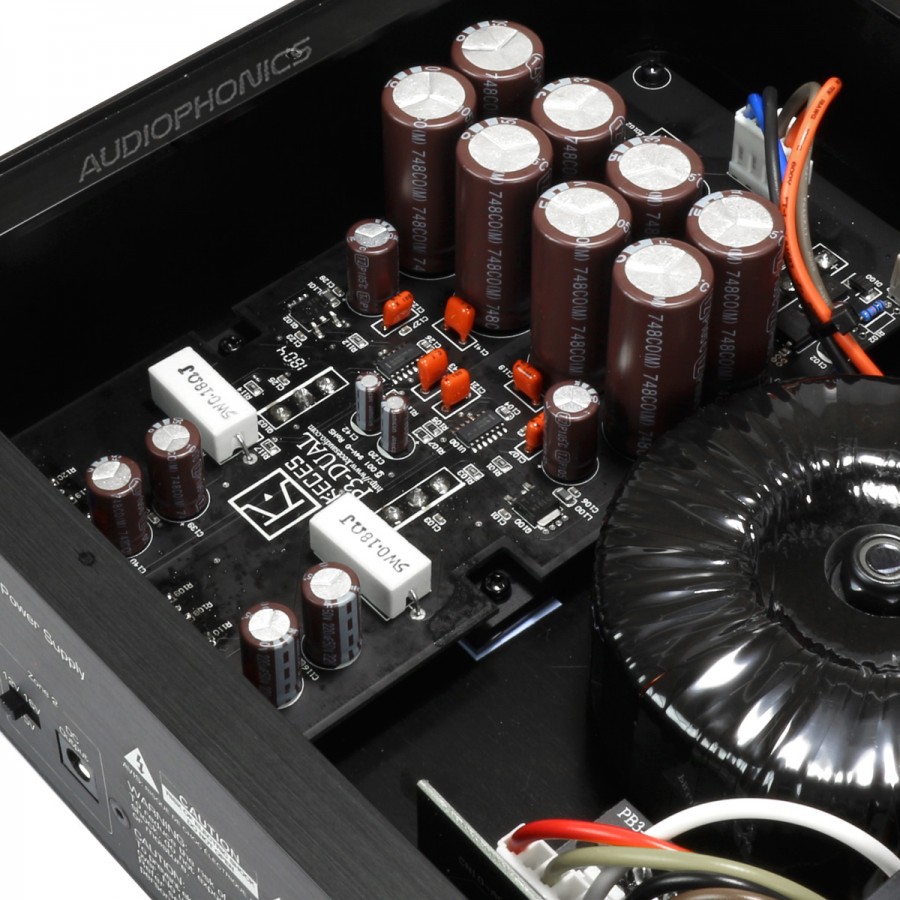

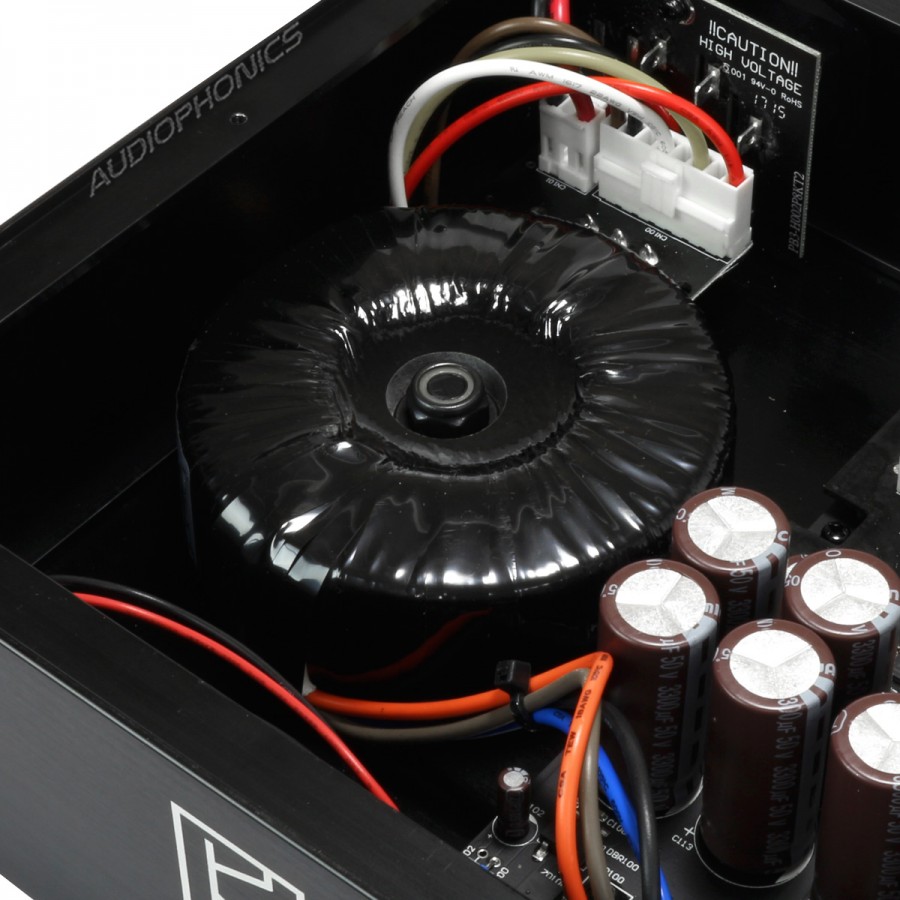

The Keces P3 is a high quality regulated linear power supply that will provide your high fidelity audio system with a clean electrical signal for quality playback. The power supply offers a careful design with a high quality toroidal transformer and a separate ground for each rail. This internal design provides an ultra-low noise signal and cancels all "buzzing" at 50Hz and maximum load. The power supply also includes protection against exceeding the maximum operating temperature (Over Temperature Protection). All components are placed in a robust and stylish black brushed Aluminium case. The brand logo is stamped directly into the Aluminium on the power supply cover.

Dual output

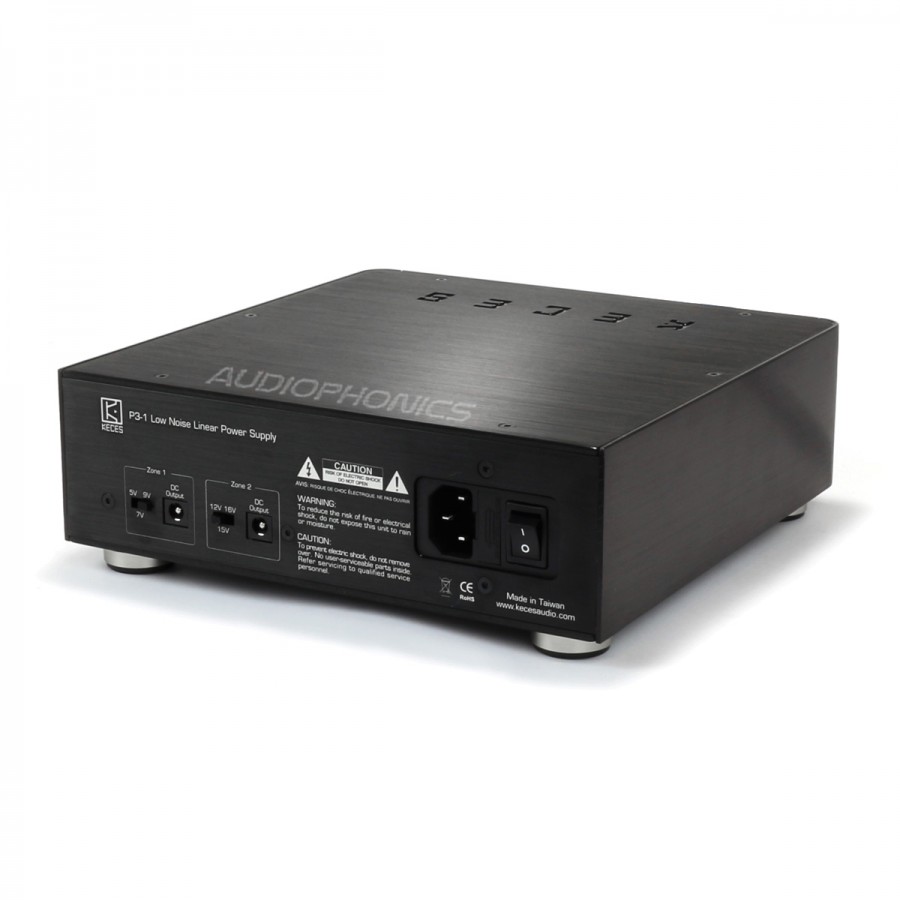

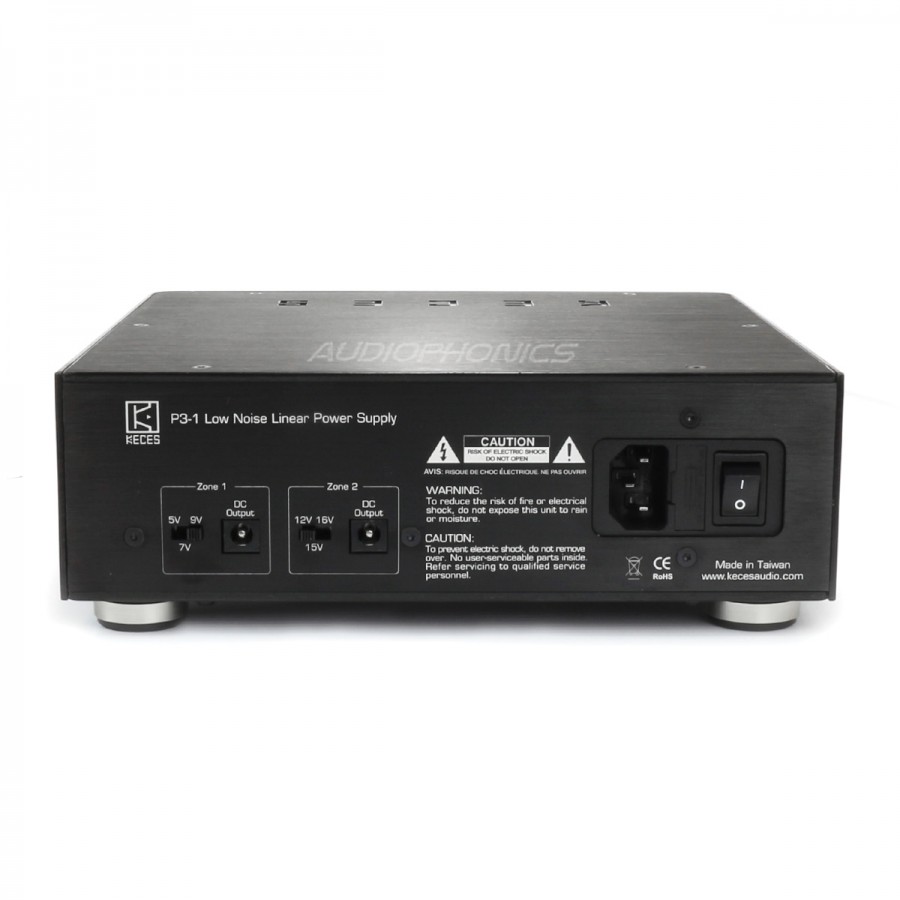

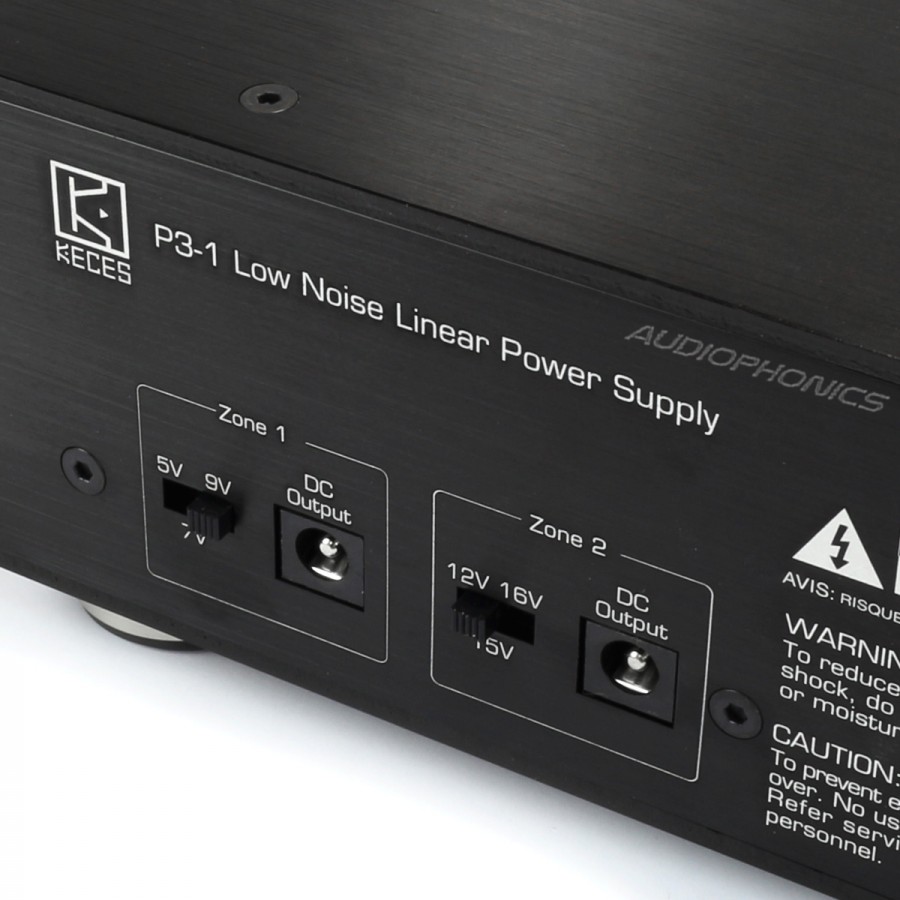

If the Keces P3 is particularly interesting it is also because it offers two adjustable DC outputs. Thus, the first output can be set to 5V, 7V or 9V, while the second output can be set to 12V, 15V or 16V. A switch on each output allows you to simply select the desired voltage. On the current side, each output provides 2A (Maximum 3A at peak). The input voltage is also selectable (230V or 115V AC) via a switch under the device, to adapt to the current supplied by your mains sockets.

Keces P3 Alimentation Linéaire Régulée 5 / 7 / 9V + 12 / 15 / 16V 2A

Technical characteristics

Specifications
Product typeRegulated linear power supply
Input voltage (Switchable)AC 110V-120V 60Hz
AC 220V-240V 50Hz
Output voltageOutput 1 : DC 5V / 7V / 9V
Output 2 : 12V / 15V / 16V
Output connectorJack DC 5.5/2.5mm
Consumption120W (Full output load)
HousingBrushed Aluminium 3mm
Weight3.5kg
ColorBlack
Package1x Keces P3
1x Power cable Schuko / IEC
2x Jack DC 5.5/2.5mm to Jack DC 5.5/2.1mm Cable
2x Jack DC Adapters 5.5/2.1mm to 5.5/2.5mm

Data sheet
InputIEC C14
OutputJack DC 5.5/2.5mm
ColorBlack
Output voltage (V)16
Output voltage (V)15
Output voltage (V)9
Output voltage (V)12
Output voltage (V)7
Output voltage (V)5
Output current (A)2
Input voltage (V)120
Input voltage (V)230V
Power SupplyLinear
