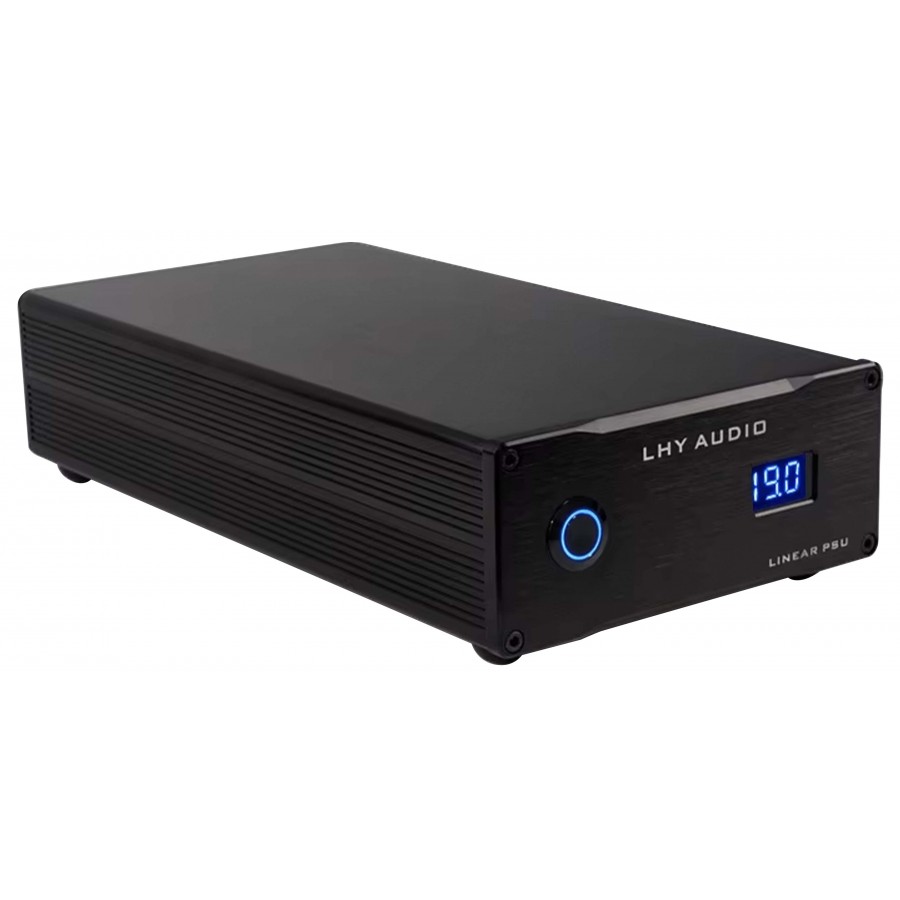

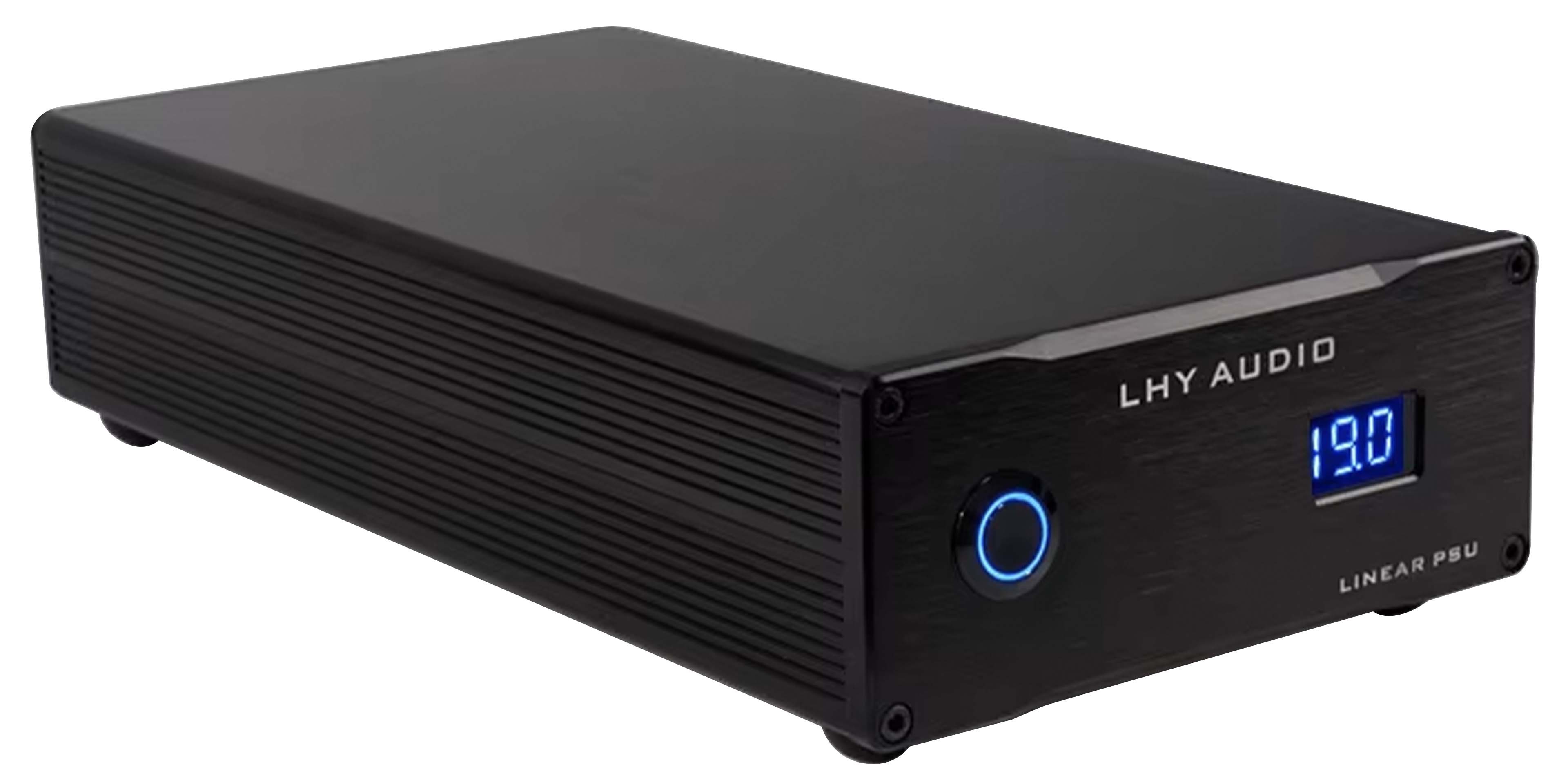

LHY AUDIO LPS80 DUAL Linear Regulated Power Supply 5V DC 3A + 15V DC 3.5A
By buying this product you get 29 loyalty points
LHY Audio LPS80 Dual Low-Noise Regulated Linear Power Supply 220-240V to 5V DC 3A + 15V DC 3.5A

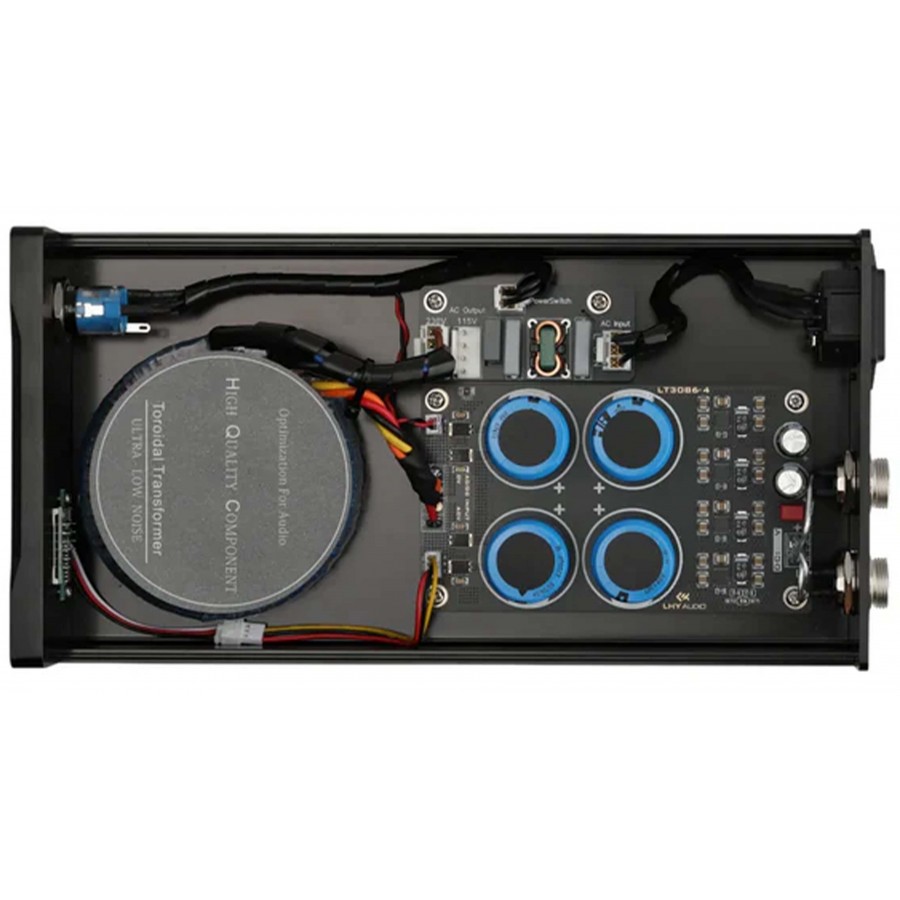

The LPS80 Dual LHY-Audio linear power supply is a low-noise power supply based on the use of a high quality custom toroidal transformer, four high-performance LT3086 regulators, high-current, low-resistance Schottky rectifiers, and Vishay BC electrolytic capacitors, all mounted on a four-layer PCB with gold-plated copper circuits. This power supply is capable of delivering 5V DC 3A and 15V DC 3.5A simultaneously and without interference, allowing it to power multiple HiFi devices. The output is protected against short circuits and overcurrent.

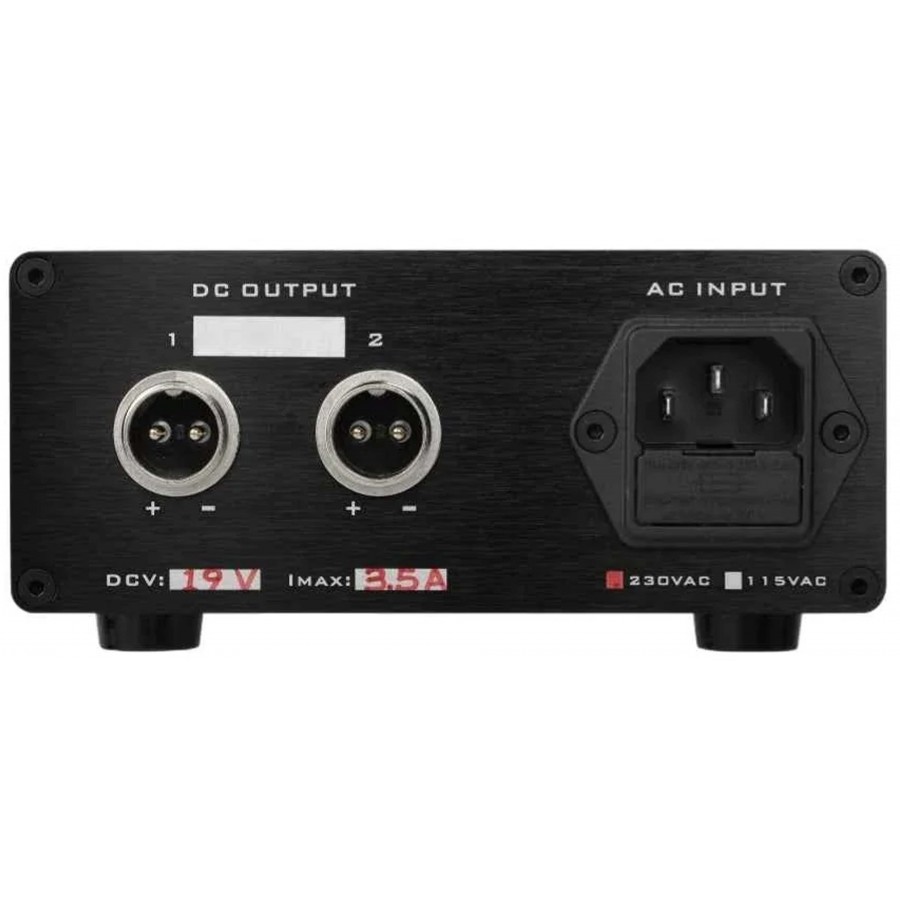

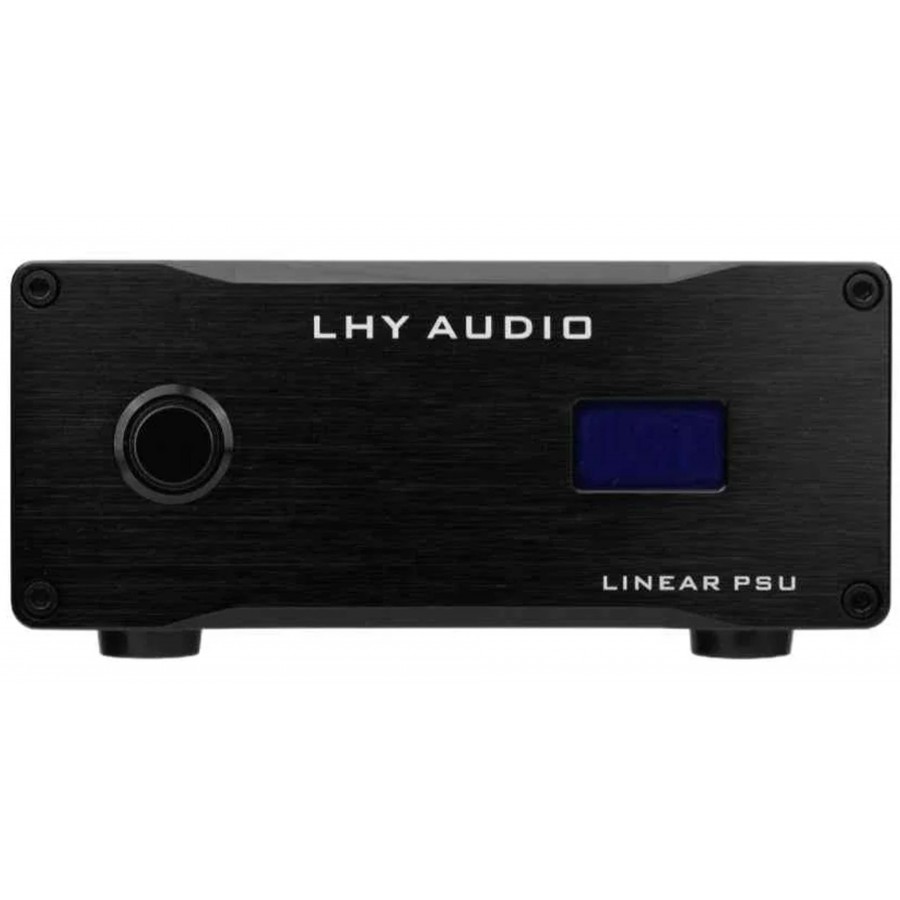

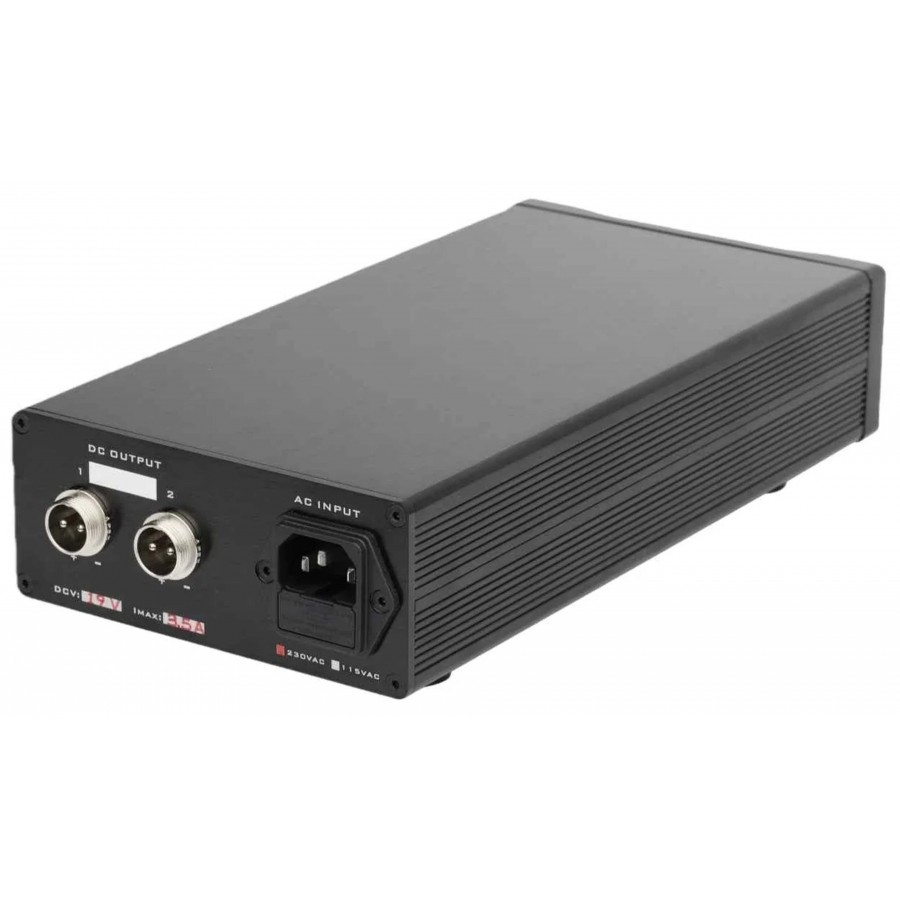

Overview of the LHY-AUDIO LPS-80 Dual Power Supply
| 1 | Power button |
| 2 | Display |
| 3 | DC outputs on GX16 connectors |
| 4 | 220-240V AC mains input |
Technical Specifications
| Specifications | |
|---|---|
| Product type | Power supply |
| Output voltages | 1x 5V DC 3A 1x 15V DC 3.5A |
| Outputs | 2x GX16 2-pin connectors |
| Regulation circuit | 4x LT3086 (80W) |
| Output voltage accuracy | ±2% |
| Load regulation | ±2% |
| No-load noise | < 50μV |
| Noise under load | < 50μV |
| Power supply rejection ratio (PSRR) | 80dB (120Hz) |
| Overcurrent protection | 105% to 130% |
| General | |
|---|---|
| Power supply | 220-240V AC 50/60Hz |
| Dimensions | 250 x 130 x 60mm |
| Weight | 2.1kg |
| Color | Black |

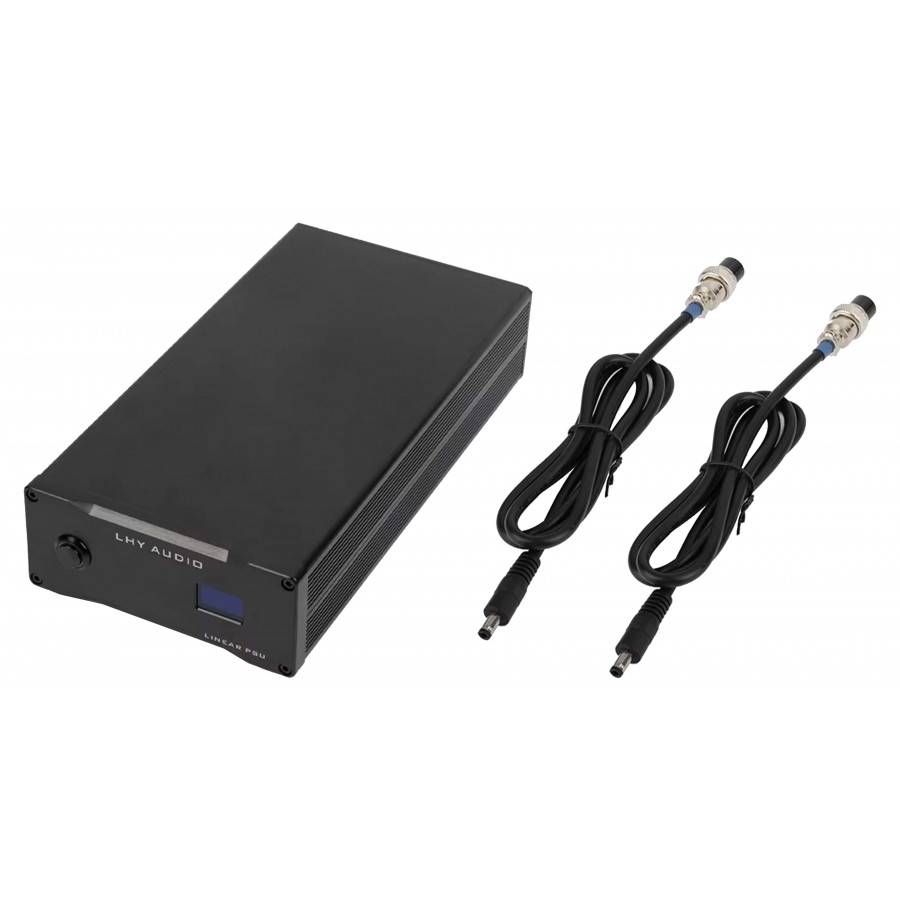

| Package contents | 1x LHY-Audio LPS-80 1x OFC Copper GX16 to DC jack 5.5/2.1 power cable 1x OFC Copper GX16 to DC jack 5.5/2.5 power cable 1x AC power cable |
| Input | IEC C14 |
| Output | GX16 |
| Color | Black |
| Output voltage (V) | 15.0 |
| Output voltage (V) | 5.0 |
| Output current (A) | 3.5 |
| Output current (A) | 3.0 |
| Input voltage (V) | 240.0 |
| Input voltage (V) | 220.0 |
| Power Supply | Regulated Linear Power Supply |
