BURSON AUDIO FUNK

Class A/B Integrated Amplifier NE5532 2x45W / 4 Ohm

BURSON AUDIO FUNK Class A/B Integrated Amplifier NE5532 2x45W / 4 Ohm

With the FUNK, Burson Audio unveils a compact but no less powerful class A/B amplifier. Burson's expertise has been used to design this amplifier, which is powered by the brand's proprietary "Max current" technology and delivers power of up to 2x 45W @ 4Ω. The sound that comes out of the FUNK amplifier is powerful, precise and rich in detail.

BURSON AUDIO FUNK Class A/B Integrated Amplifier NE5532 2x45W / 4 Ohm

A 3Wpc class A headphone amplifier

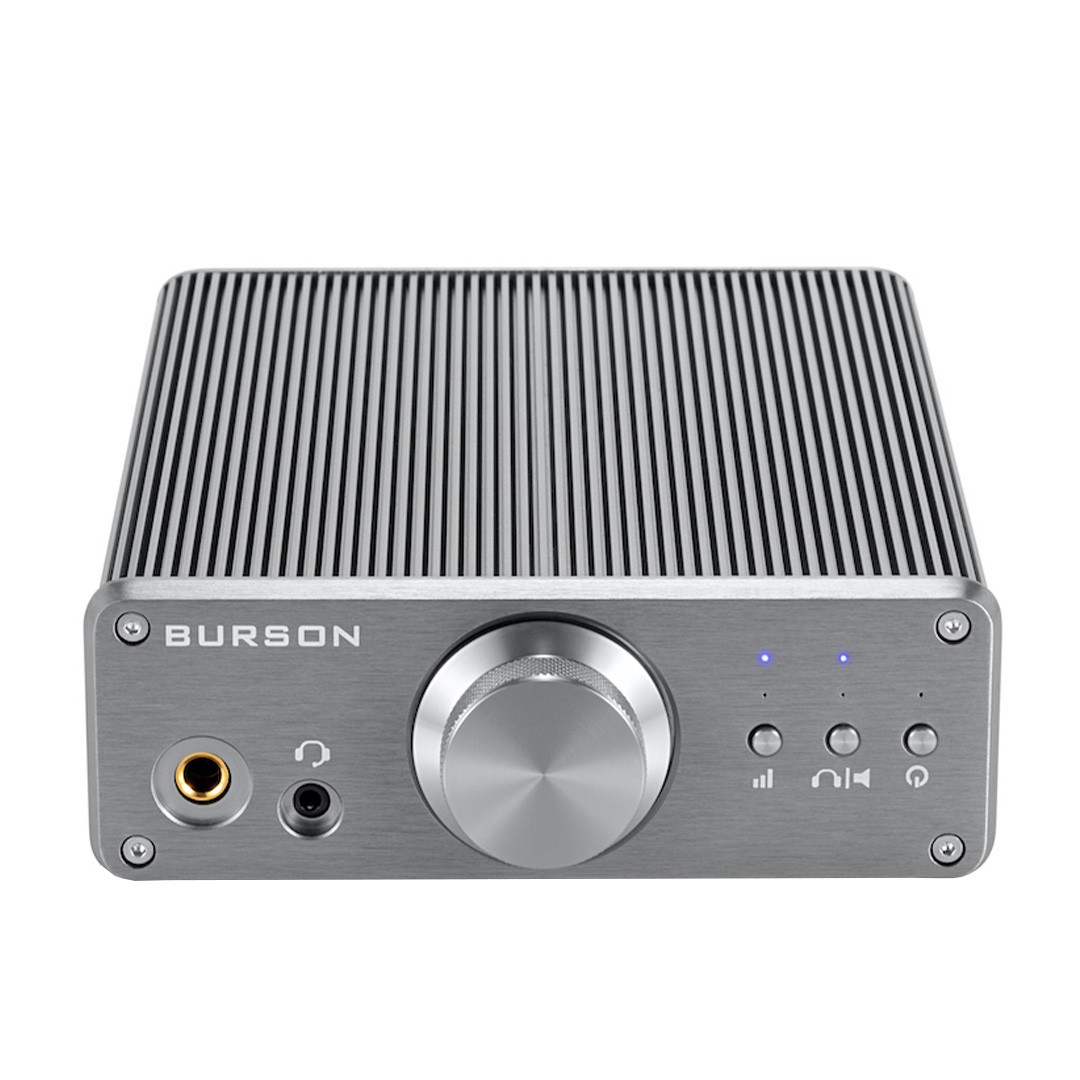

The two headphone outputs (6.35mm jack and 3.5mm jack) on the FUNK's front panel and its power capacity mean you can enjoy a wide range of headphone types. A 16Ω headphone will have an output power of 3.5W and a 300Ω headphone an output power of 150mW. The headphone amplification has a completely separate channel from the speaker channel and operates in Class A with discrete components. The Burson FUNK can, in a way, be considered as an improved Burson FUN.

BURSON AUDIO FUNK Class A/B Integrated Amplifier NE5532 2x45W / 4 Ohm
BURSON AUDIO FUNK Class A/B Integrated Amplifier NE5532 2x45W / 4 Ohm

MCPS" power supply technology

It's Burson's "Max current power supply" technology that allows the FUNK to have such a high power capacity in such a compact design. Thanks to this technology, Burson did not need to integrate a transformer or oversized power capacitors. The "Max current power supply" ensures that the output transistors are supplied with power directly and cleanly.

A high-performance amplifier stage

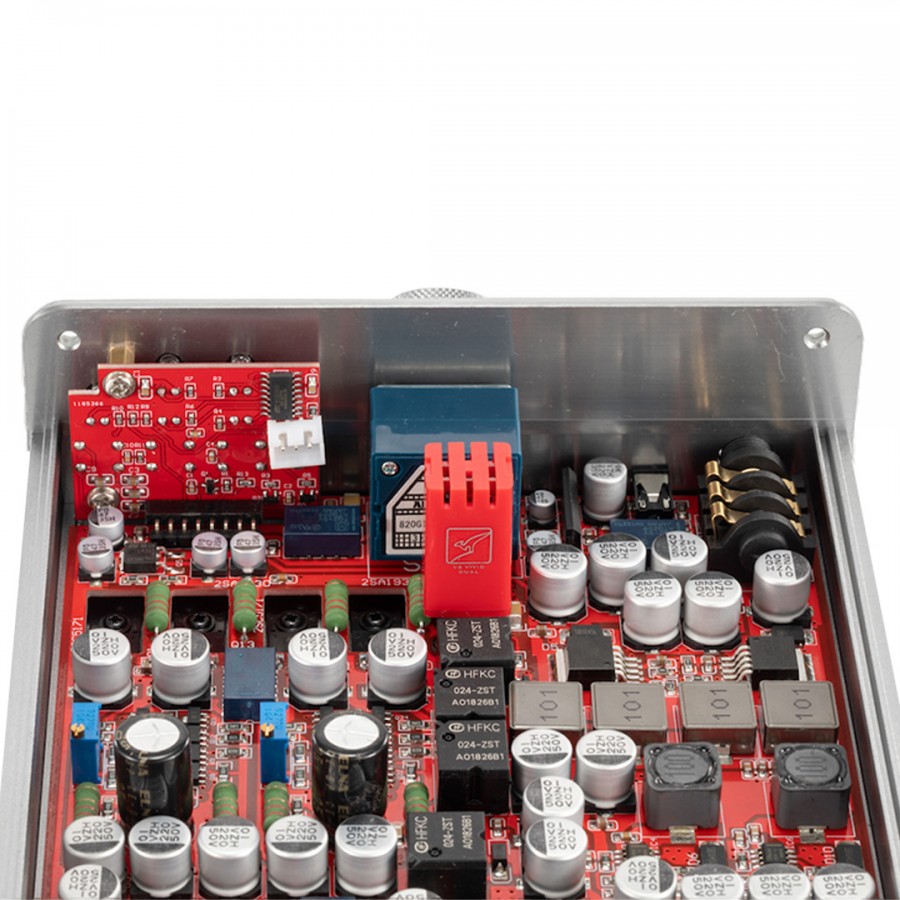

Burson Audio's FUNK incorporates two dual NE5532 OPAs with very low noise, low distortion and high slew rate.
DIP8 mounted, they are easily replaceable if you wish to integrate Burson Audio's own V6 VIVID or V6 CLASSIC AOPs, for example.

BURSON AUDIO FUNK Class A/B Integrated Amplifier NE5532 2x45W / 4 Ohm

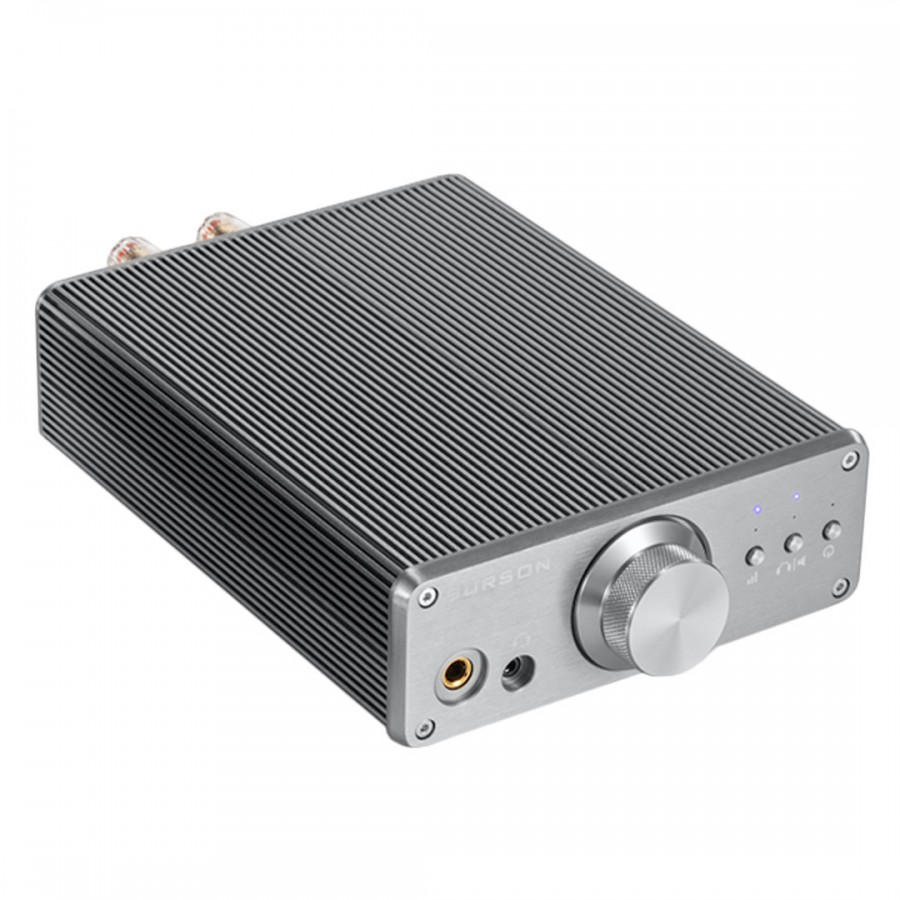

A stylish and useful aluminium enclosure

The Burson Audio FUNK enclosure, with its sober design, will be easy to integrate into your Hi-Fi system. Its design makes it the perfect choice to place on a desk, for example.
In addition, thanks to its casing, which acts as an integral heat dissipator to dissipate heat, that the FUNK can deliver so much power without overheating.

BURSON AUDIO FUNK Class A/B Integrated Amplifier NE5532 2x45W / 4 Ohm

Techical characteristics

Specifications
Product typeClass AB integrated amplifier / Class A discrete headphone amplifier

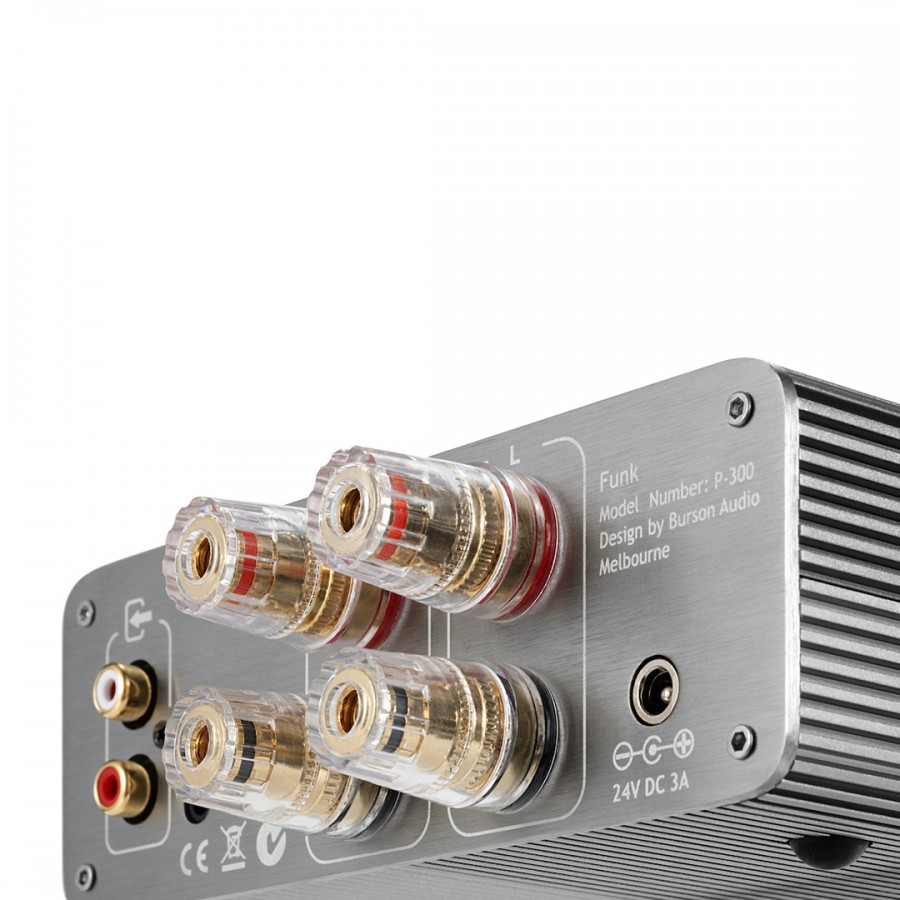

Input1x Stereo RCA
Outputs1x Speaker terminals

1x 3.5mm headphone output
1x 6.35mm headphone output
Output power2x 45W @ 4Ω
2x 35W @ 8Ω
SNR 92.5db
Separation 98.50%
Input inpedance38KOhm
Fréquency response± 1 dB 0 – 35Khz
THD<0.03%
OPANE5532
HEADPHONE AMPLIFIER PERFORMANCE
Output power3.5W @ 16Ω (SNR 96db)
2.5W @ 32Ω (SNR 97db)
600mW @ 100Ω (SNR 98db)
400mW @ 150Ω (SNR 96db)
150mW @ 300Ω (SNR 95db)
Output impedance<2 Ohm
Gain2 levels available
General
Power supply24V DC 3A
ColorSilver
Dimensions190 x 150 x 60 mm
WeightApproximatively 3Kg
Package1x Burson Funk
1x Power supply 24V 3A
1x RCA cables

Data sheet
InputRCA
OutputSpeaker terminal
OutputJack 6.35mm
OutputJack 3.5mm
ColorSilver
Channel2 (Stereo)
ClassClass A / AB
Amplifier chipNE5532
Power (W)45.0
Remote ControlNo
