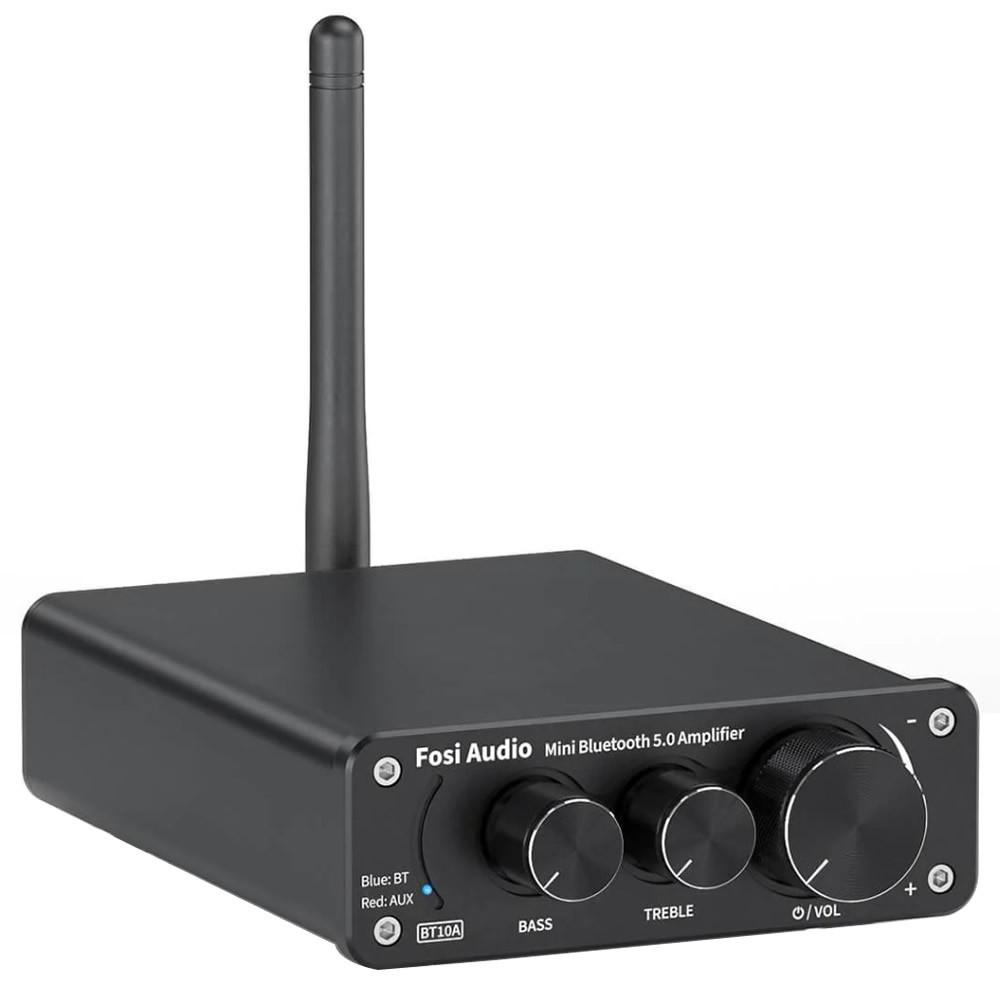

Fosi Audio BT10A

Class D amplifier 2x50W 4 Ohm - Bluetooth 5.0

Fosi Audio BT10A Amplificateur Class D

The Fosi Audio BT10A is a small, compact and powerful Class D amplifier, offered at a contained price. Its amplification stage uses a TI TPA3116D2 chip, capable of developing a power of 2x50W under 4Ω with a high efficiency, while providing a clear and detailed sound reproduction.

The BT10A is simple and efficient, with 3.5mm stereo jack and Bluetooth 5.0 as inputs and gold-plated speaker terminals as outputs.

The front panel of the BT10A features a tone control that allows you to adjust the bass and treble levels to suit your audio system and preferences.

A Bluetooh code may be required to connect to the amplifier, this is "0000" or "1234".

Technical specifications

Specifications
Type of productStereo amplifier
Type of amplificationClass D
Inputs1x Jack 3.5mm stereo
Bluetooth 5.0
OutputSpeaker terminals
Amplification chipTI TPA3116D2
Power2x 50W @ 4Ω, 24V, 1% THD
2x 30W @ 8Ω, 24V, 1% THD

2x 35W @ 4Ω, 19V, 1% THD
2x 20W @ 8Ω, 19V, 1% THD
Frequency response20Hz-20kHz (±1dB)
THD≤ 0.04%
SNR≥ 98dB
Input sensitivity280mV
Tone controlBass / Treble
General
Power supply voltage15 - 24VDC (AC adapter included)
Dimensions (L*P*H)130x100x30mm
Net weight650g
ColorBlack
Package1x Fosi Audio BT10A
1x Power supply 19V 4.7A

Data sheet
InputJack 3.5mm
InputBluetooth
OutputSpeaker terminal
ColorBlack
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTPA3116D2
Power (W)50.0
Remote ControlNo
