SMSL AO300 PRO Amplifier Headphone Amplifier DAC Silver
By buying this product you get 27 loyalty points
![[GRADE B] MATRIX ELEMENT P2 Power Amplifier Class D Stereo 2x230W / Mono 1x850W 4 Ohm](https://www.audiophonics.fr/62087-thumb_default/matrix-element-p2-power-amplifier-class-d-stereo-2x230w-mono-1x850w-4-ohm.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
SMSL AO300 Pro Class D Amplifier MA5332MS Headphone Amplifier DAC CS43131 2x165W 4Ω 32bit 768kHz DSD256 MQA Silver
With the AO300 Pro, SMSL unveils an improved version of its DAC, amplifier and headphone amplifier. Powerful and high-quality, it incorporates high-end components: a MA5332MS Class D amplifier chip, a CS43131 DAC chip and an XMOS XU316 USB interface. These components enable it to decode up to 32-bit 768kHz PCM, DSD up to DSD256 and MQA. In terms of amplification performance, the AO300 Pro is capable of delivering up to 2x165W into 4Ω and 2x85W into 8Ω with a THD+N of only 0.003%. Versatile, it features a comprehensive and varied range of connections and incorporates a Bluetooth 5.3 receiver, an HDMI eARC input port and a subwoofer output for a more immersive 2.1-channel experience. A balanced 4.4mm headphone output and a 6.35mm headphone output are also located on the front panel.
Des composants High-end pour des performances élevées
MA5332MS amplification chip
The MA5332MS is a Class D stereo amplifier chip. This MCM (multi-chip module) solution integrates 4 MOSFET transistors. It enables the A0300 to deliver power up to 2x165W under 4Ω and 2x85W under 8Ω.
CS43131 DAC chip
The Cirrus Logic CS43131 chip is a DAC chip integrating a low-noise, high-fidelity headphone amplifier. In fact, this chip is capable of driving audiophile headphones with an impedance of 600Ω and an output power of 5mW per channel. With a 32Ω load, it delivers 32mW per channel.
XMOS XU316 USB interface
The AO300's USB-C input is complemented by XMOS's flagship XU316 interface. This enables it to support high-resolution audio streams up to PCM 32bit 768kHz and DSD up to DSD256.
SMSL AO300 Pro: Bluetooth 5.3 functionality
The AO300 Pro features a Bluetooth 5.3 receiver chip and supports high-resolution aptX HD and LDAC codecs. This allows you to easily enjoy audio sources such as your smartphone for remote use.
SMSL AO300 Pro: HDMI eARC and subwoofer output
For the AO300 Pro model, SMSL has included an HDMI eARC input, allowing volume control and synchronised power-up with a CEC-compatible television. In addition, there is a subwoofer output to transform your Hi-Fi system into a 2.1-channel system and achieve immersive sound with an active subwoofer. The AO300 Pro from SMSL can therefore serve as a small home cinema amplifier.
SMSL AO300 Pro: MQA
The AO300 Pro's Toslink and coaxial optical inputs support MQA and MQA-CD (Master Quality Authenticated) streams thanks to an MQA decoder, allowing you to enjoy the richest and most detailed sound reproduction possible. This amplifier/DAC therefore offers the possibility of enjoying professional audio quality with a reproduction that is as close as possible to the original sound recorded and processed in the studio.
SMSL AO300 Pro: Remote control
The AO300 comes with a remote control offering a full range of functions. It includes the basic play/pause/previous/next functions, volume control, and access to the menu and source selection.

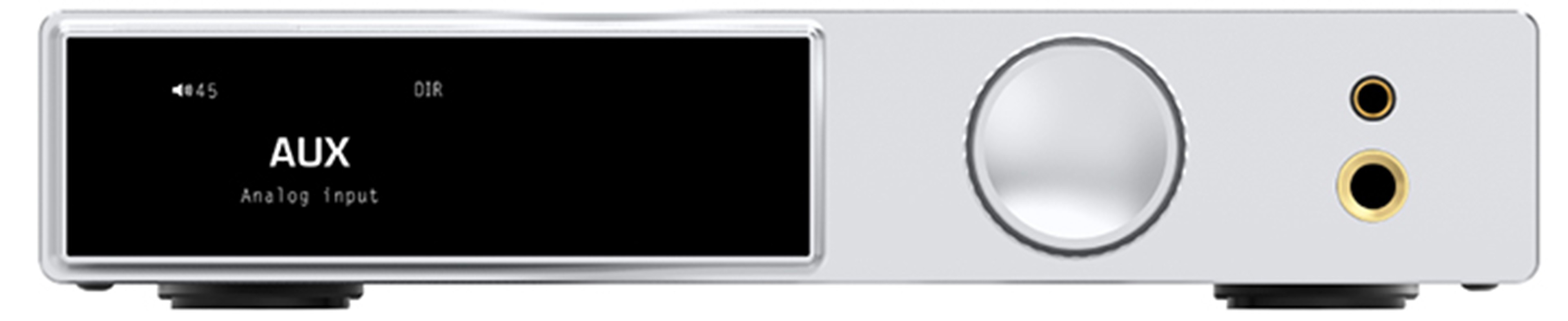

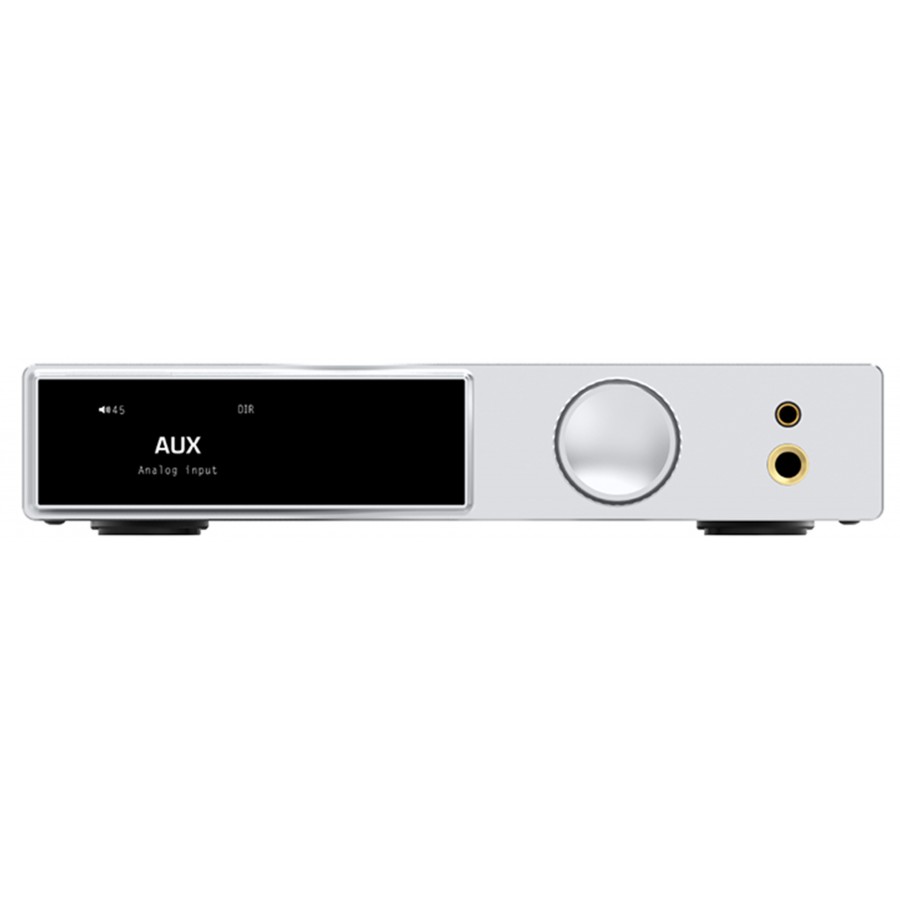

Presentation of the SMSL AO300 Pro
| 1 | Screen |
| 2 | Volume knob |
| 3 | 6.35mm headphone jack output |
| 4 | Balanced headphone output 4.4mm jack |
| 5 | RCA stereo input |
| 6 | Coaxial input |
| 7 | Bluetooth antenna connector |
| 8 | Toslink optical input |
| 9 | Power button |
| 10 | Subwoofer output |
| 11 | USB-C input |
| 12 | HDMI eARC input |
| 13 | Speaker terminals |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Amplifier DAC Headphone amplifier |
| DAC chip | CS43131 |
| Amplifier chip | MA5332MS |
| USB interface | XMOS XU316 |
| Inputs | 1x Stereo RCA line input 1x Coaxial SPDIF input 1x Toslink optical input 1x USB-C input 1x HDMI eARC input Bluetooth |
| Outputs | Speaker terminals 1x Subwoofer output 1x 4.4mm balanced headphone jack output 1x Single-ended 6.35mm headphone output |
| Output power | 2x 165W @ 4Ω 2x 85W @ 8Ω |
| Total harmonique distorsion more noise (THD+N) | 0.003% |
| Signal-to-noise ratio (SNR) | 107dB |
| Channel separation | 98dB |
| Input sensitivity / Input impedance | 280mV / 22kΩ |
| USB transmission type | USB 2.0 Asynchrone |
| USB compatibility | Windows 7/8/9/10/11 Mac OSX Linux |
| Supported sampling rates | USB : PCM 32bit 768kHz, DSD256 et MQA Optique / Coaxial : PCM 24bit 192kHz, DSD64 (DoP) and MQA-CD |
| General | |
|---|---|
| Power consumption | 40W (with normal volume) |
| Dimensions | 219 x 42 x 185mm |
| Weight | 1.5kg |
| Color | Silver |
| Package | 1x SMSL AO300 Pro 1x Remote control 1x Power cable 1x USB-A to USB-C cable 1x HDMI cable 1x Bluetooth antenna |
| Input | HDMI eARC |
| Input | USB |
| Input | SPDIF |
| Input | Bluetooth |
| Input | RCA |
| Input | Optical |
| Output | Jack 6.35mm |
| Output | Jack 4.4mm |
| Output | Speaker terminal |
| Output | Subwoofer |
| DAC / ADC Chip | CS43131 |
| Max sampling rate | DSD256 |
| Max sampling rate | MQA |
| Max sampling rate | 768kHz |
| Color | Silver |
| Channel | 2.1 |
| Class | Class D / T |
| Amplifier chip | Infineon MA5332M |
| Power (W) | 165.0 |
| Networking | No |
| Remote Control | Yes |
