SUCA AUDIO 1002P Class D Amplifier TPA3221 Phono 2x80W 4 Ohm
By buying this product you get 7 loyalty points

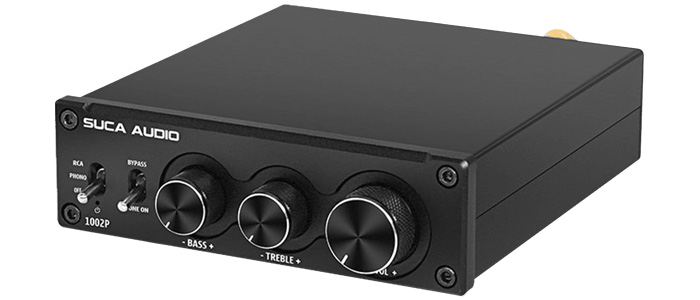

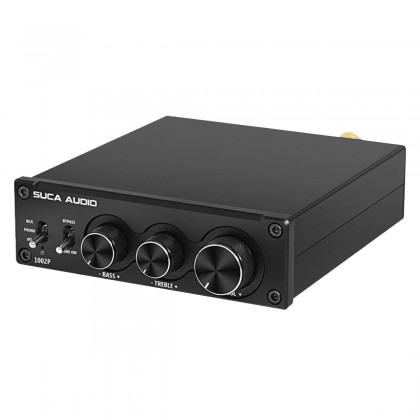

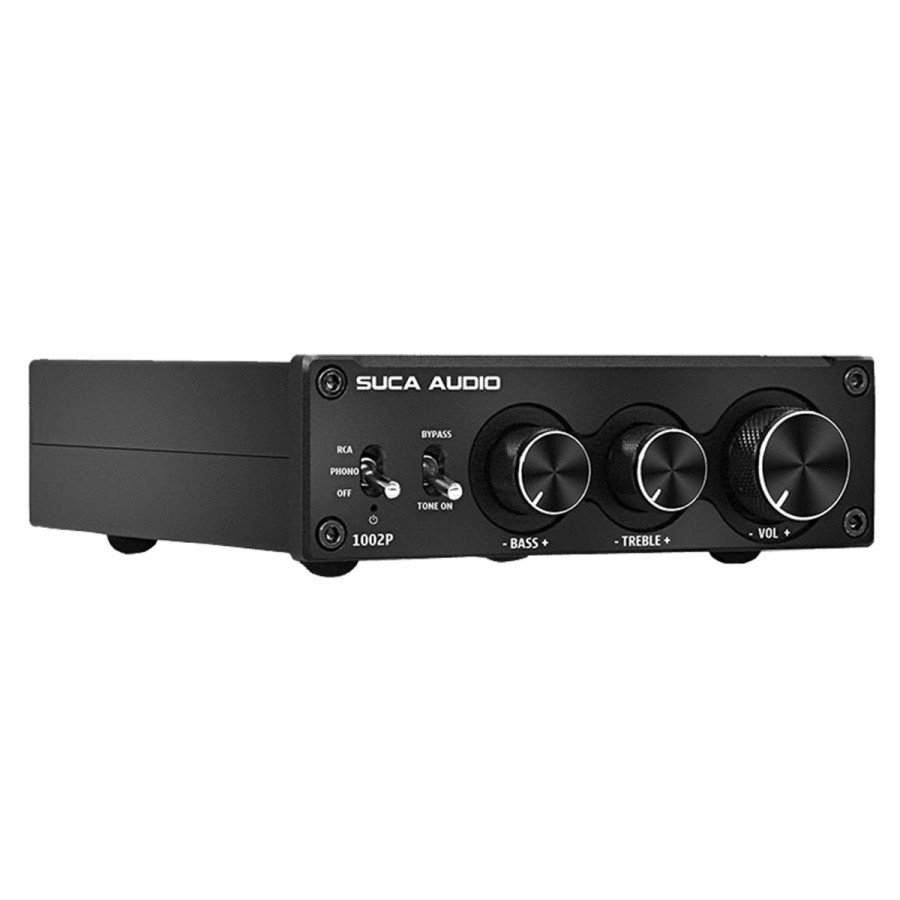

Suca Audio 1002P
Class D Amplifier TPA3221 Phono 2x80W 4Ω

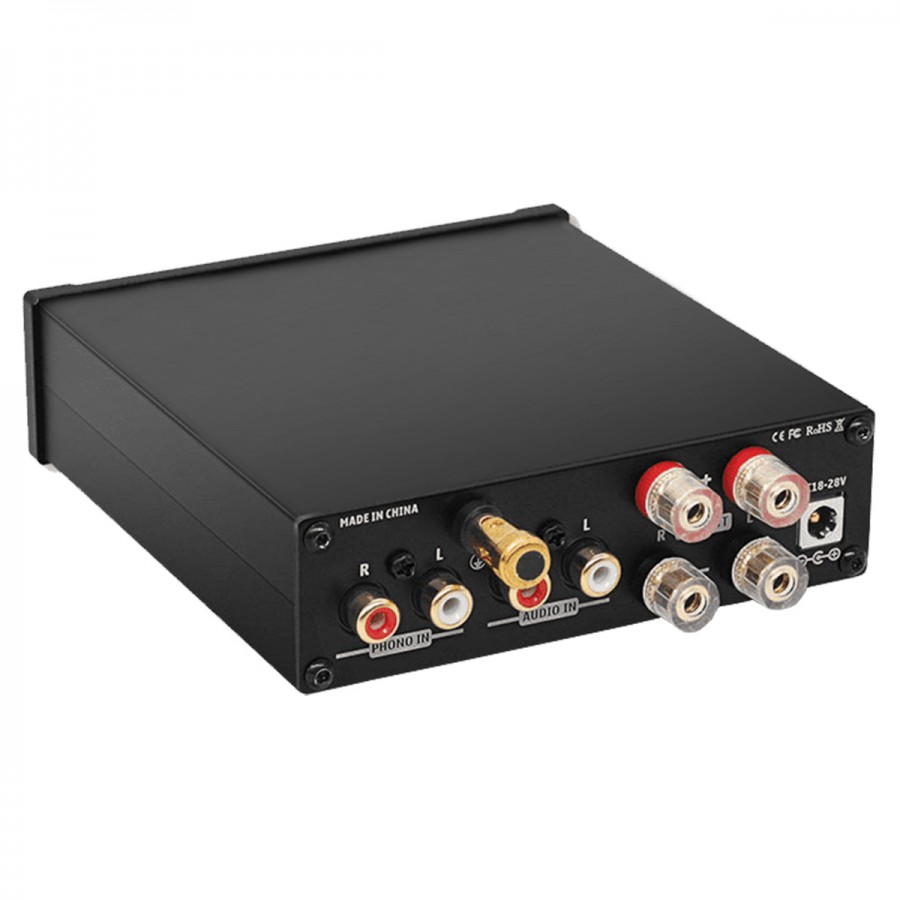

The Suca Audio 1002P is a compact and efficient Class D amplifier offering a very good performance/price ratio. Its amplifier stage is indeed equipped with a TPA3221 chip allowing it to develop a power of 2x80W under 4Ω. It also offers a double input with stereo RCA and a phono input with grounding terminal to connect a turntable with MM cell. The output is done on standard speaker terminals.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Amplifier |
| Amplifier type | Class D |
| Amplification chip | TPA3221 |
| Inputs | 1x Stereo RCA 1x MM Phono input (RCA) |
| Output | Speaker terminals |
| Output power | 2*80W @ 4Ω |
| Frequency response | 20Hz-20kHz (+1dB) |
| Bass/Treble adjustment | +6dB |
| Sensitivity | 0.775V |
| SNR | 98dB |
| THD | 0.1% |
| General | |
|---|---|
| Supply voltage | 18-28VDC (power supply included) |
| Dimensions | 118*118*36mm |
| Weight | 460g |
| Color | Black |
| Input | RCA |
| Output | Speaker terminal |
| Color | Black |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | TPA3221 |
| Power (W) | 80.0 |
